CSCI 3110 Lab 3: Inheritance and STL - Implementing SortedList and Derived Product Classes | Lab Reports Data Structures and Algorithms

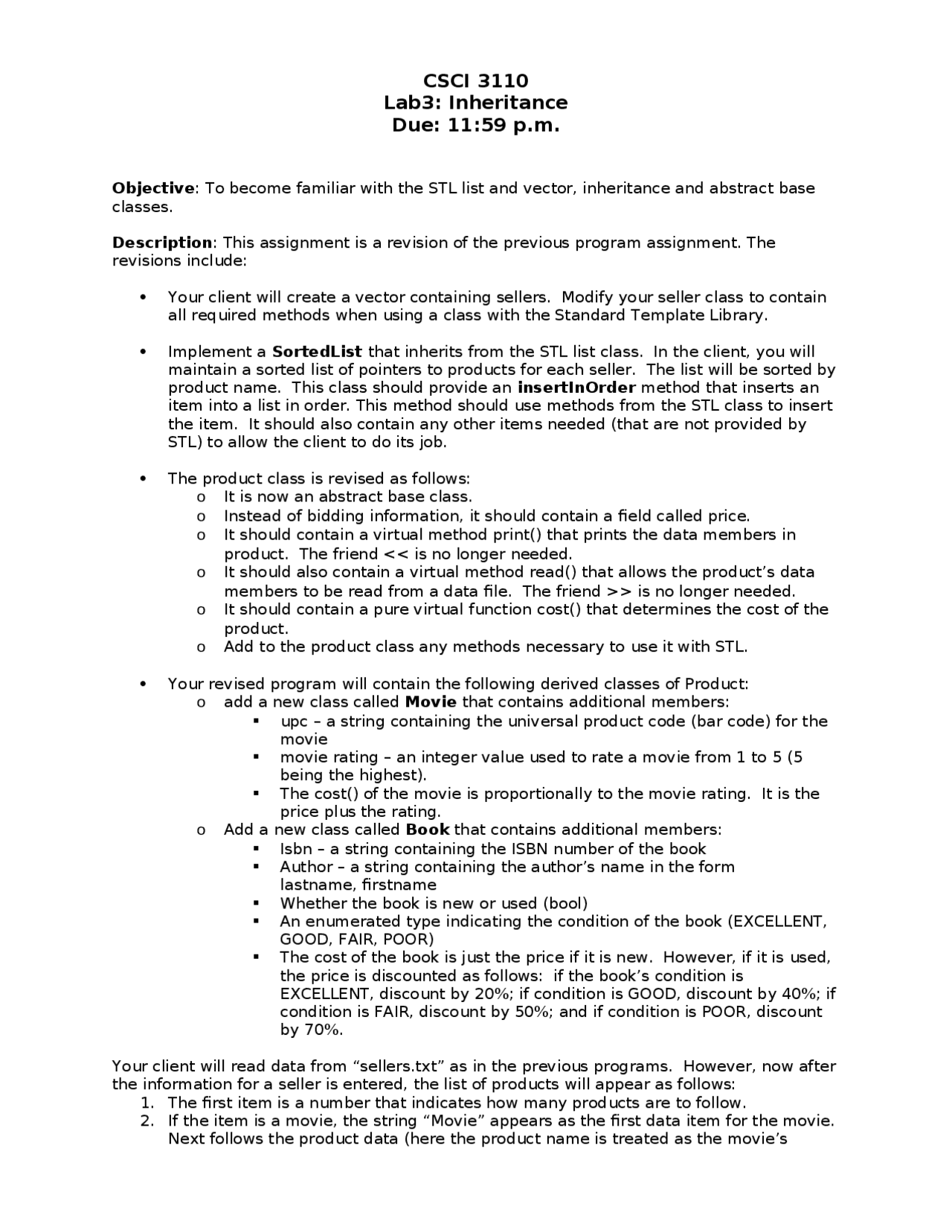

CSCI 3110

Lab3: Inheritance

Due: 11:59 p.m.

Objective: To become familiar with the STL list and vector, inheritance and abstract base

classes.

Description: This assignment is a revision of the previous program assignment. The

revisions include:

Your client will create a vector containing sellers. Modify your seller class to contain

all required methods when using a class with the Standard Template Library.

Implement a SortedList that inherits from the STL list class. In the client, you will

maintain a sorted list of pointers to products for each seller. The list will be sorted by

product name. This class should provide an insertInOrder method that inserts an

item into a list in order. This method should use methods from the STL class to insert

the item. It should also contain any other items needed (that are not provided by

STL) to allow the client to do its job.

The product class is revised as follows:

oIt is now an abstract base class.

oInstead of bidding information, it should contain a field called price.

oIt should contain a virtual method print() that prints the data members in

product. The friend << is no longer needed.

oIt should also contain a virtual method read() that allows the product’s data

members to be read from a data file. The friend >> is no longer needed.

oIt should contain a pure virtual function cost() that determines the cost of the

product.

oAdd to the product class any methods necessary to use it with STL.

Your revised program will contain the following derived classes of Product:

oadd a new class called Movie that contains additional members:

upc – a string containing the universal product code (bar code) for the

movie

movie rating – an integer value used to rate a movie from 1 to 5 (5

being the highest).

The cost() of the movie is proportionally to the movie rating. It is the

price plus the rating.

oAdd a new class called Book that contains additional members:

Isbn – a string containing the ISBN number of the book

Author – a string containing the author’s name in the form

lastname, firstname

Whether the book is new or used (bool)

An enumerated type indicating the condition of the book (EXCELLENT,

GOOD, FAIR, POOR)

The cost of the book is just the price if it is new. However, if it is used,

the price is discounted as follows: if the book’s condition is

EXCELLENT, discount by 20%; if condition is GOOD, discount by 40%; if

condition is FAIR, discount by 50%; and if condition is POOR, discount

by 70%.

Your client will read data from “sellers.txt” as in the previous programs. However, now after

the information for a seller is entered, the list of products will appear as follows:

1. The first item is a number that indicates how many products are to follow.

2. If the item is a movie, the string “Movie” appears as the first data item for the movie.

Next follows the product data (here the product name is treated as the movie’s

Partial preview of the text

Download CSCI 3110 Lab 3: Inheritance and STL - Implementing SortedList and Derived Product Classes and more Lab Reports Data Structures and Algorithms in PDF only on Docsity!

CSCI 3110

Lab3: Inheritance

Due: 11:59 p.m.

Objective : To become familiar with the STL list and vector, inheritance and abstract base classes. Description : This assignment is a revision of the previous program assignment. The revisions include:  Your client will create a vector containing sellers. Modify your seller class to contain all required methods when using a class with the Standard Template Library.  Implement a SortedList that inherits from the STL list class. In the client, you will maintain a sorted list of pointers to products for each seller. The list will be sorted by product name. This class should provide an insertInOrder method that inserts an item into a list in order. This method should use methods from the STL class to insert the item. It should also contain any other items needed (that are not provided by STL) to allow the client to do its job.  The product class is revised as follows: o It is now an abstract base class. o Instead of bidding information, it should contain a field called price. o It should contain a virtual method print() that prints the data members in product. The friend << is no longer needed. o It should also contain a virtual method read() that allows the product’s data members to be read from a data file. The friend >> is no longer needed. o It should contain a pure virtual function cost() that determines the cost of the product. o Add to the product class any methods necessary to use it with STL.  Your revised program will contain the following derived classes of Product: o add a new class called Movie that contains additional members:  upc – a string containing the universal product code (bar code) for the movie  movie rating – an integer value used to rate a movie from 1 to 5 ( being the highest).  The cost() of the movie is proportionally to the movie rating. It is the price plus the rating. o Add a new class called Book that contains additional members:  Isbn – a string containing the ISBN number of the book  Author – a string containing the author’s name in the form lastname, firstname  Whether the book is new or used (bool)  An enumerated type indicating the condition of the book (EXCELLENT, GOOD, FAIR, POOR)  The cost of the book is just the price if it is new. However, if it is used, the price is discounted as follows: if the book’s condition is EXCELLENT, discount by 20%; if condition is GOOD, discount by 40%; if condition is FAIR, discount by 50%; and if condition is POOR, discount by 70%. Your client will read data from “sellers.txt” as in the previous programs. However, now after the information for a seller is entered, the list of products will appear as follows:

The first item is a number that indicates how many products are to follow.
If the item is a movie, the string “Movie” appears as the first data item for the movie. Next follows the product data (here the product name is treated as the movie’s

name). The name is followed by the price. Next will be a string for the movie’s UPC, then an integer for the movie’s rating.

If the item is a book, the string “Book” appears as the first data item for the book. Next follows the product data (here the product name is treated as the book’s title). The name is followed by the price. Next will be a string for the ISBN number, then the author, then a string “New” or a string “Used”, then an integer 1 (meaning POOR) or 2 (meaning FAIR) and so on. While the client is reading all of the data from the data file into a vector of sellers, dynamic binding should be used to determine the correct read() method to be used. After all sellers have been read, sort the vector of sellers by name using the vector’s sort method. Next the client should respond to a menu as follows: do { Print a menu "1. Print all sellers;
Find a seller
Print a seller’s books
Print a seller’s movies
Print all products sold by a particular seller
Find a product sold by a seller
Quit"; Input choice; Branch on choice:
call printSellers;
call findSeller;
call printBooks;
call printMovies;
call printProducts;
call findProduct;
done = true; Otherwise: print "Invalid command"; End branch; }while (not done) Write list of sellers to a new file newSellers.txt (use exactly the same form as in “sellers.txt” The functions printSellers and findSeller should have the same functionality as previous labs. The function printProducts should print the products of a particular seller. It should ask for the seller and after finding the seller, it should print all of the products sold by this seller. All data for a given product (including the cost) should be displayed with appropriate labels. This function should make use of dynamic binding to determine the correct print() method to use and to determine the correct cost() function. The functions printBooks and printMovies should print all information (including the cost) about books/movies from all sellers. You will need some method to determine whether a book is pointed to or a movie. The findProduct method should find a product sold by a particular seller. It should ask for the seller. Next, it should find a product by entering a portion of the title. It should print all “products” that contain that substring in the title (name). Dynamic binding should be used to correctly print each product. Use the string class’s substring method to determine whether the portion of the title is contained in the title.
