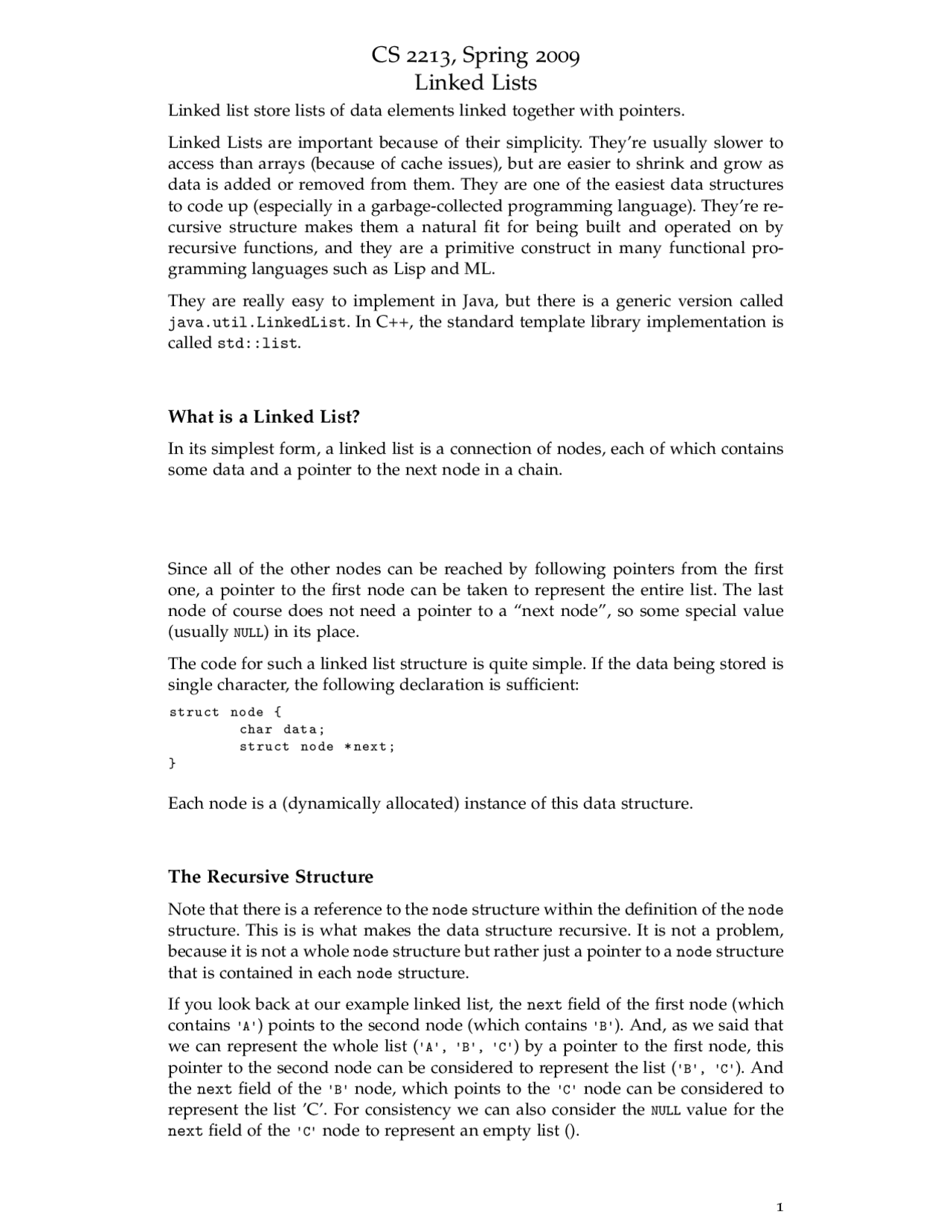

CS 2213, Spring 2009
Linked Lists
Linked list store lists of data elements linked together with pointers.
Linked Lists are important because of their simplicity. They’re usually slower to
access than arrays (because of cache issues), but are easier to shrink and grow as
data is added or removed from them. They are one of the easiest data structures
to code up (especially in a garbage-collected programming language). They’re re-
cursive structure makes them a natural fit for being built and operated on by
recursive functions, and they are a primitive construct in many functional pro-
gramming languages such as Lisp and ML.
They are really easy to implement in Java, but there is a generic version called
java.util.LinkedList. In C++, the standard template library implementation is
called std::list.
What is a Linked List?
In its simplest form, a linked list is a connection of nodes, each of which contains
some data and a pointer to the next node in a chain.
Since all of the other nodes can be reached by following pointers from the first
one, a pointer to the first node can be taken to represent the entire list. The last
node of course does not need a pointer to a “next node”, so some special value
(usually NULL) in its place.
The code for such a linked list structure is quite simple. If the data being stored is
single character, the following declaration is sufficient:
st ru ct no de {
char data;
st r uc t no de *n ex t ;
}
Each node is a (dynamically allocated) instance of this data structure.
The Recursive Structure
Note that there is a reference to the node structure within the definition of the node
structure. This is is what makes the data structure recursive. It is not a problem,
because it is not a whole node structure but rather just a pointer to a node structure
that is contained in each node structure.
If you look back at our example linked list, the next field of the first node (which
contains 'A') points to the second node (which contains 'B'). And, as we said that
we can represent the whole list ('A','B','C') by a pointer to the first node, this
pointer to the second node can be considered to represent the list ('B','C'). And
the next field of the 'B'node, which points to the 'C'node can be considered to
represent the list ’C’. For consistency we can also consider the NULL value for the
next field of the 'C'node to represent an empty list ().
1
pf3
pf4
pf5

Partial preview of the text

Download Linked Lists: A Simple and Flexible Data Structure - Prof. Jeffery Von Ronne and more Study notes Computer Science in PDF only on Docsity!

CS 2213 , Spring 2009

Linked Lists

Linked list store lists of data elements linked together with pointers.

Linked Lists are important because of their simplicity. They’re usually slower to

access than arrays (because of cache issues), but are easier to shrink and grow as

data is added or removed from them. They are one of the easiest data structures

to code up (especially in a garbage-collected programming language). They’re re-

cursive structure makes them a natural fit for being built and operated on by

recursive functions, and they are a primitive construct in many functional pro-

gramming languages such as Lisp and ML.

They are really easy to implement in Java, but there is a generic version called

java.util.LinkedList. In C++, the standard template library implementation is

called std::list.

What is a Linked List?

In its simplest form, a linked list is a connection of nodes, each of which contains

some data and a pointer to the next node in a chain.

Since all of the other nodes can be reached by following pointers from the first

one, a pointer to the first node can be taken to represent the entire list. The last

node of course does not need a pointer to a “next node”, so some special value

(usually NULL) in its place.

The code for such a linked list structure is quite simple. If the data being stored is

single character, the following declaration is sufficient:

struct node { char data ; struct node * next ; }

Each node is a (dynamically allocated) instance of this data structure.

The Recursive Structure

Note that there is a reference to the node structure within the definition of the node

structure. This is is what makes the data structure recursive. It is not a problem,

because it is not a whole node structure but rather just a pointer to a node structure

that is contained in each node structure.

If you look back at our example linked list, the next field of the first node (which

contains 'A') points to the second node (which contains 'B'). And, as we said that

we can represent the whole list ('A', 'B', 'C') by a pointer to the first node, this

pointer to the second node can be considered to represent the list ('B', 'C'). And

the next field of the 'B' node, which points to the 'C' node can be considered to

represent the list ’C’. For consistency we can also consider the NULL value for the

next field of the 'C' node to represent an empty list ().

In this way, every list can be considered to be either NULL, or Node containing the

data for the first element and a pointer to a sublist containing the rest of the list.

ML and Lisp lists are constructed and deconstructed in exactly this manner, and

the operations provided are:

  • construct a new list by adding a new element to the front of an old list:

struct node * cons ( char first , struct node * rest ) { struct node * linked_list ; linked_list = malloc ( sizeof ( struct node )); linked_list - > data = first ; linked_list - > next = rest ; }

  • access the first data element of a list:

char first ( struct node * linked_list ) { return linked_list - > data ; }

  • access the rest of the list

struct node * rest ( struct node linked_list ) { return old_list - > next ; }

Iterating over the elements of the list can be done pretty easily with something

like:

struct node * node_ptr = linked_list ; while (( node_ptr = node_ptr - > next ) != NULL ) { sum += node_ptr - > data }

You can also gets the same effect with a recursive function:

int sum ( struct node * linked_list ) { return linked_list - > data + sum ( linked_list - > next ); }

This is a minimal linked list. You can add a next field to any structure, and ini-

tialize it to point to another instance of the same structure, and so on, eventually

terminating in a NULL pointer and you have a linked list. The basic operations

are so simple that they’re often embedded directly in the code (or provided as

language primitives in Lisp and ML).

Comparison to Dynamic Arrays

Dynamic arrays support random access (e.g., what is the nth element?) in con-

stant time, whereas linked lists require iteration over n nodes to get to the nth. In

addition, on modern computers, dynamic arrays are much more cache friendly, so

iteration will be much faster over dynamic arrays.

On the other hand, linked lists are more flexible, one can generally insert or delete

an element in the middle or end of a linked list (assuming one has a pointer/itera-

tor to it) in constant time. In addition, linked lists are generally easier to implement

especially in language that have garbage collection but not realloc (e.g., Java).

inserting a node

1. malloc space for a struct node

2. initialize the data to be stored in the node

3. link the node’s next and prev links to its neighbors (NULL if it is at the

beginning or end)

4. link the preceding neighbor’s next link to the node (use the list’s first link

instead, if the node is being inserted at the beginning of the list)

5. link the succeeding neighbor’s prev link to the node (use the list’s last link

instead, if the node is being inserted at the end of the list)

removing a node

1. connect the preceding neighbor’s next link to the succeeding neighbor (use

the list’s first link instead, if the node is being removed from the beginning

of the list)

2. connect the succeeding neighbor’s prev link to the preceding neighbor (use

the list’s last link instead, if the node is being removed from the end of the

list)

3. deallocate the node

In a singly linked list without last links, it is, of course, unnecessary to update the

previous/last links. It is still, however, necessary to update the preceding neigh-

bor’s next link. Unfortunately, in a singly-linked list, there is no way, given just

a pointer to a node to get access to the preceding neighbor. So although a singly-

linked list is itself simpler, the code for looping over its nodes and acting upon

them is often more complex, since it may needs to be able to access both the

“preceding” and “current” node.

In general, linked lists operations often need special cases if the node being ma-

nipulated is the first or last in the list, or if the list is or is becoming empty. So

when writing linked-list operations pay special attention (e.g., think through and

imagine or draw diagrams) to what should happen in each of those cases. Some-

times special cases in the code can be eliminated by either using a pointer to the

previous node’s next pointer in place of a pointer to a node, or by adding extra

dummy ‘sentinel’ nodes at the beginning and end of the linked list.

An Example Removal of Matching Nodes from Singly- and

Doubly-Linked Lists

For example, if one wants to remove all node whose data equals x, for a doubly-

linked list (pointed to by the variable ll), the code might look like:

struct node * p = ll - > first ;

// iterate over the nodes while ( p != NULL ) { // if the node matches x , delete the node if (p - > data == x ) { struct node * n = p ; p = p - > next ;

// connect predecessor to its new successor if (n - > prev != NULL ) n - > prev - > next = n - > next ; else

ll - > first = n - > next ;

// connect successor to its new predecessor if (n - > next != NULL ) n - > next - > prev = n - > prev ; else ll - > last = n - > prev ;

// delete the node free ( n ); } else { p = p - > next ; } }

While for a singly-linked list, it might look like:

struct node *p , * n ;

while ( ll - > first != NULL && ll - > first - > data == x ) { n = ll - > first ; ll - > first = n - > next ; free ( n ); }

p = ll - > first ; // iterate over the nodes p - > next , and find those which match x while ( p != NULL && p - > next != NULL ) { struct node * n = p - > next ;

if (n - > data == x ) { // connect the predecessor to its new successor p - > next = n - > next ;

// update the last link , if necessary if (n - > next == NULL ) ll - > last = p ;

// deallocate the memory for the node free ( n ); } else { p = p - > next ; } }
