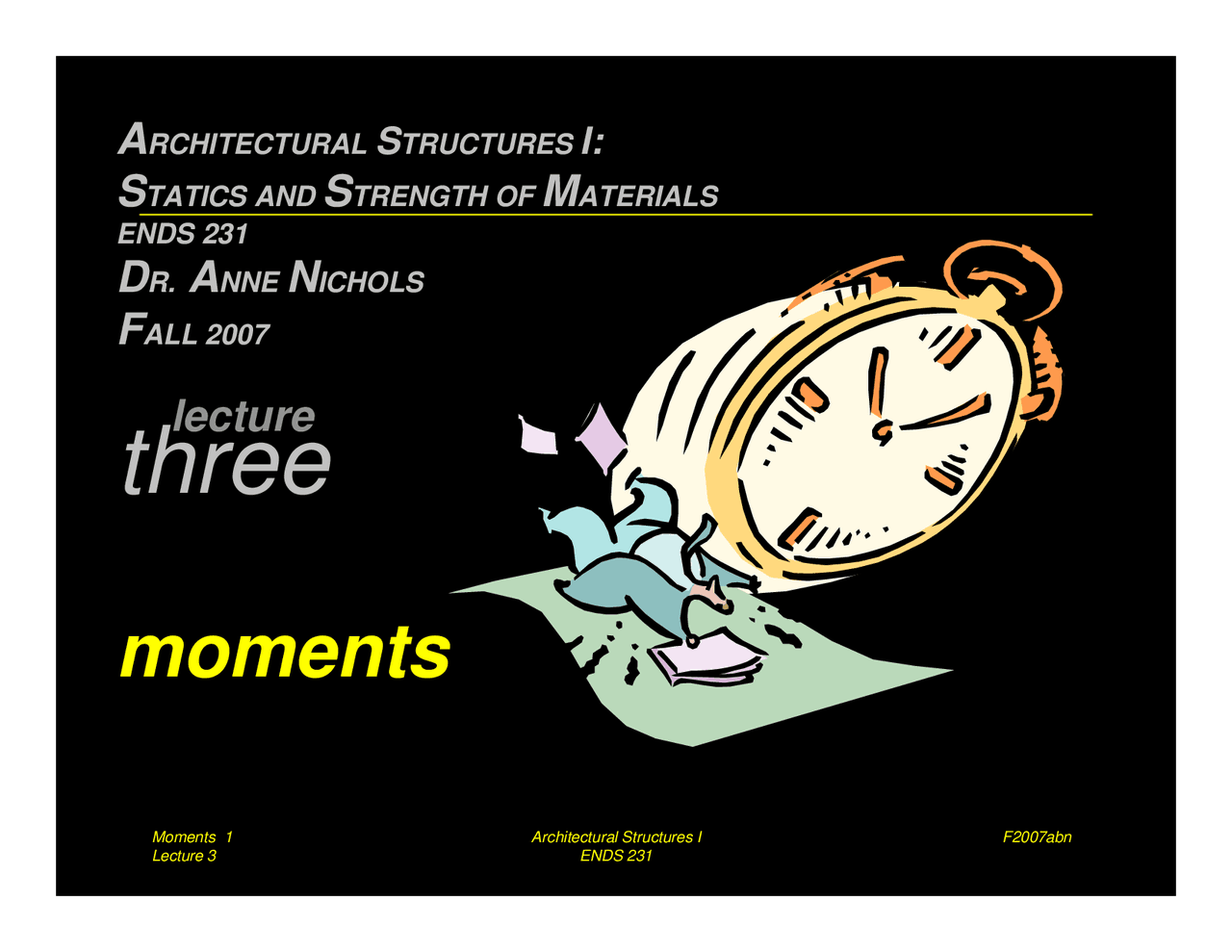

Moments 1
Lecture 3 Architectural Structures I
ENDS 231 F2007abn
ARCHITECTURAL STRUCTURES I:
STATICS AND STRENGTH OF MATERIALS
ENDS 231
DR. ANNE NICHOLS
FALL 2007
three
moments
lecture
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Notes on Moments |Architecture Structure | ENDS 231, Study notes of Environmental Science
Material Type: Notes; Professor: Nichols; Subject: ENVIRONMENTAL DESIGN; University: Texas A&M University; Term: Unknown 1989;
Typology: Study notes
Pre 2010
1 / 18
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Notes on Moments |Architecture Structure | ENDS 231 and more Study notes Environmental Science in PDF only on Docsity!
Moments 1Lecture 3 Architectural Structures I
ENDS 231
A
RCHITECTURAL
S
TRUCTURES
I:
S
TATICS AND
S
TRENGTH OF
M
ATERIALS
ENDS 231D
R.
A
NNE
N
ICHOLS
F
ALL 2007
three moments
lecture
Moments 2Lecture 3 Architectural Structures I
ENDS 231
Moments • forces have the tendency to make abody rotate about an axis
same translation but different rotation
Moments 4Lecture 3 Architectural Structures I
ENDS 231
Moments • a force acting at a different point causesa different moment: ≠
Moments 5Lecture 3 Architectural Structures I
ENDS 231
Moments • defined by magnitude and direction
units: N ⋅ m, k ⋅ ft - direction: + ccw (right hand rule)- cw - value found from Fand ⊥ distance - d also called “lever” or “moment” arm F A C B d F M ⋅ = d
Moments 7Lecture 3 Architectural Structures I
ENDS 231
Moments • additive with sign convention
can still move the force along the line of action
M
A
= F ⋅d M
B
= F ⋅d ′ d F B A d ′ M
A
= F ⋅d M
B
= F ⋅d ′ d F B A d ′
Moments 8Lecture 3 Architectural Structures I
ENDS 231
Moments • Varignon’s Theorem
resolve a force into components at a pointand finding perpendicular distances - calculate sum of moments - equivalent to original moment - makes life easier! - geometry - when component runs through point, d=
Moments 10Lecture 3 Architectural Structures I
ENDS 231
Physics and Moments of a Force • my Physics book:
Moments 11Lecture 3 Architectural Structures I
ENDS 231
2 forces - same size - opposite direction - distance d apart - cw or ccw - not dependant on point of application Moment Couples d F A d
d
F 2 1 d F d F M ⋅ − ⋅ = d F M ⋅ =
Moments 13Lecture 3 Architectural Structures I
ENDS 231
Moment Couples • added just like moments caused by oneforce
can replace two couples with a singlecouple + = 100 mm 300 N 300 N 150 mm 200 N 200 N 250 mm 240 N 240 N
Moments 14Lecture 3 Architectural Structures I
ENDS 231
Moment Couples • moment couples in structures
Moments 16Lecture 3 Architectural Structures I
ENDS 231
single force causing a moment can bereplaced by the same force at adifferent point by providing the momentthat force caused - moments are shown as arched arrows Force-Moment Systems
-F
F
F
d
A
A
F
A
A
Moments 17Lecture 3 Architectural Structures I
ENDS 231
Force-Moment Systems • a force-moment pair can be replaced bya force at another point causing theoriginal moment
