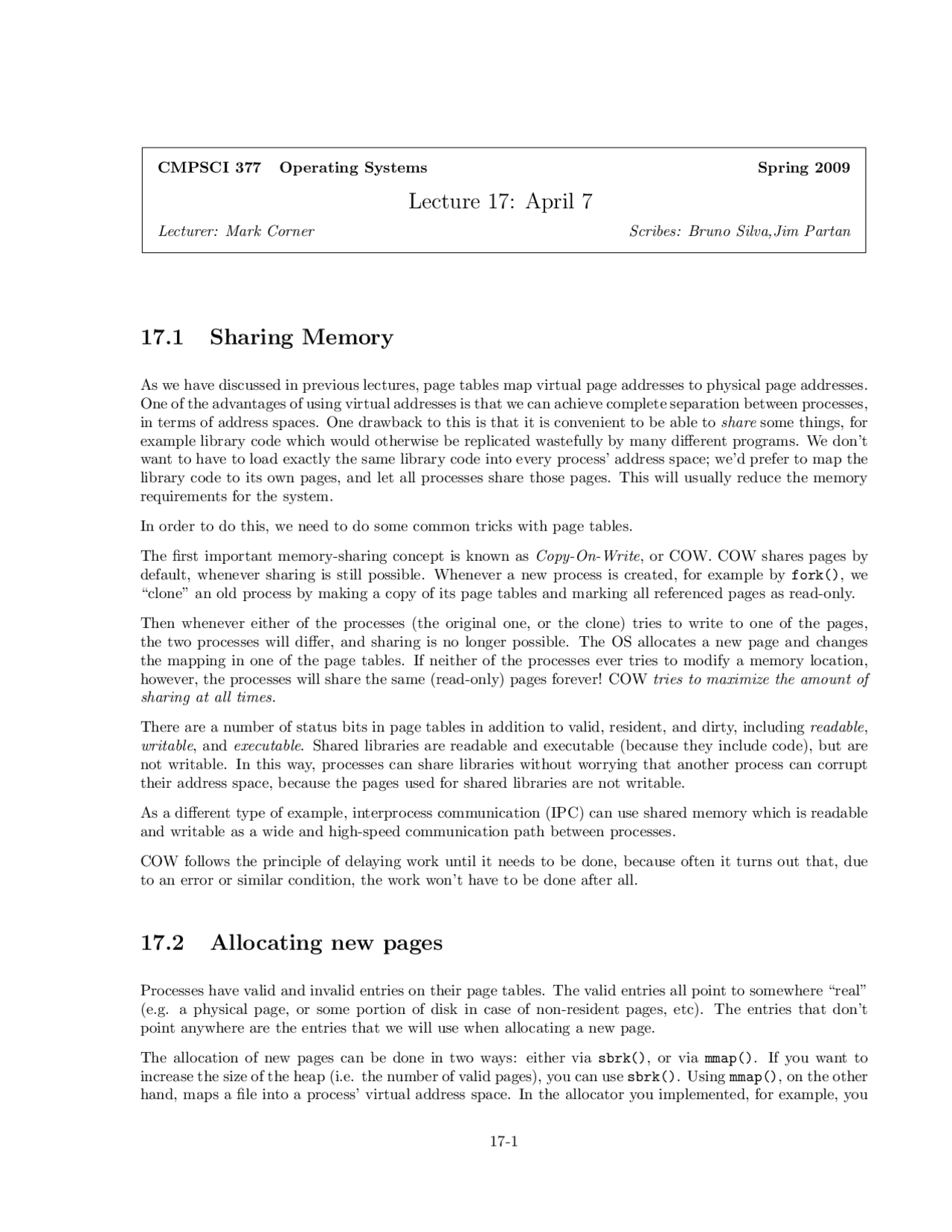

CMPSCI 377 Operating Systems Spring 2009
Lecture 17: April 7
Lecturer: Mark Corner Scribes: Bruno Silva,Jim Partan
17.1 Sharing Memory
As we have discussed in previous lectures, page tables map virtual page addresses to physical page addresses.
One of the advantages of using virtual addresses is that we can achieve complete separation between processes,
in terms of address spaces. One drawback to this is that it is convenient to be able to share some things, for
example library code which would otherwise be replicated wastefully by many different programs. We don’t
want to have to load exactly the same library code into every process’ address space; we’d prefer to map the
library code to its own pages, and let all processes share those pages. This will usually reduce the memory
requirements for the system.
In order to do this, we need to do some common tricks with page tables.
The first important memory-sharing concept is known as Copy-On-Write, or COW. COW shares pages by
default, whenever sharing is still possible. Whenever a new process is created, for example by fork(), we
“clone” an old process by making a copy of its page tables and marking all referenced pages as read-only.
Then whenever either of the processes (the original one, or the clone) tries to write to one of the pages,
the two processes will differ, and sharing is no longer possible. The OS allocates a new page and changes
the mapping in one of the page tables. If neither of the processes ever tries to modify a memory location,
however, the processes will share the same (read-only) pages forever! COW tries to maximize the amount of
sharing at all times.
There are a number of status bits in page tables in addition to valid, resident, and dirty, including readable,
writable, and executable. Shared libraries are readable and executable (because they include code), but are
not writable. In this way, processes can share libraries without worrying that another process can corrupt
their address space, because the pages used for shared libraries are not writable.
As a different type of example, interprocess communication (IPC) can use shared memory which is readable
and writable as a wide and high-speed communication path between processes.
COW follows the principle of delaying work until it needs to be done, because often it turns out that, due
to an error or similar condition, the work won’t have to be done after all.
17.2 Allocating new pages
Processes have valid and invalid entries on their page tables. The valid entries all point to somewhere “real”
(e.g. a physical page, or some portion of disk in case of non-resident pages, etc). The entries that don’t
point anywhere are the entries that we will use when allocating a new page.
The allocation of new pages can be done in two ways: either via sbrk(), or via mmap(). If you want to
increase the size of the heap (i.e. the number of valid pages), you can use sbrk(). Using mmap(), on the other
hand, maps a file into a process’ virtual address space. In the allocator you implemented, for example, you
17-1
