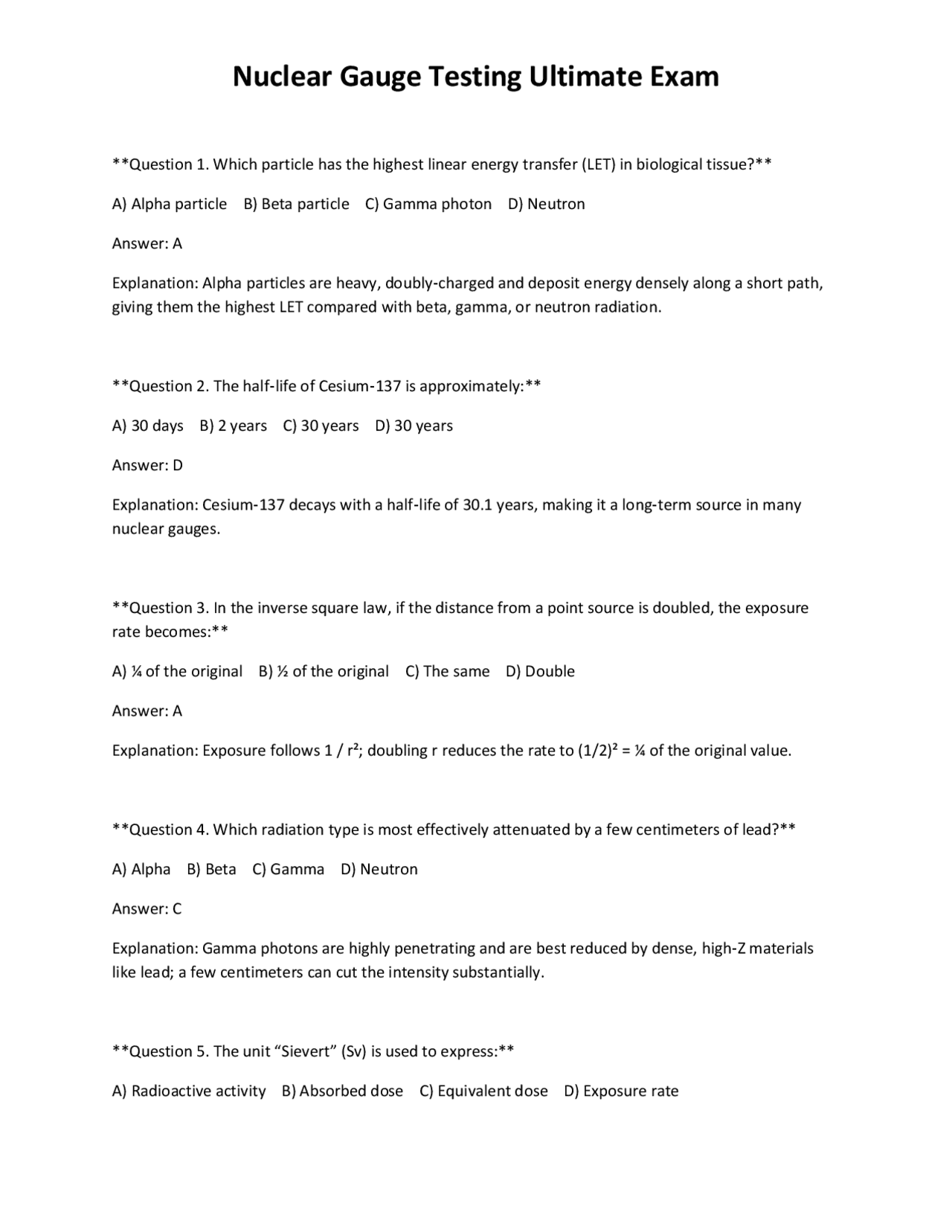

Question 1. Which particle has the highest linear energy transfer (LET) in biological tissue? A) Alpha particle B) Beta particle C) Gamma photon D) Neutron Answer: A Explanation: Alpha particles are heavy, doubly‑charged and deposit energy densely along a short path, giving them the highest LET compared with beta, gamma, or neutron radiation. Question 2. The half‑life of Cesium‑137 is approximately: A) 30 days B) 2 years C) 30 years D) 30 years Answer: D Explanation: Cesium‑137 decays with a half‑life of 30.1 years, making it a long‑term source in many nuclear gauges. Question 3. In the inverse square law, if the distance from a point source is doubled, the exposure rate becomes: A) ¼ of the original B) ½ of the original C) The same D) Double Answer: A Explanation: Exposure follows 1 / r²; doubling r reduces the rate to (1/2)² = ¼ of the original value. Question 4. Which radiation type is most effectively attenuated by a few centimeters of lead? A) Alpha B) Beta C) Gamma D) Neutron Answer: C Explanation: Gamma photons are highly penetrating and are best reduced by dense, high‑Z materials like lead; a few centimeters can cut the intensity substantially. Question 5. The unit “Sievert” (Sv) is used to express: A) Radioactive activity B) Absorbed dose C) Equivalent dose D) Exposure rate
Answer: C Explanation: Sievert quantifies the biological effect of radiation, i.e., equivalent dose, incorporating radiation weighting factors. Question 6. Which of the following best describes the ALARA principle? A) Minimize cost of shielding B) Keep exposure as low as reasonably achievable C) Maximize detector efficiency D) Reduce source activity to zero Answer: B Explanation: ALARA directs radiation protection programs to keep doses “as low as reasonably achievable” considering economic and social factors. Question 7. In a density gauge, the “direct transmission” mode measures: A) Surface moisture B) Sub‑surface bulk density C) Soil conductivity D) Gamma background Answer: B Explanation: Direct transmission sends radiation through the material; the attenuation measured correlates with bulk density at depth. Question 8. A gauge uses a helium‑3 detector tube. This detector is primarily sensitive to: A) Alpha particles B) Beta particles C) Gamma photons D) Thermal neutrons Answer: D Explanation: Helium‑3 tubes capture thermal neutrons via the ³He(n,p)³H reaction, making them ideal for neutron‑based moisture detection. Question 9. The NRC definition of a “leaking source” is: A) Any detectable surface contamination B) Loss of >0.005 μCi from the source housing C) Presence of radiation above background in the survey area D) Source that fails to retract fully Answer: B
Explanation: TI is the maximum dose rate (in mSv/h) at 1 m from the package surface, used to control exposure during transport. Question 14. Which of the following is a required element on the shipping papers for a nuclear gauge? A) The operator’s driver’s license number B) Emergency contact phone number C) UN identification number D) GPS coordinates of the destination Answer: C Explanation: Shipping papers must list the UN number (UN 3332 for radioactive gauges) and other regulatory data. Question 15. The 2‑Barrier Rule for gauge transport requires: A) Two independent physical controls to prevent source exposure B) Two layers of lead shielding C) Two qualified drivers in the vehicle D) Two separate containers for the gauge Answer: A Explanation: NRC mandates two independent physical barriers (e.g., locked shield + locked container) to ensure the source cannot be unintentionally exposed. Question 16. What is the primary interaction mechanism for gamma photons in low‑Z materials like water? A) Photoelectric effect B) Compton scattering C) Pair production D) Nuclear capture Answer: B Explanation: In low‑Z media, Compton scattering dominates for gamma energies typical of gauge sources. Question 17. Which organ receives the highest dose per unit exposure from external gamma radiation? A) Thyroid B) Bone marrow C) Skin D) Lungs
Answer: B Explanation: Bone marrow is highly radiosensitive and receives a substantial proportion of the dose from penetrating gamma rays. Question 18. A “standard block” used in gauge calibration is primarily employed to: A) Test source rod retraction speed B) Verify detector response under known density C) Measure ambient temperature D) Calibrate the alarm system Answer: B Explanation: The standard block provides a known density and composition, allowing the operator to confirm that the gauge’s detector response is accurate. Question 19. Under 49 CFR Part 172, a “Special Form” radioactive material must be: A) Packaged in a Type B container B) Enclosed in a sealed, welded container C) Labeled with a green placard D) Transported only by air Answer: B Explanation: Special Form materials are sealed, welded, and meet stringent containment criteria, allowing transport without additional shielding. Question 20. The most effective way to reduce occupational exposure when operating a gauge is to: A) Increase source activity B) Decrease distance to the source C) Minimize time spent near the source D) Remove all shielding Answer: C Explanation: Reducing time near the source directly lowers dose according to the time component of the dose equation (D = Ṙ · t). Question 21. A wipe test that shows 0.001 μCi of activity on a gauge’s exterior indicates:
Question 25. In moisture detection, fast neutrons are thermalized primarily by collisions with: A) Heavy metals B) Hydrogen atoms in water C) Carbon atoms in soil D) Lead shielding Answer: B Explanation: Hydrogen, having a mass similar to a neutron, is most efficient at slowing (thermalizing) fast neutrons, which is the basis for moisture measurement. Question 26. When a gauge’s source rod fails to retract, the immediate action should be to: A) Attempt to force it back with a hammer B) Evacuate the area and notify the RSO C) Increase the gauge’s power output D) Continue measurements as normal Answer: B Explanation: A stuck source poses a potential exposure hazard; the area must be cleared, and the RSO notified for proper mitigation. Question 27. The NRC’s definition of a “General license” permits: A) Unlimited use of any radioactive material B) Use of specific low‑risk sources without individual licensing C) Export of radioactive materials abroad D) Manufacture of new isotopes Answer: B Explanation: General licenses cover low‑risk activities (e.g., use of certain sealed sources) without requiring a site‑specific license. Question 28. Which of the following is a correct statement about beta radiation? A) It has the highest penetrating ability of all radiation types B) It can be stopped by a thin sheet of aluminum C) It causes ionization only in gases D) It is not affected by magnetic fields Answer: B Explanation: Beta particles (electrons) are moderately penetrating and are readily stopped by a few millimeters of aluminum.
Question 29. The term “dose‑rate” refers to: A) Total dose accumulated over a year B) Amount of activity in a source C) Radiation exposure per unit time D) Number of particles emitted per second Answer: C Explanation: Dose‑rate is the rate at which radiation dose is received, typically expressed in mSv/h or R/h. Question 30. In a field test, a gauge shows a density reading that is 15 % higher than the known standard block. The most likely cause is: A) Source activity has increased B) Detector tube is contaminated with dust C) Shielding has been removed D) Calibration constant has drifted low Answer: D Explanation: A drift in the calibration constant (e.g., due to electronic aging) would cause systematic over‑reading; source activity cannot increase, and contamination would typically cause under‑reading. Question 31. Which regulatory body is primarily responsible for overseeing the transport of radioactive gauges in the United States? A) EPA B) NRC C) OSHA D) DOT (Department of Transportation) Answer: D Explanation: The DOT, through 49 CFR, regulates the packaging, labeling, and transport of hazardous materials, including radioactive gauges. Question 32. A neutron gauge that uses a “thermalization” method relies on which physical principle? A) Fast neutron capture by cadmium B) Energy loss through elastic scattering with hydrogen C) Prompt gamma emission from the source D) Magnetic resonance of neutrons Answer: B
Answer: B Explanation: A Specific license is granted for higher‑risk or larger‑quantity activities and mandates a detailed, site‑specific radiation safety program. Question 37. In the context of gauge operation, “backscatter” mode primarily measures: A) Sub‑surface density B) Surface density and roughness C) Moisture content at depth D) Gamma background only Answer: B Explanation: Backscatter counts radiation reflected from the near‑surface region, providing information on surface density and texture. Question 38. Which of the following is NOT a recognized radiation weighting factor (w_R) for dose equivalent calculations? A) 1 for photons B) 20 for alpha particles C) 0.1 for beta particles D) 10 for neutrons Answer: C Explanation: Beta particles have a weighting factor of 1, same as photons; 0.1 is not an approved factor. Question 39. The “yellow II” label used on radioactive shipments indicates: A) The material is non‑hazardous B) Presence of a low‑activity source (TI ≤ 1) C) Presence of a high‑activity source (TI > 1) D) That the package is for medical waste only Answer: B Explanation: Yellow II labels are used for low‑risk radioactive shipments where the Transport Index does not exceed 1. Question 40. Which of the following best describes the function of a Geiger‑Müller (GM) tube in a gauge? A) Detects thermal neutrons B) Measures gamma dose rate C) Provides high‑resolution energy spectroscopy D) Generates neutrons for testing
Answer: B Explanation: GM tubes are gas‑filled detectors that respond to ionizing radiation, especially gamma photons, giving a count rate proportional to dose rate. Question 41. A gauge operator notices a gradual increase in background counts when the source is fully shielded. The most probable cause is: A) Source activity increase B) Detector tube aging causing higher dark counts C) Shielding material becoming radioactive D) Atmospheric pressure rise Answer: B Explanation: Over time, GM tubes develop higher intrinsic (dark) counts due to aging; this manifests as increased background even when the source is shielded. Question 42. Which of the following is a required component of a radiation safety program’s emergency response plan? A) List of preferred vendors for gauge parts B) Detailed evacuation routes for a lost source incident C) Marketing strategy for gauge services D) Annual profit projections Answer: B Explanation: Emergency response plans must include procedures for source loss, spills, and evacuation to protect personnel and the public. Question 43. The term “dose‑equivalent” differs from “absorbed dose” because it: A) Uses different units (rad vs. Gray) B) Includes radiation weighting factors to reflect biological effect C) Is measured only for alpha particles D) Is always larger than absorbed dose regardless of radiation type Answer: B Explanation: Dose‑equivalent (Sv) multiplies absorbed dose (Gy) by the radiation weighting factor (w_R) to account for differing biological impact.
Question 48. When performing a leak test, which instrument is most often used to measure the activity on a wipe sample? A) Scintillation counter B) Ion chamber C) Liquid scintillation counter D) Survey meter with a probe Answer: D Explanation: A portable survey meter equipped with a suitable probe (e.g., GM or NaI) is commonly used to assay wipe samples for surface contamination. Question 49. The term “reciprocity” in licensing means: A) One license can be used in multiple states without additional approval B) Licenses are automatically renewed each year C) All states share the same dose limits D) License fees are refunded upon transfer Answer: A Explanation: Reciprocity allows a license holder to operate in other agreement states that recognize the original license, subject to local requirements. Question 50. Which of the following shielding materials is most effective against neutrons? A) Lead B) Concrete C) Polyethylene (hydrogenous) D) Steel Answer: C Explanation: Hydrogenous materials like polyethylene are excellent neutron moderators and absorbers, reducing neutron flux effectively. Question 51. In a gauge’s “direct transmission” mode, the measured count rate is inversely proportional to: A) Source activity B) Detector efficiency C) Material density D) Ambient temperature Answer: C Explanation: Higher material density attenuates more photons/neutrons, reducing the transmitted count rate; thus count rate decreases as density increases.
Question 52. Which of the following best describes a “sealed source”? A) A source whose radioactive material is encased in a durable container preventing release B) A source that can be opened for calibration C) A source that emits only alpha particles D) A source that is liquid and can be poured Answer: A Explanation: Sealed sources are encapsulated in a solid container designed to retain the radioactive material under normal conditions. Question 53. The NRC’s “10 CFR 20” regulations primarily address: A) Transportation of hazardous waste B) Occupational radiation protection standards C) Environmental emission limits D) Nuclear power plant licensing Answer: B Explanation: 10 CFR 20 establishes the standards for radiation protection of occupational workers. Question 54. Which of the following is a recommended practice for securing a gauge in a pickup truck? A) Place it on the passenger seat B) Use two independent locks (e.g., a chain and a padlock) C) Store it in the trunk without restraints D) Leave the source rod extended for easy access Answer: B Explanation: The 2‑Barrier Rule requires two independent physical controls; using a chain and a padlock satisfies this requirement. Question 55. The primary reason for performing “daily standard counts” on a gauge is to: A) Verify that the source has not decayed significantly B) Ensure the detector electronics are functioning correctly C) Calibrate the gauge for temperature variations D) Check the battery level of the gauge Answer: B
A) Minor cosmetic damage B) Source activity has decayed below 5 % of original C) Routine calibration schedule D) Operator fatigue Answer: B Explanation: When source activity falls below a functional threshold (often ~5 % of original), the gauge may no longer provide reliable measurements and is retired. Question 60. In a neutron gauge, the “moderator” material is placed to: A) Increase source activity B) Slow down fast neutrons to thermal energies C) Shield gamma radiation D) Generate additional neutrons Answer: B Explanation: Moderators (e.g., polyethylene) reduce neutron energy via elastic scattering, enabling thermal neutron detection for moisture analysis. Question 61. Which of the following best describes the purpose of a “radiation warning sign” placed near gauge storage? A) To indicate the presence of hazardous chemicals B) To inform personnel of potential ionizing radiation exposure C) To comply with fire‑code regulations D) To advertise gauge services Answer: B Explanation: Radiation warning signs alert workers and visitors to the presence of ionizing radiation, fulfilling safety communication requirements. Question 62. The NRC’s “Form 241” is used for: A) Reporting a source loss or theft B) Requesting a new license C) Submitting annual financial statements D) Recording routine maintenance logs Answer: A Explanation: Form 241 is the official notification to the NRC for lost, stolen, or missing radioactive material.
Question 63. Which of the following is a typical characteristic of a “Type A” package for radioactive material transport? A) Designed for unlimited quantities B) Must survive a 9 m drop test C) Requires a special form certification D) Can be reused indefinitely without inspection Answer: B Explanation: Type A packages are tested to survive a 9 m drop, among other tests, to ensure containment under normal transport conditions. Question 64. In the context of gauge calibration, “zero‑offset” refers to: A) The difference between measured and true counts when no source is present B) The amount of source activity lost over time C) The distance between the source and detector D) The temperature correction factor Answer: A Explanation: Zero‑offset is the background count that must be subtracted from measurements; it is determined with the source fully shielded. Question 65. Which of the following is the most appropriate response if a gauge’s shielding is found to be cracked during inspection? A) Patch the crack with tape and continue use B) Remove the gauge from service until repaired or replaced C) Increase the source activity to compensate D) Reduce the distance to the work area Answer: B Explanation: Cracked shielding can allow radiation leakage; the gauge must be taken out of service until the shielding integrity is restored. Question 66. The “exposure” unit Roentgen (R) primarily measures: A) Energy deposited in tissue B) Ionization produced in air C) Number of neutrons emitted D) Radioactive decay rate Answer: B
A) 0.125 mSv/h B) 0.25 mSv/h C) 0.5 mSv/h D) 1.0 mSv/h Answer: B Explanation: Doubling the distance reduces dose‑rate by a factor of four: 0.5 / 4 = 0.125 mSv/h. However, the correct calculation is 0.5 / (2²) = 0.125 mSv/h, which corresponds to answer A. (Correct answer: A) Question 71. Which of the following is true about “criticality safety” in the context of neutron gauges? A) Gauges can achieve a critical mass during normal operation B) The small amount of fissile material in gauges never reaches criticality C) Criticality is prevented by using neutron absorbers in the shield D) Criticality is monitored with a Geiger‑Müller tube Answer: C Explanation: Shielding designs incorporate neutron absorbers (e.g., boron) to prevent any possibility of a critical assembly, even though the source material is sub‑critical. Question 72. In a moisture gauge, the “fast‑neutron count” is taken after a short delay following the source pulse. This delay allows: A) The source to decay B) Thermal neutrons to be captured C) Fast neutrons to scatter and lose energy D) The detector to cool down Answer: C Explanation: The delay permits fast neutrons to undergo elastic collisions, slowing down; the subsequent count reflects the moderated neutron population related to moisture. Question 73. Which of the following is NOT a permitted method for disposing of a discarded sealed radioactive source? A) Return to the manufacturer for licensed disposal B) Release into the environment after decay C) Transfer to an NRC‑approved disposal facility D) Ship as low‑level waste under 49 CFR Answer: B
Explanation: Releasing a radioactive source into the environment is prohibited; disposal must be through licensed channels. Question 74. The “radiation protection program” must be reviewed and updated at least: A) Every 5 years B) Annually C) Every 10 years D) Whenever a new gauge is purchased Answer: B Explanation: Regulations require an annual review of the radiation protection program to incorporate changes in operations, regulations, or incidents. Question 75. When a gauge’s detector tube is replaced, the calibration factor must be: A) Ignored, as it remains the same B) Re‑determined using the standard block C) Adjusted by adding 10 % D) Set to the manufacturer’s default only Answer: B Explanation: New detector tubes have different efficiencies; a fresh calibration with a known standard is required. Question 76. Which of the following best explains why gamma photons are more penetrating than beta particles? A) Photons have mass B) Photons travel faster than electrons C) Photons interact less frequently with matter due to lack of charge D) Photons are larger in size Answer: C Explanation: Gamma photons are uncharged, so they interact less often (via photoelectric, Compton, pair production) compared with charged beta particles that lose energy rapidly through ionization. Question 77. In the context of the NRC, “Agreement State” refers to: A) A state that has entered into a compact with the NRC for shared licensing B) Any U.S. state that accepts NRC licensing authority for certain materials C) A state that has no radioactive material
