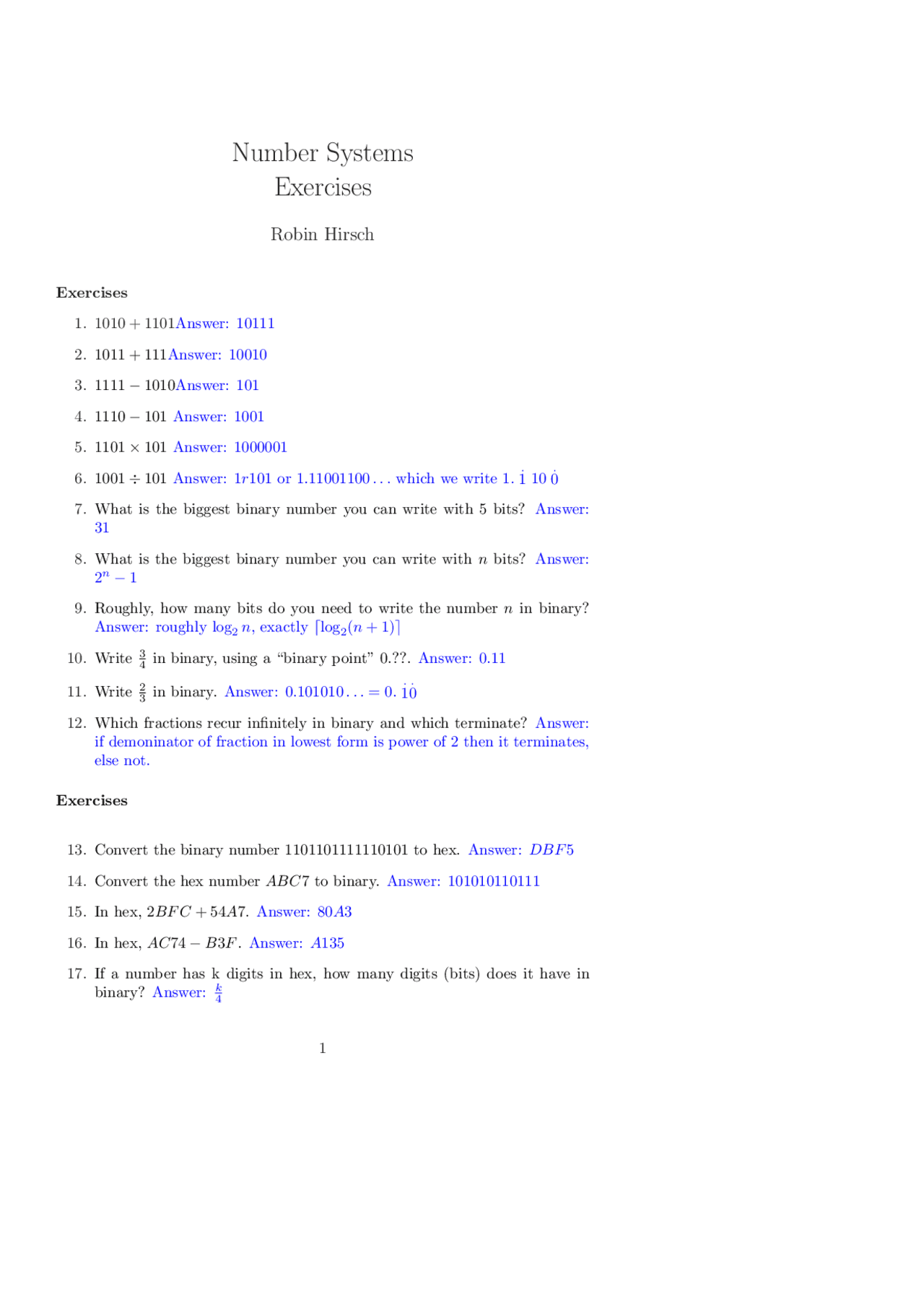

Number Systems
Exercises
Robin Hirsch
Exercises
1. 1010 + 1101Answer: 10111
2. 1011 + 111Answer: 10010
3. 1111 −1010Answer: 101
4. 1110 −101 Answer: 1001
5. 1101 ×101 Answer: 1000001
6. 1001 ÷101 Answer: 1r101 or 1.11001100 ... which we write 1.
.
110
.
0
7. What is the biggest binary number you can write with 5 bits? Answer:
31
8. What is the biggest binary number you can write with nbits? Answer:
2n−1
9. Roughly, how many bits do you need to write the number nin binary?
Answer: roughly log2n, exactly ⌈log2(n+ 1)⌉
10. Write 3
4in binary, using a “binary point” 0.??. Answer: 0.11
11. Write 2
3in binary. Answer: 0.101010 ... = 0.
.
1
.
0
12. Which fractions recur infinitely in binary and which terminate? Answer:
if demoninator of fraction in lowest form is power of 2 then it terminates,
else not.
Exercises
13. Convert the binary number 1101101111110101 to hex. Answer: DBF 5
14. Convert the hex number ABC 7 to binary. Answer: 101010110111
15. In hex, 2BF C + 54A7. Answer: 80A3
16. In hex, AC74 −B3F.Answer: A135
17. If a number has k digits in hex, how many digits (bits) does it have in
binary? Answer: k
4
1
pf3

Partial preview of the text

Download Number Systems Exercises: Binary and Hexadecimal Arithmetics and more Lecture notes Number Theory in PDF only on Docsity!

Number Systems

Exercises

Robin Hirsch

Exercises

  1. 1010 + 1101Answer: 10111
  2. 1011 + 111Answer: 10010
  3. 1111 − 1010 Answer: 101
  4. 1110 − 101 Answer: 1001
  5. 1101 × 101 Answer: 1000001
  6. 1001 ÷ 101 Answer: 1r101 or 1. 11001100... which we write 1.

. 1 10^

. 0

  1. What is the biggest binary number you can write with 5 bits? Answer: 31
  2. What is the biggest binary number you can write with n bits? Answer: 2 n^ − 1
  3. Roughly, how many bits do you need to write the number n in binary? Answer: roughly log 2 n, exactly ⌈log 2 (n + 1)⌉
  4. Write 34 in binary, using a “binary point” 0.??. Answer: 0. 11
  5. Write 23 in binary. Answer: 0. 101010... = 0.

. 1

. 0

  1. Which fractions recur infinitely in binary and which terminate? Answer: if demoninator of fraction in lowest form is power of 2 then it terminates, else not.

Exercises

  1. Convert the binary number 1101101111110101 to hex. Answer: DBF 5
  2. Convert the hex number ABC7 to binary. Answer: 101010110111
  3. In hex, 2BF C + 54A7. Answer: 80A 3
  4. In hex, AC 74 − B 3 F. Answer: A 135
  5. If a number has k digits in hex, how many digits (bits) does it have in binary? Answer: k 4
  1. If a number has k digits in decimal, roughly how many digits does it have in binary? Answer: roughly (^) logk 2 10 ∼= k 3
  2. If a number has k digits base a, roughly how many digits does it have in base b? Answer: roughly (^) logkb a = k × logab

Exercises Write the following decimal numbers in eight bit two’s complement, do the addition/subtraction, convert your answer back to decimal.

  1. −3 ++^11 Answer: −3 = 11111101. So −3 ++^ 11 = 11111101 + 00001011 = 00001000
  2. +125 +−^40 Answer: 125 = 01111101, −40 = 11011000 so 125 +−^ 40 = 01010101 = 85
  3. +5 +−^7 Answer: 00000101 + 11111001 = 11111110 =−^2
  4. − 23 −−^ 18. Answer: 11101001 + 11101110 = 11010111 =−^41

For n bit two’s complement what is the range of numbers you can represent?

Answer: Biggest positive numer is 0

n− 1 ︷ ︸︸ ︷ 11... 1 = 2n−^1 − 1. Negative numbers go

down from −1 =

n ︷ ︸︸ ︷ 1... 11 down to 1

n− 2 ︷ ︸︸ ︷ 00... 0 1 =−^2 n−^1 −1. But negative numbers

can go one lower still: least negative number is 1

n− 1 ︷ ︸︸ ︷ 00... 0 =−^2 n−^1. So range of numbers is [− 2 n−^1 ,+^2 n−^1 − 1].

Exercises Write the following fractions in binary. Use one sign bit and four bits after the binary point.

  1. 58 Answer: 0. 1010
  2. − 58 Answer: negate previous answer, i.e. flip all bits and add one to lsb, so 1. 0110

Convert the following binary fractions to ordinary fractions.

    1. 1000 Answer: (^12)
    1. 0001 Answer: −^1516
    1. 1111 Answer: (^1516)
    1. 1111 Answer: −^161

What fractions can be represented as binary fractions with one sign bit and four bits after the binary point? Answer: [− 1 ,+ 15 16 ]
