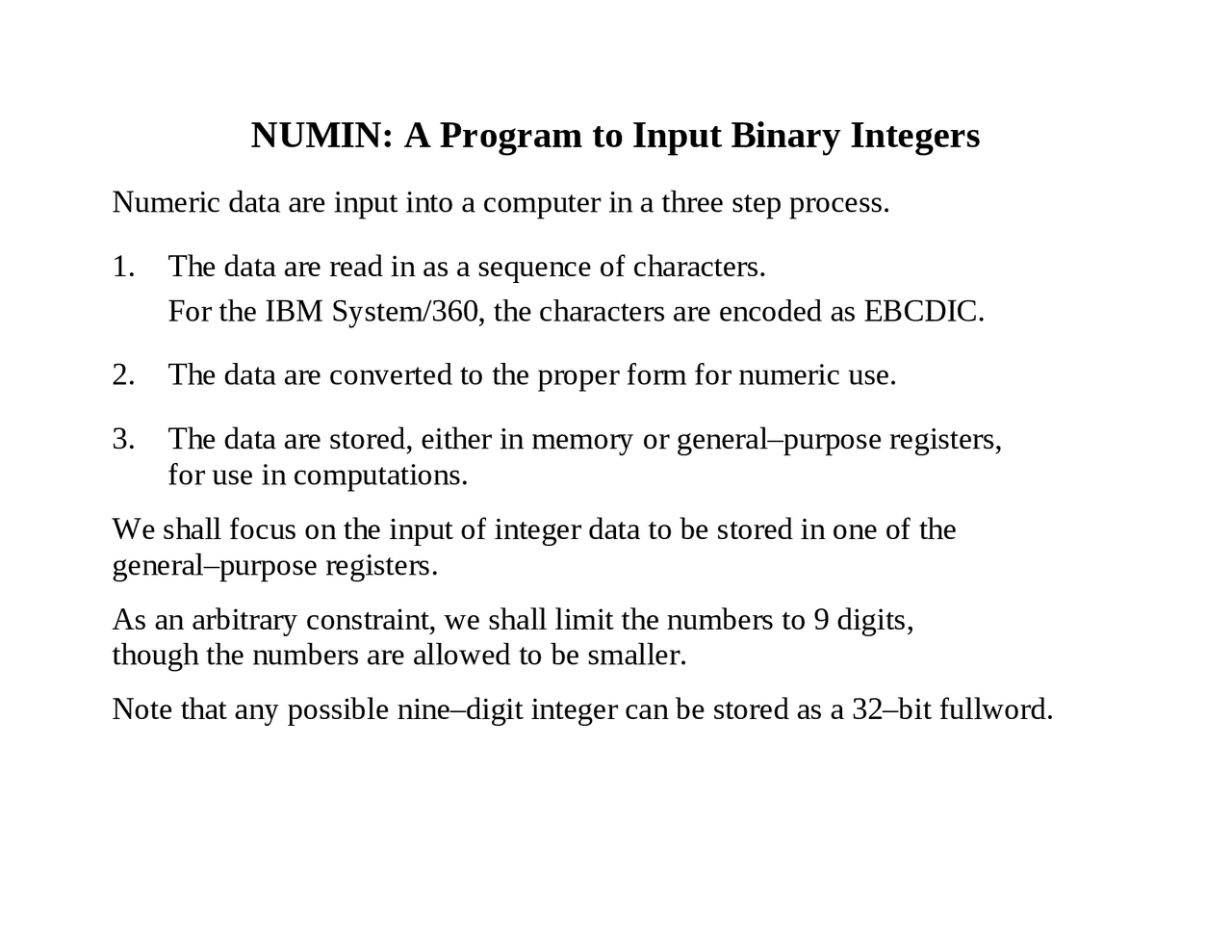

NUMIN: A Program to Input Binary Integers
Numeric data are input into a computer in a three step process.
1. The data are read in as a sequence of characters.
For the IBM System/360, the characters are encoded as EBCDIC.
2. The data are converted to the proper form for numeric use.
3. The data are stored, either in memory or general–purpose registers,
for use in computations.
We shall focus on the input of integer data to be stored in one of the
general–purpose registers.
As an arbitrary constraint, we shall limit the numbers to 9 digits,
though the numbers are allowed to be smaller.
Note that any possible nine–digit integer can be stored as a 32–bit fullword.
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Inputting Binary Integers: A Program for Converting EBCDIC Characters to Numeric Values - and more Study notes Programming Languages in PDF only on Docsity!

NUMIN: A Program to Input Binary Integers

Numeric data are input into a computer in a three step process.

1. The data are read in as a sequence of characters.

For the IBM System/360, the characters are encoded as EBCDIC.

2. The data are converted to the proper form for numeric use.

3. The data are stored, either in memory or general–purpose registers,

for use in computations.

We shall focus on the input of integer data to be stored in one of the

general–purpose registers.

As an arbitrary constraint, we shall limit the numbers to 9 digits,

though the numbers are allowed to be smaller.

Note that any possible nine–digit integer can be stored as a 32–bit fullword.

NUMIN: The Scenario

Remember that input should be viewed as a card image of 80 columns. Consider a field of N characters found beginning in column M. Suppose that the leftmost byte in this array is associated with the label CARDIN. The leftmost byte in the range of interest will be denoted by the label CARDIN+M. Elements in this range will be referenced using an index register as CARDIN+M(Reg). Our specific example will assume the following:

  1. The character field to hold the integer occupies ten columns on the card, beginning in column 20 and running through column 29.
  2. The number is right justified. If negative, the number has a leading minus sign. 3 An entirely blank field is accepted as representing the number zero.

NUMIN: The Strategy

The figure below shows the part of the 80–column card image

that contains the digits to be interpreted.

The algorithm works as follows:

1. It initializes an output register to 0. Arbitrarily, I choose R7.

2. It scans left to right, looking for a nonblank character.

Assuming that a nonblank character is found in this field, it does the following.

3. If the character is a minus sign, set a flag that the number is negative

and continue the scan.

4. If the number is a digit, process it. If not a digit or “–”, ignore it.

NUMIN: EXAMPLE

Consider processing the number represented by the digit string “ 9413 ”.

We shall illustrate the process used by our conversion routine.

In this example, let N be the value of the number,

D be the digit read in, and

V be the numeric value of that digit.

Start with N = 0.

Read in D = “9”. Convert to V = 9. N = N10 + V = 0 10 + 9 = 9

Read in D = “4”. Convert to V = 4. N = N10 + V = 9 10 + 4 = 94

Read in D = “1”. Convert to V = 1. N = N10 + V = 94 10 + 1 = 941

Read in D = “3”. Convert to V = 3. N = N10 + V = 941 10 + 3 = 9413

The integer value of this string is 9413.

Placing the Numerical Value of a Digit in a Register

The first thing to do is get the EBCDIC code into the register. My solution:

SR R8,R8 CLEAR R

IC R8,CARDIN+20(R3) GET THE DIGIT

S R8,=X‘F0’ CONVERT TO VALUE OF DIGIT

In order to be sure that register R8 contains the EBCDIC code for the digit,

I first clear the register to zero and then move the character.

This step guarantees that bits 0 –23 of the register are 0 and that the value in

the register, taken as a 32–bit fullword, is the EBCDIC code for the digit.

I then subtract the value of the EBCDIC code for ‘0’ to get the value of the digit.

Another way to do this is load the register and use the logical instruction, with

mnemonic N, to mask out all but the last hexadecimal digit. Here is the code.

IC R8,CARDIN+20(R3) GET THE DIGIT

N R8,=X‘F’

NUMIN: Part 1

I now present my algorithm in fragments of code. We start with the beginning

code. Each fragment will be listed along with its associated data declarations.

This first code fragment just clears the result registers and checks to see if the

input field, in the ten columns beginning at CARDIN+20 is all blanks.

If it is all blanks, the routine equates that to 0 and returns.

NUMIN SR R7,R7 SET R7, THE RESULT, TO 0

SR R6,R6 CLEAR HIGH-ORDER PRODUCT

MVI THESIGN,C‘P’ DEFAULT TO POSITIVE

CLC CARDIN+20(10),SPACE10 IS THE INPUT ALL BLANKS

BE DONE IF SO, JUST EXIT WITH

* THE VALUE SET TO 0.

* MORE CODE HERE

* 0123456789 BE SURE OF THE COUNT BELOW

SPACE10 DC CL‘ ’ JUST TEN SPACES

THESIGN DS CL

NUMIN: Part 3

* AT THIS POINT, R3 IS THE INDEX OF THE NON-BLANK

* CHARACTER. THE VALUES IN (R4,R5) ARE STILL VALID.

* IN PARTICULAR R4 STILL HAS VALUE 1.

NOTBLANK CLI CARDIN+20(R3),C‘-’ DO WE HAVE A MINUS SIGN?

BNE ISDIG

MVI THESIGN,C‘N’ NOTE THE SIGN AS NEGATIVE

AR R3,R4 ADD 1 TO VALUE IN R3.

CR R3,R5 R3 HAS BEEN INCREMENTED

BH DONE QUIT IF IT IS TOO BIG.

If the first non–blank character is a minus sign, the sets a flag, which would be

a Boolean in a high–level language. Here it is just the character “N”.

If the first non–blank character is a minus sign, then the next character is assumed to be the first digit. The index value is incremented by 1 to address the character after the “–”. If the first non–blank character is not a minus sign, it is assumed to be a digit and processed as one. Note however that the processing loop explicitly makes two tests and processes the character only if it is not less than “0’ and not greater than “9”.
