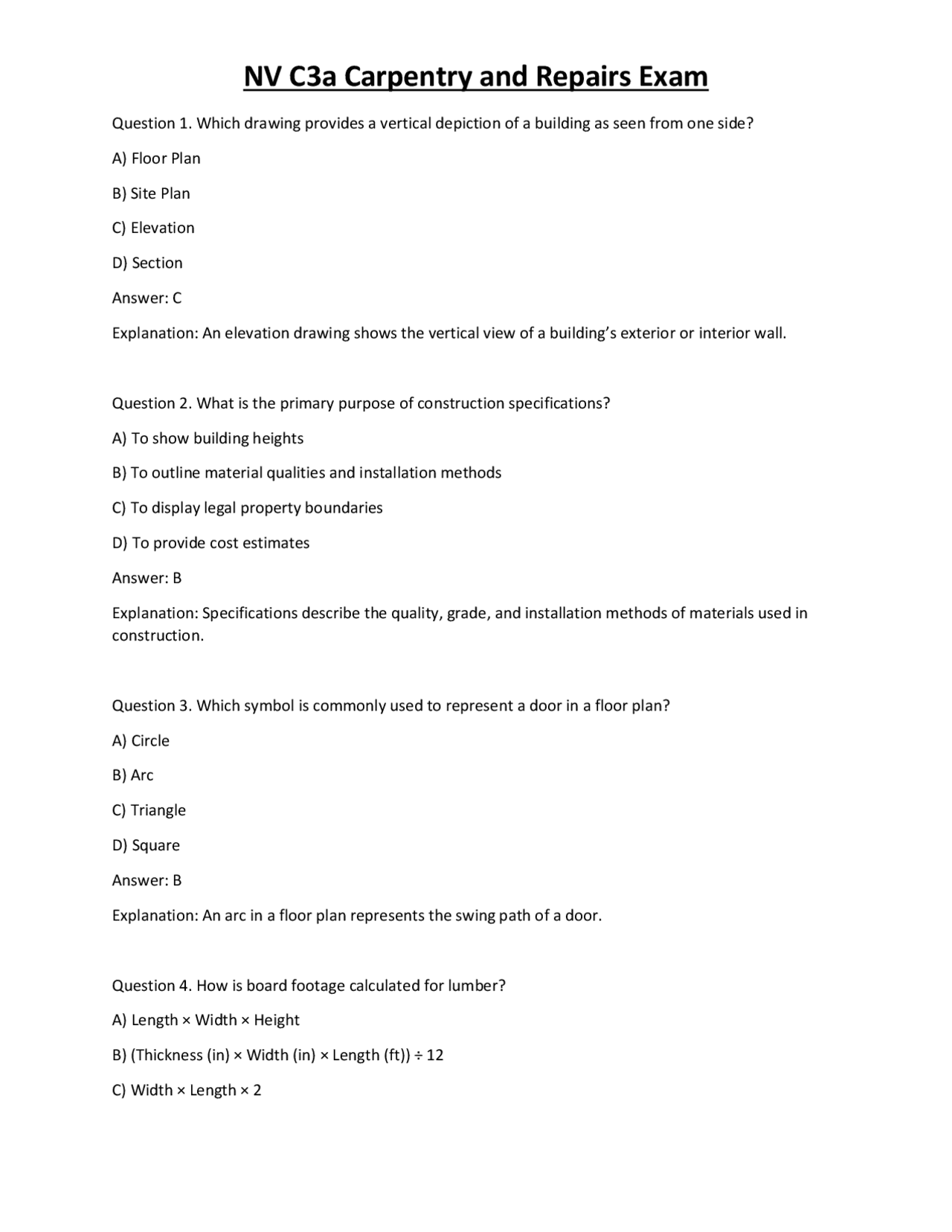

Question 1. Which drawing provides a vertical depiction of a building as seen from one side? A) Floor Plan B) Site Plan C) Elevation D) Section Answer: C Explanation: An elevation drawing shows the vertical view of a building’s exterior or interior wall. Question 2. What is the primary purpose of construction specifications? A) To show building heights B) To outline material qualities and installation methods C) To display legal property boundaries D) To provide cost estimates Answer: B Explanation: Specifications describe the quality, grade, and installation methods of materials used in construction. Question 3. Which symbol is commonly used to represent a door in a floor plan? A) Circle B) Arc C) Triangle D) Square Answer: B Explanation: An arc in a floor plan represents the swing path of a door. Question 4. How is board footage calculated for lumber? A) Length × Width × Height B) (Thickness (in) × Width (in) × Length (ft)) ÷ 12 C) Width × Length × 2
D) (Length × Width) ÷ Height Answer: B Explanation: Board footage is calculated by multiplying thickness, width, and length, and dividing by 12. Question 5. In blueprint reading, what does a dashed line most commonly indicate? A) Electrical wiring B) Hidden or overhead feature C) Water line D) Finished surface Answer: B Explanation: Dashed lines typically represent features that are not visible in the current view, such as overhead beams. Question 6. What information does the scale of a drawing provide? A) Building height B) Relative size of objects to real-world dimensions C) Cost estimate D) Material specifications Answer: B Explanation: The scale indicates how the drawing’s measurements relate to actual dimensions. Question 7. Which document typically details the required fire rating of materials? A) Floor plan B) Specifications C) Site plan D) Bid form Answer: B Explanation: Specifications outline fire ratings and other material requirements.
Answer: B Explanation: The IBC sets minimum standards for wood framing in buildings. Question 12. What is the first step in obtaining a building permit? A) Pouring concrete B) Submitting plans and documents to the local authority C) Ordering materials D) Hiring a subcontractor Answer: B Explanation: Permit applications begin with submitting plans for review. Question 13. What does a section drawing show? A) Electrical layout B) Cut-through view of a structure C) Roof pitch only D) Foundation depth only Answer: B Explanation: A section drawing is a vertical cut to show internal construction details. Question 14. Which tool is used to measure vertical elevations on a jobsite? A) Hammer B) Plumb bob C) Transit/level D) Chalk line Answer: C Explanation: Transits and levels are used for measuring elevations and setting grades. Question 15. What does “R-value” refer to in insulation specifications? A) Resistance to water
B) Resistance to heat flow C) Weight of insulation D) Color of insulation Answer: B Explanation: R-value measures the thermal resistance of insulation. Question 16. Which of the following is NOT typically included on a floor plan? A) Wall locations B) Roof framing layout C) Door and window locations D) Room dimensions Answer: B Explanation: Roof framing is shown in separate roof plans, not on the floor plan. Question 17. How are labor costs usually estimated? A) By square footage only B) By number of workers × hours × wage rate C) By material cost times two D) By floor plan size Answer: B Explanation: Labor cost is based on time and wage rate for each worker. Question 18. What is the main function of a building code? A) To regulate project financing B) To ensure safety and quality in construction C) To determine bid winners D) To establish material suppliers Answer: B Explanation: Building codes set safety and quality standards for construction.
C) A building code violation notice D) A payment receipt Answer: B Explanation: A change order modifies the original contract or scope of work. Question 23. Which unit is commonly used for measuring concrete volume? A) Gallon B) Cubic yard C) Square foot D) Linear foot Answer: B Explanation: Concrete is ordered and measured in cubic yards. Question 24. What information does a building elevation provide? A) Electrical outlets B) Exterior appearance and heights C) Plumbing runs D) Material costs Answer: B Explanation: Elevations show exterior views and vertical dimensions. Question 25. What is the purpose of a batter board in construction layout? A) To support roof trusses B) To establish building corners and lines C) To measure door openings D) To support scaffolding Answer: B Explanation: Batter boards mark the building corners and guide excavation and foundation work.
Question 26. Which method is best for calculating the amount of paint needed for a wall? A) Volume of the room B) Square footage of wall area C) Floor area only D) Number of windows Answer: B Explanation: Paint requirements are based on the total wall surface to be painted. Question 27. What does a “detail” drawing show? A) Entire site B) Enlarged, specific construction element C) Costs D) Roof layout Answer: B Explanation: A detail provides an enlarged view of a small or complex construction part. Question 28. What is the first step in site preparation? A) Pouring the foundation B) Clearing vegetation and debris C) Framing walls D) Installing drywall Answer: B Explanation: The site must be cleared before layout or foundation work can begin. Question 29. Which tool is typically used to check for 90-degree angles in layout? A) Speed square B) Tape measure C) Spirit level D) Compass
B) To shape and contain poured concrete C) To insulate walls D) To fasten drywall Answer: B Explanation: Formwork holds concrete in place until it hardens. Question 34. Which is NOT a common type of foundation wall? A) Concrete block B) Insulated concrete form (ICF) C) Brick veneer D) Poured concrete Answer: C Explanation: Brick veneer is a finish, not a structural foundation wall. Question 35. What is a “slab-on-grade” foundation? A) Concrete slab poured directly on prepared ground B) Second-story slab C) Raised wood floor D) Concrete block wall Answer: A Explanation: A slab-on-grade is poured at ground level and serves as both floor and foundation. Question 36. Why is gravel often placed under a slab-on-grade foundation? A) To make concrete lighter B) To improve drainage and reduce moisture C) For decorative purposes D) To add strength Answer: B Explanation: Gravel prevents water accumulation and promotes drainage.
Question 37. What is the purpose of anchor bolts in foundation construction? A) To connect roof trusses B) To secure the sill plate to the foundation C) To fasten drywall D) To hold insulation Answer: B Explanation: Anchor bolts attach the wood sill plate to the concrete foundation. Question 38. What is the minimum recommended depth for most residential footings? A) 2 inches B) Below the frost line C) At grade level D) 24 inches above grade Answer: B Explanation: Footings should extend below the local frost line to prevent heaving. Question 39. What is a keyway in a concrete footing? A) A notch for rebar B) Groove to lock wall and footing together C) Drainage pipe D) Expansion joint Answer: B Explanation: A keyway is a groove that locks the wall to the footing. Question 40. What tool is used to ensure foundation walls are plumb and level? A) Spirit level B) Hammer C) Trowel
A) Plywood or dimensional lumber B) Steel rods C) Ceramic tile D) Tar paper Answer: A Explanation: Plywood or lumber forms shape the poured concrete. Question 45. What is the purpose of compaction in site preparation? A) To remove topsoil B) To increase soil bearing capacity C) To add nutrients D) To color the soil Answer: B Explanation: Compaction densifies soil, making it better able to support structures. Question 46. What does the term “monolithic slab” mean? A) Slab with footings poured at the same time B) Multi-layered slab C) Precast slab D) Two-story slab Answer: A Explanation: A monolithic slab is poured with footings in a single operation. Question 47. What is the main purpose of control joints in concrete slabs? A) Decorative effect B) Control and direct cracking C) Increase color D) Strengthen the slab Answer: B
Explanation: Control joints are placed to guide where cracks will form. Question 48. What is the minimum recommended thickness for a residential slab-on-grade? A) 1 inch B) 4 inches C) 8 inches D) 12 inches Answer: B Explanation: Most residential slabs are at least 4 inches thick. Question 49. In framing, what is a “sill plate”? A) Top horizontal member of a wall B) Bottom horizontal member attached to foundation C) Vertical wall stud D) Roof truss Answer: B Explanation: The sill plate anchors the wall framing to the foundation. Question 50. What is a “girder” in floor framing? A) Main horizontal support beam B) Short wall stud C) Insulation panel D) Drywall fastener Answer: A Explanation: A girder is a primary beam supporting floor joists. Question 51. What is the most common spacing for floor joists in residential construction? A) 12 inches on center B) 16 inches on center
Question 55. What is the term for the vertical framing members in a wall? A) Trusses B) Studs C) Rafters D) Girders Answer: B Explanation: Studs are the upright members in wall framing. Question 56. What is a “header” in wall framing? A) Bottom wall plate B) Horizontal member above an opening C) Roof ridge D) Wall cladding Answer: B Explanation: Headers span over doors and windows to support loads. Question 57. What is the purpose of “cripple” studs? A) Support walls only B) Fill space above or below wall openings C) Fasten drywall D) Attach insulation Answer: B Explanation: Cripples fill gaps above or below windows or doors. Question 58. What is a “trimmer” or “jack” stud? A) Short stud supporting a header B) Horizontal wall plate C) Roof joist D) Exterior sheathing
Answer: A Explanation: Trimmers carry the ends of headers at openings. Question 59. What is the standard spacing for wall studs in residential framing? A) 8 inches on center B) 16 inches on center C) 24 inches on center D) 36 inches on center Answer: B Explanation: Most wall studs are spaced 16 inches apart. Question 60. What is the function of a top plate in wall framing? A) Supports the foundation B) Caps the wall and ties studs together C) Fastens drywall D) Insulates the wall Answer: B Explanation: The top plate unites and stabilizes the wall framing. Question 61. What is a “partition wall”? A) Load-bearing exterior wall B) Interior non-load-bearing wall C) Roof support wall D) Foundation wall Answer: B Explanation: Partition walls separate interior spaces and don’t carry structural loads. Question 62. What is “sheathing” in wall construction? A) Insulation
Question 66. What is a “Rough Opening” in framing? A) Finished opening size B) Framed space for door or window C) Electrical box D) Plumbing chase Answer: B Explanation: The rough opening is the size framed to receive windows or doors. Question 67. What is the purpose of a “king stud”? A) Short support for headers B) Full-length stud at side of opening C) Ceiling joist D) Roof rafter Answer: B Explanation: King studs extend full height and support the header and trimmer. Question 68. Which of the following is a benefit of platform framing? A) Less fire blocking B) Easy floor-to-floor construction C) Fewer joints D) Reduced insulation Answer: B Explanation: Platform framing allows for each floor to be built as a separate platform. Question 69. What is the main difference between platform and balloon framing? A) Size of lumber B) Full-height studs in balloon, shorter in platform C) Type of insulation
D) Roof framing method Answer: B Explanation: Balloon framing uses continuous studs; platform uses one-story studs. Question 70. What is a “let-in brace” in wall framing? A) Insulation panel B) Diagonal member for lateral stability C) Roof truss D) Sill plate Answer: B Explanation: Let-in braces add diagonal support to resist racking. Question 71. What is the correct location for anchor bolts in sill plate installation? A) Anywhere in the foundation B) 6 to 12 inches from plate ends and at intervals per code C) Only in the center D) Above the wall Answer: B Explanation: Anchor bolts are placed per code near ends and along the sill. Question 72. Which fastener is best for attaching wall sheathing to studs? A) Roofing nail B) Common nail C) Finish nail D) Drywall screw Answer: B Explanation: Common nails have strength for structural sheathing attachment. Question 73. What is a “cripple wall”?
