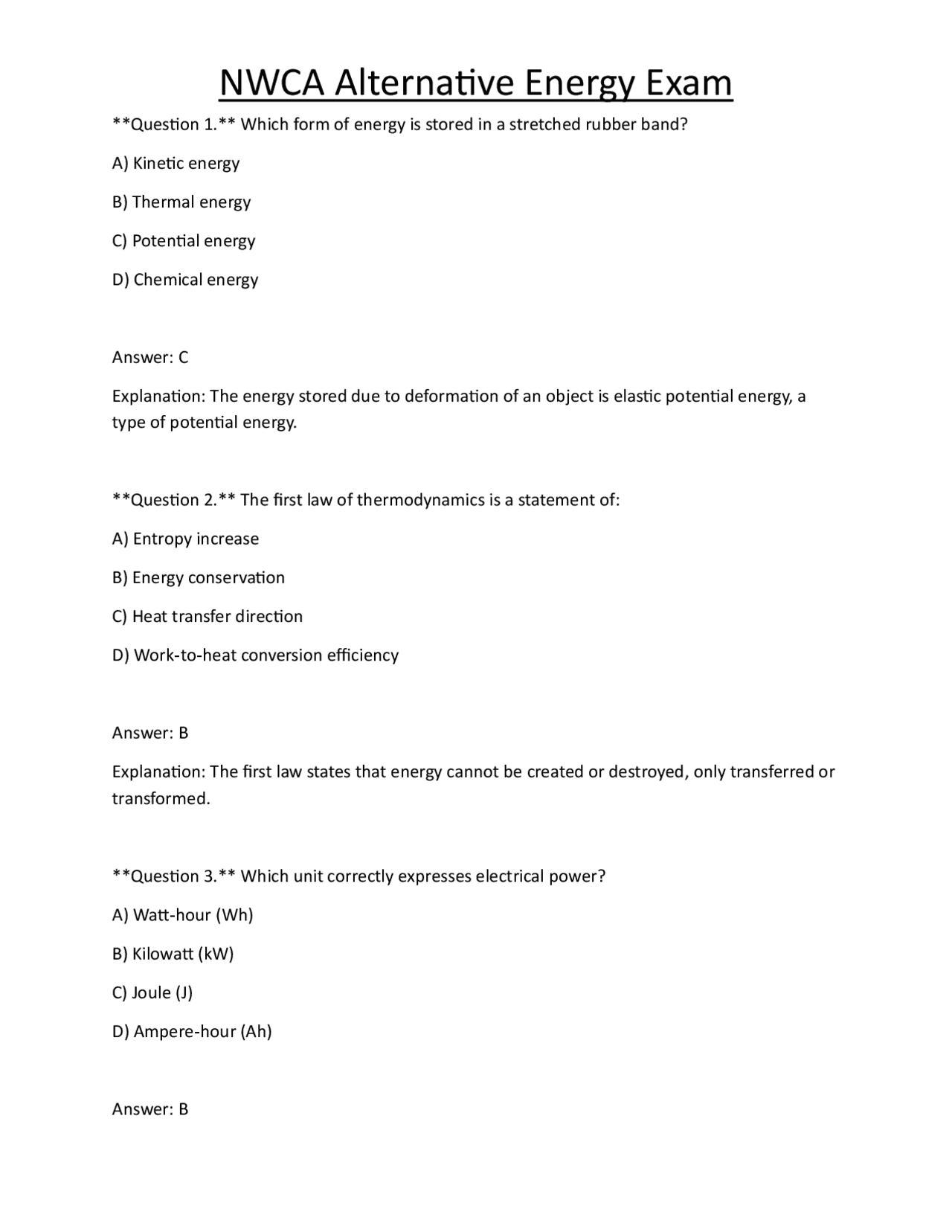

Question 1. Which form of energy is stored in a stretched rubber band? A) Kinetic energy B) Thermal energy C) Potential energy D) Chemical energy Answer: C Explanation: The energy stored due to deformation of an object is elastic potential energy, a type of potential energy. Question 2. The first law of thermodynamics is a statement of: A) Entropy increase B) Energy conservation C) Heat transfer direction D) Work‑to‑heat conversion efficiency Answer: B Explanation: The first law states that energy cannot be created or destroyed, only transferred or transformed. Question 3. Which unit correctly expresses electrical power? A) Watt‑hour (Wh) B) Kilowatt (kW) C) Joule (J) D) Ampere‑hour (Ah) Answer: B
Explanation: Power is the rate of energy use, measured in watts (W) or kilowatts (kW). Watt‑hours measure energy. Question 4. According to current global trends, the primary environmental concern of continued fossil‑fuel use is: A) Ozone depletion B) Acid rain C) Carbon dioxide‑driven climate change D) Radioactive waste Answer: C Explanation: Burning fossil fuels releases CO₂, the main driver of anthropogenic climate change. Question 5. In a modern “smart grid,” which technology enables two‑way communication between utilities and customers? A) High‑voltage DC transmission B) SCADA systems only C) Advanced metering infrastructure (AMI) D) Synchronous generators Answer: C Explanation: AMI (smart meters) allow utilities to send and receive data, enabling demand response and real‑time monitoring. Question 6. The term “peak sun hours” refers to: A) The number of daylight hours per year B) The average number of full‑sun equivalent hours per day at a location
Question 9. The optimal tilt angle for a fixed‑tilt solar panel in the Northern Hemisphere is approximately: A) Equal to the site latitude B) 90° minus the latitude C) 0° (horizontal) D) 45° regardless of latitude Answer: A Explanation: Tilting panels at the local latitude maximizes annual solar exposure. Question 10. Which shading analysis tool is most commonly used to predict the impact of nearby objects on PV performance? A) Load‑flow study B) Sun‑path diagram C) 3‑D shading model (e.g., SketchUp with solar plugin) D) Wind‑rose diagram Answer: C Explanation: 3‑D modeling allows precise calculation of shading losses throughout the year. Question 11. A grid‑tied PV system without batteries primarily relies on: A) Net‑metering to export excess power B) On‑site diesel generators for backup C) Lead‑acid batteries for night power D) Fuel cells for storage Answer: A
Explanation: Grid‑tied systems feed surplus electricity to the utility and draw power when PV output is insufficient. Question 12. Which aerodynamic principle primarily generates lift on a wind‑turbine blade? A) Bernoulli’s principle only B) Newton’s third law only C) Both pressure differential (Bernoulli) and momentum change (Newton) D) Viscous drag Answer: C Explanation: Blade shape creates a pressure difference and imparts momentum to the air, both contributing to lift. Question 13. The part of a wind turbine that houses the generator, gearbox, and control electronics is called the: A) Hub B) Nacelle C) Rotor D) Blade pitch system Answer: B Explanation: The nacelle contains the drivetrain and electrical components. Question 14. Which turbine design is most suitable for turbulent, urban wind conditions? A) Horizontal Axis Wind Turbine (HAWT) with three blades B) Horizontal Axis Wind Turbine with two blades
Question 17. Which maintenance activity is critical for preventing gearbox failure in a wind turbine? A) Re‑tensioning blade bolts monthly B) Re‑lubricating the gearbox according to OEM schedule C) Re‑painting the nacelle annually D) Re‑calibrating the anemometer weekly Answer: B Explanation: Proper lubrication reduces wear and overheating inside the gearbox, a common failure point. Question 18. Agricultural residue such as corn stalks is classified as: A) Fossil fuel B) Municipal solid waste C) Woody biomass D) Lignocellulosic biomass Answer: D Explanation: Corn stalks contain cellulose, hemicellulose, and lignin, making them lignocellulosic biomass. Question 19. In thermochemical conversion, the process that produces a combustible gas mixture (syngas) from solid feedstock at limited oxygen is: A) Combustion B) Gasification C) Pyrolysis
D) Fermentation Answer: B Explanation: Gasification partially oxidizes biomass to generate syngas (CO, H₂, CH₄). Question 20. Which biochemical pathway converts sugars into ethanol under anaerobic conditions? A) Fischer‑Tropsch synthesis B) Steam reforming C) Fermentation by yeast D) Catalytic cracking Answer: C Explanation: Yeast ferments glucose to ethanol and CO₂ in the absence of oxygen. Question 21. The concept of “carbon neutrality” for bioenergy assumes that: A) All CO₂ emitted is permanently stored in the atmosphere B) Biomass regrowth absorbs an equivalent amount of CO₂ as released during combustion C) Bioenergy emits no CO₂ at all D) Carbon capture devices are installed on every plant Answer: B Explanation: When biomass regrows, it sequesters CO₂, offsetting emissions from its combustion. Question 22. An open‑loop geothermal heat‑pump system extracts heat from: A) A closed circuit of refrigerant
Question 25. Ohm’s Law can be rearranged to calculate resistance when voltage and current are known. Which expression is correct? A) R = V × I B) R = V / I C) R = I / V D) R = V² / I Answer: B Explanation: Resistance (R) equals voltage (V) divided by current (I). Question 26. In a photovoltaic array, the maximum power point (MPP) is: A) The point where voltage is highest B) The point where current is highest C) The point where the product of voltage and current is greatest D) The point where temperature is lowest Answer: C Explanation: MPP is where V × I (power) reaches its maximum; MPPT controllers track this point. Question 27. High‑Voltage Direct Current (HVDC) transmission is advantageous for: A) Short‑distance, low‑power distribution B) Reducing line losses over very long distances C) Simple AC‑to‑DC conversion on site D) Eliminating the need for transformers
Answer: B Explanation: HVDC has lower resistive losses and can transmit large power over thousands of kilometers. Question 28. The Lockout/Tagout (LOTO) procedure primarily protects workers from: A) Chemical exposure B) Electrical shock and mechanical energization during maintenance C) Noise‑induced hearing loss D) Ergonomic injuries Answer: B Explanation: LOTO ensures that equipment is de‑energized and cannot be re‑energized while servicing. Question 29. Which personal protective equipment (PPE) is essential when performing arc‑flash work on a solar inverter? A) Hard hat only B) Flame‑resistant (FR) clothing and face shield C) Ear plugs and safety glasses D) Steel‑toe boots only Answer: B Explanation: Arc‑flash can cause severe burns; FR clothing and a face shield protect against thermal and radiant energy. Question 30. NFPA 70E addresses safety in: A) Confined spaces
Question 33. Molten‑salt thermal storage is commonly used with which type of renewable plant? A) Wind farms B) Concentrated solar power (CSP) C) Biomass gasifiers D) Small‑scale hydro Answer: B Explanation: CSP plants store heat in molten salts to generate steam for turbines when sunlight is unavailable. Question 34. Which factor most directly influences the capacity factor of a solar PV system? A) Module temperature coefficient B) Inverter efficiency C) Local solar irradiance and shading D) Wiring resistance Answer: C Explanation: Capacity factor (actual output vs. nameplate) is driven by the amount of usable sunlight; shading reduces it significantly. Question 35. The term “net metering” refers to: A) Selling excess power at wholesale rates B) Offsetting a customer’s electricity bill by the amount of energy exported to the grid C) Storing excess solar power in onsite batteries
D) Measuring only the peak demand of a customer Answer: B Explanation: Net metering credits customers for each kilowatt‑hour exported, reducing their net consumption charge. Question 36. In wind‑energy site selection, the “wind shear exponent” (α) is used to estimate: A) Turbine blade pitch angle B) Increase of wind speed with height C) Turbine gearbox torque D) Seasonal variation of wind direction Answer: B Explanation: The exponent α (typically 0.1–0.4) quantifies how wind speed grows with altitude (power‑law profile). Question 37. Which of the following is a by‑product of anaerobic digestion of municipal solid waste? A) Syngas (CO + H₂) B) Biogas (CH₄ + CO₂) C) Bio‑oil from pyrolysis D) Charcoal Answer: B Explanation: Anaerobic digestion produces biogas, mainly methane and carbon dioxide.
Explanation: Inverters have a maximum DC input voltage; string voltage must stay below this limit. Question 41. Which of the following is NOT a typical advantage of a vertical‑axis wind turbine (VAWT)? A) Ability to accept wind from any direction B] Lower noise levels than HAWTs C) Higher aerodynamic efficiency at high wind speeds D) Simpler drivetrain design Answer: C Explanation: VAWTs generally have lower aerodynamic efficiency compared with well‑designed HAWTs, especially at high wind speeds. Question 42. The “specific heat” of a material is defined as: A) Heat required to raise 1 kg of the material by 1 °C B) Heat required to raise 1 m³ of the material by 1 K C) Heat lost per unit time during cooling D) Heat generated per unit mass during combustion Answer: A Explanation: Specific heat (J kg⁻¹ K⁻¹) is the energy needed to raise the temperature of one kilogram by one kelvin (or degree Celsius). Question 43. In a battery bank, the term “C‑rate” refers to: A) The temperature at which the battery operates B) The charge/discharge current relative to the battery’s capacity
C) The cost per kilowatt‑hour of stored energy D) The corrosion rate of the terminals Answer: B Explanation: C‑rate expresses current as a multiple of the battery’s nominal capacity (e.g., 1C = full charge/discharge in one hour). Question 44. Which of the following best describes “capacity factor” for a wind turbine? A) Ratio of actual annual energy output to the turbine’s rated power multiplied by total hours in a year B) Ratio of turbine’s rated power to its blade length C) Ratio of wind speed at hub height to wind speed at ground level D) Ratio of turbine’s mechanical efficiency to its electrical efficiency Answer: A Explanation: Capacity factor = (actual energy produced) / (nameplate capacity × hours in a year). Question 45. The primary purpose of a “combiner box” in a PV system is to: A) Convert DC to AC B) Aggregate multiple strings of modules into a single conduit for over‑current protection C) Store excess energy in batteries D) Provide ground‑fault detection only Answer: B Explanation: Combiner boxes bring together several strings, include fuses or breakers, and simplify wiring to the inverter.
D) Energy storage is required for all PV systems Answer: A Explanation: Grid parity occurs when the levelized cost of renewable electricity equals or undercuts the market price of grid electricity. Question 49. Which safety device is specifically required when working on a live solar array to protect against arc flash? A) Ground‑fault circuit interrupter (GFCI) B) Arc‑rated insulated gloves and sleeves C) Flame‑resistant clothing only D) Hard hat with ear protection Answer: B Explanation: Arc‑rated gloves and sleeves are designed to withstand the thermal energy of an arc flash. Question 50. A “smart inverter” in a PV system can provide which ancillary service to the grid? A) Frequency regulation (droop control) B) Physical cleaning of panels C) Automatic tilt adjustment D) Wind speed measurement Answer: A Explanation: Smart inverters can adjust output to help maintain grid frequency and voltage stability.
Question 51. Which of the following best describes the “heat of vaporization” for water? A) Energy required to raise water temperature by 1 °C B) Energy released when water freezes C) Energy required to convert liquid water to steam at constant temperature D) Energy stored in water’s chemical bonds Answer: C Explanation: Heat of vaporization is the latent heat needed for phase change from liquid to vapor. Question 52. In a battery, “self‑discharge” refers to: A) Energy loss due to internal resistance during discharge B) The gradual loss of charge while the battery is idle C) The voltage drop caused by temperature rise D) The increase in capacity after a full charge cycle Answer: B Explanation: Self‑discharge is the natural loss of stored charge over time due to internal chemical reactions. Question 53. Which renewable energy technology typically uses a “binary working fluid” such as isobutane? A) Photovoltaic panels B) Wind turbines C) Binary‑cycle geothermal plants D) Biomass combustion
