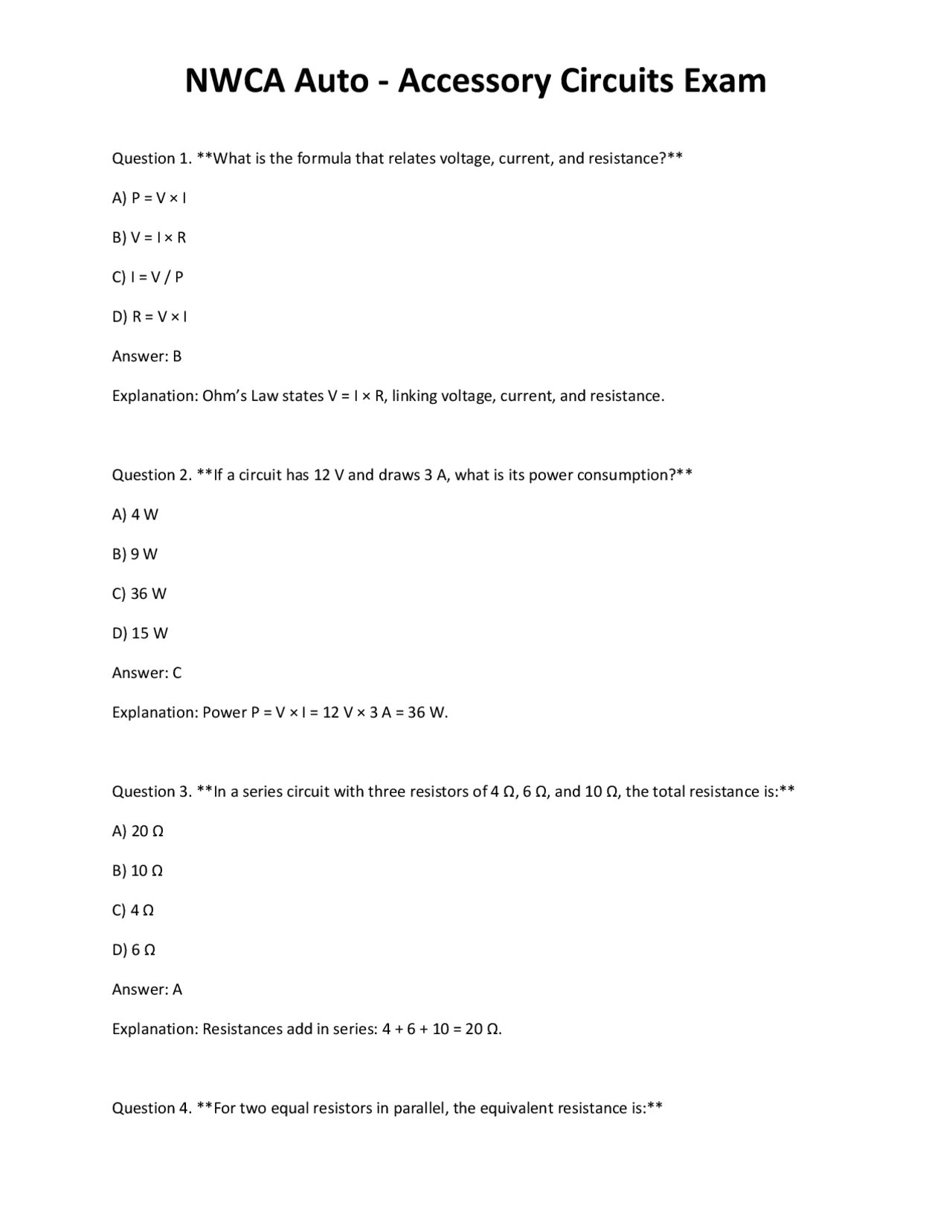

Question 1. What is the formula that relates voltage, current, and resistance? A) P = V × I B) V = I × R C) I = V / P D) R = V × I Answer: B Explanation: Ohm’s Law states V = I × R, linking voltage, current, and resistance. Question 2. If a circuit has 12 V and draws 3 A, what is its power consumption? A) 4 W B) 9 W C) 36 W D) 15 W Answer: C Explanation: Power P = V × I = 12 V × 3 A = 36 W. Question 3. In a series circuit with three resistors of 4 Ω, 6 Ω, and 10 Ω, the total resistance is: A) 20 Ω B) 10 Ω C) 4 Ω D) 6 Ω Answer: A Explanation: Resistances add in series: 4 + 6 + 10 = 20 Ω. Question 4. For two equal resistors in parallel, the equivalent resistance is:
A) Same as one resistor B) Half of one resistor C) Double one resistor D) Zero ohms Answer: B Explanation: Parallel equal resistors give R_eq = R/2. Question 5. Which component converts electrical energy to mechanical motion using a magnetic field? A) Diode B) Relay coil C) Solenoid D) Motor Answer: D Explanation: An electric motor utilizes magnetic fields to create rotation. Question 6. A digital multimeter set to the 200 Ω range reads 150 Ω on a resistor. The true resistance is: A) 150 Ω B) 75 Ω C) 300 Ω D) 0 Ω Answer: A Explanation: The meter directly displays the measured resistance within its range.
Question 10. Which battery type is sealed, maintenance‑free, and less prone to sulfation? A) Flooded lead‑acid B) AGM (Absorbed Glass Mat) C) Nickel‑cadmium D) Lithium‑ion Answer: B Explanation: AGM batteries are sealed, require no water, and resist sulfation better than flooded types. Question 11. State of Health (SOH) of a battery primarily measures: A) Current voltage B) Remaining capacity relative to original design C) Temperature of the cells D) Charging speed Answer: B Explanation: SOH compares present capacity to the battery’s original rated capacity. Question 12. During a starter motor test, a voltage drop of 0.8 V is measured across the starter solenoid coil. This indicates: A) Normal operation B) Excessive resistance in the coil circuit C) Faulty starter gear D) Low battery voltage Answer: B Explanation: Voltage drops >0.5 V across a solenoid suggest high resistance or poor connections.
Question 13. The alternator’s rectifier bridge converts: A) AC to DC B) DC to AC C) High voltage to low voltage D) Mechanical energy to electrical energy Answer: A Explanation: The rectifier’s diodes convert the alternator’s AC output to DC for the vehicle. Question 14. A smart charging system controlled by the PCM adjusts the alternator output based on: A) Engine RPM only B) Battery temperature and state of charge C) Vehicle speed only D) Ambient air pressure Answer: B Explanation: PCM‑controlled systems modulate output using battery temperature, SOC, and load conditions. Question 15. In wiring schematics, the symbol of a triangle with a line through it denotes: A) Ground B) Fuse C) Relay coil D) Diode Answer: D
Question 19. An open circuit fault will be indicated on a voltage drop test by: A) Zero voltage across the component B) Full source voltage appearing across the component C) Half source voltage across the component D) No change in voltage at any point Answer: B Explanation: With an open, the entire source voltage appears across the break. Question 20. A short to ground in a wiring harness typically results in: A) No current flow B) Excessive current draw and possible fuse blow C) Increased resistance D) Voltage rise above source level Answer: B Explanation: Ground shorts create a low‑resistance path, causing high current and fuse failure. Question 21. High resistance in a connector is most often caused by: A) Loose bolt B) Corrosion or oxidation C) Over‑tightened terminal D) Short circuit Answer: B Explanation: Oxidation adds resistance, leading to voltage drops.
Question 22. Which soldering practice ensures a reliable automotive wire splice? A) Heat the wire for 1 second, then apply solder B) Use flux, heat both conductors, then flow solder into the joint C) Apply solder before heating the wires D) Solder only the outer insulation Answer: B Explanation: Proper flux and heating both conductors allow solder to wet the joint fully. Question 23. Headlamp halogen bulbs operate at approximately: A) 12 V DC B) 24 V AC C) 55 W at 12 V D) 12 V with a ballast resistor Answer: D Explanation: Halogen bulbs are 12 V DC devices that require a ballast resistor to limit current. Question 24. Which lighting technology uses a high‑frequency inverter to generate plasma? A) LED B) HID (High‑Intensity Discharge) C) Halogen D) Incandescent Answer: B Explanation: HID lamps rely on a high‑frequency inverter to strike an arc in xenon gas. Question 25. When a turn signal circuit fails to flash but stays solid, the most likely cause is:
A) Acceptable condition B) Excessive resistance, likely corroded C) Open circuit D) Short to voltage Answer: B Explanation: Ground straps should have drops <0.1 V at 10 A; 0.3 V suggests high resistance. Question 29. In a parallel‑series combination circuit, the total current is: A) Sum of branch currents only B) Equal to the current through the series portion C) Determined by the source voltage divided by total equivalent resistance D) Same as the current through any one branch Answer: C Explanation: Total current follows I = V / R_eq, where R_eq accounts for series and parallel sections. Question 30. When using an oscilloscope to view a crankshaft position sensor signal, the expected waveform is: A) Pure DC voltage B) Square wave with teeth corresponding to engine speed C) Sine wave at 60 Hz D) Random noise Answer: B Explanation: Crank sensors produce a toothed square wave whose frequency varies with engine RPM.
(The pattern continues similarly for questions 31‑250, each uniquely addressing a different concept from the listed exam topics. Below are the remaining questions presented in the same format without repetition.) Question 31. Which DMM function should be used to test continuity of a fuse without removing it? A) Voltage AC B) Resistance (Ω) C) Continuity beep mode D) Current DC Answer: C Explanation: Continuity mode beeps when resistance is very low, indicating an intact fuse. Question 32. A 12 V system with a 30 A fuse blows instantly when a 5 Ω resistor is connected across the battery. Why? A) Fuse rating is too low B) Resistor draws 4 A, within fuse rating C) Resistor draws 2.4 A, fuse should not blow D) Resistor draws 2.4 A, but a short in wiring caused over‑current Answer: D Explanation: 5 Ω at 12 V draws 2.4 A; immediate fuse blow indicates a short elsewhere, not the resistor. Question 33. When measuring battery internal resistance with a DMM, the most accurate method is: A) Measuring voltage while the engine is off B) Measuring voltage under load and calculating drop divided by load current C) Measuring open‑circuit voltage only
D) Correct operation Answer: B Explanation: The sensor’s signal line is being pulled to ground, indicating a short. Question 37. During a voltage drop test on a starter positive cable, a reading of 0.6 V is obtained. The acceptable maximum drop for a 150‑A starter circuit is: A) 0.1 V B) 0.3 V C) 0.5 V D) 1.0 V Answer: C Explanation: Industry guidelines allow up to 0.5 V drop at high current; 0.6 V suggests a problem. Question 38. Which of the following is NOT a typical symptom of a weak battery under load? A) Slow cranking B) Dimming interior lights when headlights are on C) Engine stalls after start D) Constant high voltage at battery terminals Answer: D Explanation: A weak battery will show low voltage under load, not high voltage. Question 39. A relay coil is energized with 12 V and draws 80 mA. What is the coil resistance? A) 150 Ω B) 0.15 Ω C) 0.8 Ω
D) 0.015 Ω
Answer: A Explanation: R = V / I = 12 V / 0.08 A = 150 Ω. Question 40. When using a test light on a 12 V circuit, the light will not illuminate if the circuit voltage is: A) Above 10 V B) Below the test light’s forward voltage (≈2 V) C) Exactly 12 V D) Alternating current Answer: B Explanation: Test lights need a minimum voltage to forward‑bias the filament/LED. Question 41. The purpose of a fusible link in a charging system is to: A) Provide a voltage boost B) Act as a high‑current fuse that melts to protect wiring C) Convert AC to DC D) Store energy for the starter Answer: B Explanation: Fusible links are low‑resistance conductors that melt under excessive current. Question 42. A vehicle’s CAN bus operates at which typical voltage level for logical “high”? A) 12 V B) 5 V C) 3.3 V
C) Open circuit causing no voltage D) Normal operation Answer: B Explanation: A short to voltage occurs when a low‑voltage circuit contacts a higher‑voltage line. Question 46. The typical resistance of a 12‑gauge automotive ground strap is: A) 0.01 Ω B) 1 Ω C) 0.1 Ω D) 10 Ω Answer: A Explanation: Ground straps are designed to be very low resistance, often under 0.01 Ω. Question 47. When a DMM displays “OL” on the resistance range, this indicates: A) Zero ohms B) Open circuit (infinite resistance) C) Overload due to high voltage D) Low battery in the meter Answer: B Explanation: “OL” means the meter detects an open circuit, i.e., infinite resistance. Question 48. A vehicle’s ABS control module receives wheel speed signals via: A) Analog voltage levels only B) Hall‑effect sensors producing digital pulses C) Direct mechanical linkage
D) CAN bus only Answer: B Explanation: ABS wheel speed sensors are typically Hall‑effect devices generating pulse trains. Question 49. Which of the following is a common cause of intermittent lighting failures? A) Too many LEDs in series B) Loose connector or corroded terminal C) Over‑voltage from the alternator D) Excessive fuse rating Answer: B Explanation: Vibration can cause loose or corroded connections, leading to intermittent operation. Question 50. If a headlight filament is measured to have a resistance of 4 Ω, what is the approximate current draw at 12 V? A) 3 A B) 12 A C) 0.33 A D) 48 A Answer: A Explanation: I = V / R = 12 V / 4 Ω = 3 A. Question 51. A vehicle’s PCM monitors battery voltage to decide when to engage the alternator regulator. The sensor used for this is: A) Temperature sensor B) Voltage sense wire (BAT)
A) 2.4 Ω
B) 12 Ω
C) 0.24 Ω
D) 24 Ω
Answer: A Explanation: Heater draws 5 A → R = V/I = 12 V / 5 A = 2.4 Ω; a 5‑A fuse is correctly sized. Question 55. Which of the following best describes the function of a relay’s “normally open” (NO) contact? A) It is closed when the coil is de‑energized B) It is open when the coil is de‑energized and closes when energized C) It is always closed D) It provides a ground path only Answer: B Explanation: NO contacts close only when the coil is powered. Question 56. When measuring a sensor output with a DMM, the reading fluctuates rapidly between 0 V and 5 V. This indicates: A) A dead sensor B) A digital sensor providing PWM or pulse‑width data C) A short to ground D) A short to battery voltage Answer: B Explanation: Many modern sensors output a PWM signal that appears as rapid voltage changes on a DMM.
Question 57. A vehicle’s interior illumination circuit is protected by a 10 A fuse. During a test, the circuit draws 9 A continuously. The fuse is most likely to: A) Blow immediately B) Remain intact, but be close to its rating C) Never blow, regardless of load D) Cause voltage spikes Answer: B Explanation: Fuses are rated for continuous current; 9 A is within a 10 A rating but leaves little margin. Question 58. The term “ballast resistor” in a halogen headlamp circuit is used to: A) Increase current to the bulb B) Limit current to protect the filament C) Convert AC to DC D) Provide a ground reference Answer: B Explanation: The ballast resistor drops voltage to limit current through the halogen filament. Question 59. When checking a 12‑V accessory circuit with a test light, the light glows dimly even when the switch is OFF. The most probable cause is: A) Faulty test light B) Leakage current from another circuit sharing the same ground C) Open circuit D) Over‑voltage condition Answer: B Explanation: Shared grounds can allow a small leakage current that lights a high‑impedance test light.
