Exam

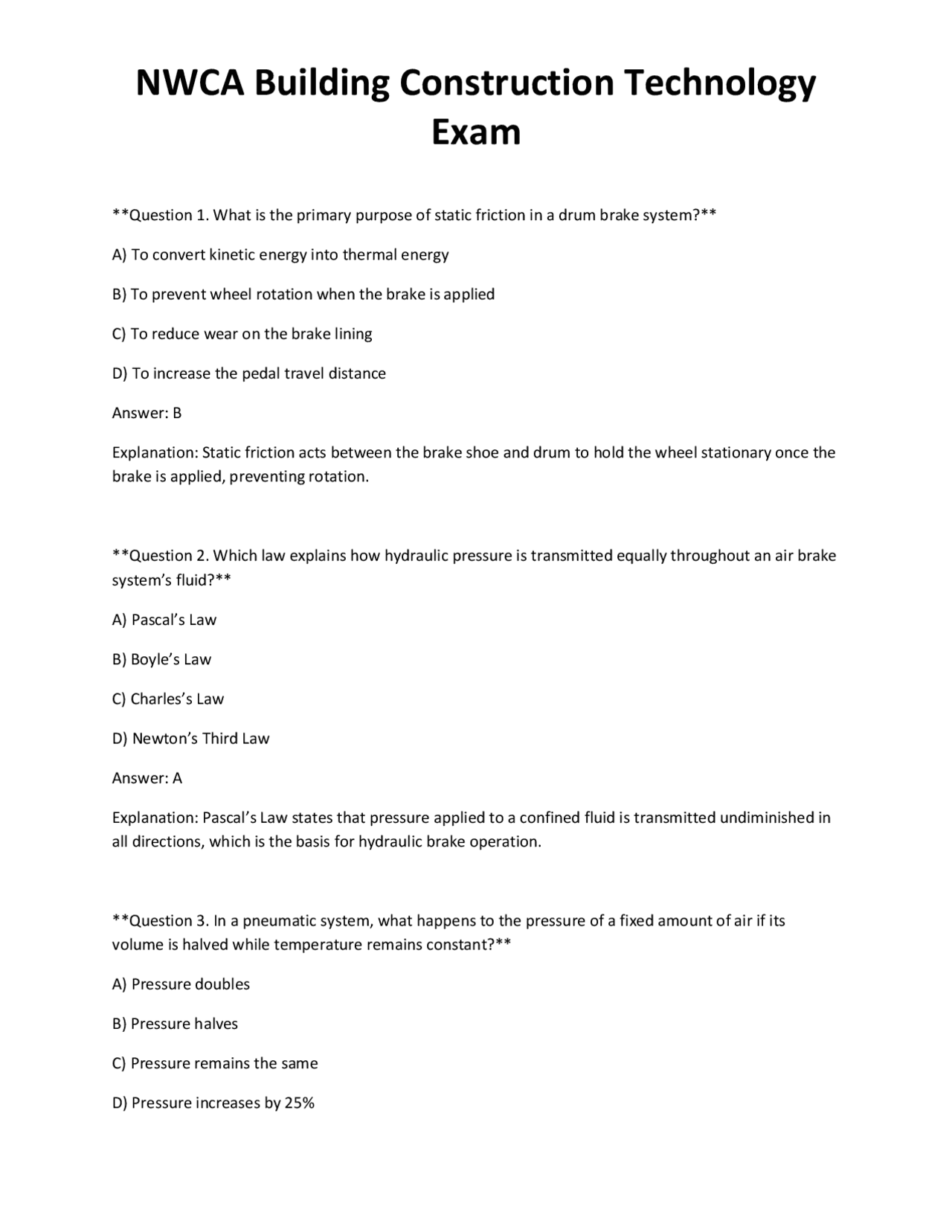

Question 1. What is the primary purpose of static friction in a drum brake system? A) To convert kinetic energy into thermal energy B) To prevent wheel rotation when the brake is applied C) To reduce wear on the brake lining D) To increase the pedal travel distance Answer: B Explanation: Static friction acts between the brake shoe and drum to hold the wheel stationary once the brake is applied, preventing rotation. Question 2. Which law explains how hydraulic pressure is transmitted equally throughout an air brake system’s fluid? A) Pascal’s Law B) Boyle’s Law C) Charles’s Law D) Newton’s Third Law Answer: A Explanation: Pascal’s Law states that pressure applied to a confined fluid is transmitted undiminished in all directions, which is the basis for hydraulic brake operation. Question 3. In a pneumatic system, what happens to the pressure of a fixed amount of air if its volume is halved while temperature remains constant? A) Pressure doubles B) Pressure halves C) Pressure remains the same D) Pressure increases by 25%
Exam
Answer: A Explanation: Boyle’s Law (P1V1 = P2V2) indicates that if volume is halved at constant temperature, pressure doubles. Question 4. Which component in a standard air brake system regulates the compressor’s cut‑in and cut‑out pressures? A) Governor B) Relay valve C) Quick‑release valve D) Tractor protection valve Answer: A Explanation: The governor monitors system pressure and starts or stops the compressor at preset cut‑in and cut‑out pressures. Question 5. What is the function of the air dryer in a heavy‑duty air brake system? A) Increase air pressure to the brakes B) Remove moisture and contaminants from compressed air C) Provide additional air volume for the reservoirs D) Control the speed of the brake application Answer: B Explanation: Air dryers use desiccant material to absorb moisture, preventing corrosion and freezing in the brake system. Question 6. Which type of brake adjustment uses a spring‑loaded mechanism that automatically compensates for wear?
Exam
Explanation: A wedge brake uses a wedge that slides into a narrowing gap, amplifying the applied force to press the shoes against the drum. Question 9. What advantage do air disc brakes (ADB) have over traditional drum brakes? A) Lower cost of manufacture B) Better heat dissipation and reduced fade C) Simpler adjustment procedure D) Higher static friction coefficient Answer: B Explanation: Disc brakes expose a larger surface area to airflow, dissipating heat more efficiently and reducing brake fade. Question 10. Which brake fluid type is most hygroscopic and therefore absorbs moisture from the atmosphere? A) DOT 5 (silicone) B) DOT 4 (glycol‑based) C) DOT 3 (glycol‑based) D) DOT 5.1 (synthetic) Answer: C Explanation: DOT 3 fluid is glycol‑based and highly hygroscopic, absorbing moisture which can lower its boiling point. Question 11. What is the primary function of a proportioning valve in a hydraulic brake system? A) Increase rear brake pressure during hard stops B) Reduce rear brake pressure to prevent wheel lockup
Exam
C) Equalize pressure between front and rear circuits D) Provide a pressure boost to the master cylinder Answer: B Explanation: A proportioning valve limits rear brake pressure, preventing rear wheel lockup under heavy braking. Question 12. Which component detects wheel speed for an ABS system? A) Modulator valve B) Wheel speed sensor C) Brake pressure transducer D) Traction control unit Answer: B Explanation: Wheel speed sensors monitor the rotational speed of each wheel and send data to the ABS ECU. Question 13. In an ABS system, what does the modulator valve do? A) Generates hydraulic pressure for the brakes B) Rapidly opens and closes to pulse brake pressure C) Stores diagnostic trouble codes D) Adjusts brake pedal feel Answer: B Explanation: The modulator valve rapidly cycles (opens/closes) to modulate brake pressure during an ABS event, preventing wheel lock.
Exam
Answer: C Explanation: A pressure drop exceeding 15 psi in 30 seconds typically signifies a leak in the service circuit. Question 17. What is the minimum acceptable lining thickness for a drum brake shoe according to most NWCA guidelines? A) 1 mm B) 2 mm C) 3 mm D) 4 mm Answer: C Explanation: A minimum of 3 mm lining thickness is commonly required to ensure adequate braking performance and safety. Question 18. Which FMVSS regulation governs air‑brake stopping distances for commercial vehicles? A) FMVSS 121 B) FMVSS 135 C) FMVSS 209 D) FMVSS 231 Answer: A Explanation: FMVSS 121 sets standards for air brake systems, including stopping distance requirements. Question 19. What does a tractor protection valve (TPV) prevent in a tractor‑trailer combination? A) Over‑pressurization of the trailer brakes
Exam
B) Loss of air supply to the tractor if the trailer brakes activate unintentionally C) Excessive heat buildup in the brake drums D) Unintended release of the trailer’s parking brake Answer: B Explanation: The TPV isolates the tractor’s air supply when a trailer breakaway occurs, preventing loss of tractor service pressure. Question 20. In a hydraulic brake system, what is the purpose of a reservoir compensation port? A) To increase brake pedal travel B) To allow fluid to flow into the master cylinder when pressure drops, preventing cavitation C) To vent excess pressure to the atmosphere D) To regulate brake fluid temperature Answer: B Explanation: The compensation port admits fluid from the reservoir when the master cylinder’s piston retracts, preventing vacuum formation. Question 21. Which component in a pneumatic system provides rapid exhaust of air to prevent brake drag? A) Quick‑release valve B) Relay valve C) Governor D) S‑cam Answer: A Explanation: The quick‑release valve rapidly vents air from the brake chambers, allowing quick brake release and reducing drag.
Exam
D) Engaging the clutch to disengage power to all wheels Answer: B Explanation: ATC limits engine torque and may apply brake pressure to the slipping wheel to restore traction. Question 25. Which of the following is a common cause of brake “grab” in an air‑brake system? A) Over‑adjusted slack adjusters B) Contaminated brake fluid C) Low air pressure in the reservoirs D) Worn brake drum surface Answer: A Explanation: Over‑adjusted slack adjusters reduce clearance, causing the brakes to engage prematurely (“grab”). Question 26. What is the typical cut‑in pressure setting for a medium‑size commercial air compressor governor? A) 60 psi B) 90 psi C) 120 psi D) 150 psi Answer: B Explanation: Most medium‑size compressors are set to cut‑in at around 90 psi to maintain adequate system pressure.
Exam
Question 27. Which brake component directly converts the linear motion of the pushrod into rotational motion in an S‑cam brake? A) Return spring B) Camshaft (S‑cam) C) Wedge block D) Relay valve Answer: B Explanation: The S‑cam is a camshaft that translates the pushrod’s linear motion into outward motion of the brake shoes. Question 28. In a hydraulic disc brake, what is the function of the “piston seal”? A) Prevents fluid leakage past the piston B) Increases the friction coefficient of the pads C) Acts as a spring to return the piston D) Controls the temperature of the brake fluid Answer: A Explanation: The piston seal keeps brake fluid from escaping the caliper, maintaining pressure and performance. Question 29. Which of the following gases is most commonly used in pneumatic brake systems? A) Oxygen B) Nitrogen C) Compressed air (primarily nitrogen‑free) D) Carbon dioxide
Exam
B) Supply air to the front brakes only C) Supply air to the rear brakes only D) Operate the parking brake only Answer: B Explanation: The primary circuit typically supplies the front brakes, while the secondary supplies the rear, ensuring redundancy. Question 33. Which factor most directly influences the coefficient of friction between a brake shoe lining and a drum? A) Ambient temperature B) Brake shoe material composition C) Air pressure in the system D) Length of the pushrod Answer: B Explanation: The material composition of the lining determines the frictional characteristics with the drum surface. Question 34. What is the effect of increasing the pedal ratio (mechanical advantage) in a brake system? A) Decreases the force required at the pedal B) Increases the travel required at the pedal C) Reduces the hydraulic pressure generated D) Has no effect on braking performance Answer: A
Exam
Explanation: A higher pedal ratio multiplies the driver’s input force, reducing the effort needed to achieve the same brake pressure. Question 35. Which component in a hydraulic brake system helps prevent brake fluid boiling under heavy use? A) High‑temperature brake fluid (DOT 5.1) B) Larger master cylinder bore C) Additional reservoir capacity D) All of the above Answer: D Explanation: Using higher‑boiling‑point fluid, a larger master cylinder, and extra reservoir volume all help keep fluid temperatures and pressures within safe limits. Question 36. In an ABS system, what is the typical frequency of pressure modulation during a lock‑up event? A) 1–5 Hz B) 10–20 Hz C) 30–50 Hz D) 100–200 Hz Answer: C Explanation: Modern ABS units pulse the brake pressure at 30–50 times per second to maintain wheel rotation. Question 37. Which of the following is a sign of brake fade in an air‑brake system? A) Pedal feels hard and unresponsive
Exam
Question 40. In a hydraulic brake system, the “master cylinder” typically contains how many pistons in a tandem design? A) One B) Two C) Three D) Four Answer: B Explanation: A tandem master cylinder has two pistons, providing dual‑circuit redundancy. Question 41. Which of the following is a primary cause of “brake chatter” in a disc‑brake system? A) Excessive brake fluid aeration B) Uneven pad material wear C) Low air pressure in the reservoirs D) Over‑adjusted parking brake spring Answer: B Explanation: Uneven pad wear leads to uneven friction, causing vibration and audible chatter during braking. Question 42. What does the “quick‑release valve” do when the driver lifts off the brake pedal? A) Increases pressure in the brake chambers B) Holds pressure to keep the brakes applied C) Rapidly exhausts air from the brake chambers D. Diverts air to the secondary circuit
Exam
Answer: C Explanation: The quick‑release valve vents air quickly, allowing the brakes to release promptly. Question 43. In a medium‑duty vehicle with a hydro‑boost system, what provides the pressure to assist braking? A) Engine vacuum B) Power steering pump pressure C) Electric motor pump D) Manual hand pump Answer: B Explanation: Hydro‑boost uses the high pressure from the power‑steering pump to multiply brake force. Question 44. Which of the following is the correct order of steps when performing a static leak test on an air‑brake system? A) Pressurize system → close all valves → monitor pressure drop → record results B) Release all pressure → open all valves → pressurize system → record results C) Pressurize system → open service valves → monitor pressure rise → record results D) Pressurize system → open parking brake valve → monitor pressure increase → record results Answer: A Explanation: The static leak test requires the system to be pressurized, all valves closed, then observe any pressure loss over a set period. Question 45. What is the purpose of a “relay valve” in a rear‑axle air‑brake circuit? A) To store air for emergency stops
Exam
Question 48. Which of the following is a key feature of a “dual‑circuit” air‑brake system? A) Both circuits control the same set of wheels for redundancy B) One circuit is used for service brakes, the other for parking brakes only C) Each circuit supplies a separate set of wheels (front vs. rear) D) The system uses both air and hydraulic pressure simultaneously Answer: C Explanation: Dual‑circuit systems split service brake supply between front and rear wheels, providing redundancy if one circuit fails. Question 49. What is the most common material used for brake drum linings on heavy‑duty trucks? A) Ceramic composite B) Asbestos‑free organic C) Metallic (cast iron) D) Carbon‑graphite Answer: B Explanation: Modern heavy‑duty drums use asbestos‑free organic or semi‑metallic linings for safety and performance. Question 50. Which of the following actions should be taken if a brake chamber is found to be leaking air during a pressure drop test? A) Adjust the slack adjuster to compensate B) Replace or repair the leaking chamber C) Increase the governor cut‑out pressure
Exam
D) Add more air to the reservoirs and retest Answer: B Explanation: A leaking chamber must be repaired or replaced to restore system integrity. Question 51. In the context of brake fluid, what does “hygroscopic” mean? A) The fluid expands when heated B) The fluid absorbs moisture from the environment C) The fluid has a high boiling point D) The fluid is resistant to oxidation Answer: B Explanation: Hygroscopic fluids, such as DOT 3 and DOT 4, readily absorb water, which can lower boiling points and cause corrosion. Question 52. Which of the following is a primary function of a “metering valve” in a hydraulic brake system? A) To control the rate of fluid flow to the brake chambers, ensuring gradual application B) To increase the pressure beyond the master cylinder output C) To vent excess fluid to the reservoir during hard stops D) To balance pressure between front and rear circuits automatically Answer: A Explanation: Metering valves regulate fluid flow, providing a smooth, progressive brake application. Question 53. What safety hazard is associated with improperly drained “wet tanks” in air‑brake systems?
