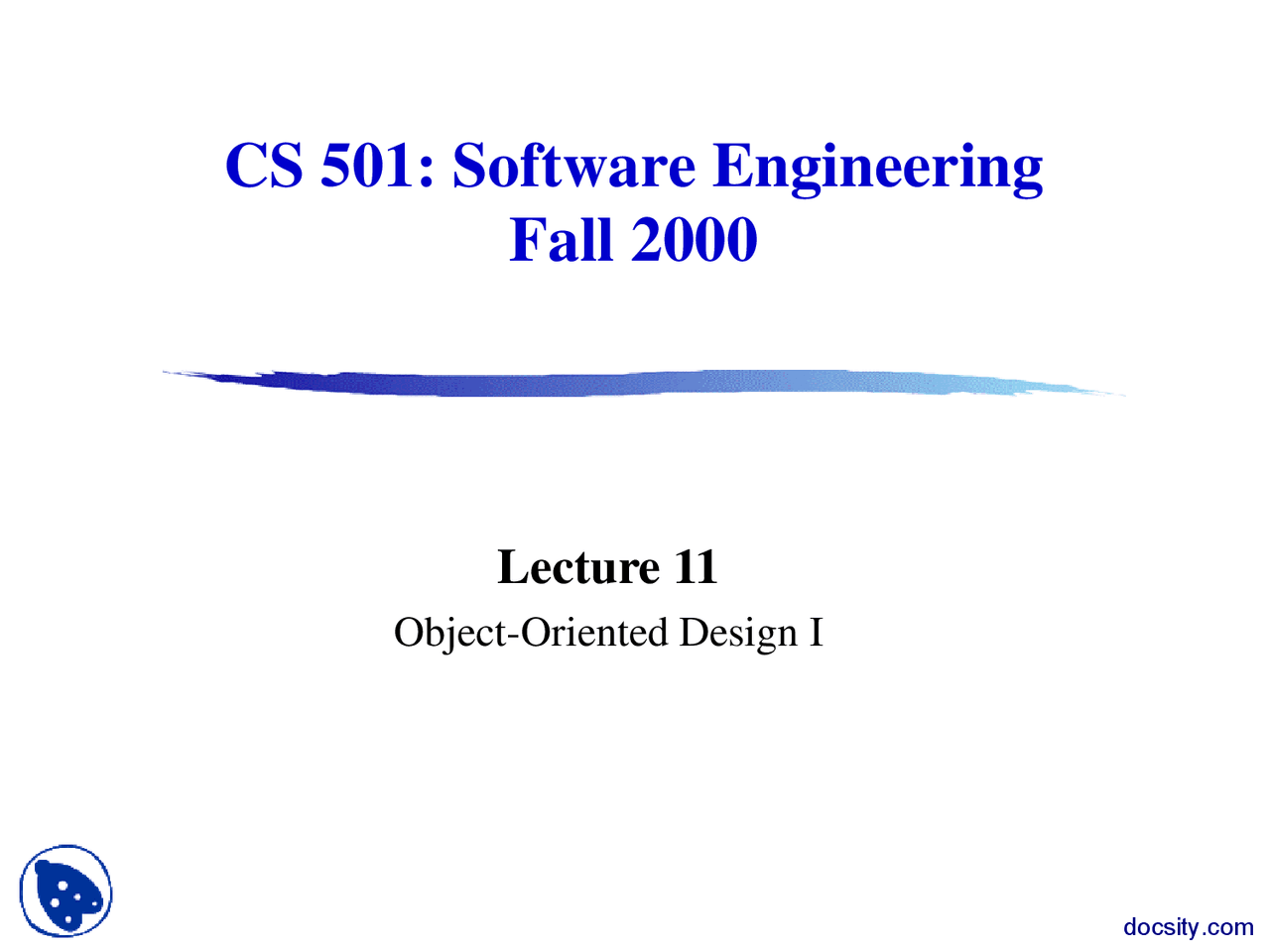

CS 501: Software Engineering
Fall 2000
Lecture 11
Object-Oriented Design I
docsity.com
Administration
- Preparation for presentation
-- Recitation Section, Monday October 2 -- Not all members of team need be present
- Fall Programming Contest for this year will be on October 14th, organized by the ACSU and David Kempe.
http://www.cs.cornell.edu/kempe/contest/default.html
docsity.com
What is in a Requirements Document?
Remember
- The requirements document specifies the functionality that you plan to deliver to the client
- It must be comprehensive and detailed. Everything must be written out -- no hand waving!
The requirements document is likely to be several times as long as Assignment 1.
docsity.com
Assignment 2 -- Individual Parts
One approach:
With your document, include a list of who contributed what part to the Requirements study, e.g.,
Person A
Requirements analysis for database design (member of team of 3), wrote Section 3.1 of document, worked with client to identify software needs.
Person B
Prepared visual aids for presentation, edited entire document, specified the security needs and wrote Section 4.2. docsity.com
Useful Texts
Grady Booch, James Rumbaugh, Ivar Jacobson, The Unified Modeling Language. Addison-Wesley 1999.
Grady Booch, Object-Oriented Analysis and Design with Applications , second edition. Benjamin/Cummings 1994.
Rob Pooley, Perdita Stevens, Using UML Software Engineering with Objects and Components. Addison-Wesley
docsity.com
The Importance of Modeling
- A model is a simplification of reality.
- We build models so that we can better understand the system we are developing.
- We build models of complex system because we cannot comprehend such a system in its entirety.
Models can be informal or formal. The more complex the project the more valuable a formal model becomes.
BRJ
docsity.com
The Unified Modeling Language
UML is a standard language for modeling software systems.
- Serves as a bridge between the requirements specification and the implementation.
- Provides a means to specify and document the design of a software system.
- Is process and programming language independent.
- Is particularly suited to object-oriented program development.
docsity.com
Notation: Classes
Window origin size open() close() move() display()
name
attributes
operations
A class is a description of a set of objects that share the same attributes, operations, relationships and semantics.
docsity.com
Notation: Collaboration & Use Case
Place order
A use case is a description of a set of sequence of actions that a system performs that yields an observable result.
Chain of responsibility
A collaboration defines an interaction, i.e., a society of roles and other elements that work together to provide some cooperative behavior.
docsity.com
Notation: Active Class
EventManager eventlist suspend() flush()
An active class is a class whose objects own one or more processes or threads and therefore can initiate control activity.
docsity.com
Notation: Behavioral Things:
Messages & States
display
An interaction is a behavior that comprises a set of messages exchanged among a set of objects within a particular context to accomplish a specific purpose.
Waiting
A state machine is a behavior that specifies the sequence of states an object or an interaction goes through during its lifetime in response to events. docsity.com
Notation: Grouping and Annotation
A package is a general-purpose mechanism for organizing elements into groups.
Business rules
return copy of self
A note is a symbol for rendering constraints and comments attached to an element or a collection of elements. docsity.com
Notation: Relationships (continued)
A generalization is a specialization/generalization relationship is which objects of the specialized element (child) are substitutable for objects of the generalized element (parent).
child parent
A realization is a semantic relationship between classifiers, wherein one classifier specifies a contract that another classifier guarantees to carry out. docsity.com
Diagrams in UML
A diagram is the graphical representation of a set of elements, usually rendered as a connected graph of vertices (things) and arcs (relationships).
- Class diagram shows a set of classes, interfaces, and collaborations with their relationships.
- Object diagram shows a set of objects and their relationships.
- Use case diagram shows a set of use cases and actors (a special kind of class) and their relationships.
