Kim Bruce
Williams College
on leave at U. of California at Santa Cruz

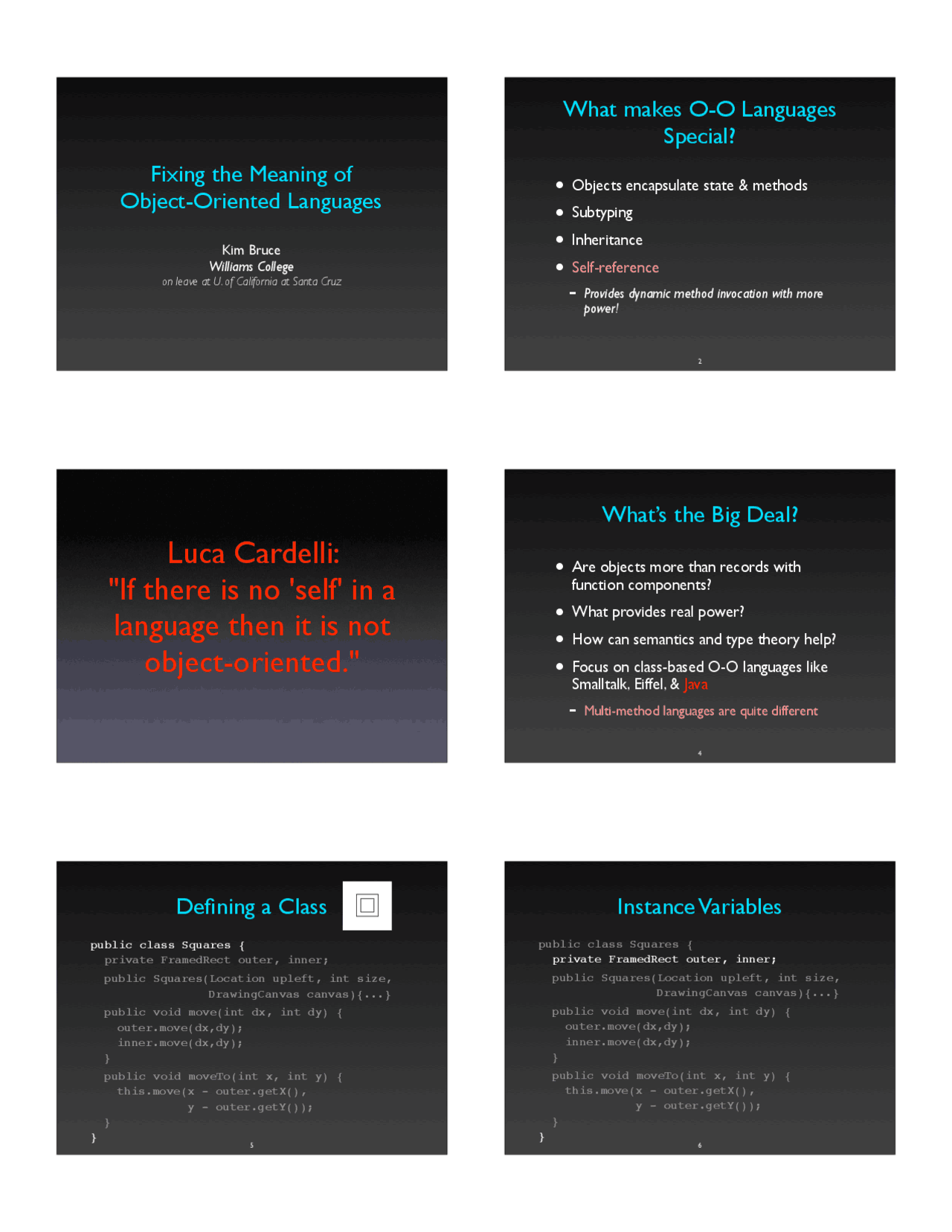

Fixing the Meaning of
Object-Oriented Languages
2
Objects encapsulate state & methods
• Subtyping
• Inheritance
Self-reference
- Provides dynamic method invocation with more
power!
What makes O-O Languages
Special?
Luca Cardelli:
"If there is no 'self' in a
language then it is not
object-oriented."
4
• Are objects more than records with
function components?
• What provides real power?
How can semantics and type theory help?
• Focus on class-based O-O languages like
Smalltalk, Eiffel, & Java
- Multi-method languages are quite different
What’s the Big Deal?
public class Squares {
private FramedRect outer, inner;
public Squares(Location upleft, int size,
DrawingCanvas canvas){...}
public void move(int dx, int dy) {
outer.move(dx,dy);
inner.move(dx,dy);
}
public void moveTo(int x, int y) {
this.move(x - outer.getX(),
y - outer.getY());
}
}
Defining a Class
public class Squares {
private FramedRect outer, inner;
public Squares(Location upleft, int size,
DrawingCanvas canvas){...}
public void move(int dx, int dy) {
outer.move(dx,dy);
inner.move(dx,dy);
}
public void moveTo(int x, int y) {
this.move(x - outer.getX(),
y - outer.getY());
}
}
Instance Variables
7
public class Squares {
private FramedRect outer, inner;
public Squares(Location upleft, int size,
DrawingCanvas canvas){...}
public void move(int dx, int dy) {
outer.move(dx,dy);
inner.move(dx,dy);
}
public void moveTo(int x, int y) {
this.move(x - outer.getX(),
y - outer.getY());
}
}
Constructor
8
public class Squares {
private FramedRect outer, inner;
public Squares(Location upleft, int size,
DrawingCanvas canvas){...}
public void move(int dx, int dy) {
outer.move(dx,dy);
inner.move(dx,dy);
}
public void moveTo(int x, int y) {
this.move(x - outer.getX(),
y - outer.getY());
}
}
Methods
9
Squares fst = new Squares(corner,10,canvas);
Squares snd = new Squares(middle,40,canvas);
// objects are references
fst.moveTo(20,30);
snd = fst; // snd & fst refer to same object
snd.move(30,50);
Creating & Using Objects
10
First naive view of objects:
[[new Squares(...)]] =
! this.({ outer = ..., // no mention of this
inner = ... }!
{ move = fun(dx,dy). this.outer.move()...,
moveTo = fun(x,y). this.move(...) })
Defines mutually recursive methods.
Objects Are Fixed Points
Classes serve many roles:
- Types
- Generators of new objects
- Extensible to form new generators
Classes Are Generators
public class OvalSquares extends Squares {
private FramedOval center;
public OvalSquares(Location upleft,
int size, DrawingCanvas canvas) {
super(upleft, size, canvas);
center = new FramedOval(...);
}
public void move(int dx, int dy) {
super.move(dx, dy); // old move
center.move(dx, dy);
}
}
Subclass
What happens to moveTo?
19
S’! T’ <: S! T
iff
S <: S’ and T’ <: T.
Subtyping Function Types
S S’^ ff’ T’ T
Contravariant for parameter types.
Covariant for result types.
20
ObjType { mi : T’i } 1! i! n <: ObjType { mi : Ti } 1! i! k
iff
k! n and for all 1! i! k, T’ i
<: T
i
assuming methods not updatable at run-time!
Method parameters can vary contravariantly,
return types covariantly.
Subtyping Object Types
21
Java 1.4 doesn’t allow any changes to types
of methods in subclass.
C++ & Java 5 allow covariant changes to
return types.
- Suppose you don’t care if subclass gives a
subtype. Do you still need restrictions?
- In Smalltalk, subclass and subtype hierarchies
sometimes reversed.
Restriction on Subclass Changes class Example {
:
void m(...) {... this.n(s) ...}
T n(S x) {...}
}
class SubExample extends Example {
T’ n(S’ x) {...}
void newMeth(...) {...}
}
What is relationship of new type of n to old if want
type safety?
- Method type in subclass must be subtype of
method type in superclass for safety:
- Covariant change allowed in return type
- Contravariant change in parameter type
Restriction on Subclass Changes
- Methods must be meaningful in all possible
subclasses.
[[class(i:I,m:M)]] =
M’ <: [[M]]. IR’ <: [[I
ref ]].
[[i]] " (" (this : IR’ " (IR’ # M’)). [[m]])
initial values methods
of instance variables
Semantics of Classes?
25
[[new Squares(...)]] =
{ outer = ref ..., inner = ref ... }
!( fm : [[I
ref ]] # [[M]]).
"( inst : [[I
ref ]]).
{ move = fun(dx,dy). inst.outer...,
moveTo = fun(x,y). inst,fm .move(...) }
Semantics of Objects
Method suite can be shared between objects
of same type. 26
[[obj.p(...)]] = fm(i).p(...)
where [[obj]] = !i,fm"
In objects, methods fixed -- parameterized by suite
of instance variables, not this.
Sending Messages
27
- Fixed points^ are key to understanding O-O
languages.
- Classes are^ extensible^ generators^ of fixed
points.
- Subtyping^ explains restrictions on subclasses
- Even though subtyping distinct concept.
Summary
28
What is Type of "this"?
[[class(i:I,m:M)]] =
M’ <: [[M]]. IR’ <: [[I
ref ]].
[[i]] " " (this : IR’ " (IR’ # M’)). [[m]]
How do we type function returning this?
Finding a Type for "this"
Defining this in Class(i : I, m : M)
- this : IR’ " (IR’ # M’) where M’ <: [[M]], IR’ <:
[[I
ref ]]
When return this, hide instance variables
- this : X. X " (X # M’) = Obj(M')
- but notice Obj(M') <: Obj(M), thus this : Obj(M)
- where Obj(M) is type of objects of the class being defined.
Losing Information
But now we have lost information.
- If C has method^ m()^ with body^ return this,
then C m().
If D extends C, then inherited m still has
type C m().
- But^ d.m()^ really returns value of type^ D!
37
Meaning of ThisClass
- ThisClass^ is type of^ this.
In semantics:
- Node = !ThisClass.Nd(ThisClass)
- (^) DbleNode = !ThisClass'.DbNd(ThisClass');
Thus
- ThisClass = Nd(ThisClass) = Node
- ThisClass' = DbNd(ThisClass') = DoubleNode
38
Type-Checking
Wish to type-check modularly.
- no repeated type-checking of inherited methods
- Type-check methods of class C under
assumptions that hold in all extensions!
this : ThisClass
ThisClass extends C
Can prove soundness of type system.
39
Verification
- Verification can benefit from similar
assumptions on this and ThisClass
- Alternative:^ Verify under closed-world
assumption and copy inherited methods
down.
- Compositional approach is better!
40
- Gets^ much^ more interesting when:
- Allow type parameters (e.g., GJ)
- Introduce ThisType as interface of this.
- LOOJ extension of GJ (Java 5)
- Allow mutually recursive ThisClasses in class
groups.
- Allows types and classes to be refined
simultaneously in type-safe fashion.
There Is Much More ...
Subject-Observer Example
SubjObsGrp = ClassGroup {
class MySubject {
void addObserver(MyObserver myObs) {...};
void notifyObservers: proc(MyEvent myEvt) {...}; }
class MyObserver {
void notify(MySubject mySubj, MyEvent myEvt) {...}; }
class MyEvent {…}
}
Extending Class Groups
ChoiceSubjObsGrp = ClassGroup extends SubjObsGrp {
class extends MySubject {
String getItem() {...}; }
class extends MyEvent {
String getItem() {...}; }
class extends MyObserver {
void notify(MySubject mySubj, MyEvent myEvt) {
... myEvt.getItem() ...}; }
}
43
Summary
Fixed points play key role in OO languages.
• Classes are generators of fixed points:
- cl = " this. CL(this)
- obj =! this. CL(this)
• Types similar:
- Class = " ThisClass. CLType(ThisClass)
- ObjTp =! ThisClass. CLType(ThisClass)
44
Summary ( continued )
Type-checking must take into consideration
future subclasses.
Verification should also plan for subclasses.
45
Summary ( continued )
Interdependent groups of objects common.
Need to subclass simultaneously
- Not supported in current languages
- Mutually recursive ThisClasses provide
opportunities for type-safe specialization.
46
References
• LOOJ:^ Weaving LOOM into Java, ECOOP^ 2004.
• Some Challenging^ Typing Issues in Object-Oriented
Languages, ENTCS 82, #8, 2003.
Foundations of Object-Oriented Languages: Types
and Semantics, MIT Press, 2002.
http://www.cs.williams.edu/~kim
Questions?
