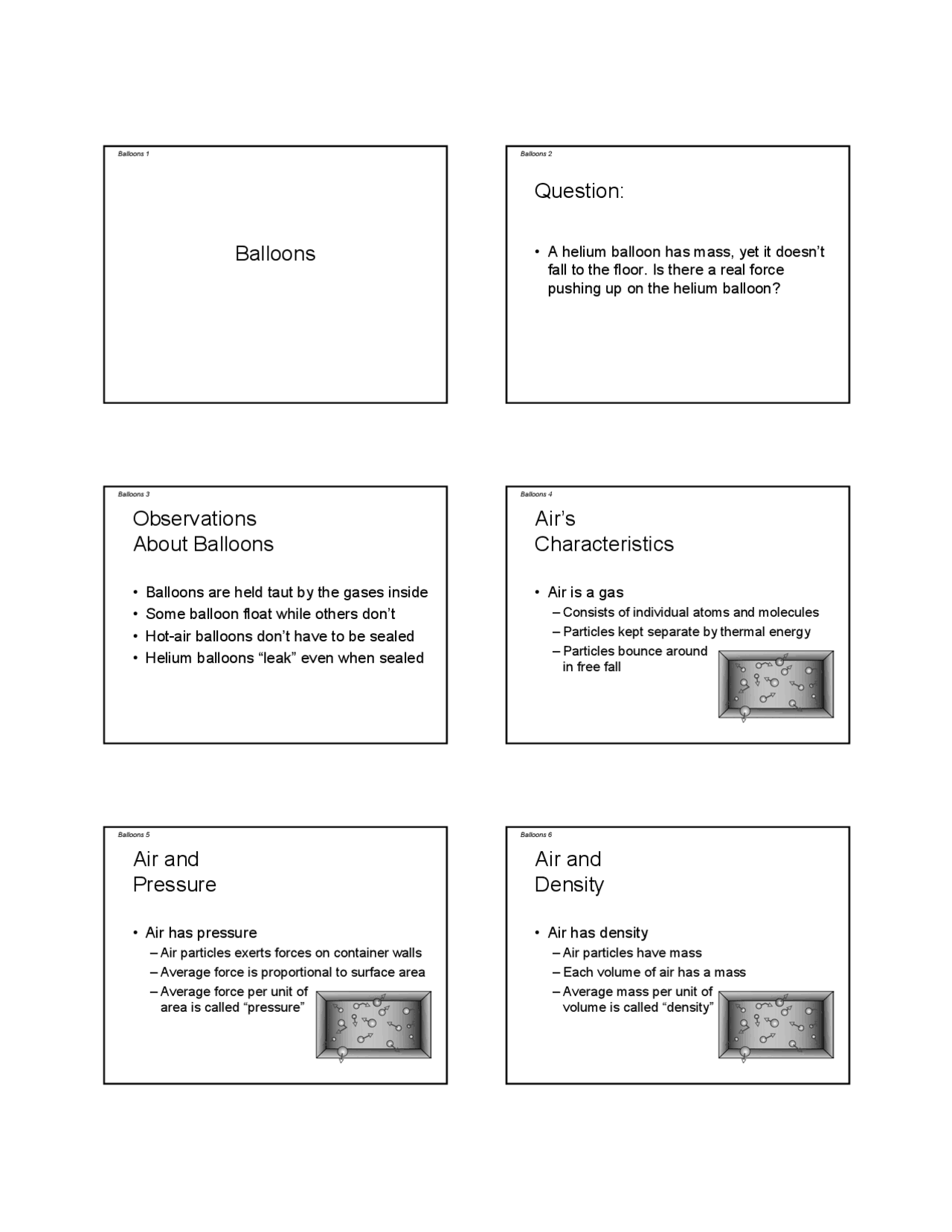

Balloons 1
Balloons
Balloons 2
Question:
A helium balloon has mass, yet it doesn’t
fall to the floor. Is there a real force
pushing up on the helium balloon?
Balloons 3
Observations
About Balloons
Balloons are held taut by the gases inside
Some balloon float while others don’t
Hot-air balloons don’t have to be sealed
Helium balloons “leak” even when sealed
Balloons 4
Air’s
Characteristics
Air is a gas
Consists of individual atoms and molecules
Particles kept separate by thermal energy
Particles bounce around
in free fall
Balloons 5
Air and
Pressure
Air has pressure
Air particles exerts forces on container walls
Average force is proportional to surface area
Average force per unit of
area is called “pressure”
Balloons 6
Air and
Density
Air has density
Air particles have mass
Each volume of air has a mass
Average mass per unit of
volume is called “density”
pf3
pf4

Partial preview of the text

Download Balloons: Principles of Buoyancy and Air Pressure and more Study notes Classical Physics in PDF only on Docsity!

Balloons

Question:

  • A helium balloon has mass, yet it doesn’t

fall to the floor. Is there a real force

pushing up on the helium balloon?

Balloons 3

Observations

About Balloons

  • Balloons are held taut by the gases inside
  • Some balloon float while others don’t
  • Hot-air balloons don’t have to be sealed
  • Helium balloons “leak” even when sealed

Balloons 4

Air’s

Characteristics

  • Air is a gas
    • Consists of individual atoms and molecules
    • Particles kept separate by thermal energy
    • Particles bounce around in free fall

Balloons 5

Air and

Pressure

  • Air has pressure
    • Air particles exerts forces on container walls
    • Average force is proportional to surface area
    • Average force per unit of area is called “pressure”

Balloons 6

Air and

Density

  • Air has density
    • Air particles have mass
    • Each volume of air has a mass
    • Average mass per unit of volume is called “density”

Air Pressure

and Density

  • Air pressure is proportional to density
    • Denser particles hit surface more often
    • Denser air → more pressure

Pressure

Imbalances

  • Balanced pressure exerts no overall force
    • Forces on balloon’s sides cancel
  • Unbalanced pressure exerts overall force
    • Forces on balloon’s sides don’t cancel
    • Forces push balloon toward lower pressure
  • Air pressure also pushes on the air itself
    • Air itself is pushed toward lower pressure

Balloons 9

The Atmosphere

  • Air near the ground supports air overhead
    • Air pressure is highest near the ground
    • Air density is highest near the ground
  • Key observations:
    • Air pressure decreases with altitude
    • A balloon feels more force at bottom than top
    • Imbalance yields an upward buoyant force

Balloons 10

Archimedes’

Principle

  • A balloon immersed in a fluid experience

an upward buoyant force equal to the

weight of the fluid it displaces

Balloons 11

Cold-Air Balloon

in Air

  • A rubber, cold-air-filled balloon
    • weighs more than the cold air it displaces
    • experiences a downward net force in cold air
    • sinks in cold air
  • Its average density is greater than that

of cold air

Balloons 12

Air and

Temperature

  • Air pressure is proportional to temperature
    • Faster particles hit surface more and harder
    • Hotter air → more pressure

Balloons 19

Summary

About Balloons

  • Balloons float when their average

densities are less than that of air

  • Helium balloons float because helium

atoms are lighter than air particles

  • Hot-air balloons float because hot air is

less dense than cold air
