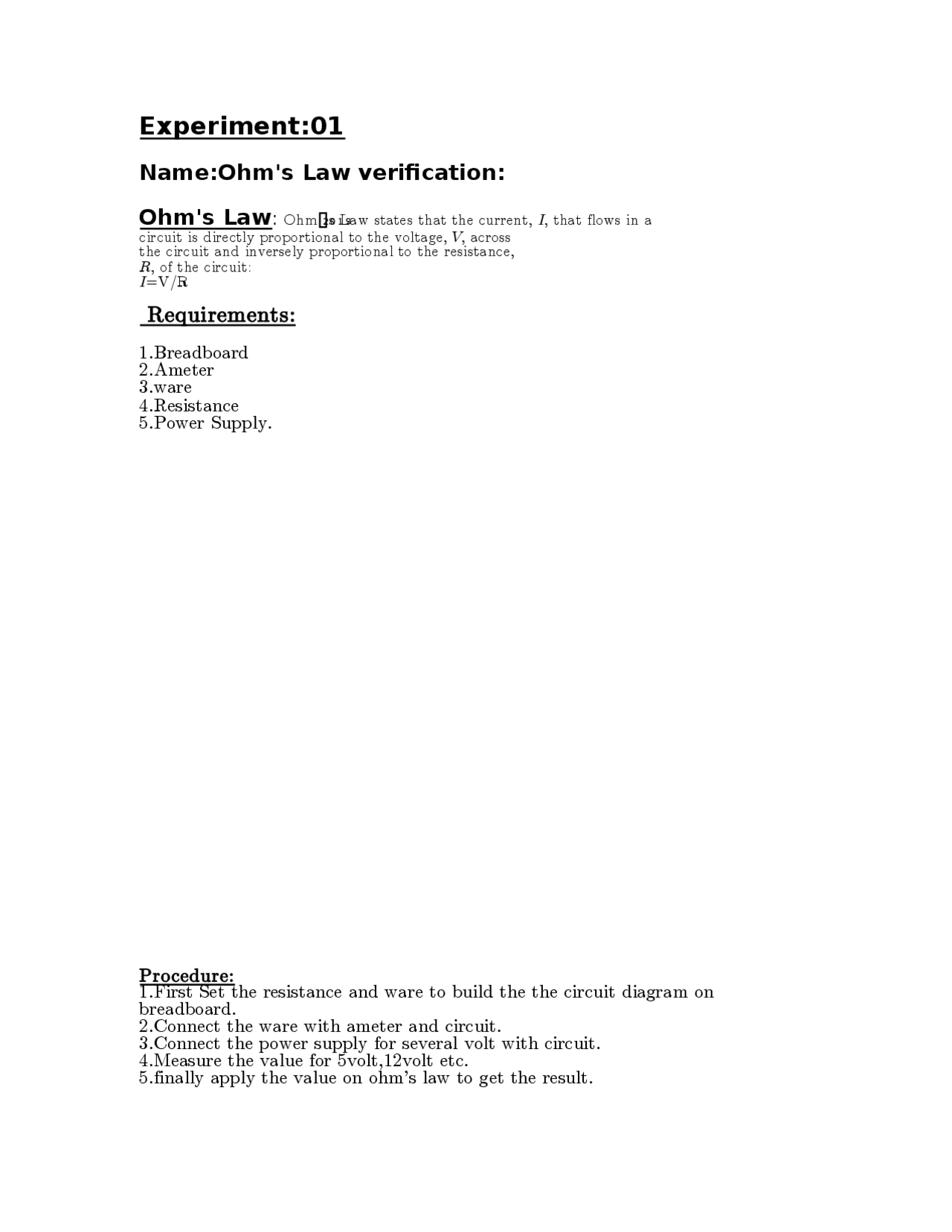

Experiment:01
Name:Ohm's Law verification:
Ohm's Law: 2 0 1 9Ohm s Law states that the current, I, that flows in a
circuit is directly proportional to the voltage, V , across
the circuit and inversely proportional to the resistance,
R, of the circuit:
I =V/R
Requirements:
1.Breadboard
2.Ameter
3.ware
4.Resistance
5.Power Supply.
Pro cedure:
1.First Set the resistance and ware to build the the circuit diagram on
breadboard.
2.Connect the ware with ameter and circuit.
3.Connect the power supply for several volt with circuit.
4.Measure the value for 5volt,12volt etc.
5.finally apply the value on ohm's law to get the result.
