CMSC433, Spring 2002
OMT and Design Patterns
Alan Sussman
March 21, 2002
CMSC 433, Spring 2002 - Alan Sussman 2
Administrivia
- Project 4 due date extended to Friday, April
- Design pattern readings will be posted
- be selective in what you read
CMSC 433, Spring 2002 - Alan Sussman 3
Last time
- RMI example
- RMIregistry
- passing arguments, return values
- marshalling/unmarshalling
- Serializable vs. Remote
CMSC 433, Spring 2002 - Alan Sussman 4

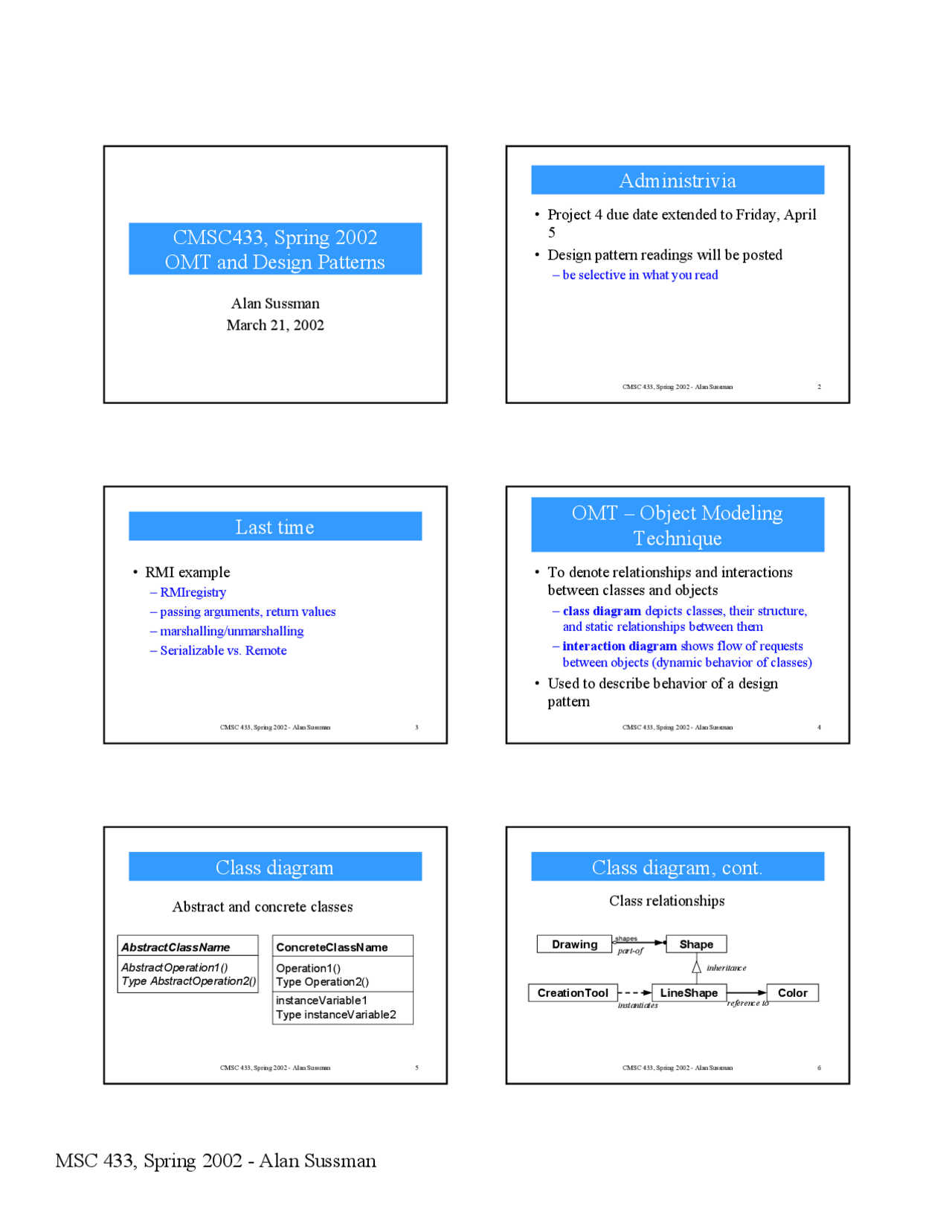

OMT – Object Modeling
Technique
- To denote relationships and interactions
between classes and objects
- class diagram depicts classes, their structure, and static relationships between them
- interaction diagram shows flow of requests between objects (dynamic behavior of classes)
- Used to describe behavior of a design
pattern
CMSC 433, Spring 2002 - Alan Sussman 5
Class diagram
Abstract and concrete classes
AbstractClassName
AbstractOperation1() Type AbstractOperation2()
ConcreteClassName Operation1() Type Operation2() instanceVariable Type instanceVariable
CMSC 433, Spring 2002 - Alan Sussman 6
Class diagram, cont.
Class relationships
Drawing
CreationTool LineShape Color
Shape shapes
inheritance
part-of
instantiates reference to
CMSC 433, Spring 2002 - Alan Sussman 7
Interaction diagram
Design Patterns
CMSC 433, Spring 2002 - Alan Sussman 9
What is a pattern?
- Patterns = problem/solution pairs in context
- Patterns facilitate reuse of successful
software architectures and design
- Not code reuse
- Instead, solution/strategy reuse
- Sometimes, interface reuse
CMSC 433, Spring 2002 - Alan Sussman 10
Gang of Four
- The book that started it all
- Community refers to authors as the “Gang of Four”
- Figures and some text in these slides come from book
CMSC 433, Spring 2002 - Alan Sussman 11
Some design patterns
you already know
- Iterator
- Provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation.
- Observer
- Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically.
- Proxy
- Provide a surrogate or placeholder for another object to control access to it.
CMSC433, Spring 2002
Design Patterns
Alan Sussman
April 2, 2002
CMSC 433, Spring 2002 - Alan Sussman 19
Uses of Iterator Pattern
CMSC 433, Spring 2002 - Alan Sussman 20
You’ve already seen this in Java
- Iterators for Collections
- Also, Enumerators for Hashtables and Vectors
CMSC 433, Spring 2002 - Alan Sussman 21
Observer pattern
CMSC 433, Spring 2002 - Alan Sussman 22
Use of an Observer pattern
CMSC 433, Spring 2002 - Alan Sussman 23
Implementation details
- Observing more than one subject.
- It might make sense in some situations for an observer to depend on more than one subject. The subject can simply pass itself as a parameter in the Update operation, thereby letting the observer know which subject to examine.
- Making sure Subject state is self-consistent before notification.
CMSC 433, Spring 2002 - Alan Sussman 24
More Implementation Issues
- Implementations of the Observer pattern often have the subject broadcast additional information about the change. - At one extreme, the subject sends observers detailed information about the change, whether they want it or not. At the other extreme the subject sends nothing but the most minimal notification, and observers ask for details explicitly thereafter
- You can extend the subject's registration interface to allow registering observers only for specific events of interest.
CMSC 433, Spring 2002 - Alan Sussman 25
You will see this later in detail
- MessageListener in project 4 is an example
of the Observer pattern
- The standard Java and JavaBean event
model is an example of an observer pattern
CMSC 433, Spring 2002 - Alan Sussman 26
Proxy pattern
CMSC 433, Spring 2002 - Alan Sussman 27
Example of Proxy Pattern
CMSC 433, Spring 2002 - Alan Sussman 28
Known uses (from DP book)
- McCullough [McC87] discusses using proxies in Smalltalk to access remote objects. Pascoe [Pas86] describes how to provide side-effects on method calls and access control with "Encapsulators."
- NEXTSTEP [Add94] uses proxies (instances of class NXProxy) as local representatives for objects that may be distributed. - On receiving a message, the proxy encodes it along with its arguments and then forwards the encoded message to the remote subject. Similarly, the subject encodes any return results and sends them back to the NXProxy object.
CMSC 433, Spring 2002 - Alan Sussman 29
Creation patterns
- Singleton
- Ensure a class only has one instance, and provide a global point of access to it.
- Abstract Factory
- Provide an interface for creating families of related or dependent objects without specifying their concrete classes.
CMSC 433, Spring 2002 - Alan Sussman 30
Structural patterns
- Adapter
- Convert the interface of a class into another interface clients expect. Adapter lets classes work together that couldn't otherwise because of incompatible interfaces.
CMSC433, Spring 2002
Design Patterns
Alan Sussman
April 4, 2002
CMSC 433, Spring 2002 - Alan Sussman 38
Administrivia
- Project 4 due Friday
- Project 5 posted soon
- Project 3 commentary due Wed., April 10
CMSC 433, Spring 2002 - Alan Sussman 39
Last time
- Design patterns
- Iterator – as in Java collection classes
- Observer – as in event listeners for GUIs
- Proxy – like web proxies
- Singleton – like myCounter
CMSC 433, Spring 2002 - Alan Sussman 40
Abstract Factory
- Different look-and-feels define different
appearances and behaviors for user interface
“widgets” like scroll bars, windows, and
buttons.
CMSC 433, Spring 2002 - Alan Sussman 41
Using an abstract factory
- Get a reference to a type WidgetFactory
- To an object of the appropriate subtype of WidgetFactory
- Ask the WidgetFactory for a scroll bar, or for a window
CMSC 433, Spring 2002 - Alan Sussman 42
Adapter pattern
- Clients needs a target that implements one
interface
CMSC 433, Spring 2002 - Alan Sussman 43
JDK 1.3 Proxy class
- Can be used for both Proxy and Adapter
pattern
- Use java.lang.reflect.Proxy
- Create object that implements a set of
interfaces
- Specified dynamically
- Invocation handler handles calls
CMSC 433, Spring 2002 - Alan Sussman 44
State pattern
- Suppose an object is always in one of
several known states
- The state an object is in determines the
behavior of several methods
- Could use if/case statements in each method
- Better solution: state pattern
CMSC 433, Spring 2002 - Alan Sussman 45
State pattern
- Have a reference to a state object
- Normally, state object doesn’t contain any fields
- Change state: change state object
- Methods delegate to state object
CMSC 433, Spring 2002 - Alan Sussman 46
Structure of State pattern
CMSC 433, Spring 2002 - Alan Sussman 47
Instance of State Pattern
CMSC 433, Spring 2002 - Alan Sussman 48
State pattern notes
- Can use singletons for instances of each
state class
- State objects don’t encapsulate state, so can be shared
- Easy to add new states
- New states can extend other states
- Override only selected functions
CMSC 433, Spring 2002 - Alan Sussman 55
Using overloading in a visitor
- You can name all of the visitXXX(XXX x)
methods just visit(XXX x)
- Calls to Visit (AssignmentNode n) and Visit(VariableRefNode n) distinguished by compile-time overload resolution
CMSC 433, Spring 2002 - Alan Sussman 56
Easy to provide default behavoir
visit(BinaryPlusOperatorNode)
can just forward call to
visit(BinaryOperatorNode)
- Visitor can just provide implementation of
visit(BinaryOperatorNode) if it doesn’t care
what type of binary operator node it is at
CMSC 433, Spring 2002 - Alan Sussman 57
State in a visitor pattern
- A visitor can contain state
- E.g., the results of parsing the program so far
- Or use stateless visitors and pass around a
separate state object
CMSC433, Spring 2002
Design Patterns
Alan Sussman
April 9, 2002
CMSC 433, Spring 2002 - Alan Sussman 59
Administrivia
- Project 3 commentary due tomorrow
- Project 5 posted
- One more design pattern today, then back to
concurrent programming, from Lea book
- read Ch. 1 if you haven’t already
CMSC 433, Spring 2002 - Alan Sussman 60
Last time
- Design patterns
- Abstract factory
- Adaptor
- State
- Visitor
CMSC 433, Spring 2002 - Alan Sussman 61
Traversals
- In the standard visitor pattern, the visitor at a node is responsible for visiting the components (i.e., children) of that node - if that is what is desired - Visitors can be applied to flat object structures
- Several other solutions
- acceptAndTraverse methods
- Visit/process methods
- traversal visitors applying an operational visitor
Reactor Pattern
CMSC 433, Spring 2002 - Alan Sussman 63
Intent
- The Reactor architectural pattern allows
event-driven applications to
- demultiplex and dispatch service requests
- delivered to an application from one or more clients
- Also known as
- Dispatcher, Notifier
CMSC 433, Spring 2002 - Alan Sussman 64
Forces
- A good solution must resolve the following forces:
- To enhance scalability and minimize latency, an application must not block indefinitely waiting on any single source
- To maximize throughput, unnecessary utilization of the CPU(s) should be avoided
- Minimal modifications and maintenance effort should be required to integrate new or enhanced services
CMSC 433, Spring 2002 - Alan Sussman 65
Solution
- Synchronously await indication events on
one or more event sources
- Integrate the mechanisms that demultiplex
events and dispatch them to processing
elements
- Decouple these from application-specific
processing elements
CMSC 433, Spring 2002 - Alan Sussman 66
Applicability
- Use Reactor Pattern when a process is
event-driven and:
- Threading leads to poor performance
- Threading requires complex concurrency control
- OS does not support multiple threading within a process
Design Patterns Again
CMSC 433, Spring 2002 - Alan Sussman 74
Why patterns?
- Sometimes, patterns are just a cool idea you might not have come up with on your own - Learn from others
- If you work with code written by someone else
- If they use a pattern you know, it will be easier for you to understand their code
- Some frameworks can automatically build/manipulate certain design patterns
CMSC 433, Spring 2002 - Alan Sussman 75
Pattern hype
- Patterns get a lot of hype and fanatical believers
- We are going to have a design pattern reading group, and this week we are going to discuss the Singleton Pattern!
- Patterns are sometimes wrong (e.g., double- checked locking) or inappropriate for a particular language or environment - Patterns developed for C++ can have very different solutions in Smalltalk or Java
More on visitor traversals
CMSC 433, Spring 2002 - Alan Sussman 77
Traversals
- In the standard visitor pattern, the visitor at a node is responsible for visiting the components (i.e., children) of that node - if that is what is desired - Visitors can be applied to flat object structures
- Several other solutions
- acceptAndTraverse methods
- Visit/process methods
- traversal visitors applying an operational visitor
CMSC 433, Spring 2002 - Alan Sussman 78
acceptAndTraverse methods
- accept method could be responsible for
traversing children
- Assumes all visitors have same traversal pattern
- E.g., visit all nodes in pre-order traversal
- Could provide previsit and postvisit methods to allow for more complicated traversal patterns - Still visit every node - Can’t do out of order traversal - In-order traversal requires inVisit method
CMSC 433, Spring 2002 - Alan Sussman 79
Accept and traverse
- Class BinaryPlusOperatorNode {
void accept(Visitor v) {
v->visit(this);
lhs->accept(v);
rhs->accept(v);
CMSC 433, Spring 2002 - Alan Sussman 80
Visitor/process methods
- Can have two parallel sets of methods in visitors
- Visit methods
- Process methods
- Visit method on a node:
- Calls process method of visitor, passing node as an argument
- Calls accept on all children of the node (passing the visitor as an argument
CMSC 433, Spring 2002 - Alan Sussman 81
Preorder visitor
void visit(BinaryPlusOperatorNode n) {
process(n);
n->lhs->accept(this);
n->rhs->accept(this);
CMSC 433, Spring 2002 - Alan Sussman 82
Visit/process, continued
- Can define a PreorderVisitor
- Extend it, and just redefine process method
- Except for the few cases where something other than preorder traversal is required
- Can define other traversal visitors as well
CMSC 433, Spring 2002 - Alan Sussman 83
Traversal visitors applying an
operational visitor
- Define a Preorder traversal visitor
- Takes an operational visitor as an argument when created
- Perform preorder traversal of structure
- At each node
- Have node accept operational visitor
- Have each child accept traversal visitor
CMSC 433, Spring 2002 - Alan Sussman 84
PreorderVisitor with payload
Visitor payload;
void visit(BinaryPlusOperatorNode n) {
payload->visit(n);
n->lhs->accept(this);
n->rhs->accept(this);
