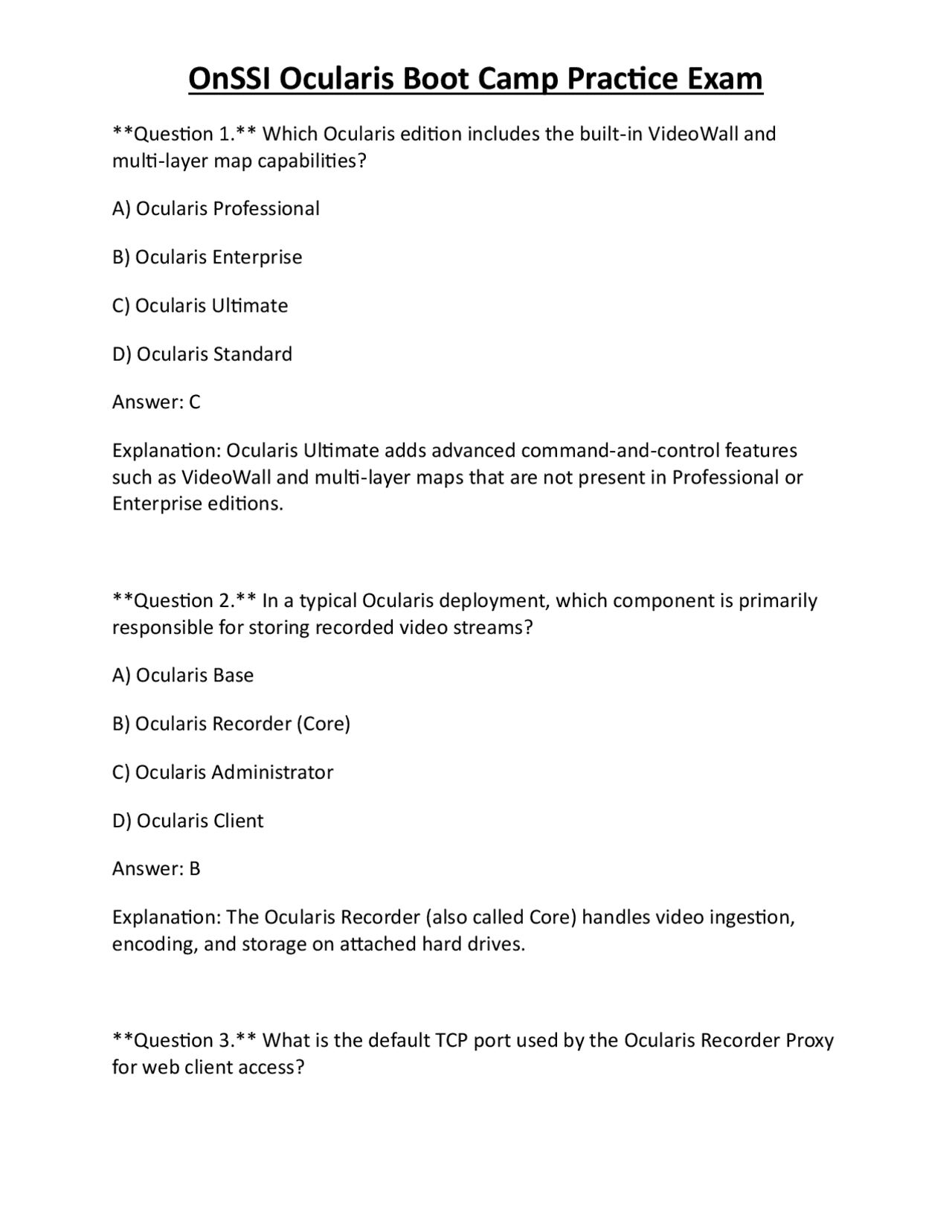

Question 1. Which Ocularis edition includes the built‑in VideoWall and multi‑layer map capabilities? A) Ocularis Professional B) Ocularis Enterprise C) Ocularis Ultimate D) Ocularis Standard Answer: C Explanation: Ocularis Ultimate adds advanced command‑and‑control features such as VideoWall and multi‑layer maps that are not present in Professional or Enterprise editions. Question 2. In a typical Ocularis deployment, which component is primarily responsible for storing recorded video streams? A) Ocularis Base B) Ocularis Recorder (Core) C) Ocularis Administrator D) Ocularis Client Answer: B Explanation: The Ocularis Recorder (also called Core) handles video ingestion, encoding, and storage on attached hard drives. Question 3. What is the default TCP port used by the Ocularis Recorder Proxy for web client access?
A) 80
B) 443
C) 8080
D) 554
Answer: B Explanation: The Recorder Proxy serves HTTPS traffic for web and mobile clients on port 443 by default. Question 4. Which licensing model allows Ocularis to be activated without an internet connection? A) Online floating license B) Offline license file (dongle) C) Cloud‑based subscription D) Per‑camera subscription Answer: B Explanation: An offline license file (often stored on a USB dongle) can be imported directly into Ocularis without contacting a licensing server. Question 5. When planning server density, which metric is most critical for determining the number of cameras a single Recorder Core can support? A) CPU core count B) Network bandwidth per camera
Answer: B Explanation: Ocularis Base holds the license repository; installing it first allows later components to validate their licenses. Question 8. Which step comes immediately after extracting the Ocularis installation archive on a Windows server? A) Running the Ocularis Base installer B) Configuring firewall rules C) Adding cameras to the Recorder D) Creating user accounts in Ocularis Administrator Answer: A Explanation: After extraction, the installer for Ocularis Base is launched to begin the installation process. Question 9. When adding a new IP camera, which of the following is NOT a required field in the Ocularis Recorder camera wizard? A) Camera IP address B) RTSP stream URL C) Driver selection D) Camera firmware version Answer: D Explanation: Firmware version is optional; the wizard requires IP, stream URL, and driver information to communicate with the device.
Question 10. What video codec is recommended for high‑quality, low‑bandwidth recording on Ocularis systems? A) MJPEG B) H.264 (AVC) C) MPEG‑ 2 D) VP Answer: B Explanation: H.264 provides efficient compression while preserving image quality, making it the default for most Ocularis deployments. Question 11. Which setting determines how often a camera’s video frame is captured by the Recorder? A) Bit rate B) Resolution C) Frame rate D) GOP size Answer: C Explanation: Frame rate defines the number of frames per second that the Recorder stores for a given camera. Question 12. To enable two‑way audio recording on a camera, which Ocularis component must be configured?
C) To specify when each camera records (e.g., 24 × 7, motion‑only) D) To set firmware update windows Answer: C Explanation: Recording schedules control the operational times and triggers for each camera’s recording. Question 15. Edge recording in Ocularis is primarily used to: A) Reduce bandwidth consumption on the core network B) Provide backup video on the camera itself during network outages C) Enable AI analytics at the camera edge D) Store metadata only Answer: B Explanation: Edge recording stores a local copy of video on the camera (or edge device) to protect against temporary loss of connection to the central Recorder. Question 16. Which configuration improves hard‑drive efficiency by spreading video files across multiple disks? A) RAID 0 striping B) Load‑balanced storage pool C) Single‑disk allocation D) Mirrored volume Answer: B
Explanation: Ocularis’s load‑balancing algorithm distributes recordings across available drives to balance wear and maximize capacity. Question 17. In Ocularis Administrator, what is the function of “Dual Authorization” for a user account? A) Allows simultaneous login from two devices B) Requires two separate credentials (e.g., password + token) for privileged actions C) Grants two different role memberships automatically D) Enables two‑factor video playback only Answer: B Explanation: Dual Authorization forces a second form of authentication (often a token or OTP) before performing high‑risk operations. Question 18. Which Ocularis setting defines the maximum number of concurrent client connections the system will accept? A) Client Session Limit B) License Camera Count C) Connection Throttle D) Max Threads in Ocularis Base Answer: A Explanation: The Client Session Limit controls how many live view sessions can be active at one time.
A) Incorrect user password B) Firewall blocking port 443 on the Recorder Proxy C) Out‑of‑date video driver on the client PC D) Missing PTZ license Answer: B Explanation: If the firewall blocks the Recorder Proxy’s HTTPS port, clients cannot establish a connection, resulting in a “not reachable” message. Question 22. When configuring a VideoWall in Ocularis Ultimate, which layout option allows you to display four camera feeds simultaneously on a single screen? A) Mosaic 2 × 2 B) Split‑Screen Horizontal C) Picture‑in‑Picture Grid D) Full‑Screen Single View Answer: A Explanation: The Mosaic 2 × 2 layout divides the wall into four equal quadrants, each showing a different camera. Question 23. What is the primary purpose of an “Event Filter” in Ocularis? A) To block unauthorized user logins B) To select which camera events are forwarded to external systems or the Base server
C) To compress video streams D) To schedule daily backups Answer: B Explanation: Event Filters evaluate incoming events and decide whether to forward them to Ocularis Base, third‑party PSIMs, or discard them. Question 24. Which Ocularis client feature enables a user to push a live video stream to a secondary monitor in a control room? A) Push Video B) Cast to Device C) Mirror View D) Stream Export Answer: A Explanation: The Push Video function streams the selected live view to an external display or projector. Question 25. Smart alerts in Ocularis are generated based on: A) User login times B) Pre‑configured analytics rules such as motion, line crossing, or loitering C) Network latency thresholds D) Disk usage percentages Answer: B
Question 28. Which tool is specifically designed for forensic investigators to extract precise video clips based on event timestamps? A) Ocularis TimeSlicer B) Ocularis Export Manager C) Ocularis Archive Viewer D) Ocularis Analyzer Answer: A Explanation: TimeSlicer lets investigators cut out exact segments surrounding an event, preserving evidentiary integrity. Question 29. When exporting video for legal purposes, which Ocularis option ensures the file cannot be altered after export? A) Export with checksum only B) Encrypted video export with digital signature C) Export as raw AVI without compression D) Export with lower resolution Answer: B Explanation: Encrypted export coupled with a digital signature guarantees authenticity and prevents tampering. Question 30. The “Case Builder” module in Ocularis primarily serves to: A) Create user groups
B) Organize exported video files, notes, and evidence into a single case package C) Build custom camera dashboards D) Configure network topology Answer: B Explanation: Case Builder aggregates video clips, metadata, and investigator notes into a cohesive case file for review or court submission. Question 31. In a PSIM integration, Ocularis typically acts as the: A) Video analytics engine only B) Central event correlation hub that ingests alerts from multiple systems C) License plate recognition database D) Access control card reader Answer: B Explanation: As a Physical Security Information Management platform, Ocularis aggregates and correlates events from cameras, access control, and other sensors. Question 32. Which protocol is commonly used by Ocularis to receive access‑control door events? A) ONVIF B) BACnet C) RS‑485 (Wiegand) D) MQTT
Question 35. When integrating an ATM with Ocularis, which event type is typically forwarded to the Base server? A) Card ejection B) Cash dispense and keypad entry events C) Network ping D) Power cycle Answer: B Explanation: Cash dispense and keypad entry events are critical for forensic review of ATM incidents and are forwarded as security events. Question 36. Biometrics integration with Ocularis can provide which added security benefit? A) Faster video compression B) Automatic user authentication to the Ocularis client based on fingerprint or facial scan C) Increased storage capacity D) Higher frame rates for all cameras Answer: B Explanation: Biometric devices can be linked to Ocularis for two‑factor login, ensuring only authorized personnel access the VMS. Question 37. Which Ocularis analytics module detects “loitering” behavior?
A) Object Classification B. Motion Detection C) Behavior Analytics – Loitering Detector D) License Plate Recognition Answer: C Explanation: The Behavior Analytics suite includes a dedicated Loitering Detector that flags subjects remaining stationary beyond a predefined threshold. Question 38. OpenSight™ in Ocularis is used to: A) Stream video to mobile devices only B) Share cameras and events between separate Ocularis installations in a multi‑site environment C) Encrypt all video streams end‑to‑end D. Provide AI‑based facial recognition Answer: B Explanation: OpenSight enables cross‑site camera and event sharing, allowing operators to view remote sites as if they were local. Question 39. Which firewall rule must be opened to allow Ocularis Recorder cores to replicate recordings to a Slave Core? A) TCP 80 B) TCP 443
Answer: B Explanation: The Master Core handles the main recording workload while Slave Cores act as hot‑standby backups. Question 42. Which feature allows an operator to view a geographic map with camera icons positioned at their real‑world locations? A) VideoWall B) Map Viewer (multi‑layer navigation) C) Timeline Heatmap D) Event Filter Answer: B Explanation: The Map Viewer presents a GIS‑based interface where cameras are plotted on a floor‑plan or site map. Question 43. When configuring a new user in Ocularis Administrator, which permission level grants full system access but does not allow license changes? A) Administrator B) Operator C) Super‑User D) Viewer Answer: B Explanation: The Operator role provides comprehensive system control (view, playback, export) while restricting license management functions.
Question 44. Which Ocularis tool is used to automatically generate daily configuration backups without user intervention? A) Scheduled Task Manager B) Automatic Backup Service C) Backup Scheduler in Ocularis Administrator D) Windows Task Scheduler only Answer: C Explanation: The built‑in Backup Scheduler within Ocularis Administrator can be set to run daily at a chosen time. Question 45. If a camera’s video appears black in the client but the recorder shows recorded footage, the most likely cause is: A) Incorrect user password B) Faulty PTZ controller C) Network firewall blocking the video stream to the client D) License limit exceeded Answer: C Explanation: The recorder can still store video, but if the client cannot receive the stream due to a blocked port, the view will be black. Question 46. Which of the following is a benefit of using “Load‑Balancing” across multiple Recorder Cores?
