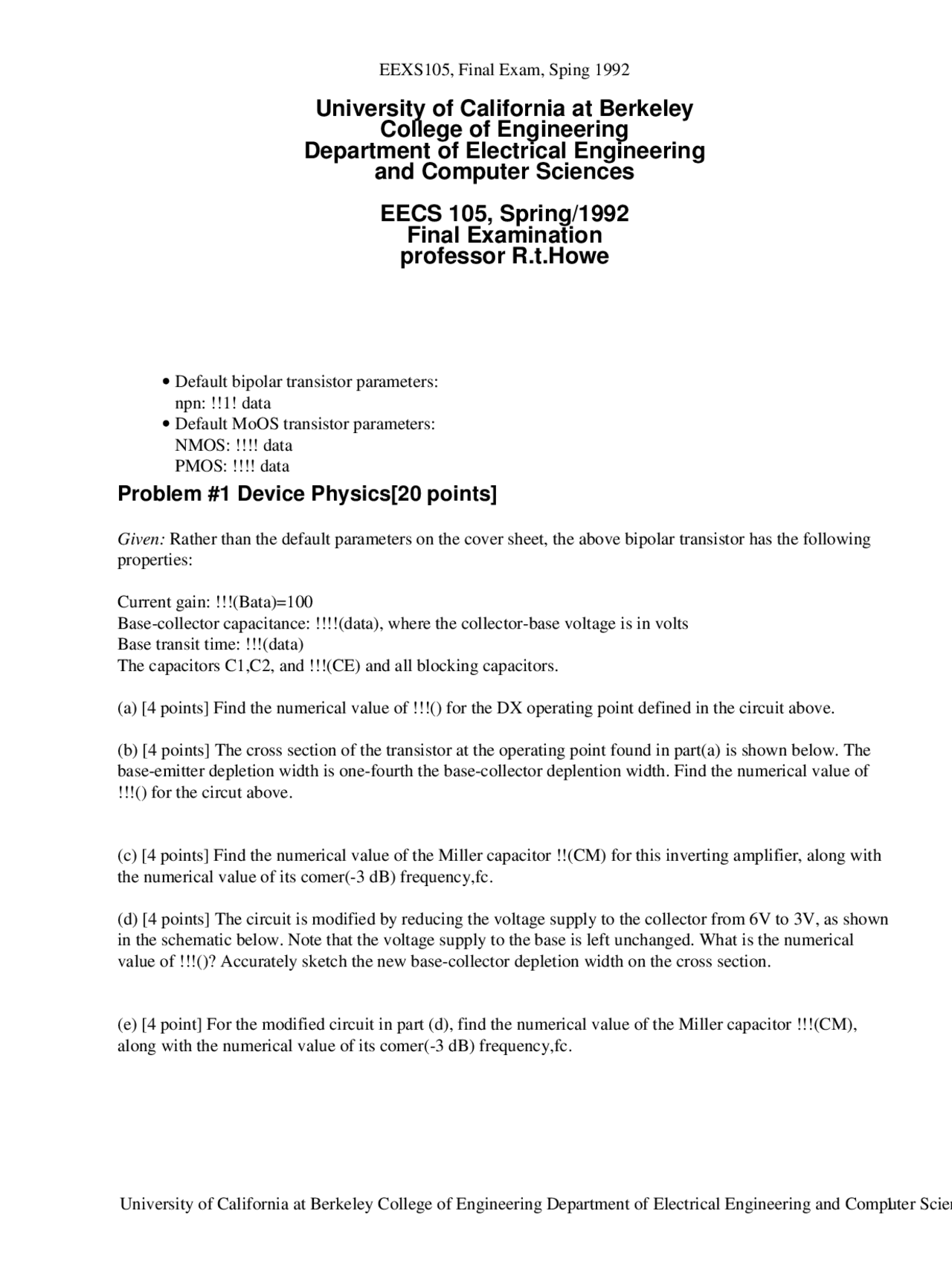

University of California at Berkeley
College of Engineering
Department of Electrical Engineering
and Computer Sciences
EECS 105, Spring/1992
Final Examination
professor R.t.Howe
Default bipolar transistor parameters:
npn: !!1! data
Default MoOS transistor parameters:
NMOS: !!!! data
PMOS: !!!! data
Problem #1 Device Physics[20 points]
Given: Rather than the default parameters on the cover sheet, the above bipolar transistor has the following
properties:
Current gain: !!!(Bata)=100
Base-collector capacitance: !!!!(data), where the collector-base voltage is in volts
Base transit time: !!!(data)
The capacitors C1,C2, and !!!(CE) and all blocking capacitors.
(a) [4 points] Find the numerical value of !!!() for the DX operating point defined in the circuit above.
(b) [4 points] The cross section of the transistor at the operating point found in part(a) is shown below. The
base-emitter depletion width is one-fourth the base-collector deplention width. Find the numerical value of
!!!() for the circut above.
(c) [4 points] Find the numerical value of the Miller capacitor !!(CM) for this inverting amplifier, along with
the numerical value of its comer(-3 dB) frequency,fc.
(d) [4 points] The circuit is modified by reducing the voltage supply to the collector from 6V to 3V, as shown
in the schematic below. Note that the voltage supply to the base is left unchanged. What is the numerical
value of !!!()? Accurately sketch the new base-collector depletion width on the cross section.
(e) [4 point] For the modified circuit in part (d), find the numerical value of the Miller capacitor !!!(CM),
along with the numerical value of its comer(-3 dB) frequency,fc.
EEXS105, Final Exam, Sping 1992
