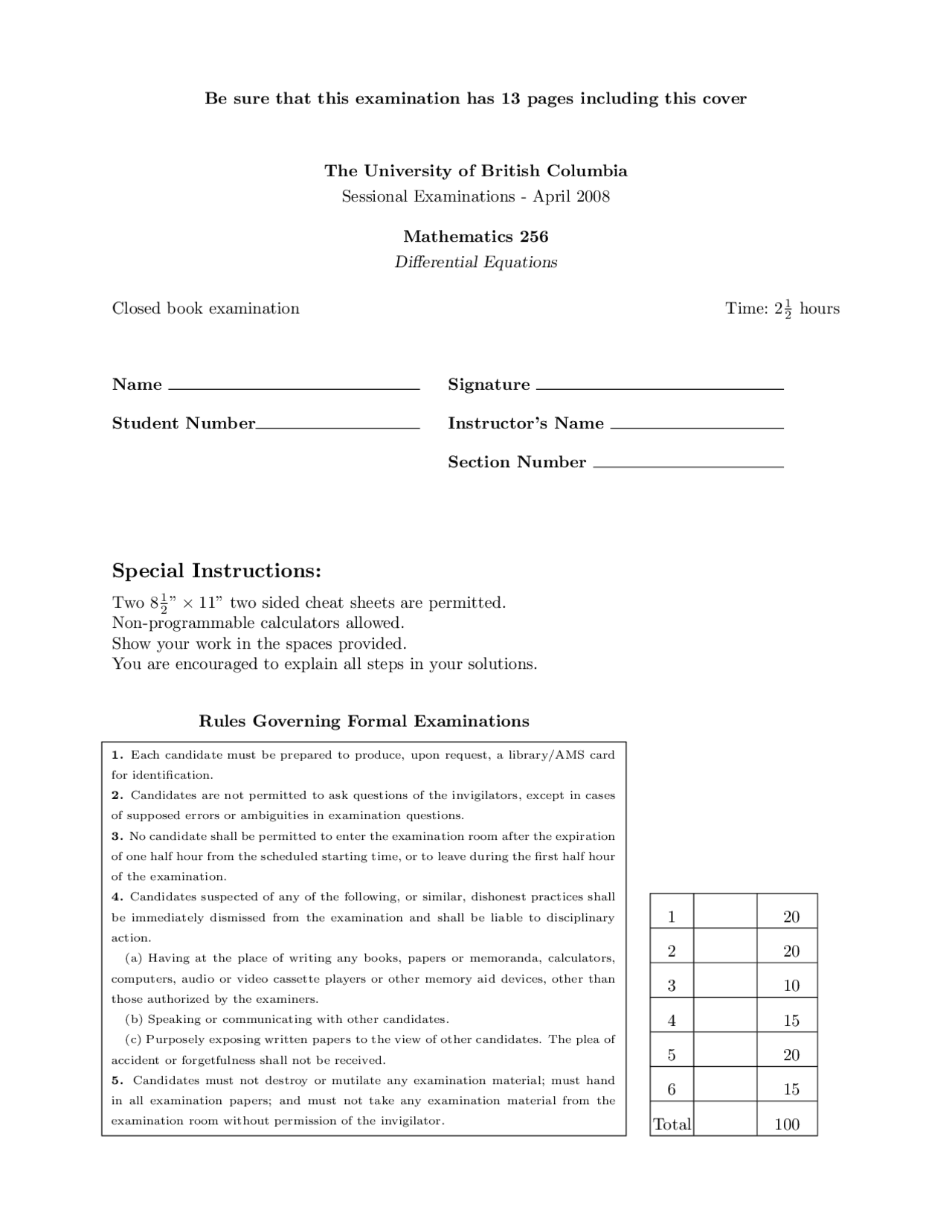

Be sure that this examination has 13 pages including this cover
The University of British Columbia
Sessional Examinations - April 2008
Mathematics 256
Differential Equations
Closed book examination Time: 21
2hours
Name Signature
Student Number Instructor’s Name
Section Number
Special Instructions:
Two 81
2×11” two sided cheat sheets are permitted.
Non-programmable calculators allowed.
Show your work in the spaces provided.
You are encouraged to explain all steps in your solutions.
Rules Governing Formal Examinations
1. Each candidate must be prepared to produce, upon request, a library/AMS card
for identification.
2. Candidates are not permitted to ask questions of the invigilators, except in cases
of supposed errors or ambiguities in examination questions.
3. No candidate shall be permitted to enter the examination room after the expiration
of one half hour from the scheduled starting time, or to leave during the first half hour
of the examination.
4. Candidates suspected of any of the following, or similar, dishonest practices shall
be immediately dismissed from the examination and shall be liable to disciplinary
action.
(a) Having at the place of writing any books, papers or memoranda, calculators,
computers, audio or video cassette players or other memory aid devices, other than
those authorized by the examiners.
(b) Speaking or communicating with other candidates.
(c) Purposely exposing written papers to the view of other candidates. The plea of
accident or forgetfulness shall not be received.
5. Candidates must not destroy or mutilate any examination material; must hand
in all examination papers; and must not take any examination material from the
examination room without permission of the invigilator.
1 20
2 20
3 10
4 15
5 20
6 15
Total 100
pf3
pf4
pf5
pf8
pf9
pfa
pfd

Partial preview of the text

Download Order Differential Equations - Differential Equations - Exam and more Exams Differential Equations in PDF only on Docsity!

Be sure that this examination has 13 pages including this cover

The University of British Columbia Sessional Examinations - April 2008

Mathematics 256 Differential Equations

Closed book examination Time: 2 12 hours

Name Signature

Student Number Instructor’s Name

Section Number

Special Instructions:

Two 8 12 ” × 11” two sided cheat sheets are permitted. Non-programmable calculators allowed. Show your work in the spaces provided. You are encouraged to explain all steps in your solutions.

Rules Governing Formal Examinations

  1. Each candidate must be prepared to produce, upon request, a library/AMS card for identification.
  2. Candidates are not permitted to ask questions of the invigilators, except in cases of supposed errors or ambiguities in examination questions.
  3. No candidate shall be permitted to enter the examination room after the expiration of one half hour from the scheduled starting time, or to leave during the first half hour of the examination.
  4. Candidates suspected of any of the following, or similar, dishonest practices shall be immediately dismissed from the examination and shall be liable to disciplinary action. (a) Having at the place of writing any books, papers or memoranda, calculators, computers, audio or video cassette players or other memory aid devices, other than those authorized by the examiners. (b) Speaking or communicating with other candidates. (c) Purposely exposing written papers to the view of other candidates. The plea of accident or forgetfulness shall not be received.
  5. Candidates must not destroy or mutilate any examination material; must hand in all examination papers; and must not take any examination material from the examination room without permission of the invigilator.

Total 100

Marks

[20] 1. Linear 2nd order differential equations. (a) Show that the equation t^2 y′′^ + 6ty′^ + 4y = 0,

has 2 solutions of form tn, i.e. find these solutions.

(b) Show that the 2 solutions in part (a) are linearly independent and hence write down the general solution of the above equation.

[20] 2. Consider the equation: y′′^ + βy′^ + 2y = g(t)

which models a damped forced oscillator for β > 0. (a) Writing x = (x 1 , x 2 )T^ where x 1 = y and x 2 = y′, transform this equation into a 2 x 2 linear system: x′^ = Ax + f ,

i.e. derive the expressions for the matrix A and vector function f.

(b) Assume that g(t) = 0. Find the general solution of the homogeneous system:

x′^ = Ax

(i) for β = 2; (ii) for β = 3.

(c) Sketch the phase plane close to x = 0 for the two above cases: (i) β = 2; (ii) β = 3. At what value of β does the phase plane change between these two qualitatively different solutions?

(d) For β = 2 and assuming g(t) = e−t, find the general solution of the inhomogeneous system: x′^ = Ax + f.

[15] 4. The function f (x) is defined for x ∈ [0, 1] by

f (x) = − 0 .5(x^2 + x)

(a) Sketch the odd and even extensions of f (x) to the interval x ∈ [− 1 , 1]. (b) Find the Fourier cosine series for f (x). To what value does the Fourier series converge to at x = 1?

(c) Find the Fourier sine series for f (x). To what value does the Fourier series converge to at x = 1?

(c) Find the transient solution, v(x, t) using separation of variables. Hint: you may save some time with the initial conditions by using the results from question 4.

(d) Using the 1st term in the series solution for v(x, t) estimate how long it takes for |v(x, t)| to decay to 1% of its initial size at x = 0.5.

The End
