Limited Renewable Energy Technician
Exam

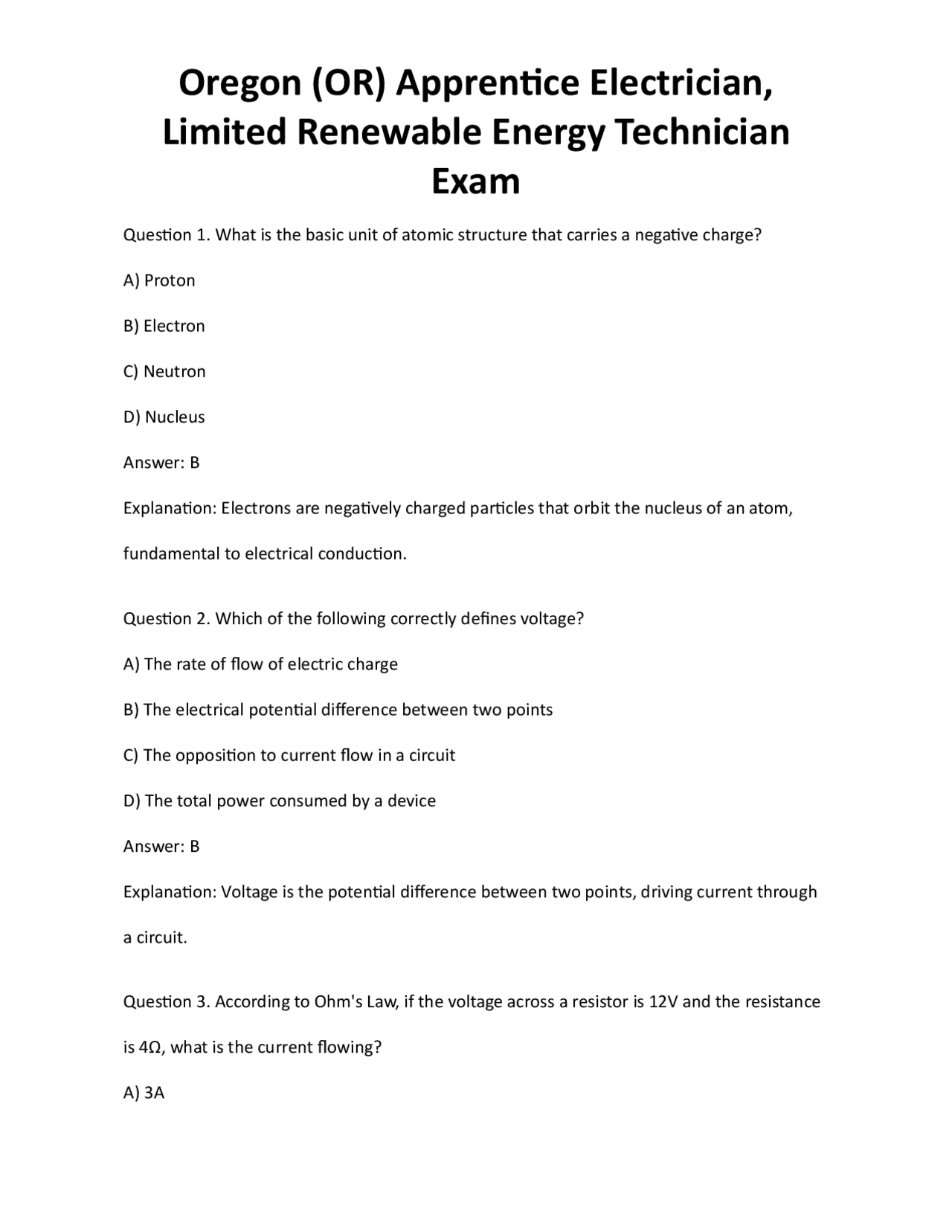

Question 1. What is the basic unit of atomic structure that carries a negative charge? A) Proton B) Electron C) Neutron D) Nucleus Answer: B Explanation: Electrons are negatively charged particles that orbit the nucleus of an atom, fundamental to electrical conduction. Question 2. Which of the following correctly defines voltage? A) The rate of flow of electric charge B) The electrical potential difference between two points C) The opposition to current flow in a circuit D) The total power consumed by a device Answer: B Explanation: Voltage is the potential difference between two points, driving current through a circuit. Question 3. According to Ohm's Law, if the voltage across a resistor is 12V and the resistance is 4Ω, what is the current flowing? A) 3A
Limited Renewable Energy Technician
Exam
B) 48A
C) 16A
D) 4A
Answer: A Explanation: Ohm's Law states I = V/R, so I = 12V / 4Ω = 3A. Question 4. Kirchhoff's Voltage Law states that in a closed circuit, the sum of the voltage drops equals: A) The total resistance B) The supply voltage C) Zero D) The current times resistance Answer: B Explanation: Kirchhoff's Voltage Law asserts that the sum of all voltage drops in a closed loop equals the source voltage. Question 5. Which circuit configuration has current dividing among parallel branches? A) Series circuit B) Parallel circuit C) Combination circuit D) Series-parallel circuit
Limited Renewable Energy Technician
Exam
B) Impede changes in current by reactance C) Convert AC to DC D) Provide a constant resistance Answer: B Explanation: Inductors oppose changes in current through inductive reactance, especially in AC circuits. Question 9. Which device measures electrical resistance? A) Multimeter B) Clamp meter C) Megger D) GFCI tester Answer: A Explanation: A multimeter can measure resistance, voltage, and current. Question 10. What does a clamp meter primarily measure? A) Voltage across components B) Resistance of conductors C) Current flowing through a conductor without breaking the circuit D) Insulation resistance Answer: C
Limited Renewable Energy Technician
Exam
Explanation: Clamp meters measure current by clamping around a conductor, providing a non-intrusive measurement. Question 11. The purpose of the NEC is to: A) Provide safety standards for electrical wiring and equipment B) Enforce building codes for structural safety C) Regulate plumbing systems D) Certify electrical engineers only Answer: A Explanation: The NEC sets safety standards and requirements for electrical installations. Question 12. Which of the following is an acceptable conductor material per the NEC? A) Aluminum with proper sizing and insulation B) Copper only, no aluminum allowed C) Steel for conductors D) Plastic conductors Answer: A Explanation: Aluminum is permitted with proper sizing and insulation; copper is also common. Question 13. Which type of conduit is typically used for flexible wiring installations? A) Rigid metal conduit (RMC)
Limited Renewable Energy Technician
Exam
Answer: A Explanation: Inverters convert DC power from sources like PV panels or batteries into AC power for use or grid connection. Question 16. Which type of PV module is most suitable for high-temperature environments? A) Monocrystalline B) Polycrystalline C) Thin-film D) Amorphous silicon Answer: C Explanation: Thin-film modules perform better at higher temperatures compared to crystalline types. Question 17. What is the primary benefit of a tracking mounting system for solar panels? A) Increase shading for efficiency B) Maximize sunlight exposure throughout the day C) Reduce installation costs D) Protect panels from wind Answer: B Explanation: Tracking systems follow the sun’s path to maximize solar exposure and energy production.
Limited Renewable Energy Technician
Exam
Question 18. Which component in a PV system controls the charging of batteries to prevent overcharging? A) Inverter B) Charge controller C) Combiner box D) Disconnect switch Answer: B Explanation: Charge controllers regulate current and voltage to prevent battery overcharging. Question 19. What is the main function of a wind turbine's blade? A) Generate electricity directly B) Capture kinetic energy from wind and convert it to rotational energy C) Store energy for later use D) Provide structural support only Answer: B Explanation: Blades capture wind’s kinetic energy and convert it into rotational motion driving the generator. Question 20. Which type of wind turbine rotates around a vertical axis? A) Horizontal-axis wind turbine B) Vertical-axis wind turbine
Limited Renewable Energy Technician
Exam
Explanation: Stable water flow and proper site assessment are crucial for safe and efficient micro-hydro operation. Question 23. A fuel cell converts which of the following into electrical energy? A) Chemical energy stored in hydrogen or other fuels B) Mechanical energy from turbines C) Solar energy directly D) Kinetic energy from wind Answer: A Explanation: Fuel cells generate electricity through electrochemical reactions involving hydrogen or other fuels. Question 24. In off-grid renewable systems, what is the primary role of engine generators? A) Provide backup power during low renewable resource conditions B) Convert solar energy directly into electricity C) Store excess energy in batteries D) Regulate inverter output voltage Answer: A Explanation: Engine generators serve as backup or supplemental sources when renewable energy is insufficient.
Limited Renewable Energy Technician
Exam
Question 25. Which type of inverter is best suited for standalone (off-grid) systems? A) Grid-tied inverter B) Stand-alone (islanding) inverter C) Hybrid inverter D) Utility-interactive inverter Answer: B Explanation: Stand-alone inverters operate independently, suitable for off-grid systems without grid connection. Question 26. What is the primary function of a battery management system (BMS)? A) Store energy in the battery B) Monitor and protect batteries from overcharge, over-discharge, and temperature extremes C) Convert AC to DC power D) Disconnect batteries during system shutdowns only Answer: B Explanation: The BMS safeguards batteries by monitoring parameters and controlling charging/discharging. Question 27. Which type of battery is most commonly used for large-scale energy storage? A) Lead-acid
Limited Renewable Energy Technician
Exam
B) Surge Protective Device (SPD) C) Load resistor D) Diode Answer: B Explanation: SPDs protect electrical systems from voltage transients caused by lightning or switching surges. Question 30. When interconnecting a renewable system with the utility grid, it is essential to: A) Follow utility-specific interconnection standards and obtain permits B) Use any inverter without approval C) Never perform a net metering agreement D) Disconnect from the grid during operation Answer: A Explanation: Proper interconnection requires adherence to standards and permits to ensure safety and compliance. Question 31. Which drawing type shows the electrical wiring and components in a simplified, symbolic form? A) Architectural plan B) Single-line diagram C) Structural drawing
Limited Renewable Energy Technician
Exam
D) Mechanical layout Answer: B Explanation: Single-line diagrams represent electrical systems schematically, simplifying complex wiring. Question 32. What is the proper way to splice conductors in an electrical installation? A) Twist and tape together B) Use approved connectors or soldering with insulation C) Join with paper clips D) Use only in non-critical circuits Answer: B Explanation: Proper splicing involves approved connectors or soldering followed by insulation for safety and reliability. Question 33. When installing conduit, how is the bend radius typically determined? A) It must be at least 6 times the conduit diameter B) It must be exactly the same as the conduit diameter C) It should be as tight as possible D) Bends are not required in conduit installations Answer: A
Limited Renewable Energy Technician
Exam
Question 36. When wiring a control panel, what is essential for proper operation? A) Correct wiring of control devices and adherence to wiring diagrams B) Using any available wire regardless of gauge C) Avoiding labeling of wires D) Wiring without following schematic diagrams Answer: A Explanation: Proper wiring according to schematics ensures reliable control and troubleshooting. Question 37. In electrical troubleshooting, what is the first step? A) Isolate the problem area and verify system de-energization B) Replace all components immediately C) Reset all breakers without investigation D) Disconnect the entire system Answer: A Explanation: Systematic troubleshooting begins with isolating the fault and ensuring safety before testing. Question 38. Which safety gear is mandatory when working on energized electrical equipment? A) PPE including insulated gloves, safety glasses, and flame-resistant clothing
Limited Renewable Energy Technician
Exam
B) Just regular work clothes C) No safety gear needed if experienced D) Only a hard hat Answer: A Explanation: PPE protects against electrical shocks, arc flash, and other hazards during energized work. Question 39. What is the primary purpose of Oregon Revision Statutes (ORS) and Administrative Rules (OAR) for electricians? A) To establish licensing, safety, and compliance requirements specific to Oregon B) To set federal electrical standards C) To regulate only renewable energy systems D) To provide guidelines for plumbing work Answer: A Explanation: ORS and OAR govern licensing, safety, and code compliance for electrical work within Oregon. Question 40. In a photovoltaic system, what does the term "shading" refer to? A) Obstruction of sunlight on PV panels reducing their output B) The process of cooling solar panels C) The use of shade cloth during installation
Limited Renewable Energy Technician
Exam
Explanation: Vertical-axis turbines perform better in turbulent wind conditions typical in urban settings. Question 43. Which component is essential for safety in a micro-hydro system? A) Proper water flow management and protective grounding B) Large storage tanks C) Windbreaks around the system D) Solar panels for backup Answer: A Explanation: Managing water flow and grounding are critical for safe and efficient micro- hydro operation. Question 44. What is the main advantage of a fuel cell over traditional combustion engines? A) Higher efficiency and lower emissions B) Uses fossil fuels only C) Produces mechanical power directly D) Requires no safety precautions Answer: A Explanation: Fuel cells are more efficient and produce fewer emissions compared to combustion engines.
Limited Renewable Energy Technician
Exam
Question 45. When selecting an engine generator for off-grid use, what is a key consideration? A) Power output capacity matching load demands B) The color of the generator C) The presence of a solar panel connection D) The type of fuel used only in large commercial systems Answer: A Explanation: Proper sizing ensures the generator can meet the load without overloading or underperformance. Question 46. Which type of inverter provides both grid-tied and off-grid capabilities? A) Stand-alone inverter B) Hybrid inverter C) String inverter D) Micro-inverter Answer: B Explanation: Hybrid inverters can operate in both grid-tied and off-grid modes, offering flexibility. Question 47. What is a key safety feature of a battery enclosure in renewable systems? A) Ventilation to prevent gas buildup and temperature control
