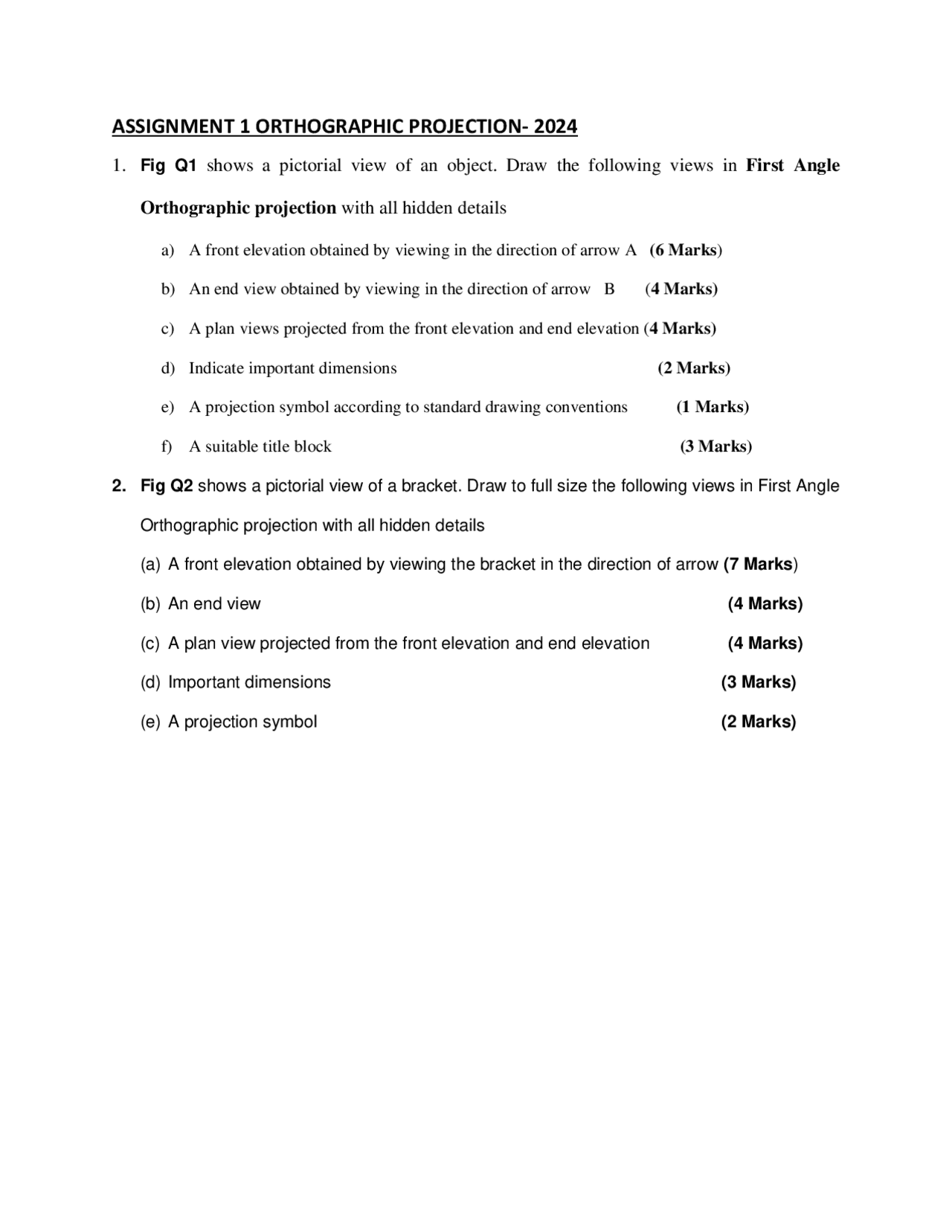

ASSIGNMENT 1 ORTHOGRAPHIC PROJECTION- 2024
1. Fig Q1 shows a pictorial view of an object. Draw the following views in First Angle
Orthographic projection with all hidden details
a) A front elevation obtained by viewing in the direction of arrow A (6 Marks)
b) An end view obtained by viewing in the direction of arrow B (4 Marks)
c) A plan views projected from the front elevation and end elevation (4 Marks)
d) Indicate important dimensions (2 Marks)
e) A projection symbol according to standard drawing conventions (1 Marks)
f) A suitable title block (3 Marks)
2. Fig Q2 shows a pictorial view of a bracket. Draw to full size the following views in First Angle
Orthographic projection with all hidden details
(a) A front elevation obtained by viewing the bracket in the direction of arrow (7 Marks)
(b) An end view (4 Marks)
(c) A plan view projected from the front elevation and end elevation (4 Marks)
(d) Important dimensions (3 Marks)
(e) A projection symbol (2 Marks)
