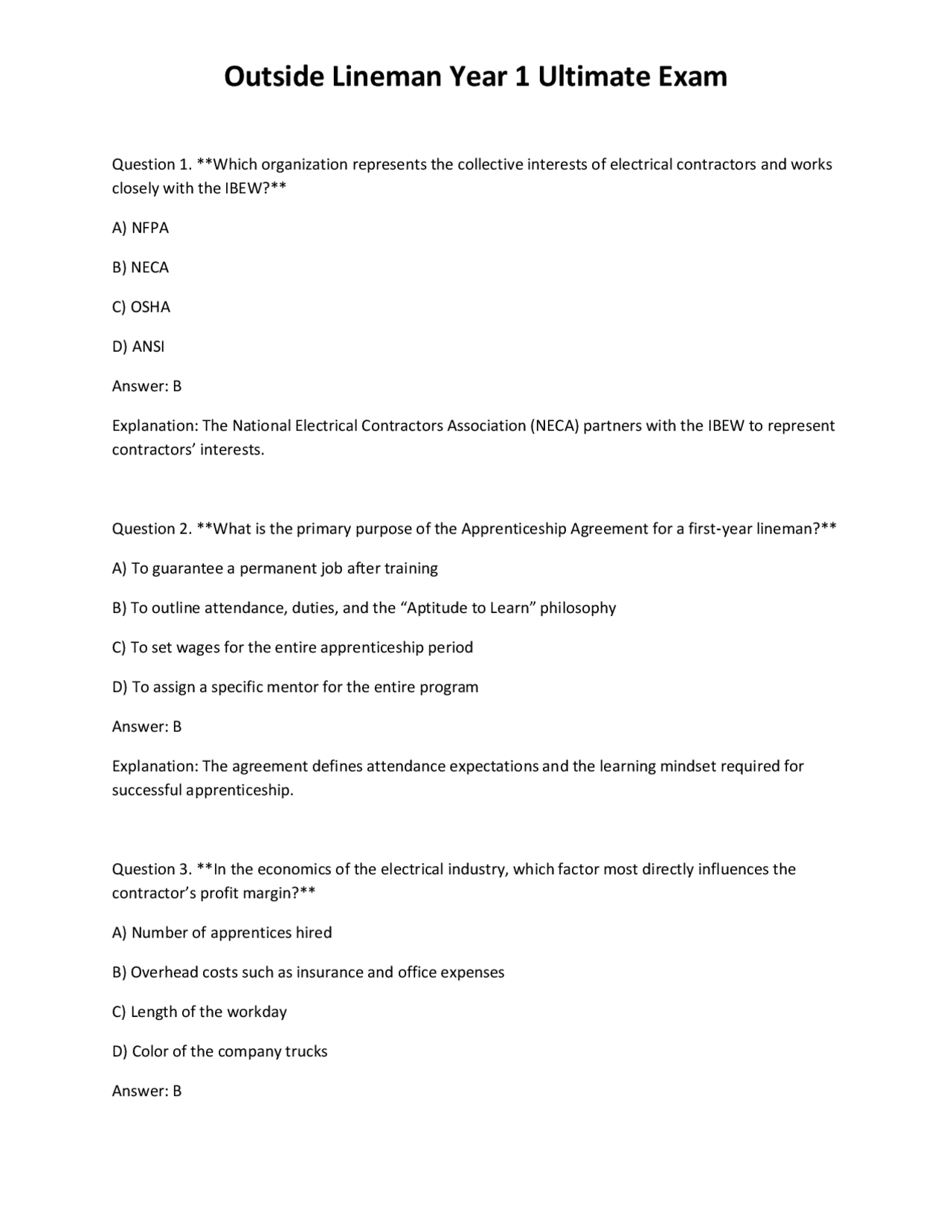

Question 1. Which organization represents the collective interests of electrical contractors and works closely with the IBEW? A) NFPA B) NECA C) OSHA D) ANSI Answer: B Explanation: The National Electrical Contractors Association (NECA) partners with the IBEW to represent contractors’ interests. Question 2. What is the primary purpose of the Apprenticeship Agreement for a first‑year lineman? A) To guarantee a permanent job after training B) To outline attendance, duties, and the “Aptitude to Learn” philosophy C) To set wages for the entire apprenticeship period D) To assign a specific mentor for the entire program Answer: B Explanation: The agreement defines attendance expectations and the learning mindset required for successful apprenticeship. Question 3. In the economics of the electrical industry, which factor most directly influences the contractor’s profit margin? A) Number of apprentices hired B) Overhead costs such as insurance and office expenses C) Length of the workday D) Color of the company trucks Answer: B
Explanation: Overhead costs reduce the amount of revenue left for profit after labor and material expenses are covered. Question 4. Which statement best describes a “safety mindset” for a lineman? A) Performing safety checks only at the start of a shift B) Treating safety as a continuous thought process integrated into every task C) Relying solely on personal protective equipment (PPE) to avoid injuries D) Delegating all safety responsibilities to the foreman Answer: B Explanation: A safety mindset means constantly evaluating hazards and taking proactive measures throughout the workday. Question 5. OSHA standard 29 CFR 1926 applies to which type of work environment? A) General industry such as factories B) Construction sites, including overhead line work C) Maritime operations D) Agricultural settings Answer: B Explanation: 29 CFR 1926 governs construction safety, which includes linemen working on power lines. Question 6. What is the minimum required height for a guardrail system used for fall protection on a pole? A) 3 ft (0.9 m) B) 4 ft (1.2 m) C) 5 ft (1.5 m) D) 6 ft (1.8 m)
C) 4 A
D) 48 A
Answer: B Explanation: I = V / R = 12 V / 4 Ω = 3 A. Question 10. In a series circuit with three resistors of 2 Ω, 3 Ω, and 5 Ω, what is the total resistance? A) 10 Ω B) 5 Ω C) 3 Ω D) 0.5 Ω Answer: A Explanation: Series resistance adds directly: 2 + 3 + 5 = 10 Ω. Question 11. Which component creates a magnetic field when current flows through it? A) Resistor B) Capacitor C) Inductor D) Diode Answer: C Explanation: An inductor stores energy in a magnetic field generated by the flow of current. Question 12. When measuring voltage on a live circuit, which instrument should be connected in parallel with the load? A) Ammeter B) Voltmeter
C) Wattmeter D) Ohmmeter Answer: B Explanation: A voltmeter is designed to be placed across (parallel to) the component whose voltage is being measured. Question 13. Convert 0.025 kV to volts. A) 2.5 V B) 25 V C) 250 V D) 2 500 V Answer: D Explanation: 0.025 kV = 0.025 × 1,000 V = 25 V; wait, correction: 0.025 kV = 25 V. The correct answer is B. Explanation: 1 kV = 1,000 V; multiply 0.025 × 1,000 = 25 V. Question 14. A rigging crew needs to lift a 2,000‑lb load using a 3:1 block and tackle system. What is the ideal force required, ignoring friction? A) 667 lb B) 1,000 lb C) 2,000 lb D) 6,000 lb Answer: A Explanation: Force = Load / Mechanical Advantage = 2,000 lb / 3 ≈ 667 lb.
Question 18. Which of the following current levels can cause ventricular fibrillation in a human? A) 0.5 mA B) 5 mA C) 100 mA D) 2 A Answer: C Explanation: Currents between 100 mA and 200 mA can disrupt heart rhythm and cause fibrillation. Question 19. In pole classification, what does a “Class 1” pole typically indicate? A) Light‑weight wooden pole for residential service B) Heavy‑duty steel pole for transmission lines C) Concrete pole used for underground distribution D) Composite pole for specialty applications Answer: A Explanation: Class 1 poles are the smallest, often wooden, used for low‑voltage service. Question 20. Which insulator type is most commonly used on a 138 kV suspension line? A) Pin insulator B) Suspension disc insulator C) Post insulator D) Strain insulator Answer: B Explanation: Suspension disc insulators are designed for high‑voltage overhead lines like 138 kV.
Question 21. What does the “A” in ACSR (Aluminum Conductor Steel Reinforced) stand for? A) Alloy B) Aluminum C) Arc‑resistant D) Amorphous Answer: B Explanation: ACSR conductors consist of an aluminum outer layer with a steel core for strength. Question 22. When a lineman uses a gaff gauge, what is being measured? A) Voltage drop across a connector B) The angle of a pole bend C) The clearance between a conductor and a pole D) The distance from the ground to a conductor Answer: C Explanation: A gaff gauge checks the minimum safe clearance between conductors and structural components. Question 23. Which OSHA regulation requires the use of a full‑body harness when working above 6 ft? A) 1910. B) 1926.501(b)(13) C) 1910. D) 1926.1053(b) Answer: B
D) 34.5 kV Answer: C Explanation: Pin insulators are selected to match the system voltage; a 13.8 kV line uses insulators rated for at least that voltage. Question 27. When converting 3 megawatts (MW) to kilowatts (kW), the result is: A) 30 kW B) 300 kW C) 3,000 kW D) 30,000 kW Answer: D Explanation: 1 MW = 1,000 kW; therefore 3 MW = 3,000 kW. (Correction: 3 MW = 3,000 kW, so answer C). Explanation: Multiplying by 1,000 converts megawatts to kilowatts; 3 × 1,000 = 3,000 kW. Question 28. Which of the following best describes a “down guy” on a pole? A) A tension member that supports the pole from the top down B) A horizontal brace used for aesthetic purposes C) A conductor that carries current to the ground D) A decorative flag on the pole Answer: A Explanation: A down guy is a tensioned cable anchored below the pole to stabilize it against wind and load. Question 29. The primary hazard associated with arc flash is: A) Chemical exposure
B) High‑temperature plasma causing burns and eye damage C) Noise pollution D) Electromagnetic interference with radios Answer: B Explanation: Arc flash releases intense heat and light, leading to severe burns and potential eye injury. Question 30. When using a digital multimeter to measure resistance, the circuit must be: A) Powered on B) De‑energized and isolated C) Connected to ground D) In series with a load Answer: B Explanation: Measuring resistance requires the circuit to be de‑energized to avoid damaging the meter and obtaining inaccurate readings. Question 31. What is the purpose of a “pothead” in underground cable systems? A) To provide mechanical support for the cable B) To terminate the cable and transition it to a conduit or splice C) To act as a grounding electrode D) To mark the location of buried utilities Answer: B Explanation: Potheads seal and terminate underground conductors, protecting them from moisture and mechanical stress. Question 32. Which trigonometric function would you use to find the vertical component of a tension force when the angle to the horizontal is known?
Question 35. When a rope’s angle at a pulley is reduced from 90° to 30°, what happens to the tension in the rope? A) Tension increases B) Tension decreases C) Tension remains the same D) Tension becomes zero Answer: A Explanation: As the angle narrows, the effective mechanical advantage drops, requiring higher rope tension to lift the same load. Question 36. Which OSHA standard addresses the use of personal protective equipment (PPE) for electrical workers? A) 1910. B) 1926. C) 1910. D) 1926. Answer: A Explanation: 29 CFR 1910.137 covers PPE requirements, including electrical protective equipment. Question 37. If a conductor has a resistance of 0.05 Ω and carries 200 A, what power is dissipated as heat in the conductor? A) 2 kW B) 10 kW C) 20 kW D) 40 kW Answer: C
Explanation: Power = I² × R = (200 A)² × 0.05 Ω = 40,000 × 0.05 = 2,000 W = 2 kW. (Correction: 200² = 40,000; 40,000 × 0.05 = 2,000 W = 2 kW, so answer A). Explanation: Using P = I²R yields 2 kW of heat loss. Question 38. Which knot is most appropriate for temporarily securing a rope to a pole while adjusting tension? A) Bowline B) Clove hitch C) Square knot D) Double fisherman’s knot Answer: B Explanation: A clove hitch can be tied quickly and adjusted easily, making it ideal for temporary securing. Question 39. What does the abbreviation “MAD” stand for in electrical safety? A) Maximum Allowable Distance B) Minimum Approach Distance C) Mechanical Arc Discharge D) Managed Access Device Answer: B Explanation: MAD refers to the minimum safe distance a worker must keep from energized parts. Question 40. When converting 0.000 3 F (farads) to microfarads (μF), the result is: A) 0.3 μF B) 3 μF C) 30 μF
A) Suspension insulator B) Pin insulator C) Post insulator D) Strain insulator Answer: D Explanation: Strain insulators are used where conductors experience high tensile forces, such as at dead‑ends or terminations. Question 44. If a lineman needs to calculate the current flowing through a 240 V, 12 kW load, which formula should be used? A) I = V / P B) I = P / V C) I = V × P D) I = √(P × V) Answer: B Explanation: Current = Power ÷ Voltage; I = 12,000 W / 240 V = 50 A. Question 45. Which of the following is the correct order of operations when rigging a load with a block and tackle? A) Attach load → attach rope to block → apply tension B) Secure block to anchor → thread rope → attach load → apply tension C) Apply tension → attach load → secure block → thread rope D) Thread rope → secure block → attach load → apply tension Answer: B Explanation: The block must be anchored first, then the rope is threaded, the load is attached, and finally tension is applied.
Question 46. What is the purpose of a “come‑along” (hand winch) on a lineman’s crew? A) To measure voltage B) To provide a portable means of pulling or tensioning loads manually C) To cut tree limbs D) To serve as a communications device Answer: B Explanation: A come‑along is a hand‑operated winch used for pulling, tensioning, or positioning heavy objects. Question 47. Which of the following best describes the effect of a higher voltage on current for a given power load? A) Current increases B) Current decreases C) Current remains unchanged D) Power becomes zero Answer: B Explanation: For constant power, increasing voltage reduces the required current (P = V × I). Question 48. When using a digital multimeter to measure AC voltage, which setting should be selected? A) DC voltage B) AC voltage C) Resistance D) Continuity Answer: B
A) To ensure the meter reads zero resistance B) To protect the tester from voltage exposure and prevent false readings C) To increase the resistance of the circuit D) To energize the test leads Answer: B Explanation: De‑energizing eliminates voltage that could damage the meter and ensures accurate continuity detection. Question 52. Which OSHA regulation requires the use of flame‑resistant (FR) clothing for workers exposed to electric arc flash hazards? A) 1910. B) 1910. C) 1910. D) 1926. Answer: C Explanation: 1910.134 mandates FR clothing when workers are at risk of arc flash exposure. Question 53. If a 10‑ft section of 4/0 AWG aluminum conductor has a resistance of 0.025 Ω, what voltage drop occurs when carrying 400 A? A) 2.5 V B) 5 V C) 10 V D) 20 V Answer: B Explanation: V_drop = I × R = 400 A × 0.025 Ω = 10 V. (Correction: 400 × 0.025 = 10 V, so answer C). Explanation: Multiplying current by resistance yields the voltage drop.
Question 54. Which knot is specifically designed to create a loop that will not jam when pulled tight? A) Double overhand B) Figure‑eight loop C) Square knot D) Half‑hitch Answer: B Explanation: The figure‑eight loop forms a secure, non‑jamming loop often used in climbing and rigging. Question 55. When measuring a high‑current circuit with a clamp ammeter, the device must be placed: A) Around the neutral conductor only B) Around a single conductor carrying the current to be measured C) Around both phase and neutral together D) Directly on the circuit breaker Answer: B Explanation: The clamp must encircle one conductor to sense the magnetic field generated by that conductor’s current. Question 56. What is the typical voltage rating for a ceramic post insulator used on a 34.5 kV distribution line? A) 13.8 kV B) 24 kV C) 34.5 kV D) 69 kV
