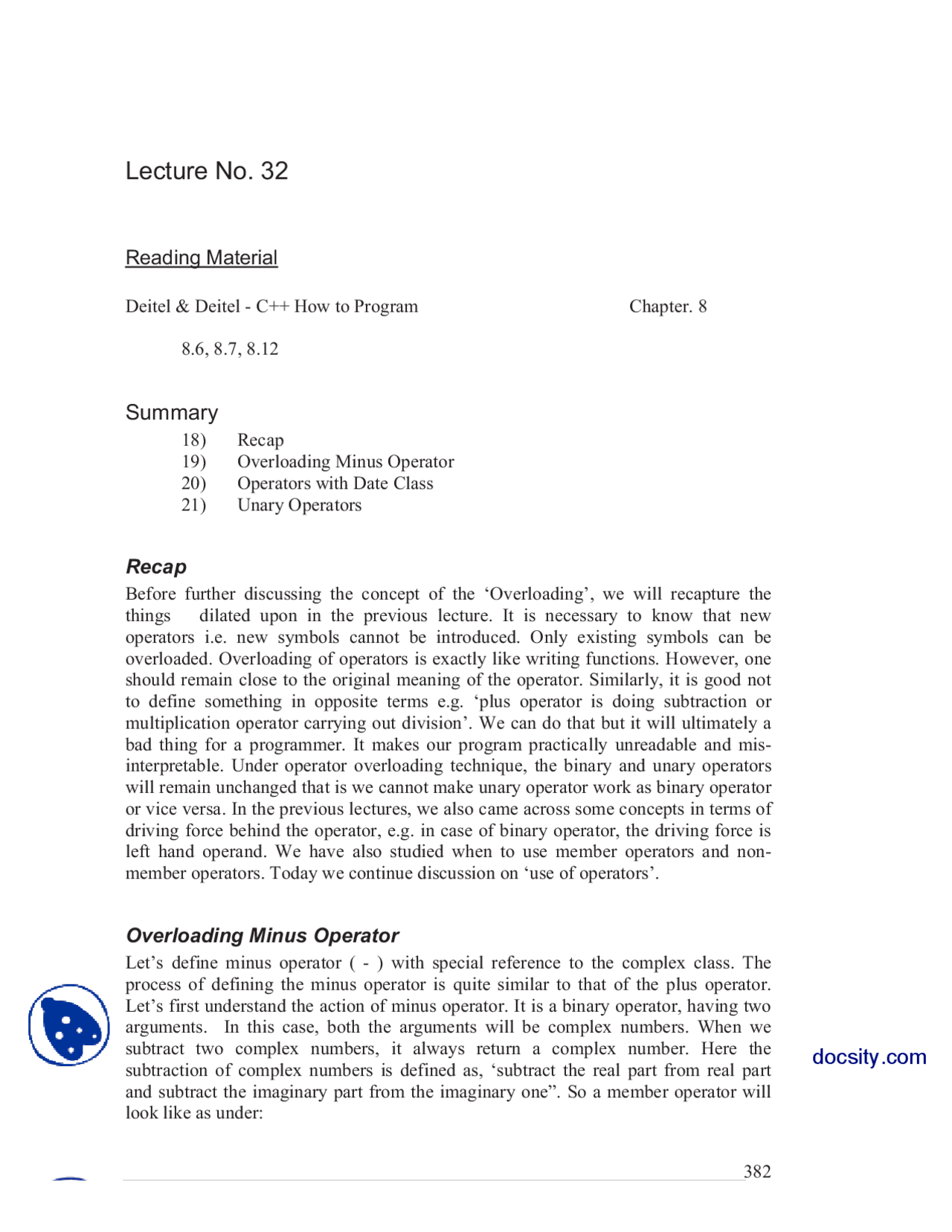

Lecture No. 32
Reading Material
Deitel & Deitel - C++ How to Program Chapter. 8
8.6, 8.7, 8.
Summary
- Recap
- Overloading Minus Operator
- Operators with Date Class
- Unary Operators
Recap
Before further discussing the concept of the ‘Overloading’, we will recapture the things dilated upon in the previous lecture. It is necessary to know that new operators i.e. new symbols cannot be introduced. Only existing symbols can be overloaded. Overloading of operators is exactly like writing functions. However, one should remain close to the original meaning of the operator. Similarly, it is good not to define something in opposite terms e.g. ‘plus operator is doing subtraction or multiplication operator carrying out division’. We can do that but it will ultimately a bad thing for a programmer. It makes our program practically unreadable and mis- interpretable. Under operator overloading technique, the binary and unary operators will remain unchanged that is we cannot make unary operator work as binary operator or vice versa. In the previous lectures, we also came across some concepts in terms of driving force behind the operator, e.g. in case of binary operator, the driving force is left hand operand. We have also studied when to use member operators and non- member operators. Today we continue discussion on ‘use of operators’.
Overloading Minus Operator
Let’s define minus operator ( - ) with special reference to the complex class. The process of defining the minus operator is quite similar to that of the plus operator. Let’s first understand the action of minus operator. It is a binary operator, having two arguments. In this case, both the arguments will be complex numbers. When we subtract two complex numbers, it always return a complex number. Here the subtraction of complex numbers is defined as, ‘subtract the real part from real part and subtract the imaginary part from the imaginary one”. So a member operator will look like as under:
docsity.com
Complex operator – (Complex c)
As we are defining it as a member operator, only one argument will be passed to it. It is going to be on the right hand side of the minus operator. The left-hand-side will call this as it is already available to this function. In the body, we will declare a temporary Complex number. This means that the real part of this temporary complex number is the difference of the calling Complex number and the Complex number passed as argument i.e.:
tmp.real = real – c.real;
In the next line, we calculate the difference of imaginary part as:
tmp.imag = imag – c.image;
and return the tmp Complex number. By defining, the minus operator does not mean that minus equal operator has also been defined. If we want to overload the minus equal operator (-=), it is necessary to define it. Let’s see how the defining process is carried out. Minus equal to operator like the plus equal to operator behaves in the way that the value of calling party (i.e. the complex number which is on the left hand side) will also be changed. So now we will see that the number itself changing the value when it takes part in the minus equal to operator. Again, we will make this a member function. So only one argument will be passed to it. The complex number will be on the right hand side of the minus equal to operator. In the body of the function, there is no need of any temporary complex number as we are going to change the number on the left hand side of the minus equal to operator. We can write it as:
real -= c.real; imag -= c.image;
Here c is the complex number which is passed as an argument. Now the minus equal to (-=) operator, used in the above statements, is an ordinary minus equal to operator for the integers defined by the C++. So this is a classic example of overloading i.e. the operator being overloaded is using the original or basic operator of same type. That is the end of this function. The original number has been changed. We can return its reference. It depends on its usage.
Here is the code: // The minus operator definition Complex Complex::operator - ( Complex c ) { Complex tmp; // defining a temporary var tmp.real = real - c.real; tmp.imag = imag - c.imag; return tmp; }
// The -= operator definition Complex Complex::operator -= ( Complex c ) {
docsity.com
any month. Two things happen. The month is changed and the date changes according to the days in the month. What if it is the 27th^ of the December? Now you want to add five days. There are 31 days in December, after adding five it will be 1st^ of next month. We may have declared an array of twelve months. As December is the twelfth month, the last month of the year, so we have to go to first month of the next year. Here the year has also changed. We will also need to increment 1 to year too. It seems very simple that we have to add an integer number of days to some date. It becomes a complex function. Now suppose we have written this complex function and embedded all the rules in it. Then our life will become much easier. Suppose our semester starts from any date. After adding the period of semester, we will get the end date of the semester. We can do date arithmetic. This is a classic example of “paying attention to detail”. To use the class for general purposes, we cannot miss even a single case. If you want to publish this class for others to use, you need to pay attention to detail and make sure that your class handles all of the stuff.
Here is the complete code of the program. File “Date.h” // The Date class is defined here
class Date{ private: int day; int month; int year; int daysOfMonth(Date d); // returns the no of days in a month static const int daysInMonth[]; // array containing the 12 month’s days bool leapYear(int); // tells the year is leap year or not
public: Date(int d = 1, int m = 1, int y = 1900); // constructor with default arguments void setDate(int, int, int); // set the date with given arguments void display(); // Display the date on the screen // operators prototypes Date operator ++ (); // pre increment operator used as ++date Date operator + (int); // Plus operator used as date1 + 5 };
// The implementation of the date class. // initializing the no of days, take 0 for month zero. const int Date::daysInMonth[] = {0, 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};
// Displaying the function on the screen void Date::display() { cout <<"\nDate:" << day << "-" << month << "-" << year; } //constructor of the date Date::Date(int d, int m, int y) {
docsity.com
setDate(d, m, y); }
// setting the date as given arguments void Date::setDate(int d, int m, int y) { year = y;
// if month is wrong then set it to 1 if (month < 1 && month > 12) month = 1; else month = m; // if day is wrong then set it to 1 if (month == 2 && leapYear(y)) if (d >=1 && d <=29) day = d; else day = 1; else if( d >= 1 && d <= daysInMonth[month]) day = d; else day = 1; }
// This function return the number of days in a month int Date::daysOfMonth(Date d) { if (d.month == 2 && leapYear(d.year)) // if leap year then Feb is 29 return 29; else return daysInMonth[d.month]; }
// Testing that the year is leap or not. bool Date::leapYear(int y) { if ( (y%400 == 0) || (y%100 != 0 && y%4 == 0)) return true; else return false; }
// + operator overloaded for the date. Used as date1 + 5 Date Date::operator + (int numberOfDays) { for (int i = 1; i <= numberOfDays; i++) { ++(*this); // calling the pre increment operator
docsity.com
Date:4-3-
Similarly we may have a counter-function that subtracts some number from the date. This is the same but of reverse nature. Suppose it is Jan 3rd^ and we have to subtract ten days from it. The month will be changed to December while the year is going to be decremented by 1. To determine the date of December, we need to know the number of days in December and count backwards. Now we don’t need the number of days of current month. Rather the number of days in previous month is important. Suppose it is 3rd^ of March and subtract seven from it. What will be the date? Now you have to do complex arithmetic and take care of all the cases. It is very complicated but having only one time effort. Date arithmetic is very important and common in business applications. If someone applies for vacations, you just have to enter that this person is going on leave from this date for ten days and you will know his date of re- joining the duty. If someone works on daily wages and paid after a week. Someday, he comes and says that he is going on vacations. We need to calculate the number of days from the day of last payment to to-date. It is simple date arithmetic. Writing a Date class with these appropriate operators overloaded will be very useful exercise. It adds to your overall programming vocabulary.
There are two kinds of programming vocabulary. One is the keywords of C/C++ etc while the second is higher-level vocabulary. What sort of vocabulary we have in our tool- box. In the first part of this course, we have learned how to write loops, nested loops etc. We learn to handle matrices and vectors using those rudimentary rules. Now if you think about that we have written a matrix class and a member function inverseOfMatrix(). We can use this function again and again. Similarly in the Date class, we can put in some rudimentary calculations on date arithmetic. Add or subtract number of days from some date. These are very useful functions. In the daily wages example, you need to subtract a date from a date. Now we need to overload the minus operator again with date minus date. First we overload the minus operator with date minus some integer number. There may be two versions of minus operator. Here, you have to work in detail. Subtracting a date from another date is relatively non-trivial. As a programming idea, you can think that subtracting two dates involves huge calculations. Can we perform some logical tests here? If we want to implement date
- date2 while date1 is smaller than date2. The first question is do we want to return a negative number. Let’s say we want this, then date1 – date2 can return a negative number. So it can return a negative number or zero (if the dates are identical) or positive number (the number of days). How we can implement this functionality? One way to do it is with the help of calendar. Under this method, we will start a loop till the other date is got. Then by reading the loop counter, we can tell the difference in days. It is a good idea. But for that, we need a calendar somewhere. If the dates are in different years, we will have to ensure the availability of calendar of next year. Think about it and try to write this function.
Now what about the plus-operator for two dates? Minus operator for strings did not make a lot of sense. Similarly, the plus operator for two dates does not make much sense. We can add some number to date. But how can we add a date to some other date. There is no logical and straight forward answer to this. So we don’t define such a function. The meaning of our operator should be obvious. You can write whatever you want in the function. But it is bad idea. The idea of this exercise is to pay attention to detail. Think of all the various things that can happen. Tabulate them,
docsity.com
determine the logic and then start programming. Don’t start typing your program before your brain has come up to the same point. First analyze the problem, understand it, look at all the cases, draw a flow chart, write pseudo code. Once you are comfortable with this and know what you want to do then start writing your program. The time spending on analyses is arguably the best usage of your time as a programmer. The time you spend on debugging and removing errors from faulty code is huge. Spending time on good design pays off. You should debug for syntax errors like a semi-colon is missing somewhere. You should not face any logical error at debugging stage because logic errors are very hard to track. You may just not worry about the design and start writing code. The program may work for two or three cases. You may declare that you have written the program. When other starts using it on some other case which you did not cater, the program does not work or produces some strange results. There is no syntax error in the program. The compiler compiles it successfully and makes an executable file. Now we have to check the logic. Determining the logic from the code is a million times more difficult than determining code from logic. In this case, analysis will be always followed by design and then code. Please keep this in mind.
Unary Operators
Let’s talk about unary operators. Unary operators take one argument like i++ or i-- (Post Increment or post decrement operators for integers) or ++i, --i (Pre increment or pre decrement operator). You can’t make unary operator as binary operator or binary operator as unary. Let’s overload unary operator in the Date class. We want to overload ++. This operator should add a day in the current date. When we say ++ date1 or date1++ , it should get tomorrow’s date. This is same as date1 +=1 or date1 = date1 + 1. We simply have to change to tomorrow’s date. If this is the member function, it will get the date object automatically. The internal structure of the object is available to the function so that it takes no argument. It will return a Date object. Its prototype will be as:
Date operator ++ ( ); // pre increment operator
What will be in the function definition? You have to pay attention to details. The argument that we used in the plus operator, is also applicable here. What will be the next date when we add 1 to the current date. Let’s work it out. If it is not the last date of the month, then simply add one to the day. If the date is the last day of the month, then change the month and date to 1st^. If the date is the last date of the year, then increment the year too. Suppose we have some function available which returns the days of month given the month number. So if we say daysOfMonth(6) it should return
- The function is intelligent enough that when we say daysOfMonth(2) it should return 28 if the year is not leap year. Otherwise, it will be 29. Therefore we have to send it year too along with the month number. We can also pass it the complete Date structure as daysOfMonth(date1); We will use this function in writing the ++ operator. In a way, the logic is same as we used in the plus operator. Suppose the object d is calling this ++ operator as d++ where d is an object of type Date. Therefore the day, month and year data members will be available to this function. In the body of the function, first of all we will check whether this is the last date of the month as:
docsity.com
Here we don’t need to use this int argument. The implementation is same as pre increment operator as in both cases we want to add 1 to the date.
Can we implement the plus operator using this function? We can write the plus operator in some new fashion. We pass it a positive integer number, which has to be added to the date. We can write a loop in the plus operator. The loop condition will be as i < number where number is the argument passed to it. So in the program if we have written as date1+5; the loop will run for five times and in the body of the loop we have ++date1. Suddenly our complicated logic has been boiled down to simple as incremented by 1. This is the classic example of code reuse.
We don’t know who is going to use this code. Nobody is perfect. But we should think before writing the program about the structure, interface, the setters and getters and the operators to be overloaded. The thumb rule is if the meaning of + and ++ operator is same as in ordinary arithmetic, then + operator can be used in the ++ operator. Keep in mind that we can call a function from another function. This is a good example of code reuse. We can call the + operator as many times as needed. The daysOfMonth is a member function and it is used in ++ operator function. ‘+ operator’ is a member function, used in ++ operator. We are building a hierarchy. Suppose there is some small logical error in the code and the daysOfMonth is not returning the correct value. This will effect the + operator as well as ++ operator. When we remove that error, then + and ++ operator both will be corrected. Moral of the story is that whenever we write some code, it is better to see whether we are rewriting some code in the same class. If we are calculating the number of months at two places or determining the leap year at two places, then try to combine this in such a way that things should be calculated at one place. That piece of code may become some utility function. This will not be called from outside the class so we will put this function in the private area. But the member functions can call it. We will make the daysOfMonth() as a private member function of the class. It will return the days of the month having checked whether this is leap year or not. Using this utility function, we have written + and ++ operator function. Don’t repeat code inside a class. Make it a general rule. Make a function for the repeated code and call it where needed. For efficiency and speed, we can repeat the code. For this, we start using macros. It means that if you put all your logic in a single place and then reuse it. You will get lot of safety and security with this. A correction at one place will make the behavior of the whole class correct.
Let’s see another interesting function of the Date class. Sometimes, we need to compare two dates i.e. whether a date is greater or less than the other date. In other words, the comparison operator is applied. Comparison operators <, >, <=, >=, == can also be overloaded. How do we determine whether date1 is greater than date2? First of all, what will be its return type. Return type has to be either true or false. It says date1 is greater than date2 or date1 is not greater than date2. Let’s introduce another keyword bool. It is a new data type. It is very simple, it only takes two values true or false. So, the return type of greater than operator (>) is bool. The prototype of this member function is as:
bool operator > (Date d);
docsity.com
The argument d is the Date object that is on the right side of the greater than sign. The left hand side Date object is available to this as this is the member operator of the class. Before writing the code, think abut the logic. We have to determine that the calling date is greater than the date d or not. If the year of current date is greater than date d, will the current date greater than date d? Certainly, it will be so. If the year is greater, obviously date is greater. If the years of both the dates are equal, then we have to check whether the month of the current date is greater than date d or not. If the month of the current date is greater than the date d , current date is greater. If the months are also equal, we will compare the days. It’s a very simple hierarchical logic. To be able to write this logic cleanly, you should write case by case on paper. Analyze it thoroughly. The logic can be written in reverse too. If the year of the date d is greater than the current date, return false and so on. So we can go either true, true, true or false, false, false logic. You will find the false logic quicker. We can use if, ‘else if’ structures. Return type of this function is ‘boolean’. Suppose that in our calling function we have two Date objects as d1 and d2. We will write as if(d1 > d2). Why should we write this? As our operator is returning true or false and ‘if’ also needs true or false, we can write very clean and neat code. This greater than operator is a member operator of Date class. In this case, we have the return type as boolean and not returning the Date object. Is it the violation of any rule? The answer is no. The return type can be anything. It needs not to be the same as the class. It can be anything. The same applies to difference between two dates. The difference between two dates will be an integer. It is still a member function. It simply tells us the number of days between two days. It could be negative or positive but it is an integer. There is no such rule that the member operators should return the object of the same class.
The code of the greater than operator is as follows: // Definition of the greater than operator
bool Date :: operator > ( Date d ) { if ( year > d.year ) // if year is greater date is greater { return true; } else if ( year == d.year) //if years are equal check month { if ( month > d.month ) // if month is greater date is greater { return true; } else if ( month == d.month) // if months are equal check dates { if(day > d.day) return true; else // otherwise return false return false; } else return false; }
docsity.com
would want to keep it within limits but do the homework then you write it. Now you can reuse it as many times as you want.
We need a friend operator when the driving thing is not the object of the class like integer + date. The operator is derived by integer. Here, we use a friend function. There are instances where friend operators are used to manipulate two different classes. A classic example in the mathematics is of the multiplication of vector and matrix. If we have to multiply a vector with a matrix, the multiplication operator will be friend of both the classes. It will get both vector and matrix as arguments and manipulate them. Keep in mind that friend operators in a way can also be used to glue two classes. The disadvantage of clubbing them together is that they become interlinked. Write your own overloaded operators and see how they work.
