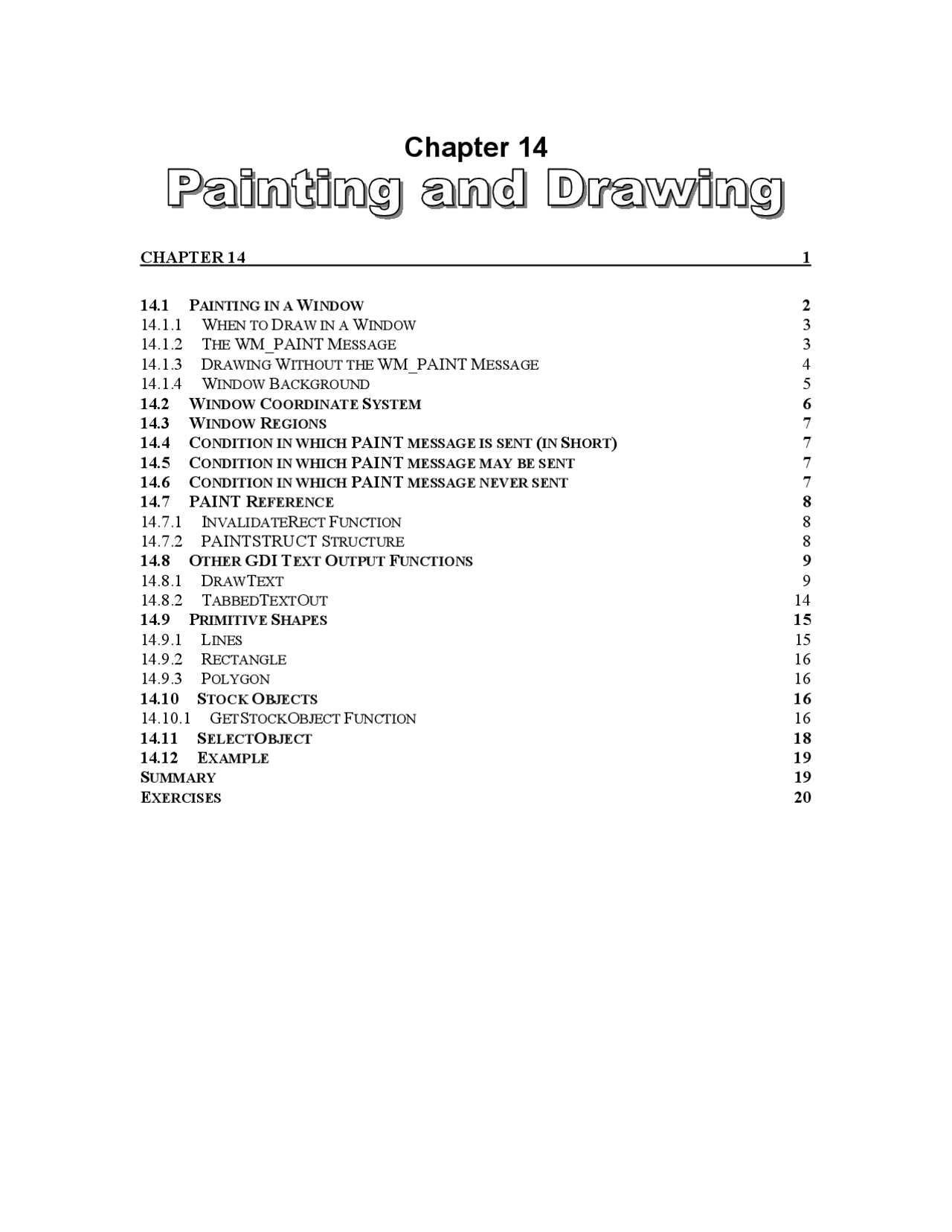

- Chapter
- CHAPTER
- 14.1 P AINTING IN A WINDOW
- 14.1.1 W HEN TO DRAW IN A W INDOW
- 14.1.2 T HE WM_PAINT M ESSAGE
- 14.1.3 DRAWING W ITHOUT THE WM_PAINT M ESSAGE
- 14.1.4 W INDOW BACKGROUND
- 14.2 WINDOW COORDINATE S YSTEM
- 14.3 WINDOW REGIONS
- 14.4 CONDITION IN WHICH PAINT MESSAGE IS SENT ( IN S HORT)
- 14.5 CONDITION IN WHICH PAINT MESSAGE MAY BE SENT
- 14.6 CONDITION IN WHICH PAINT MESSAGE NEVER SENT
- 14.7 PAINT REFERENCE
- 14.7.1 I NVALIDATE RECT F UNCTION
- 14.7.2 PAINTSTRUCT S TRUCTURE
- 14.8 OTHER GDI TEXT OUTPUT F UNCTIONS
- 14.8.1 DRAWT EXT
- 14.8.2 T ABBEDT EXT OUT
- 14.9 P RIMITIVE S HAPES
- 14.9.1 L INES
- 14.9.2 RECTANGLE
- 14.9.3 P OLYGON
- 14.10 S TOCK OBJECTS
- 14.10.1 GET S TOCKOBJECT F UNCTION
- 14.11 S ELECTOBJECT
- 14.12 EXAMPLE
- S UMMARY
- EXERCISES
14.1 Painting in a Window
The WM_PAINT message is sent when the system or another application makes a request to paint a portion of an application's window. The message is sent by the DispatchMessage function to a window procedure when the application obtains a WM_PAINT message from message Queue by using the GetMessage or PeekMessage functions. A window receives this message through its WindowProc function. Windows always specifies invalid area of any window in terms of a least bounding rectangle; hence, the entire window is not repainted.
WM_PAINT message is generated by the system only when any part of application window becomes invalid.
The WM_PAINT message is generated by the system and should not be sent by an application.
The DefWindowProc function validates the update region. The function may also send the WM_NCPAINT message to the window procedure if the window frame must be painted and send the WM_ERASEBKGND message if the window background must be erased.
The system sends this message when there are no other messages in the application's message queue. DispatchMessage determines where to send the message; GetMessage determines which message to dispatch. GetMessage returns the WM_PAINT message when there are no other messages in the application's message queue, and DispatchMessage sends the message to the appropriate window procedure.
A window may receive internal paint messages as a result of calling RedrawWindow with the RDW_INTERNALPAINT flag set. In this case, the window may not have an update region. An application should call the GetUpdateRect function to determine whether the window has an update region. If GetUpdateRect returns zero, the application should not call the BeginPaint and EndPaint functions.
An application must check for any necessary internal painting by looking at its internal data structures for each WM_PAINT message, because a WM_PAINT message may have been caused by both a non-NULL update region and a call to RedrawWindow with the RDW_INTERNALPAINT flag set.
The system sends an internal WM_PAINT message only once. After an internal WM_PAINT message is returned from GetMessage or PeekMessage or is sent to a window by UpdateWindow, the system does not post or send further WM_PAINT messages until the window is invalidated or until RedrawWindow is called again with the RDW_INTERNALPAINT flag set.
Before BeginPaint returns the display device context, the system prepares the device context for the specified window. It first sets the clipping region for the device context to be equal to the intersection of the portion of the window that needs updating and the portion that is visible to the user. Only those portions of the window that have changed are redrawn. Attempts to draw outside this region are clipped and do not appear on the screen.
The system can also send WM_NCPAINT and WM_ERASEBKGND messages to the window procedure before BeginPaint returns. These messages direct the application to draw the nonclient area and window background. The nonclient area is the part of a window that is outside of the client area. The area includes features such as the title bar, window menu (also known as the System menu), and scroll bars. Most applications rely on the default window function, DefWindowProc , to draw this area and therefore pass the WM_NCPAINT message to this function. The window background is the color or pattern that a window is filled with before other drawing operations begin. The background covers any images previously in the window or on the screen under the window. If a window belongs to a window class having a class background brush, the DefWindowProc function draws the window background automatically.
BeginPaint fills a PAINTSTRUCT structure with information such as the dimensions of the portion of the window to be updated and a flag indicating whether the window background has been drawn. The application can use this information to optimize drawing. For example, it can use the dimensions of the update region, specified by the rcPaint member, to limit drawing to only those portions of the window that need updating. If an application has very simple output, it can ignore the update region and draw in the entire window, relying on the system to discard (clip) any unneeded output. Because the system clips drawing that extends outside the clipping region, only drawing that is in the update region is visible.
BeginPaint sets the update region of a window to NULL. This clears the region, preventing it from generating subsequent WM_PAINT messages. If an application processes a WM_PAINT message but does not call BeginPaint or otherwise clear the update region, the application continues to receive WM_PAINT messages as long as the region is not empty. In all cases, an application must clear the update region before returning from the WM_PAINT message.
After the application finishes drawing, it should call EndPaint. For most windows, EndPaint releases the display device context, making it available to other windows. EndPaint also shows the caret, if it was previously hidden by BeginPaint. BeginPaint hides the caret to prevent drawing operations from corrupting it.
14.1.3 Drawing Without the WM_PAINT Message
Although applications carry out most drawing operations while the WM_PAINT message is processing, it is sometimes more efficient for an application to draw directly in a window without relying on the WM_PAINT message. This can be useful when the
user needs immediate feedback, such as when selecting text and dragging or sizing an object. In such cases, the application usually draws while processing keyboard or mouse messages.
To draw in a window without using a WM_PAINT message, the application uses the GetDC or GetDCEx function to retrieve a display device context for the window. With the display device context, the application can draw in the window and avoid intruding into other windows. When the application has finished drawing, it calls the ReleaseDC function to release the display device context for use by other applications.
When drawing without using a WM_PAINT message, the application usually does not invalidate the window. Instead, it draws in such a fashion that it can easily restore the window and remove the drawing. For example, when the user selects text or an object, the application typically draws the selection by inverting whatever is already in the window. The application can remove the selection and restore the original contents of the window by simply inverting again.
The application is responsible for carefully managing any changes it makes to the window. In particular, if an application draws a selection and an intervening WM_PAINT message occurs, the application must ensure that any drawing done during the message does not corrupt the selection. To avoid this, many applications remove the selection, carry out usual drawing operations, and then restore the selection when drawing is complete.
14.1.4 Window Background
The window background is the color or pattern used to fill the client area before a window begins drawing. The window background covers whatever was on the screen before the window was moved there, erasing existing images and preventing the application's new output from being mixed with unrelated information.
The system paints the background for a window or gives the window the opportunity to do so by sending it a WM_ERASEBKGND message when the application calls BeginPaint. If an application does not process the message but passes it to DefWindowProc , the system erases the background by filling it with the pattern in the background brush specified by the window's class. If the brush is not valid or the class has no background brush, the system sets the fErase member in the PAINTSTRUCT structure that BeginPaint returns, but carries out no other action. The application then has a second chance to draw the window background, if necessary.
If it processes WM_ERASEBKGND , the application should use the message's wParam parameter to draw the background. This parameter contains a handle to the display device context for the window. After drawing the background, the application should return a nonzero value. This ensures that BeginPaint does not erroneously set the fErase member of the PAINTSTRUCT structure to a nonzero value (indicating the background should be erased) when the application processes the subsequent WM_PAINT message.
screen coordinates to client coordinates and vice versa; the desktop window is always specified in screen coordinates.
14.3 Window Regions
In addition to the update region, every window has a visible region that defines the window portion visible to the user. The system changes the visible region for the window whenever the window changes size or whenever another window is moved such that it obscures or exposes a portion of the window. Applications cannot change the visible region directly, but the system automatically uses the visible region to create the clipping region for any display device context retrieved for the window.
The clipping region determines where the system permits drawing. When the application retrieves a display device context using the BeginPaint , GetDC , or GetDCEx function, the system sets the clipping region for the device context to the intersection of the visible region and the update region. Applications can change the clipping region by using functions such as SetWindowRgn , SelectClipPath and SelectClipRgn , to further limit drawing to a particular portion of the update area.
The WS_CLIPCHILDREN and WS_CLIPSIBLINGS styles further specify how the system calculates the visible region for a window. If a window has one or both of these styles, the visible region excludes any child window or sibling windows (windows having the same parent window). Therefore, drawing that would otherwise intrude in these windows will always be clipped.
14.4 Condition in which PAINT message is sent (briefly)
- Any hidden part of window becomes visible Window is resized (and CS_VREDRAW, CS_HREDRAW style bits were set while registering the window class).
- Program scrolls its window.
- InvalidateRect or InvalidateRgn is called by the application.
14.5 Condition in which PAINT message may be sent
- A dialog is dismissed.
- A drop-down menu disappears.
- A tool tip is displayed and then it hides.
14.6 Condition in which PAINT message never sent
- An icon is dragged over the window.
- The mouse cursor is moved
14.7 PAINT Reference
14.7.1 InvalidateRect Function
InvalidateRect function is used to make window or part of it, invalidate.
BOOL InvalidateRect( HWND hWnd, // handle to window CONST RECT *lpRect, // rectangle coordinates BOOL bErase // erase state );
hWnd: Handle to the window whose update region has changed. If this parameter is NULL, the system invalidates and redraws all windows, and sends the WM_ERASEBKGND and WM_NCPAINT messages to the window procedure before the function returns.
lpRect: Pointer to a RECT structure that contains the client coordinates of the rectangle to be added to the update region. If this parameter is NULL, the entire client area is added to the update region.
bErase: Specifies whether the background within the update region is to be erased when the update region is processed. If this parameter is TRUE, the background is erased when the BeginPaint function is called. If this parameter is FALSE, the background remains unchanged.
Return Values: If the function succeeds, the return value is nonzero.If the function fails, the return value is zero.
14.7.2 PAINTSTRUCT Structure
The PAINTSTRUCT structure contains information for an application. This information can be used to paint the client area of a window owned by that application.
typedef struct tagPAINTSTRUCT { HDC hdc; //Handle to the Device context BOOL fErase; /erase back ground of this parameter is true/ RECT rcPaint; /rectangle to the invalidate region/ BOOL fRestore; BOOL fIncUpdate; //updation true/false BYTE rgbReserved[32]; //rgb values } PAINTSTRUCT, *PPAINTSTRUCT;
hdc Handle to the display DC to be used for painting. fErase Specifies whether the background must be erased. This value is nonzero if the application should erase the background. The application is responsible for
lpRect: Pointer to a RECT structure that contains the rectangle (in logical coordinates) in which the text is to be formatted.
uFormat: Specifies the method of formatting the text. This parameter can be one or more of the following values.
Value Description DT_BOTTOM Justifies the text to the bottom of the rectangle. This value is used only with the DT_SINGLELINE value. DT_CALCRECT Determines the width and height of the rectangle. If there are multiple lines of text, DrawText uses the width of the rectangle pointed to by the lpRect parameter and extends the base of the rectangle to bound the last line of text. If the largest word is wider than the rectangle, the width is expanded. If the text is less than the width of the rectangle, the width is reduced. If there is only one line of text, DrawText modifies the right side of the rectangle so that it bounds the last character in the line. In either case, DrawText returns the height of the formatted text but does not draw the text. DT_CENTER Centers text horizontally in the rectangle. DT_EDITCONTROL Duplicates the text-displaying characteristics of a multiline edit control. Specifically, the average character width is calculated in the same manner as for an edit control, and the function does not display a partially visible last line. DT_END_ELLIPSIS For displayed text, if the end of a string does not fit in the rectangle, it is truncated and ellipses are added. If a word that is not at the end of the string goes beyond the limits of the rectangle, it is truncated without ellipses.
The string is not modified unless the DT_MODIFYSTRING flag is specified.
Compare with DT_PATH_ELLIPSIS and DT_WORD_ELLIPSIS. DT_EXPANDTABS Expands tab characters. The default
number of characters per tab is eight. The DT_WORD_ELLIPSIS, DT_PATH_ELLIPSIS, and DT_END_ELLIPSIS values cannot be used with the DT_EXPANDTABS value.
DT_EXTERNALLEADING Includes the font external leading in line height. Normally, external leading is not included in the height of a line of text.
DT_HIDEPREFIX Windows 2000/XP: Ignores the ampersand (&) prefix character in the text. The letter that follows will not be underlined, but other mnemonic-prefix characters are still processed. For example: input string: "A&bc&&d" normal: "Abc&d" DT_HIDEPREFIX: "Abc&d"
Compare with DT_NOPREFIX and DT_PREFIXONLY.
DT_INTERNAL Uses the system font to calculate text metrics.
DT_LEFT Aligns text to the left.
DT_MODIFYSTRING Modifies the specified string to match the displayed text. This value has no effect unless DT_END_ELLIPSIS or DT_PATH_ELLIPSIS is specified.
DT_NOCLIP Draws without clipping. DrawText is somewhat faster when DT_NOCLIP is used.
DT_NOFULLWIDTHCHARBREAK (^) Windows 98/Me, Windows 2000/XP: Prevents a line break at a DBCS (double- wide character string), so that the line breaking rule is equivalent to SBCS strings. For example, this can be used in Korean windows, for more readability of icon labels. This value has no effect unless DT_WORDBREAK is specified.
DT_NOPREFIX Turns off processing of prefix characters. Normally, DrawText interprets the mnemonic-prefix character & as a directive to underscore the character that follows, and the mnemonic-prefix characters && as a directive to print a single &. By specifying DT_NOPREFIX, this processing is turned off. For example,
DT_INTERNAL, DT_NOCLIP, and DT_NOPREFIX values cannot be used with the DT_TABSTOP value. DT_TOP Justifies the text to the top of the rectangle. DT_VCENTER Centers text vertically. This value is used only with the DT_SINGLELINE value. DT_WORDBREAK Breaks words. Lines are automatically broken between words if a word would extend past the edge of the rectangle specified by the lpRect parameter. A carriage return-line feed sequence also breaks the line.
If this is not specified, output is on one line. DT_WORD_ELLIPSIS Truncates any word that does not fit in the rectangle and adds ellipses.
Compare with DT_END_ELLIPSIS and DT_PATH_ELLIPSIS.
Return Values: If the function succeeds, the return value is the height of the text in logical units. If DT_VCENTER or DT_BOTTOM is specified, the return value is the offset from
lpRect-> top to the bottom of the drawn text
If the function fails, the return value is zero.
The DrawText function uses the device context's selected font, text color, and background color to draw the text. Unless the DT_NOCLIP format is used, DrawText clips the text so that it does not appear outside the specified rectangle. Note that text with significant overhang may be clipped, for example, an initial "W" in the text string or text that is in italics. All formatting is assumed to have multiple lines unless the DT_SINGLELINE format is specified.
If the selected font is too large for the specified rectangle, the DrawText function does not attempt to substitute a smaller font.
The DrawText function supports only fonts whose escapement and orientation are both zero.
The text alignment mode for the device context must include the TA_LEFT, TA_TOP, and TA_NOUPDATECP flags.
14.8.2 TabbedTextOut
The TabbedTextOut function writes a character string at a specified location, expanding tabs to the values specified in an array of tab-stop positions. Text is written in the currently selected font, background color, and text color.
LONG TabbedTextOut( HDC hDC , // handle to DC int X , // x-coord of start int Y , // y-coord of start LPCTSTR lpString , // character string int nCount , // number of characters int nTabPositions , // number of tabs in array CONST LPINT lpnTabStopPositions , // array of tab positions int nTabOrigin // start of tab expansion );
hDC: Handle to the device context.
X: Specifies the x-coordinate of the starting point of the string, in logical units.
Y: Specifies the y-coordinate of the starting point of the string, in logical units.
lpString: Pointer to the character string to draw. The string does not need to be zero- terminated, since nCount specifies the length of the string.
nCount: Specifies the length of the string pointed to by lpString. For the ANSI function it is a BYTE count and for the Unicode function it is a WORD count. Note that for the ANSI function, characters in SBCS code pages take one byte each, while most characters in DBCS code pages take two bytes; for the Unicode function, most currently defined Unicode characters (those in the Basic Multilingual Plane (BMP)) are one WORD while Unicode surrogates are two WORD s.
nTabPositions: Specifies the number of values in the array of tab-stop positions.
lpnTabStopPositions: Pointer to an array containing the tab-stop positions, in logical units. The tab stops must be sorted in increasing order; the smallest x-value should be the first item in the array.
nTabOrigin: Specifies the x-coordinate of the starting position from which tabs are expanded, in logical units.
Return Values: If the function succeeds, the return value is the dimensions, in logical units, of the string. The height is in the high-order word and the width is in the low-order word. If the function fails, the return value is zero.
14.9.2 Rectangle
- The Rectangle() function draws a rectangle. The rectangle is outlined by using the current pen and filled by using the current brush.
- The rectangle is outlined using currently selected pen and filled using the currently selected brush of n the window's device context.
BOOL Rectangle( HDC hdc, // handle to DC int nLeftRect, // x-coord of upper-left corner of rectangle int nTopRect, // y-coord of upper-left corner of rectangle int nRightRect, // x-coord of lower-right corner of rectangle int nBottomRect // y-coord of lower-right corner of rectangle );
14.9.3 Polygon
The Polygon() function draws a polygon consisting of two or more vertices connected by straight lines. The polygon is outlined by using the current pen and filled by using the current brush and polygon fill mode.
BOOL Polygon( HDC hdc, // handle to DC CONST POINT *lpPoints, // polygon vertices int Count // count of polygon vertices );
14.10 Stock Objects
Pre-defined GDI objects in Windows are:
- Pens
- Brushes
- Fonts
- Palettes
14.10.1 GetStockObject Function
The GetStockObject function retrieves a handle to one of the stock pens, brushes, fonts, or palettes.
HGDIOBJ GetStockObject( int fnObject // stock object type );
fnObject: Specifies the type of stock object. This parameter can be one of the following values.
Value Meaning BLACK_BRUSH Black brush. DKGRAY_BRUSH Dark gray brush. DC_BRUSH Windows 2000/XP: Solid color brush. The default color is white. The color can be changed by using the SetDCBrushColor function. For more information, see the Remarks section. GRAY_BRUSH Gray brush. HOLLOW_BRUSH Hollow brush (equivalent to NULL_BRUSH). LTGRAY_BRUSH Light gray brush. NULL_BRUSH Null brush (equivalent to HOLLOW_BRUSH). WHITE_BRUSH White brush. BLACK_PEN Black pen. DC_PEN Windows 2000/XP: Solid pen color. The default color is white. The color can be changed by using the SetDCPenColor function. For more information, see the Remarks section. WHITE_PEN White pen. ANSI_FIXED_FONT Windows fixed-pitch (monospace) system font. ANSI_VAR_FONT Windows variable-pitch (proportional space) system font. DEVICE_DEFAULT_FONT Windows NT/2000/XP: Device-dependent font. DEFAULT_GUI_FONT Default font for user interface objects such as menus and dialog boxes. This is MS Sans Serif. Compare this with SYSTEM_FONT. OEM_FIXED_FONT Original equipment manufacturer (OEM) dependent fixed-pitch (monospace) font. SYSTEM_FONT System font. By default, the system uses the system font to draw menus, dialog box controls, and text.
Windows 95/98 and Windows NT: The system font is MS Sans Serif.
Windows 2000/XP: The system font is Tahoma SYSTEM_FIXED_FONT Fixed-pitch (monospace) system font. This stock object is provided only for compatibility with 16-bit Windows versions earlier than 3.0. DEFAULT_PALETTE Default palette. This palette consists of the static colors in the system palette.
This function returns the previously selected object of the specified type. An application should always replace a new object with the original, default object after it has finished drawing with the new object.
An application cannot select a bitmap into more than one DC at a time.
14.12 Example
SelectObject(hdc,GetStockObject(DC_PEN)); SetDCPenColor(hdc,RGB(00,0xff,00); Rectangle(0,0,20,20); SetDCPenColor(hdc,RGB(00,00,0xff)); Rectangle(0,0,20,20)
/* The brush color can be changed in a similar manner. SetDCPenColor and SetDCBrushColor can be used interchangeably with GetStockObject to change the current color. */
SelectObject(hDC,GetStockObject(DC_BRUSH)); SetDCBrushColor(hDC,0x0)
// Provides the same flexibility as:
SelectObject(hDC,GetStockOBject(BLACK_BRUSH));
// It is not necessary to call DeleteObject to delete stock objects.
Summary
In this lecture, we studied about painting in windows, for painting we used an important message i.e. WM_PAINT. This message is always sent when windows need to paint its portion or region that was previously invalidated. Windows paint only its region when it become invalidates otherwise it is not sent WM_PAINT message. In some cases, WM_PAINT messages are not sent—when menu drops down or small dialog boxes appear. We also studied about invalidation and validation of a region. If region is invalidated then it will be receiving WM_PAINT messages until it become validate. At the end of the lecture we studied about sending and posting of messages. Messages can be sent to windows procedure directly or it can be posted to message queue. All the sent messages are not returned until the message is processed but the posted messages are returned after posting the message in queue.
Tips
All GDI Objects create handles, these handles can be of bitmaps, regions, or fonts handle. These handles must be deleted after using these objects. Keep it in mind and make a practice to delete all the objects when they are left unused.
Exercises
- Create a round rectangular region and paint it using your own created hatched brush. Also write the text which should be clipped to the region.
- On pressing the mouse left button in region, region must show message box, bearing text you have pressed mouse in region.
