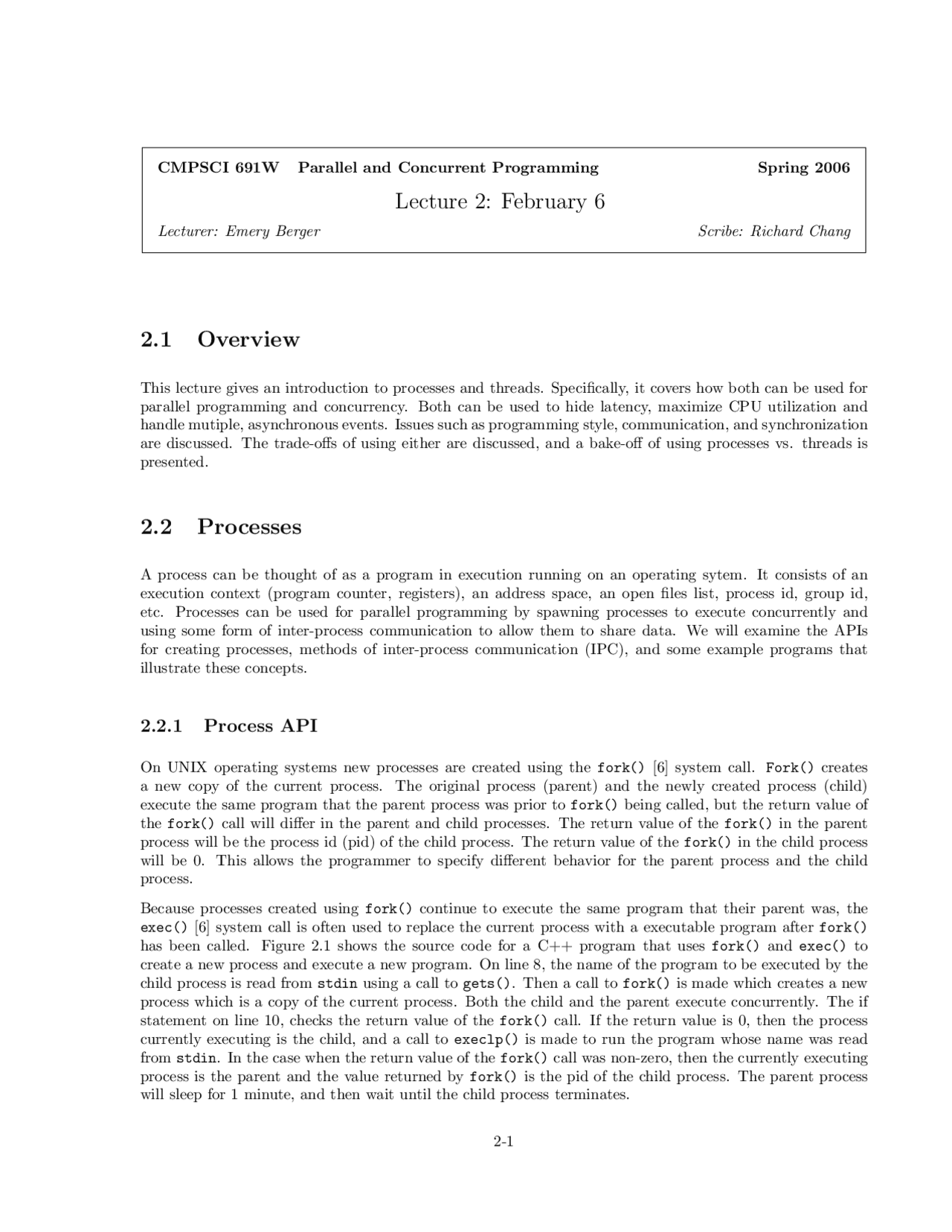

CMPSCI 691W Parallel and Concurrent Programming Spring 2006
Lecture 2: February 6
Lecturer: Emery Berger Scribe: Richard Chang
2.1 Overview
This lecture gives an introduction to processes and threads. Specifically, it covers how both can be used for parallel programming and concurrency. Both can be used to hide latency, maximize CPU utilization and handle mutiple, asynchronous events. Issues such as programming style, communication, and synchronization are discussed. The trade-offs of using either are discussed, and a bake-off of using processes vs. threads is presented.
2.2 Processes
A process can be thought of as a program in execution running on an operating sytem. It consists of an execution context (program counter, registers), an address space, an open files list, process id, group id, etc. Processes can be used for parallel programming by spawning processes to execute concurrently and using some form of inter-process communication to allow them to share data. We will examine the APIs for creating processes, methods of inter-process communication (IPC), and some example programs that illustrate these concepts.
2.2.1 Process API
On UNIX operating systems new processes are created using the fork() [6] system call. Fork() creates a new copy of the current process. The original process (parent) and the newly created process (child) execute the same program that the parent process was prior to fork() being called, but the return value of the fork() call will differ in the parent and child processes. The return value of the fork() in the parent process will be the process id (pid) of the child process. The return value of the fork() in the child process will be 0. This allows the programmer to specify different behavior for the parent process and the child process.
Because processes created using fork() continue to execute the same program that their parent was, the exec() [6] system call is often used to replace the current process with a executable program after fork() has been called. Figure 2.1 shows the source code for a C++ program that uses fork() and exec() to create a new process and execute a new program. On line 8, the name of the program to be executed by the child process is read from stdin using a call to gets(). Then a call to fork() is made which creates a new process which is a copy of the current process. Both the child and the parent execute concurrently. The if statement on line 10, checks the return value of the fork() call. If the return value is 0, then the process currently executing is the child, and a call to execlp() is made to run the program whose name was read from stdin. In the case when the return value of the fork() call was non-zero, then the currently executing process is the parent and the value returned by fork() is the pid of the child process. The parent process will sleep for 1 minute, and then wait until the child process terminates.
2-2 Lecture 2: February 6
1 #include <unistd.h> 2 #include <sys/wait.h> 3 #include <stdio.h> 4 5 main() { 6 int parentID = getpid(); /* ID of this process / 7 char prgname[1024]; 8 gets(prgname); / Read the name of the program we want to start / 9 int cid = fork(); 10 if (cid == 0) { / I’m the child process / 11 execlp( prgname, prgname, 0); / Load the program / 12 / If the program named prgname can be started, we never get 13 to this line, because the child program is replaced by prgname / 14 printf("I didn’t find program %s\n", prgname); 15 } else { / I’m the parent process / 16 sleep(1); / Give my child time to start. / 17 waitpid(cid, 0, 0); / Wait for my child to terminate. */ 18 printf("Program %s finished\n", prgname); 19 } 20 }
Figure 2.1: An example program using fork() and exec()
On Windows operating systems, processes are not created by forking the current process. Instead, new pro- cesses are created using the function CreateProcess() [2] which takes 10 arguments that specify parameters such at the name of the application to execute and process attributes.
2.2.2 Translation Lookaside Buffer
Translation lookaside buffer (TLB) is a fast, fully associative memory that is used as a buffer for virtual address to physical address translation [7]. Entries in a process’s page table are buffered in TLB in order to speed up memory address translation. If a page number is found in TLB, then the frame number can quickly be determined, but if a page number is not found in a TLB and the page table in memory has to be queried, and a TLB miss has occured which can lead to a huge performance loss.
Because the entries in a TLB are process specific, whenever a context switch occurs all of the TLB entries become invalid. This leads to what is a called a TLB shootdown. Initially after a context switch, the entries in the TLB are incorrect because processes have distinct address spaces. This means that memory accesses after a process context switch will be very expensive because of all of the TLB misses that occur.
2.2.3 Copy-on-write
When fork() is called, conceptually all resources of the parent process are copied for the child process to have its own address space, execution context, etc. This would potentially mean that all of the page frames used by the parent would have to be copied, and then if exec() was called to run a new program, all those copied pages for the child would be invalidated. In order to avoid this, fork() is usually implemented using copy-on-write [1]. Instead of copying the page frames of the parent as new copies for the child, the parent
2-4 Lecture 2: February 6
1 #include <pthread.h> 2 3 void * run (void * d) { 4 intq = ((int) d); 5 intv = 0; 6 for (inti = 0; i < q; i++) { 7 v = v + expensiveComputation(i); 8 } 9 return (void *) v; 10 } 11 12 main() { 13 pthread_tt1, t2; 14 intr1, r2; 15 pthread_create(&t1, run, 100); 16 pthread_create(&t2, run, 100); 17 pthread_join(&t1, (void *) &r1); 18 pthread_join(&t2, (void *) &r2); 19 printf(r1 = %d, r2 = %d\n, r1, r2); 20 }
Figure 2.3: An example program using pipes for IPC
changes made in the address space of one process that map to the shared file would be reflected in the others that are mapping the same file. Because the mapped file is in memory, disk I/O is avoid and this is relatively efficient. Synchronization can be handled by the flock() system call. When a process wants to ensure that no other processes are writing to the shared file, it can obtain a file lock on that file using flock(). It should be noted that calls to flock() are very expensive.
2.3 Threads
A thread consists of a thread ID, program counter, register values and a stack[7]. Unlike processes which each have a distinct address space, threads share the same address space, files, sockets, etc. Similarly to processes, threads can be used for parallel programming. We will now discuss how threads can be created, how they communicate, and will see an example program using threads on a UNIX operating system.
2.3.1 Threads API
On UNIX operating systems, the threads API used is called pthreads, which stands for POSIX threads. Threads are created using the function pthread create() which takes as an argument the name of the function that should be excuted as a separate thread. The function pthread join() is used to wait for a thread to complete. All threads created using pthread create() in a given process execute within that process.
Figure 2.3 shows the an example program that creates two new threads to execute an expensive computation. Because the pthreads API[5] specifies that arguments passed to a function to be started as a new thread
Lecture 2: February 6 2-
must be a single void * pointer, the function run() is defined to take a void * pointer. The main() function creates two threads that will run for 100 iterations each. Then, the main thread waits for both threads to finish executing and prints their results.
In Windows there is a function that is used to create threads called CreateThread()[3] which takes 6 parameters that specify attributes like function to be executed and stack size.
2.3.2 Thread Communication
In threads, everything is shared except stacks, registers, and thread-specific data. The old way of accessing this thread-specific data was to use the pthread setspecific and pthread getspecific to access and modify data that a programmer wanted to be specific to each thread, and thus not shared. A newer way to achieve the same result is to declare a variable using the static thread modifier. This type of declartion means that variables defined in this way will be thread-specific.
Because data is shared among threads by default, updates to this data must be sychronized. Mutual exclusion to allow only one thread in a critical section are a time can be enforced using calls to pthread mutex lock(&l) and pthread mutex unlock(&l). Critical sections of code that contain updates to shared data can be wrapped in a pair of those calls to obtains a lock and then release it.
2.4 Bake-off
There are trade-offs in almost all design descisions, and the same can be said of using either process or threads for parallel programming. There is not one correct answer for all situations. Whether it is best threads or processes for parallel programming is situation dependent.
2.4.1 Performance
Much of the performance of threads and processes is determined by the time and work done when a context switch occurs to execute a new thread or process.
Context switches for threads a much cheaper because the only data that needs to be stashed and loaded is the registers, the program counter, stack pointer. All other data is shared amongst threads.
For processes all of that data must be stashed and loaded, plus the process context must be stashed and loaded. The TLB shootdown mentioned earlier occurs as well, which causes performance hits every time a page in memory is accessed until the TLB is repopulated with entries for the new process. Because context switches for processes are so expensive, longer time quanta are required to overcome the cost of the context switch. There is a trade-off between time quanta and system responsiveness. Longer time quanta usually means the system is less repsonsive.
2.4.2 Flexibility
Processes are much more flexible than using threads. It is very easy to spawn processes remotely. Parallel programming using sockets and processes can very easily be distributed across a local network or the internet. One downside to using processes is that communication must be done explicitly (sockets) or through some kind of hack (mmap).
