Bitonic Sort Algorithm: A Parallel Approach to Data Sorting, Lecture notes of Advanced Computer Architecture
An in-depth look at the bitonic sort algorithm, a parallel sorting technique used to efficiently sort large data sets. The concept of bitonic sequences, compare-exchange operations, and merging techniques. It also includes various figures to illustrate the process.
Typology: Lecture notes
2013/2014
1 / 22
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Bitonic Sort Algorithm: A Parallel Approach to Data Sorting and more Lecture notes Advanced Computer Architecture in PDF only on Docsity!
Step 1 Step 2 Step 3
ai a j
Pi P^ j Pi P^ j Pi P j
ai , a j a j , ai min{ ai , a j } max{ ai , a j }

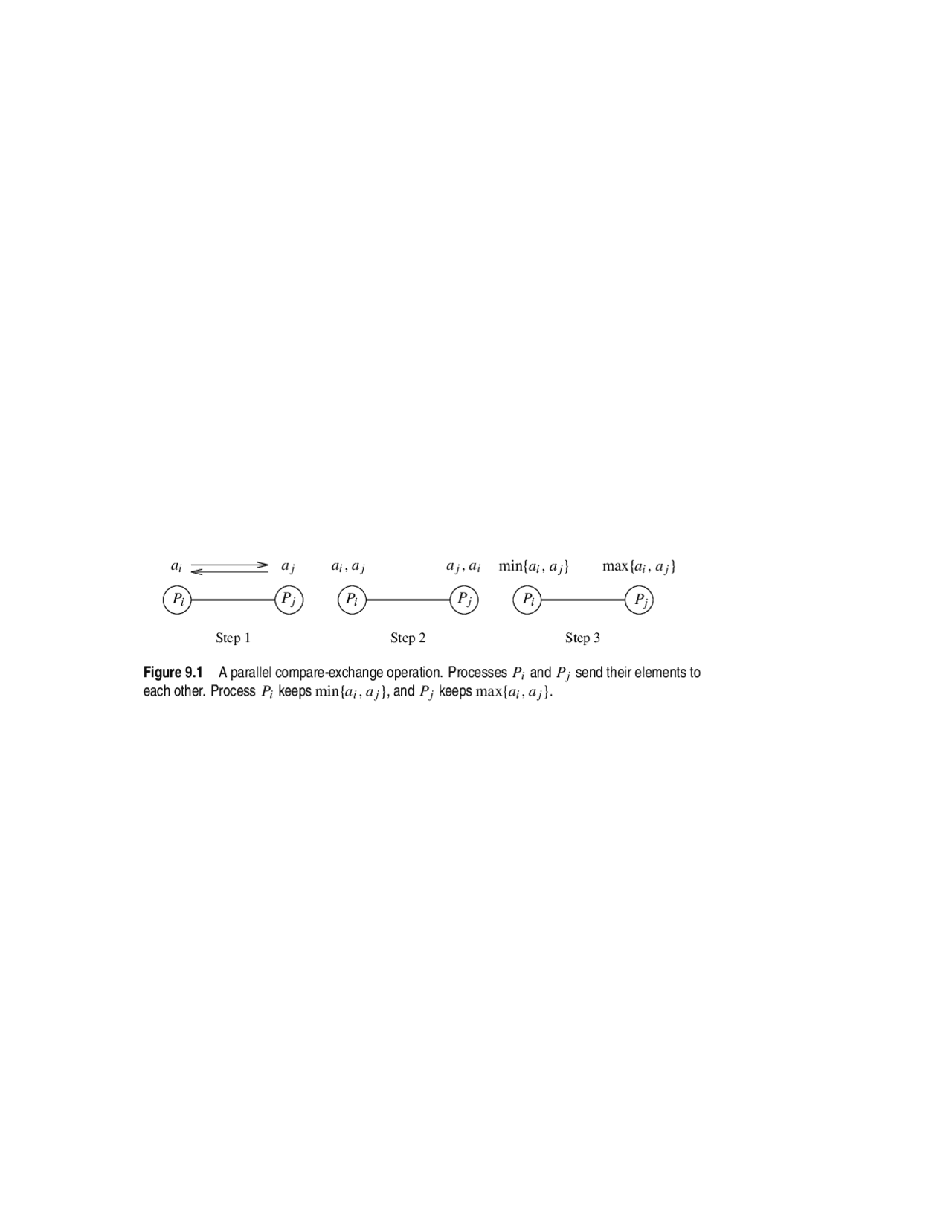

Figure 9.1 A parallel compare-exchange operation. Processes Pi and P j send their elements to
each other. Process Pi keeps min{ ai , a j }, and P j keeps max{ ai , a j }.
Step 2
Step 3 Step 4
Step 1
Pi
Pi Pi
P j Pi
P j P j
P j
Figure 9.2 A compare-split operation. Each process sends its block of size n / p to the other
process. Each process merges the received block with its own block and retains only the appropriate
half of the merged block. In this example, process Pi retains the smaller elements and process P j
retains the larger elements.
Columns of comparators
Input wires Output wires
Interconnection network
Figure 9.4 A typical sorting network. Every sorting network is made up of a series of columns,
and each column contains a number of comparators connected in parallel.
Original
sequence 3 5 8 9 10 12 14 20 95 90 60 40 35 23 18 0
1st Split 3 5 8 9 10 12 14 0 95 90 60 40 35 23 18 20
2nd Split 3 5 8 0 10 12 14 9 35 23 18 20 95 90 60 40
3rd Split 3 0 8 5 10 9 14 12 18 20 35 23 60 40 95 90
4th Split 0 3 5 8 9 10 12 14 18 20 23 35 40 60 90 95
Figure 9.5 Merging a 16 -element bitonic sequence through a series of log 16 bitonic splits.
BM[2]
BM[2]
BM[2]
BM[2]
BM[2]
BM[2]
BM[2]
BM[2]
BM[16]
BM[4]
BM[4]
BM[4]
BM[4]
BM[8]
BM[8]
0001
0100 0101
0000 0010 0011
0110 0111 1000 1001 1010 1011 1100 1101 1110 1111
Wires
Figure 9.7 A schematic representation of a network that converts an input sequence into a bitonic
sequence. In this example, ⊕BM[k] and BM[k] denote bitonic merging networks of input size k
that use ⊕ and comparators, respectively. The last merging network (⊕BM[ 16 ]) sorts the input.
In this example, n = 16.
Wires
Figure 9.8 The comparator network that transforms an input sequence of 16 unordered numbers
into a bitonic sequence. In contrast to Figure 9.6, the columns of comparators in each bitonic merging
network are drawn in a single box, separated by a dashed line.
Stage 3
Processors
Stage 1 Stage 2 Stage 4
Figure 9.10 Communication characteristics of bitonic sort on a hypercube. During each stage of
the algorithm, processes communicate along the dimensions shown.
1101
1001 1010
0100
1000 1011
1100 1110 1111
0101 0110 0111
0000 0001 0010 0011
1110
1001
0010
1010
1101 1100
0000 0001 0011
0111 0110 0101 0100
1000 1011
1111
1000
1110
1100
1111
0000 0001 0100 0101
0010 0011 0110 0111
1001 1101
1010 1011
(a) (b) (c)
Figure 9.11 Different ways of mapping the input wires of the bitonic sorting network to a mesh
of processes: (a) row-major mapping, (b) row-major snakelike mapping, and (c) row-major shuffled
mapping.
Phase 6 (even)
Phase 1 (odd)
Unsorted
Phase 2 (even)
Phase 3 (odd)
Phase 4 (even)
Phase 5 (odd)
Sorted
Phase 8 (even)
Phase 7 (odd)
Figure 9.13 Sorting n = 8 elements, using the odd-even transposition sort algorithm. During
each phase, n = 8 elements are compared.
Figure 9.14 An example of the first phase of parallel shellsort on an eight-process array.
Figure 9.16 A binary tree generated by the execution of the quicksort algorithm. Each level of the
tree represents a different array-partitioning iteration. If pivot selection is optimal, then the height of
the tree is (log n ), which is also the number of iterations.
[4] {54}
[1] {33}
[6] {33}
[5] {82}
[2] {21}
[3] {13} [7] {40}
[8] {72}
(a)^33 211354 82 3340
(b)
(c)
(f)
(d) (e)
leftchild rightchild
leftchild rightchild
leftchild rightchild
root = 4
Figure 9.17 The execution of the PRAM algorithm on the array shown in (a). The arrays leftchild
and rightchild are shown in (c), (d), and (e) as the algorithm progresses. Figure (f) shows the binary
tree constructed by the algorithm. Each node is labeled by the process (in square brackets), and
the element is stored at that process (in curly brackets). The element is the pivot. In each node,
processes with smaller elements than the pivot are grouped on the left side of the node, and those
with larger elements are grouped on the right side. These two groups form the two partitions of the
original array. For each partition, a pivot element is selected at random from the two groups that form
the children of the node.
pivot=
pivot selection
after local
rearrangement
after global
rearrangement
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
