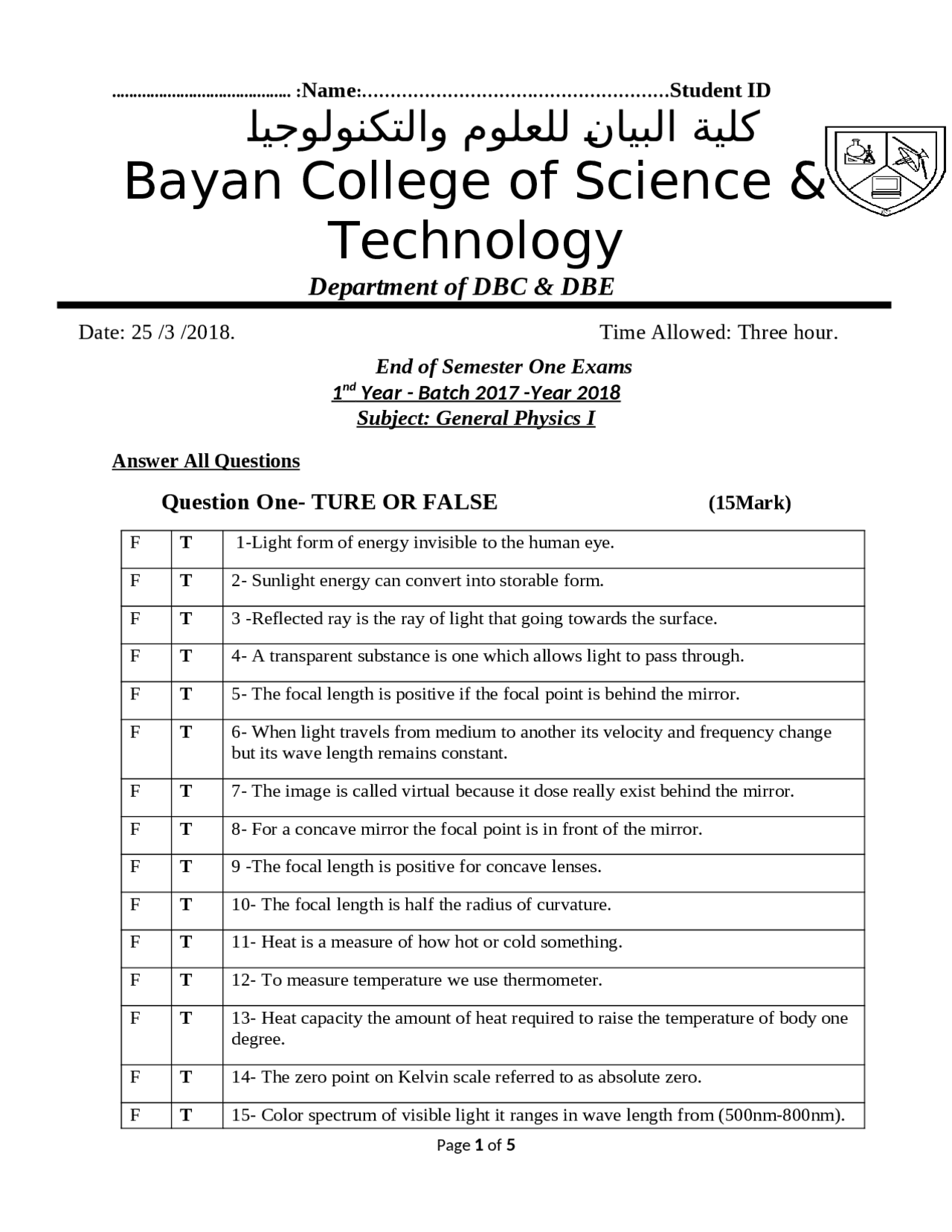

Name:………………………………………………Student ID.......................................... :
ايجولونكتلاو مولعلل نايبلا ةيلك
Bayan College of Science &
Technology
Department of DBC & DBE
Date: 25 /3 /2018. Time Allowed: Three hour.
End of Semester One Exams
1 nd
Year - Batch 2017 -Year 2018
Subject: General Physics I
Answer All Questions
Question One- TURE OR FALSE (15Mark)
FT 1-Light form of energy invisible to the human eye.
FT2- Sunlight energy can convert into storable form.
FT3 -Reflected ray is the ray of light that going towards the surface.
FT4- A transparent substance is one which allows light to pass through.
FT5- The focal length is positive if the focal point is behind the mirror.
FT6- When light travels from medium to another its velocity and frequency change
but its wave length remains constant.
FT7- The image is called virtual because it dose really exist behind the mirror.
FT8- For a concave mirror the focal point is in front of the mirror.
FT9 -The focal length is positive for concave lenses.
FT10- The focal length is half the radius of curvature.
FT11- Heat is a measure of how hot or cold something.
FT12- To measure temperature we use thermometer.
FT13- Heat capacity the amount of heat required to raise the temperature of body one
degree.
FT14- The zero point on Kelvin scale referred to as absolute zero.
FT15- Color spectrum of visible light it ranges in wave length from (500nm-800nm).
Page 1 of 5
pf3
pf4
pf5

Partial preview of the text

Download Physics Exam 2017-2018 and more Exams Physics in PDF only on Docsity!

.......................................... :Name:………………………………………………Student ID

Bayan College of Science &

Technology

Department of DBC & DBE

Date: 25 /3 /2018. Time Allowed: Three hour.

End of Semester One Exams

nd

Year - Batch 2017 -Year 2018

Subject: General Physics I

Answer All Questions

Question One- TURE OR FALSE (15Mark) F T 1-Light form of energy invisible to the human eye. F T 2- Sunlight energy can convert into storable form. F T 3 -Reflected ray is the ray of light that going towards the surface. F T 4- A transparent substance is one which allows light to pass through. F T 5- The focal length is positive if the focal point is behind the mirror. F T 6- When light travels from medium to another its velocity and frequency change but its wave length remains constant. F T 7- The image is called virtual because it dose really exist behind the mirror. F T 8- For a concave mirror the focal point is in front of the mirror. F T 9 -The focal length is positive for concave lenses. F T 10- The focal length is half the radius of curvature. F T 11- Heat is a measure of how hot or cold something. F T 12- To measure temperature we use thermometer. F T 13- Heat capacity the amount of heat required to raise the temperature of body one degree. F T 14- The zero point on Kelvin scale referred to as absolute zero. F T 15- Color spectrum of visible light it ranges in wave length from (500nm-800nm).

Question tow - MULITIPLE THOICE (10Marks)

1- The ......…... convert the energy in sunlight into storable form. (A).Particles. (B). Waves. (C).Plants. (D). Atoms. 2- The waves associated with light are called……………………………. Waves. (A).Sound. (B).Magnetic. (C). Electro. (D).electromagnetic. 3- ………………… who consider light exhibits the characteristic of particles. (A). Newton. (B).Maxwell. (C). Boltzmann. (D). Hook. 4- Both classical theory and wave model unable to explain………………… (A).photoelectric effect. (B). Refraction. (C). Reflection. (D).Polarization. 5-It consider as natural source of light (A). Fire. (B). Moon. (C). Sun. (D). Electricity. 6-For real object placed at (C) from a concave mirror, the image must formed (A). At (C). (B). Outside of(C). (C). Between (C) and mirror. (D).between (C) and F. 7- The reflected angle (ɵr) the angle between the normal and (A).Refracted ray. (B). Reflected ray. (C). Surface. (D). Incident angle. 8-The focal lenght is the straight line the midpoint of the mirror and (A).Focal point (F). (B). Center of curvature. (C). Mirror. (D).lens. 9- A transparent substance like (A) .Wood. (B). Metal. (C).Glass. (D). Stone.

(A) 1 2 3 4 5 6 7 8 9 10

(B)

Question Five: (12.5Mark) Solve all problems: C = 3× 8 m/s h=6.625×

- J.s nair= 1

1- How much energy in the light ray has wavelength 3000A.

2-A girl is 1.5m tall and can see her image in vertical plane mirror 3m away

from the girl, find the distance between the girls and mirror.

3-Find the index of refraction of black glass if light travels from black of glass

to air made critical angle of 42

4-A converging lens of focal length 10 cm forms images of objects placed:

(A) 30 cm.

(B) 10 cm.

(C) 5 cm.

From the lens. In each case, find the image distance and describe the image.

5-A person has an oral temperature of 98.6 ᶱF. What would this reading be 0n the

a) Celsius.

b) Kelvin.

Question Six: (2.5Mark) Name the angles: 1……………………………………… 2……………………………………… 3……………………………………… And the rays: A……………………………………. C……………………………………. A B 1 2

****Good luck**** 3
