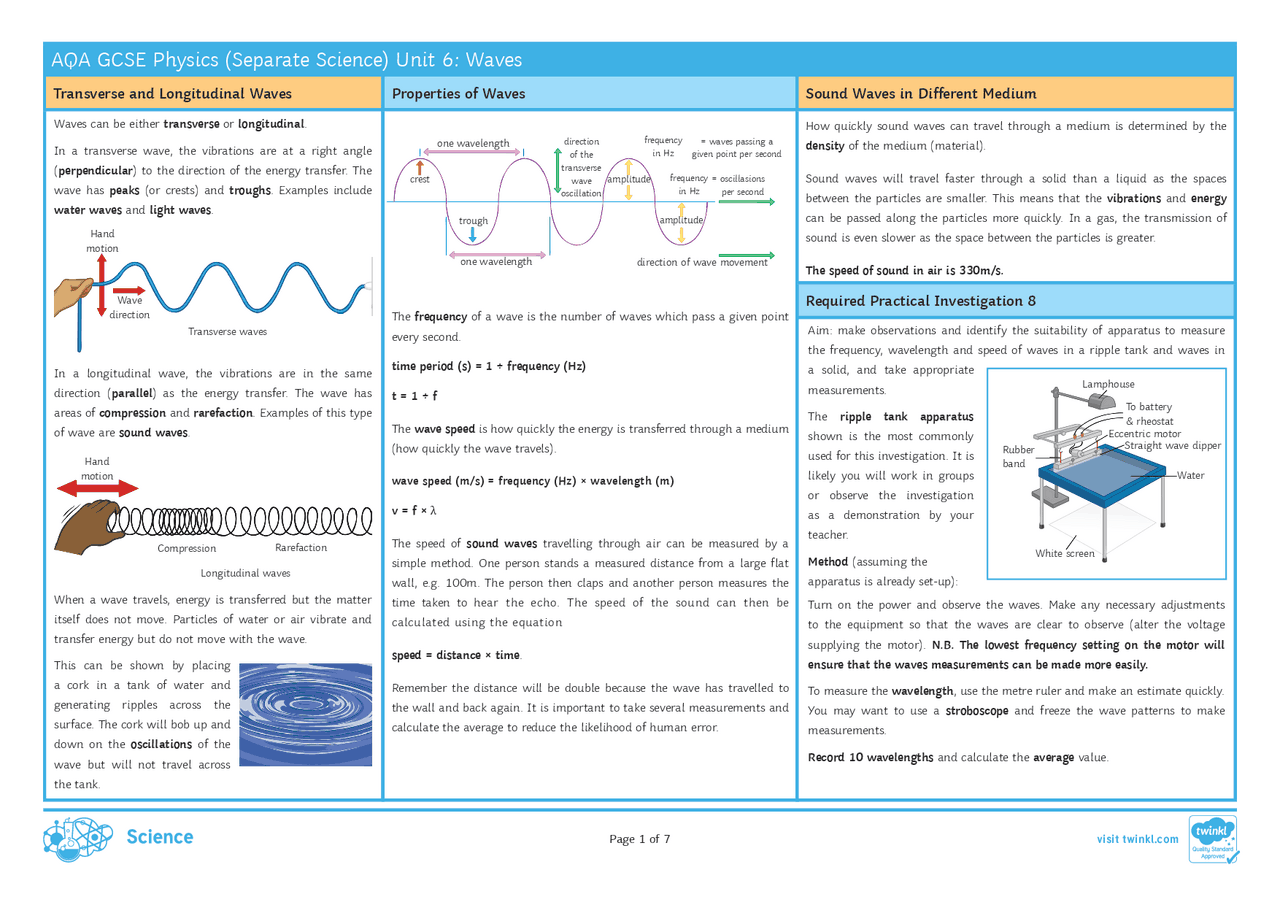

AQA GCSE Physics (Separate Science) Unit 6: Waves
Transverse and Longitudinal Waves Properties of Waves
The frequency of a wave is the number of waves which pass a given point
every second.
time period (s) = 1 ÷ frequency (Hz)
t = 1 ÷ f
The wave speed is how quickly the energy is transferred through a medium
(how quickly the wave travels).
wave speed (m/s) = frequency (Hz) × wavelength (m)
v = f × λ
The speed of sound waves travelling through air can be measured by a
simple method. One person stands a measured distance from a large flat
wall, e.g. 100m. The person then claps and another person measures the
time taken to hear the echo. The speed of the sound can then be
calculated using the equation
speed = distance × time.
Remember the distance will be double because the wave has travelled to
the wall and back again. It is important to take several measurements and
calculate the average to reduce the likelihood of human error.
Sound Waves in Different Medium
How quickly sound waves can travel through a medium is determined by the
density of the medium (material).
Sound waves will travel faster through a solid than a liquid as the spaces
between the particles are smaller. This means that the vibrations and energy
can be passed along the particles more quickly. In a gas, the transmission of
sound is even slower as the space between the particles is greater.
The speed of sound in air is 330m/s.
Required Practical Investigation 8
Aim: make observations and identify the suitability of apparatus to measure
the frequency, wavelength and speed of waves in a ripple tank and waves in
a solid, and take appropriate
measurements.
The ripple tank apparatus
shown is the most commonly
used for this investigation. It is
likely you will work in groups
or observe the investigation
as a demonstration by your
teacher.
Method (assuming the
apparatus is already set-up):
Turn on the power and observe the waves. Make any necessary adjustments
to the equipment so that the waves are clear to observe (alter the voltage
supplying the motor). N.B. The lowest frequency setting on the motor will
ensure that the waves measurements can be made more easily.
To measure the wavelength, use the metre ruler and make an estimate quickly.
You may want to use a stroboscope and freeze the wave patterns to make
measurements.
Record 10 wavelengths and calculate the average value.
Waves can be either transverse or longitudinal.
In a transverse wave, the vibrations are at a right angle
(perpendicular) to the direction of the energy transfer. The
wave has peaks (or crests) and troughs. Examples include
water waves and light waves.
In a longitudinal wave, the vibrations are in the same
direction (parallel) as the energy transfer. The wave has
areas of compression and rarefaction. Examples of this type
of wave are sound waves.
When a wave travels, energy is transferred but the matter
itself does not move. Particles of water or air vibrate and
transfer energy but do not move with the wave.
This can be shown by placing
a cork in a tank of water and
generating ripples across the
surface. The cork will bob up and
down on the oscillations of the
wave but will not travel across
the tank.
Lamphouse
Water
Straight wave dipper
Eccentric motor
White screen
To battery
& rheostat
Rubber
band
one wavelength
Transverse waves
Compression Rarefaction
Longitudinal waves
Wave
direction
Hand
motion
Hand
motion
one wavelength
direction of wave movement
amplitude
trough
crest amplitude
direction
of the
transverse
wave
oscillation
frequency
in Hz
= oscillasions
per second
frequency
in Hz
= waves passing a
given point per second
