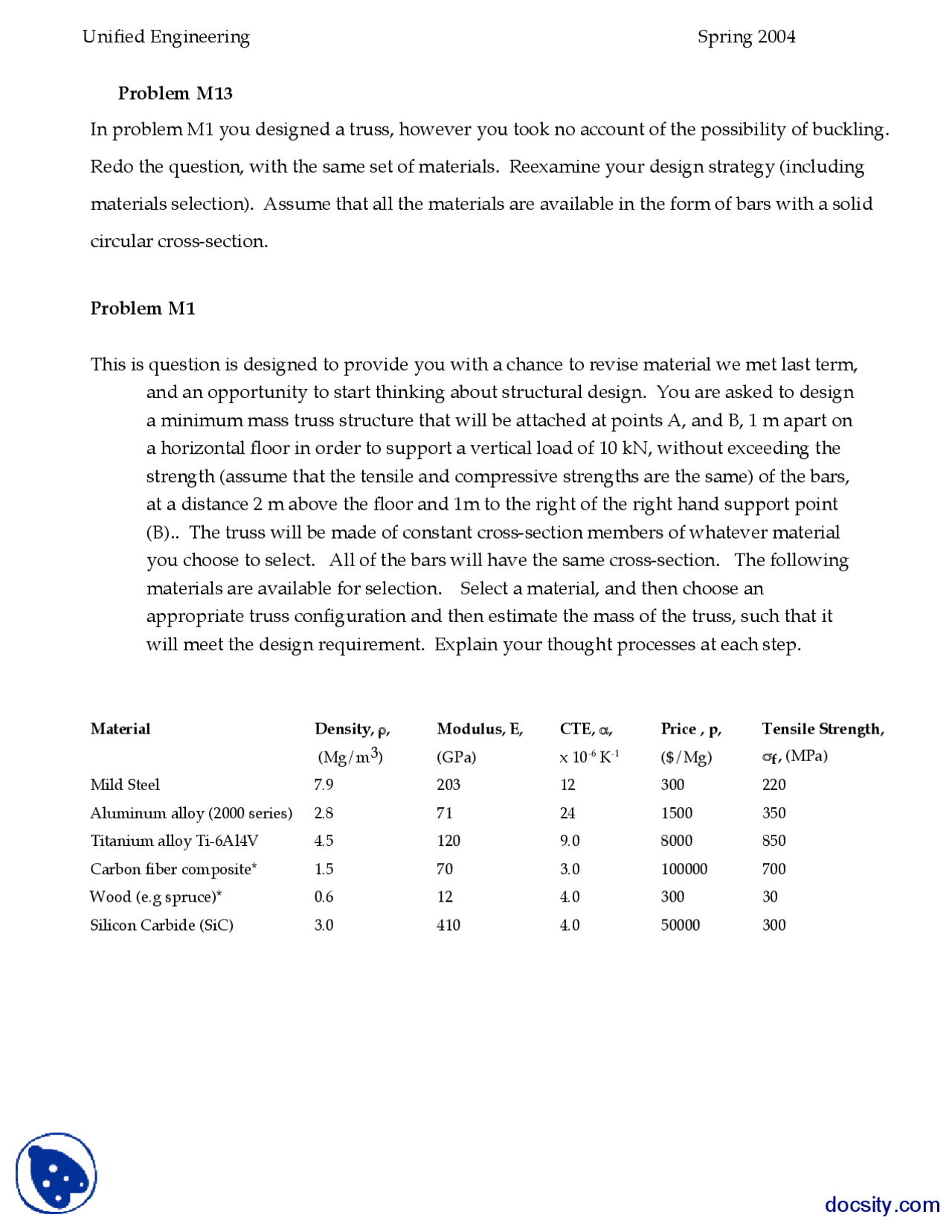

Unified Engineering Spring 2004
Problem M13
In problem M1 you designed a truss, however you took no account of the possibility of buckling.
Redo the question, with the same set of materials. Reexamine your design strategy (including
materials selection). Assume that all the materials are available in the form of bars with a solid
circular cross-section.
Problem M1
This is question is designed to provide you with a chance to revise material we met last term,
and an opportunity to start thinking about structural design. You are asked to design
a minimum mass truss structure that will be attached at points A, and B, 1 m apart on
a horizontal floor in order to support a vertical load of 10 kN, without exceeding the
strength (assume that the tensile and compressive strengths are the same) of the bars,
at a distance 2 m above the floor and 1m to the right of the right hand support point
(B).. The truss will be made of constant cross-section members of whatever material
you choose to select. All of the bars will have the same cross-section. The following
materials are available for selection. Select a material, and then choose an
appropriate truss configuration and then estimate the mass of the truss, such that it
will meet the design requirement. Explain your thought processes at each step.
Material
Density,
r,
Modulus, E,
CTE,
a,
Price , p,
Tensile Strength,
(Mg/m3) (GPa) x 10-6 K-1 ($/Mg) sf, (MPa)
Mild Steel
7.9
203
12
300
220
Aluminum alloy (2000 series)
2.8
71
24
1500
350
Titanium alloy Ti-6Al4V
4.5
120
9.0
8000
850
Carbon fiber composite*
1.5
70
3.0
100000
700
Wood (e.g spruce)*
0.6
12
4.0
300
30
Silicon Carbide (SiC)
3.0
410
4.0
50000
300
