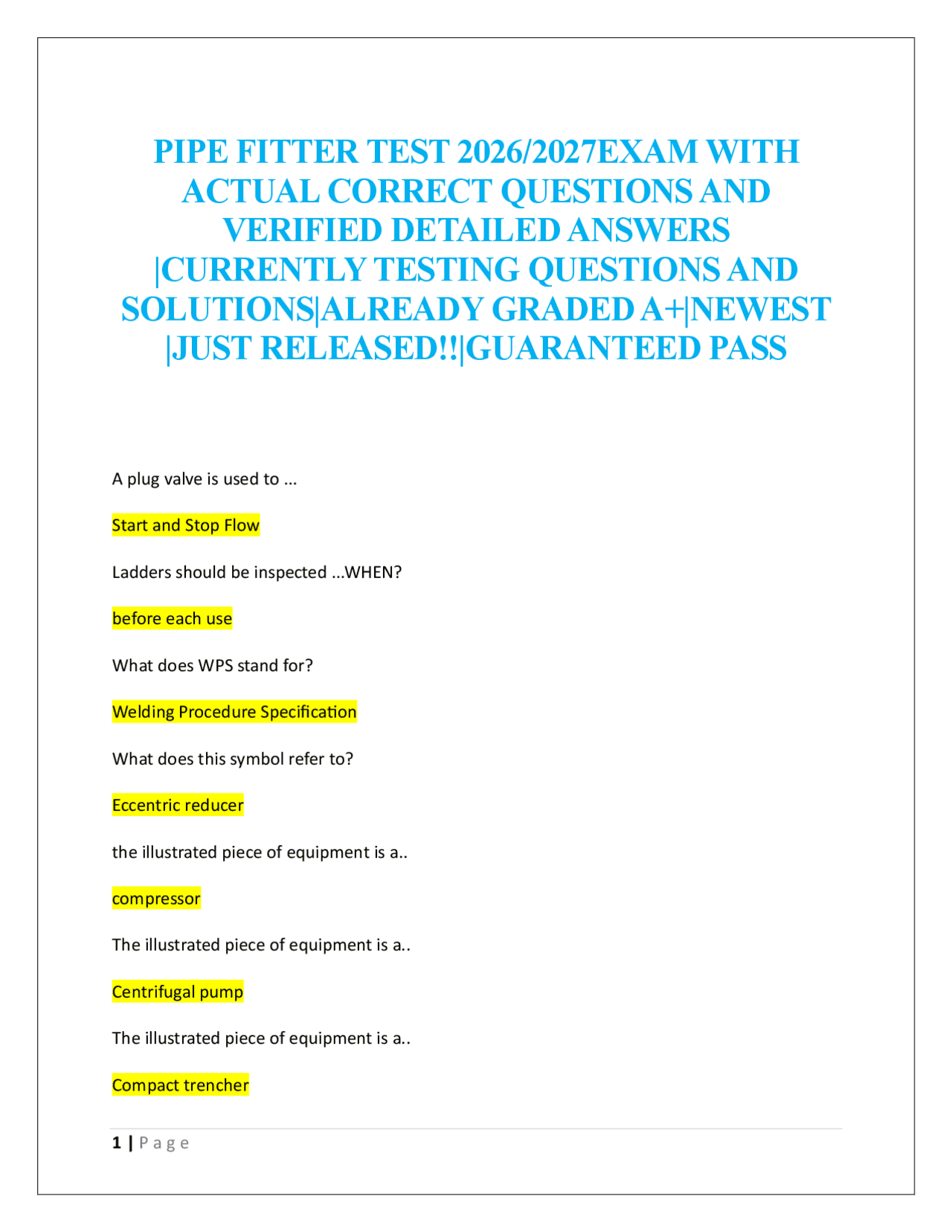

PIPE FITTER TEST 2026/2027EXAM WITH
ACTUAL CORRECT QUESTIONS AND
VERIFIED DETAILED ANSWERS
|CURRENTLY TESTING QUESTIONS AND
SOLUTIONS|ALREADY GRADED A+|NEWEST
|JUST RELEASED!!|GUARANTEED PASS
A plug valve is used to ... Start and Stop Flow Ladders should be inspected ...WHEN? before each use What does WPS stand for? Welding Procedure Specification What does this symbol refer to? Eccentric reducer the illustrated piece of equipment is a.. compressor The illustrated piece of equipment is a.. Centrifugal pump The illustrated piece of equipment is a.. Compact trencher
What is the piece of equipment shown in the provided figure Horizontal Drill The tool shown in the provided figure is used to Flare Tubing What is the attachment shown in the provided figure Weldless Eye The flange depicted by the following figure is a.. Lap Joint What pipe hanger is shown in the following figure Adjustable Clevis The hanger shown in the following figure is a(n) Double Bolt What type of Spring can Support is shown in the following figure Constant What is the tool shown in the provided figure Nipple Chuck Convert 1/4 into a decimal . Piping that is field-routed to a pump must be supported.. Independently what is used when lighting a cutting torch? Striker
B) HDPE
C) CPVC
D) ABS
B) HDPE
When are rupture disc installed into a pipeline? Before start-up of the system Chain come-alongs are PRIMARILY designed for? Vertical lifting Which of the following types of copper tubing has the thickest wall? K , L , M , Acr? K What is the MINIMUM grade of chain that nay be used for rigging loads overhead? 8 At and above what normal pipe size is the O.D of the pipe the same as the normal size of the pipe? 14" Which type of field sketch has base lines that are 30 degrees to the horizontal axis? Isometric The MINIMUM number of pre-heated holes for liquefied fuel tips is? 6 The first step to changing blades and bits on power tools is to...
Disconnect the power What must be done to MOST socket weld valves before being welded into place? Open the valves Completely What is the length of pipe required to fabricate a 6" diameter schedule 40 pipe spool with one class 150# RFWN flange on one end, and one class 300# RFWN flange on the other end, with a face-to-face measurement of 18 1/2" (assume a 1/8 welder gap) 10 7/ What is the standard torquing valve of the Victualic coupling bolts? NO torquing is required At what dimension does a pipe begin to be measured by the outside diameter? 14 inches What is the 4th ordinate cutback measurement for a 3" diameter type 3 dummy leg on a 6" elbow 10 3/ What is the ratio of the distance that the ladder should be from the base of the wall to the height where the ladder meets the wall. 1/ Trenches MUST be designed, excavated, and shored according to OSHA standards angles of any triangle add up to 180º What is the travel on a rolling offset that has a Run of 18", a roll 24" and height of 12"? 34 15/
in piping systems, ball joints are installed to allow for? Expansion and Contraction All of the following drawing dimensions are used to determine the overall length of Run of a pipe EXCEPT pipe diameter Ground Fault Circuit Interrupters SHOULD be located.. On cords with only 3 prong connections What is the most important hazardous condition in or around an excavation? Cave-in What happens when a misaligned pipe flange is bolted up to an aligned pump's suction? The pump and motor will be out of alignment A pretest field inspection includes all of the following EXCEPT the .. Vent at the low point of the system in relation to welding HAZ stands for.. Heat Affected Zone Expansion joints allow For linear expansion and contraction of pipe lines Level glasses are also called Spirit viles Bending pipe allows the process to flow more freely Where are title blocks typically located on a drawing?
Lower RIGHT Expansion loops are NOT made with these types of fittings .. threaded A plot shows the: Location of a building on a piece of property A threading machine equipped with NPT dies is designed to cut which type of threads.. National pipe threads The term Plum related to: Vertical alignment What is center-to-end length on a 3,200# 2" SW 90 ELL? 2 3/8" Dry washing is a form of.. Removing excess weld Who needs to inspect an excavation prior to the start of the work each day? Competent person When performing a hydro static test, at what percentage of the MAXIMUM intended rest pressure should the test be paused and the system inspected? 50% What is the elevation of the BOP of an 12" schedule 40 pipe if its center line elevation is 203' - 1 1/2"? 202' - 7 1/8"
What MINIMUM number of bolts can be removed from an 8-bolt flange when a slip blind is inserted for hydro-testing? 4 Globe valve : is better than gate valve for throttling flow in relationship to the diameter of the eye bolt, how deep should the tapped holes for eye bolts be? 1 1/2 times when fabricating a spooled piece of pipe which type of drawing would normally be used isometric what is the product of 7.60 x 0.
to signal that you want to use the main hoist tap your hard hat how much would a 40' - 6" length of 12" diameter standard weight pipe weigh? 2009 lbs what would be long segment measurement of a SIX-PIECE, 90 degree mitered elbow that has a radius of 24" 7 5/ performance, reliability, and quality of components are assured by use of Standards and Codes In-line specialty ball joints solve all the following problems EXCEPT
flow convert 9/16 to a decimal
A length of 1 1/2-inch pipe is to be cut to run between two 90-degree 6,000# threaded fittings. The fittings measure 7 ft 2 1/4 inches center-to-center. What is the cut length of the pipe? 6 feet 10 5/8 inches What are installed in a pipe run to provide extra flexibility between anchors and accommodate thermal growth and contraction? Expansion loops what is the height of the raised face on a class 600 forged steel weld neck flange? 1/4" In MOST instances, what is stamped or forged on the side of valves, fittings, and flanges? type of material, size, and pressure rating if the area of a rectangle is 432 sq and one side is 12" long is the other side? 36 ft what is used to open flanges for the installation of a test blind? flange spreader What is the MINIMUM height above the side of the trench, that a trench box wall should extend? 18" to what position does a pneumatic control valve that loses it air return?
ASTM
What is the highest safe standing step or level from the top of a step ladder (A-Frame) 2nd What does TE in TE-601 stand for? temperature element what does B.T.U stand for? British Thermal Unit what is the boiling point of water? 212F What is 3.1416? Pi what is the circumference of a 15" pipe? (to the nearest tenth 47" 4" in the hundredths of a foot is? . what is the take off for a 4" x 3" LR reducing 90 ell? 6" on isometric drawings what does RFWN mean? raised face weld neck what does the Pi in Pi-209 stand for? pressure indicator 101.25' converted into inches is what?
if testing the shell side of an exchanger with the flat cap removed and all the tubes on the bottom row had a steady flow of water pouring out of them, this would indicate: floating head gasket leaking 3/4" is equal to? 6/ the lap joint flange is usually used when_______? flange hold alignment is a problem what is the number of a square feet in the surface of a steel plate 180 inches high and 48 inches wide? 60 square feet what device is installed between a control valve and the air supply header? regulator what is the most common degree of bevel on a pipe to be butt welded? 37 1/ the three states of matter are: solids, liquids,and gases what is the circumference of a circle that has a 20.50 inch diameter?
extension lines should: always touch the object being drawn what is 23% of 1598?
the 2 most commonly used types of tubing connections are compression and flared. true a pressure indicator is indicated by a Pi symbol on a flow chart true a pressure indicator is indicated by a PI symbol on a flow chart true spray painting or modifying hard hats may damage them true pipe stamped with 316L and 304L denotes a grade or type of a carbon steel pipe and fittings. false flange insulators Kits are installed for a cathodic protection true the proper way to lift is bend at your knees and let you legs do the lifting true exposure to high level noises can be controlled true to reduce chances of heat stress you should drink plenty of beet and alcohol false a temperature indicator is indicated by a TI symbol on a flow chart true
