Planarity
Jeff Trim

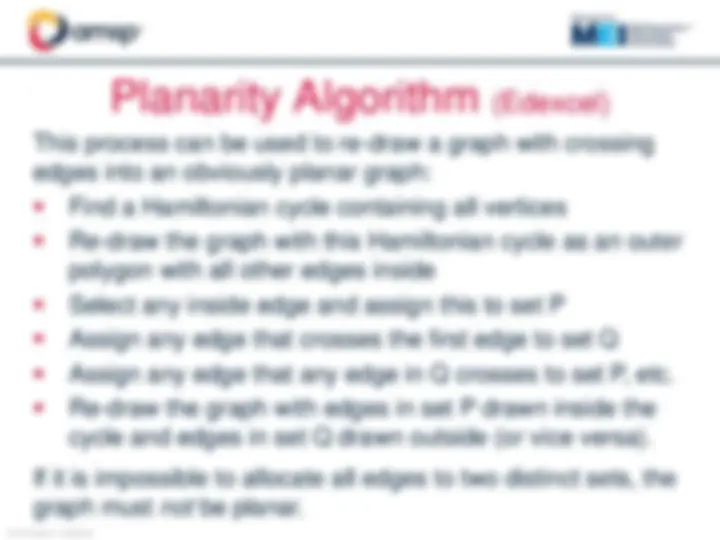

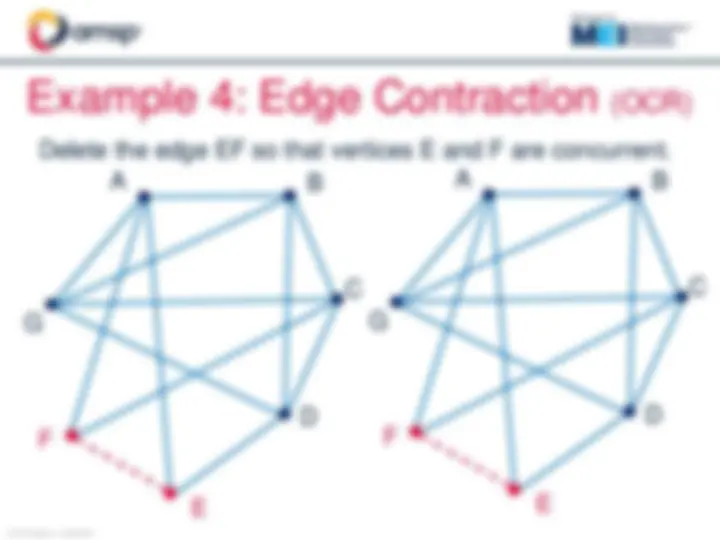

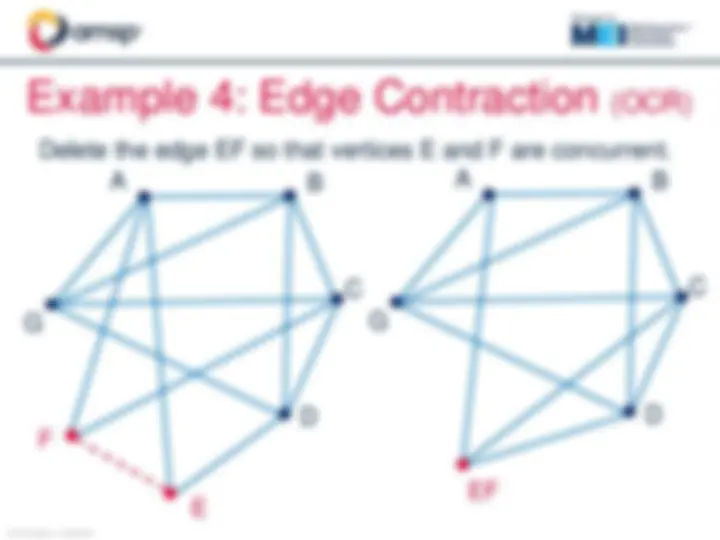

Discrete/Decision Mathematics Topics AQA Edexcel MEI OCR A Nodes/vertices, degree/order AS AS D1 MwA AS Arcs/edges, simple, connected, related vocabulary AS AS D1 MwA AS Trees AS MwA AS Euler’s relation: V - E + F = 2 AS A Level Bipartite graphs, Km,n AS MwA A Level Walk, trail, path, cycle AS AS Eulerian, semi-Eulerian graphs AS AS D1 AS Hamiltonian cycles AS A Level D1 A Level Complete graphs, Kn AS AS D1 AS Isomorphic Equivalence A Level AS D1 AS Planar graphs AS AS D1 A Level Subdivision and contraction A Level A Level Planarity Algorithm A Level D Kuratowski’s Theorem A Level A Level Thickness A Level Complement of a graph A Level Ore’s theorem A Level
Graph Theory Topic Mapping
Imagineering
What did you see?
Can you do the same for a triangular prism?

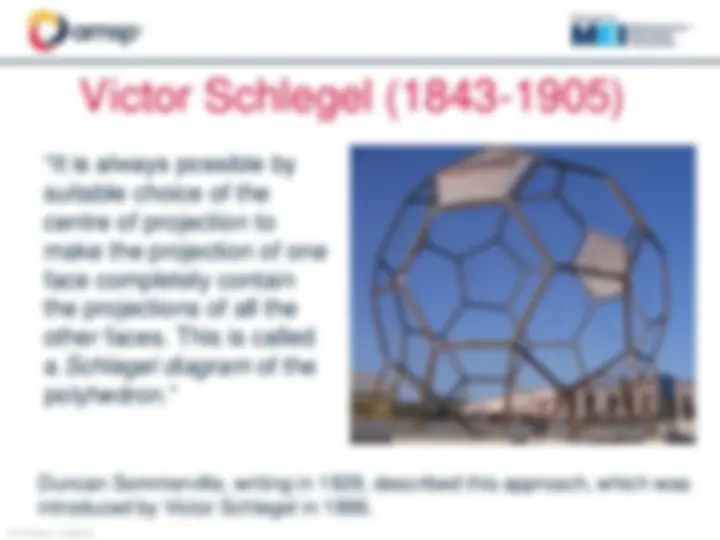

Victor Schlegel (1843-1905)
“It is always possible by suitable choice of the centre of projection to make the projection of one face completely contain the projections of all the other faces. This is called a Schlegel diagram of the polyhedron.” Duncan Sommerville, writing in 1929, described this approach, which was introduced by Victor Schlegel in 1886.
Name Faces Vertices Edges
- Euler’s Relation: F + V = E +
- Cube
- Tetrahedron
- Octahedron
- Dodecahedron
- Icosahedron
Two graphs are isomorphically equivalent if one can be stretched, distorted, or by repositioning the vertices transformed into the other. (An isomorphism is a one-to-one matching.)
Isomorphic Equivalence
Isomorphic Equivalence
Isomorphic Equivalence
Isomorphic Equivalence
K
n denotes the complete graph on n vertices; in this graph every pair of vertices is joined directly by one edge. K 3 K 4 K 5
Complete graphs, K
n
E G W
(This graph is now K 2,
Bipartite graphs, K
3,
E G W
(This is now the finished graph of K 3,
Bipartite graphs, K
3,
Eulerian graph Semi-Eulerian graph contains an Eulerian cycle contains an Eulerian path Are either of these graphs traversable? (Is there an Eulerian path which traverses each edge once?)
Cycles
Is there a path which visits every vertex once? Hamiltonian graph contains a Hamiltonian cycle
