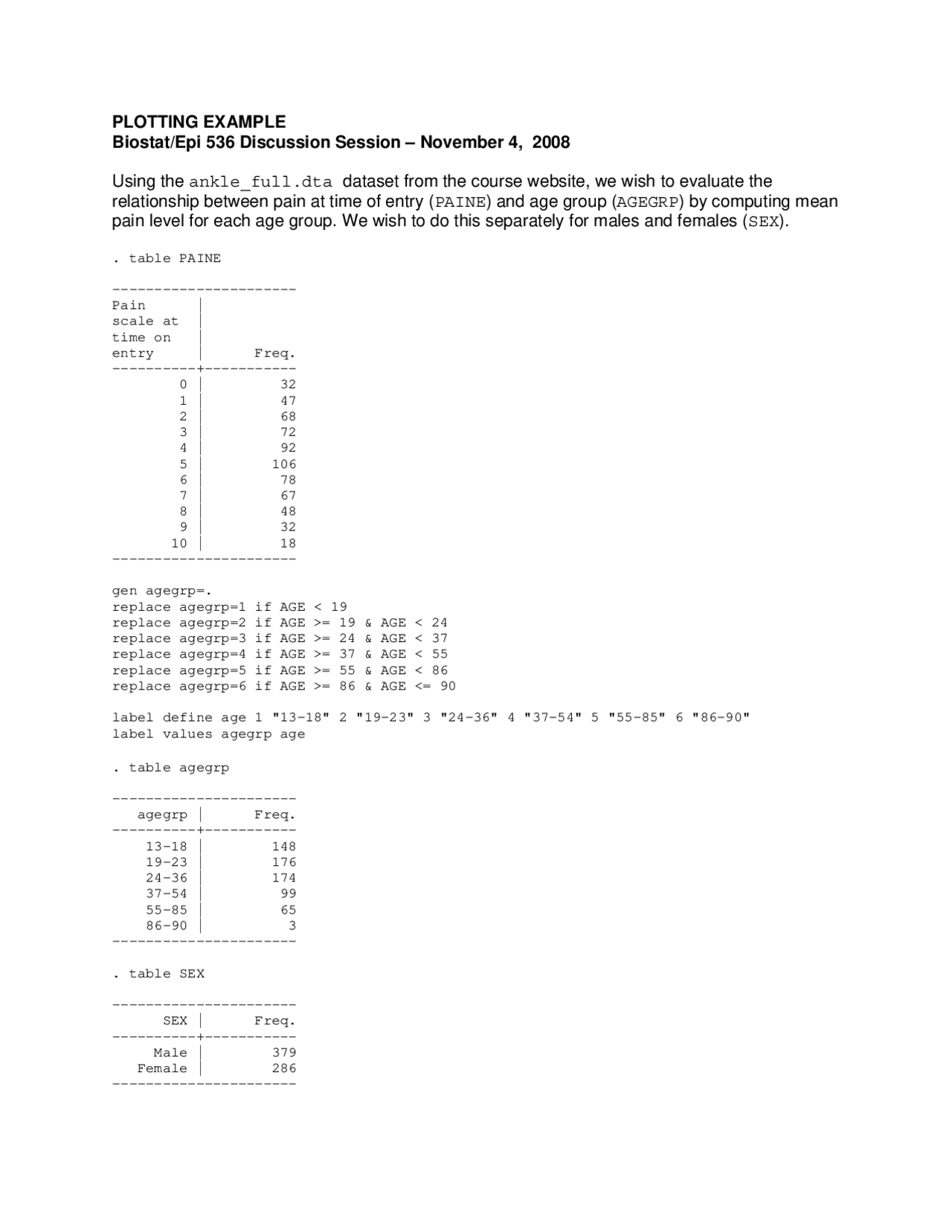

PLOTTING EXAMPLE
Biostat/Epi 536 Discussion Session – November 4, 2008
Using the ankle_full.dta dataset from the course website, we wish to evaluate the
relationship between pain at time of entry (PAINE) and age group (AGEGRP) by computing mean
pain level for each age group. We wish to do this separately for males and females (SEX).
. table PAINE
Pain | scale at | time on | entry | Freq. ----------+----------- 0 | 32 1 | 47 2 | 68 3 | 72 4 | 92 5 | 106 6 | 78 7 | 67 8 | 48 9 | 32 10 | 18
gen agegrp=. replace agegrp=1 if AGE < 19 replace agegrp=2 if AGE >= 19 & AGE < 24 replace agegrp=3 if AGE >= 24 & AGE < 37 replace agegrp=4 if AGE >= 37 & AGE < 55 replace agegrp=5 if AGE >= 55 & AGE < 86 replace agegrp=6 if AGE >= 86 & AGE <= 90
label define age 1 "13-18" 2 "19-23" 3 "24-36" 4 "37-54" 5 "55-85" 6 "86-90" label values agegrp age
. table agegrp
agegrp | Freq. ----------+----------- 13-18 | 148 19-23 | 176 24-36 | 174 37-54 | 99 55-85 | 65 86-90 | 3
. table SEX
SEX | Freq. ----------+----------- Male | 379 Female | 286
We begin by calculating the mean pain level for each age group, first overall
. tabstat PAINE, stat(mean) by(agegrp) notot
Summary for variables: PAINE by categories of: agegrp
agegrp | mean -------+---------- 13-18 | 4. 19-23 | 4. 24-36 | 4. 37-54 | 5. 55-85 | 3. 86-90 | 5.
then separately for males (SEX==1) and for females (SEX==2).
. tabstat PAINE if SEX==1, stat(mean) by(agegrp) notot
Summary for variables: PAINE by categories of: agegrp
agegrp | mean -------+---------- 13-18 | 4. 19-23 | 4. 24-36 | 4. 37-54 | 5. 55-85 | 3.
. tabstat PAINE if SEX==2, stat(mean) by(agegrp) notot
Summary for variables: PAINE by categories of: agegrp
agegrp | mean -------+---------- 13-18 | 5. 19-23 | 5. 24-36 | 4. 37-54 | 5. 55-85 | 3. 86-90 | 5.
Next, we create the plotting variable meanpaine containing, for each subject, the mean pain
level for that subject’s age group.
. gen meanpaine = (agegrp==1)4.38 + (agegrp==2)4.59 + (agegrp==3)4.65 + (agegrp==4)5.11 + (agegrp==5)*3.17 if SEX==
This command stores mean pain levels for males as meanpaine. Mean pain levels for females
are set equal to missing. Thus, we follow with
. replace meanpaine = (agegrp==1)5.37 + (agegrp==2)5.36 + (agegrp==3)4.17 + (agegrp==4)5.15 + (agegrp==5)3.9 + (agegrp==6)5.67 if SEX==
We use following commands to save the means from the first tabstat (SEX==1) into a matrix
called matrix1 and the means from the second tabstat (SEX==2) into a matrix called
matrix2. Note that as (agegrp==6 ) has no observations for males (SEX==1), we have
replaced r(Stat6) with a period. to indicate a missing value for the mean.
. tabstat PAINE if SEX==2, stat(mean) by(agegrp) notot save . matrix matrix2 = (r(Stat1)\r(Stat2)\r(Stat3)\r(Stat4)\r(Stat5)\ r(Stat6) ) . svmat matrix . tabstat PAINE if SEX==1, stat(mean) by(agegrp) notot save . matrix matrix1 = (r(Stat1)\r(Stat2)\r(Stat3)\r(Stat4)\r(Stat5)*.* ) . svmat matrix
STATA has placed the mean values for males into the first five observations in the dataset (in a
column labeled matrix11) and the mean values for females into the first six observations in the
dataset (in a column labeled matrix21).
[Aside] in the project, you will need to make a graph where the first 2 categories have no
observations. Insert periods for the first 2 observations, and begin with r(Stat1) for the 3
rd
category, so the means are plotted for the appropriate age categories on your graph:
matrix matrix3=(..\r(Stat1)\r(Stat2)\r(Stat3)\r(Stat4)\r(Stat5)
r(Stat6)\r(Stat7)\r(Stat8))
Next, it is necessary to create a plotting variable to represent age group.
. gen plotage = _n if _n <= 6
We can label the variable plotage using the same label that we used to label the variable
agegrp
. label values plotage age
and plot as follows:
. twoway (connected matrix11 plotage) (connected matrix21 plotage), ytitle(Mean pain level) xtitle(Age group) xlabel(1(1)6, labels valuelabel) legend(order(1 "Males" 2 "Females"))
3
4
5
6
Mean pain level
1 2 3 4 5 6 Age group Males Females
