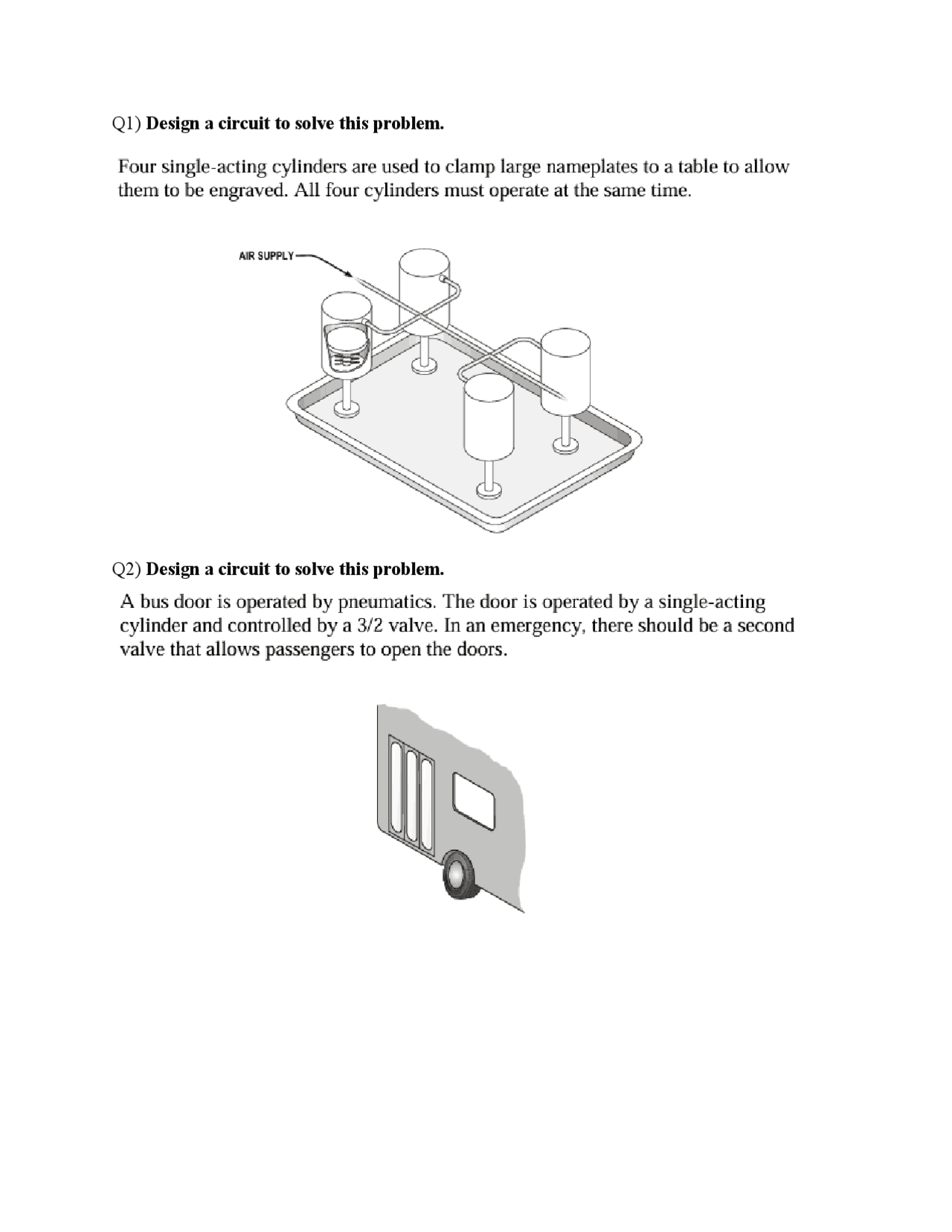

Q1) Design a circuit to solve this problem. Q2) Design a circuit to solve this problem.

Q3) Design a circuit to solve this problem. Sequence Problem Q 4) Design a circuit to solve this problem. Three cylinders are used to transfer and process parts at a stamping station. When a push button is pressed, the first cylinder extends and pushes the part from the magazine to the stamping position. Once the part is positioned, the second cylinder extends and performs the stamping operation. After stamping, the third cylinder extends to transfer the finished part onto the out-feed chute. Once the part is transferred, the first cylinder retracts, followed by the second cylinder, and finally the third cylinder retracts.
