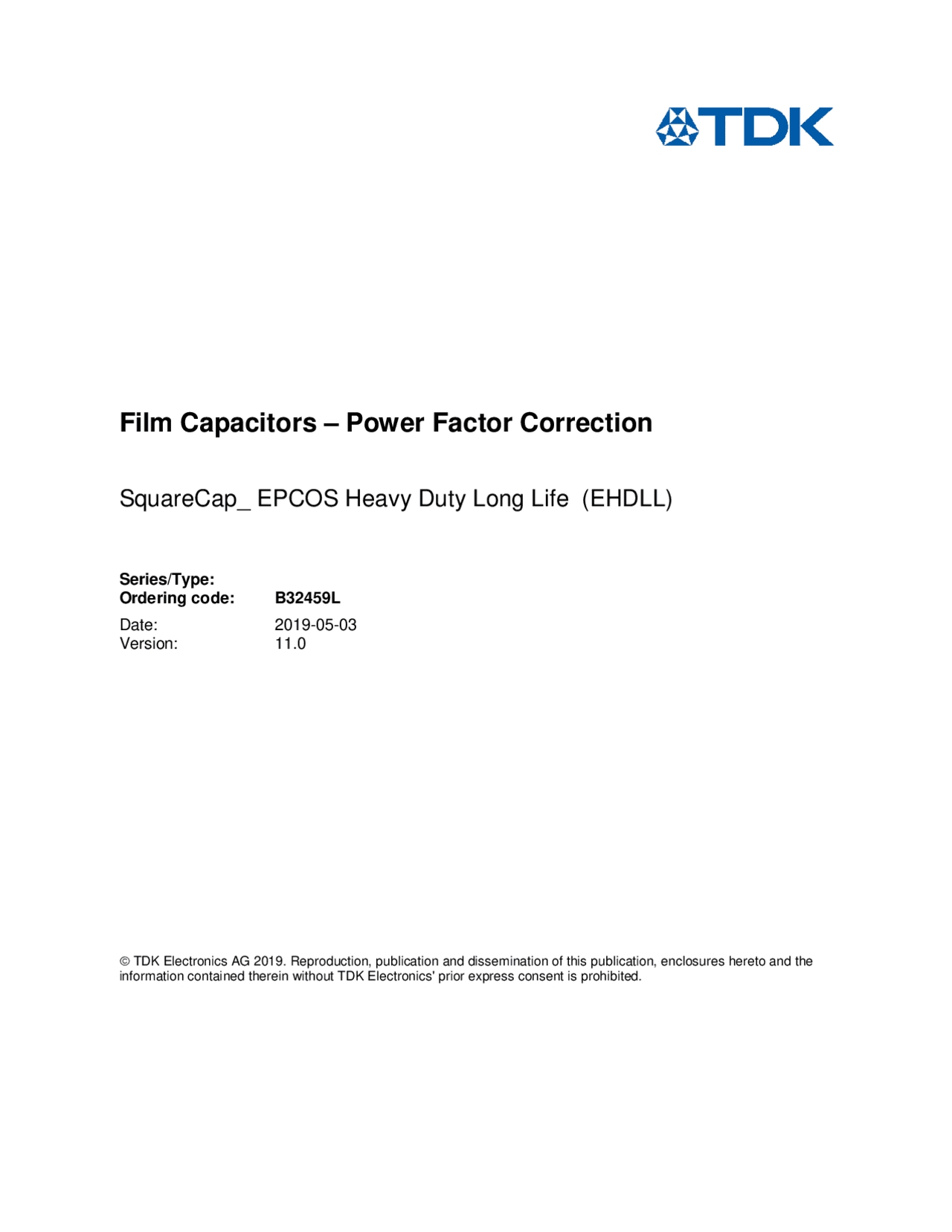

Film Capacitors – Power Factor Correction
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
Series/Type:
Ordering code: B32459L
Date: 2019-05-
Version: 11.
TDK Electronics AG 2019. Reproduction, publication and dissemination of this publication, enclosures hereto and the information contained therein without TDK Electronics' prior express consent is prohibited.
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF. Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it! Identification/Classification 1 (header 1 + top left bar):
Film Capacitors – Power Factor Correction
Identification/Classification 2 (header 2 + bottom left header bar):
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
Ordering code: (top right header bar) B32459L Series/Type: (bottom right header bar) Preliminary data (optional): Department: CAP FILM P PM Date: 2019-05- Version: 11.
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
CAP FILM P PM 2019-05-
Please read Cautions and warnings and Page 2 of 11
Construction
Dielectric: Polypropylene film
Semi dry; high viscosity PU resin; non-PCB
Container type/finish: MS sheet metal / powder
coated grey colour
Features
Three phase
Self-healing technology
Naturally air cooled or forced
Over pressure disconnector
Discharge resistor
Typical applications
For Power Factor Correction
Terminals
Stud terminals with ceramic bushing
Mounting parts
Mounting plates at bottom
Technical data and specifications
Characteristics
Rated capacitance CR As per table
Tolerance 0 /+10%
Connection D (Delta)
Rated voltage As per table
Rated frequency fR 50 Hz
Output As per table
Rated current IR As per table
tan δ 0 (dielectric) ≤ 0.2 W / kvar
Maximum ratings
Vmax (up to 8 h daily) (VR+10% VR) V AC
Vmax (up to 1 min) (VR+30% VR) V AC
Imax 1.5 · IR (A)
IP 250 · IR (A)
Dimensional drawing
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
CAP FILM P PM 2019-05-
Please read Cautions and warnings and Page 4 of 11
Ordering codes: Volts
V
Power
kvar
Capacit ance μF
Rated Current A
Dimension (mm) Ordering code
H W D 415 1 6.3 1.4 170 125 45 B32459L4001A 2 12.5 2.8 170 125 45 B32459L4002A 3 19 4.2 240 185 60 B32459L4003A 4 25 5.6 240 185 60 B32459L4004A 5 31 7.0 240 185 60 B32459L4005A 7 46.5 10.4 300 240 80 B32459L4007A 7.5 49.5 10.4 300 240 80 B32459L4007A 10 62 13.9 300 240 80 B32459L4010A 12.5 77 17.4 300 240 80 B32459L4012A 15 92 20.9 300 240 80 B32459L4015A 20 124 27.8 300 240 160 B32459L4020A 25 154 34.8 300 240 160 B32459L4025A 30 185 41.7 300 240 160 B32459L4030A 40 248 55.6 350 240 320 B32459L4040A 50 308 69.6 350 240 320 B32459L4050A 440 1 5.5 1.3 170 125 45 B32459L5001A 2 11 2.6 170 125 45 B32459L5002A 3 16.5 3.9 240 185 60 B32459L5003A 4 22 5.2 240 185 60 B32459L5004A 5 27.5 (^) 6.6 240 185 60 B32459L5005A 6 33 7.9 300 240 80 B32459L5006A 7 38.5 9.2 300 240 80 B32459L5007A 7.5 41.5 9.8 300 240 80 B32459L5007A 8 44 10.5 300 240 80 B32459L5008A 9 50 11.8 300 240 80 B32459L5009A 10 55 13.1 300 240 80 B32459L5010A 12 67.5 15.8 300 240 80 B32459L5012A 12.5 69 16.4 300 240 80 B32459L5012A 15 82.5 19.7 300 240 80 B32459L5015A 20 110 26.2 300 240 160 B32459L5020A 25 138 32.8 300 240 160 B32459L5025A 30 165 39.4 300 240 160 B32459L5030A 40 220 52.5 350 240 320 B32459L5040A 50 274 65.6 350 240 320 B32459L5050A 60 330 78.7 350 240 320 B32459L5060A
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
CAP FILM P PM 2019-05-
Please read Cautions and warnings and Page 5 of 11
Volts
V
Power
kvar
Capacit ance μF
Rated Current A
Dimension (mm) Ordering code
H W D 480 1 5 1.2 170 125 45 B32459L8001A 2 9.5 2.4 170 125 45 B32459L8002A 4 18.5 4.8 240 185 60 B32459L8004A 5 23 6.0 240 185 60 B32459L8005A 5.5 25.3 6.6 215 185 60 B32459L8005A 6 28 7.2 300 240 80 B32459L8006A 7.5 34.5 9.0 300 240 80 B32459L8007A 8 37.5 9.6 300 240 80 B32459L8008A 8.3 38.2 10.0 300 240 80 B32459L8008A 9 41.5 10.8 300 240 80 B32459L8009A 10 46.5 12.0 300 240 80 B32459L8010A 11.1 51.1 13.4 300 240 80 B32459L8011A 12 55.5 14.4 300 240 80 B32459L8012A 12.5 58 14.4 300 240 80 B32459L8012A 13.8 63.6 16.6 300 240 80 B32459L8013A 14.5 67.5 17.4 300 240 80 B32459L8014A 15 69 18.0 300 240 80 B32459L8015A 16.6 76.4 20.0 300 240 160 B32459L8016A 18 83 21.7 300 240 160 B32459L8018A 20 93 24.1 300 240 160 B32459L8020A 22.1 101.7 26.6 300 240 160 B32459L8022A 25 116 30.1 300 240 160 B32459L8025A 27.7 127.5 33.3 300 240 160 B32459L8027A 29 135 34.9 300 240 160 B32459L8029A 50 232 60.1 350 240 320 B32459L8050A 55 254 66.16 350 240 320 B32459L8055A
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
CAP FILM P PM 2019-05-
Please read Cautions and warnings and Page 7 of 11
Cautions and warnings
In case of dents or any other mechanical damage, capacitors must not be used at all.
This applies also in cases of oil leakages.
To ensure the full functionality of the overpressure disconnector, elastic elements must not be
hindered and a minimum space of 12 mm has to be kept above each capacitor basic cell.
Do not handle the capacitor before it is discharged.
Resonance cases must be avoided by appropriate application design in any case.
Handle capacitors carefully, because they may still be charged even after disconnection due to
faulty discharging devices.
Protect the capacitor properly against over current and short circuit.
Failure to follow cautions may result, worst case, in premature failures, bursting and fire.
Discharging
Capacitors must be discharged to a maximum of 10% of rated voltage before they are switched in
again. This prevents an electric impulse discharge in the application, influences the capacitor’s
service life and protects against electric shock. The capacitor must be discharged to 50 V or less
within 1 minute. There must be not any switch, fuse or any other disconnecting device in the circuit
between the power capacitor and the discharging device. SquareCap-capacitors have a pre-mounted
ceramic discharge module;. Discharge and short circuit capacitor before handling!
Service life expectancy
Electrical components do not have an unlimited service life expectancy; this applies to self-healing
capacitors too. The maximum service life expectancy may vary depending on the application the
capacitor is used in.
Safety
Electrical or mechanical misapplication of capacitors may be hazardous. Personal injury or property
damage may result from bursting of the capacitor or from expulsion of oil or melted material due to
mechanical disruption of the capacitor.
Ensure good, effective grounding for capacitor enclosures.
Provide means of disconnecting and insulating a faulty component/bank.
The terminals of capacitors, connected bus bars and cables as well as other devices may also be
energized.
Follow good engineering practice.
Thermal load/over-temperature
After installation of the capacitor it is necessary to verify that maximum hot-spot temperature is not
exceeded at extreme service conditions.
SquareCap_ EPCOS Heavy Duty Long Life (EHDLL)
CAP FILM P PM 2019-05-
Please read Cautions and warnings and Page 8 of 11
Overpressure disconnector
To ensure full functionality of an overpressure disconnector, the following must be observed:
1. The elastic elements must not be hindered.
2. The maximum allowed fault current of 10000 A in accordance with UL 810 standard must be
assured by the application.
3. Stress parameters of the capacitor must be within the IS 13340 specification.
Overcurrent and short circuit protection
Use HRC fuses or MCCBs for short circuit protection. Short circuit protection and connecting
cables should be selected so that 1.5 times the rated capacitor current can be permanently
handled.
HRC fuses do not protect a capacitor against overload – they are only for short circuit protection.
The HRC fuse rating should be 1.6 to 1.8 times rated capacitor current.
Do not use HRC fuses to switch capacitors (risk of arcing).
Use thermal magnetic over current relays for overload protection.
Resonance cases
Resonance cases must be avoided by appropriate application design in any case. Maximum total
RMS capacitor current (incl. fundamental harmonic current) specified in technical data must not be
exceeded.
Re-switching vs. phase-opposition
In case of voltage interruption, a sufficient discharge time has to be ensured to avoid phase-
opposition and resulting high inrush currents.
Vibration resistance
The resistance to vibration of capacitors corresponds to IEC 68, part 2–6.
Max. test conditions:
Test duration 6 h*
Frequency range 1 10 ... 55 Hz*
Displacement amplitude 0.75 mm*
*corresponding to max. 98.1 m/s or 10 g
Important notes
Page 10 of 11
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application. As a
rule we are either unfamiliar with individual customer applications or less familiar with them than
the customers themselves. For these reasons, it is always ultimately incumbent on the customer
to check and decide whether a product with the properties described in the product specification is
suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified. In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health (e.g. in accident
prevention or life-saving systems), it must therefore be ensured by means of suitable design of the
customer application or other action taken by the customer (e.g. installation of protective circuitry
or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous). Useful information on this will be found in our Material
Data Sheets on the Internet (www.tdk-electronics.tdk.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also reserve the right to discontinue production and delivery of products. Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts, all orders are subject to our General Terms
and Conditions of Supply.
7. Our manufacturing sites serving the automotive business apply the IATF 16949 standard.
The IATF certifications confirm our compliance with requirements regarding the quality
management system in the automotive industry. Referring to customer requirements and
customer specific requirements (“CSR”) TDK always has and will continue to have the policy of
respecting individual agreements. Even if IATF 16949 may appear to support the acceptance of
unilateral requirements, we hereby like to emphasize that only requirements mutually agreed
upon can and will be implemented in our Quality Management System. For clarification
purposes we like to point out that obligations from IATF 16949 shall only become legally binding if
individually agreed upon.
Important notes
Page 11 of 11
8. The trade names EPCOS, CeraCharge, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CTVS,
DeltaCap, DigiSiMic, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell, MKD, MKK,
MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PowerHap, PQSine, PQvar,
SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, ThermoFuse,
WindCap are trademarks registered or pending in Europe and in other countries. Further
information will be found on the Internet at www.tdk-electronics.tdk.com/trademarks.
Release 2018-
