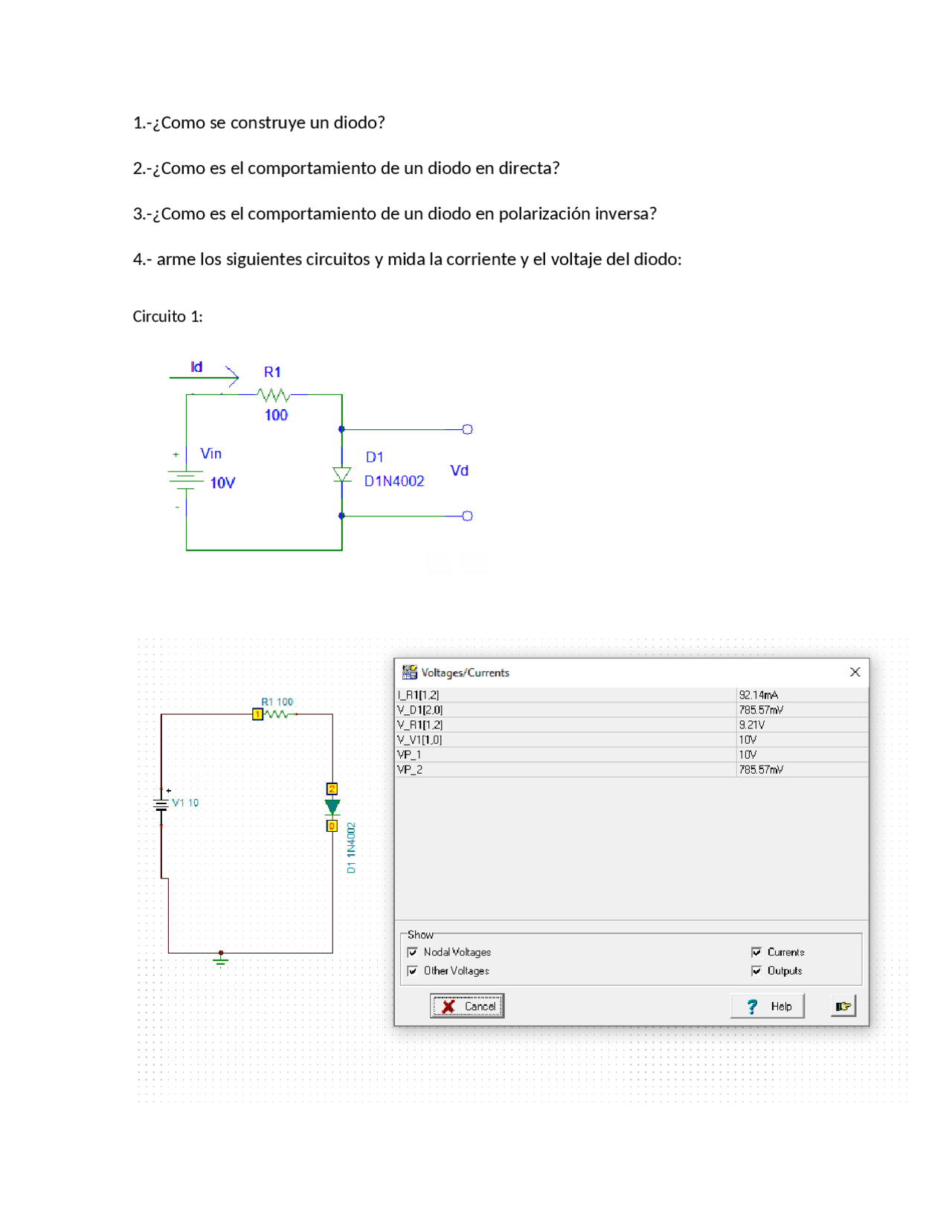

1.-¿Como se construye un diodo?
2.-¿Como es el comportamiento de un diodo en directa?
3.-¿Como es el comportamiento de un diodo en polarización inversa?
4.- arme los siguientes circuitos y mida la corriente y el voltaje del diodo:
Circuito 1:
Id=92.14 mA Vd=785.57 mV Circuito 2: Id=413 pA Vd=-10 V
6.- Cambiar diodo 1N4002 por un diodo Zener D1N750 y llene la tabla 2.
Id 50 uA 100 uA 500 uA 1 mA 5 mA 10 mA Vd 5 m V 10 mV 50 mV 99.99 mV 492.09 mV 701.14 mV
Invierta la posición del diodo Zener y llene la tabla 3.
Id 50 uA 100 uA 500 uA 1 mA 5 mA 10 mA Vd -5 m V -10 mV -50 mV -100 mV -500 mV -999.98 mV
