Practical exercise 2 geography, Exercises of Geography

University of North WestGeography

Coverage of magnetic bearing, declination and true bearing

Typology: Exercises

2023/2024

Uploaded on 03/14/2024

victoria-v9g
victoria-v9g 🇿🇦

1 document

1 / 5

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
2024
GEOG111 Practical Exercise 2: Direction, Bearing and Magnetic Declination – Questions

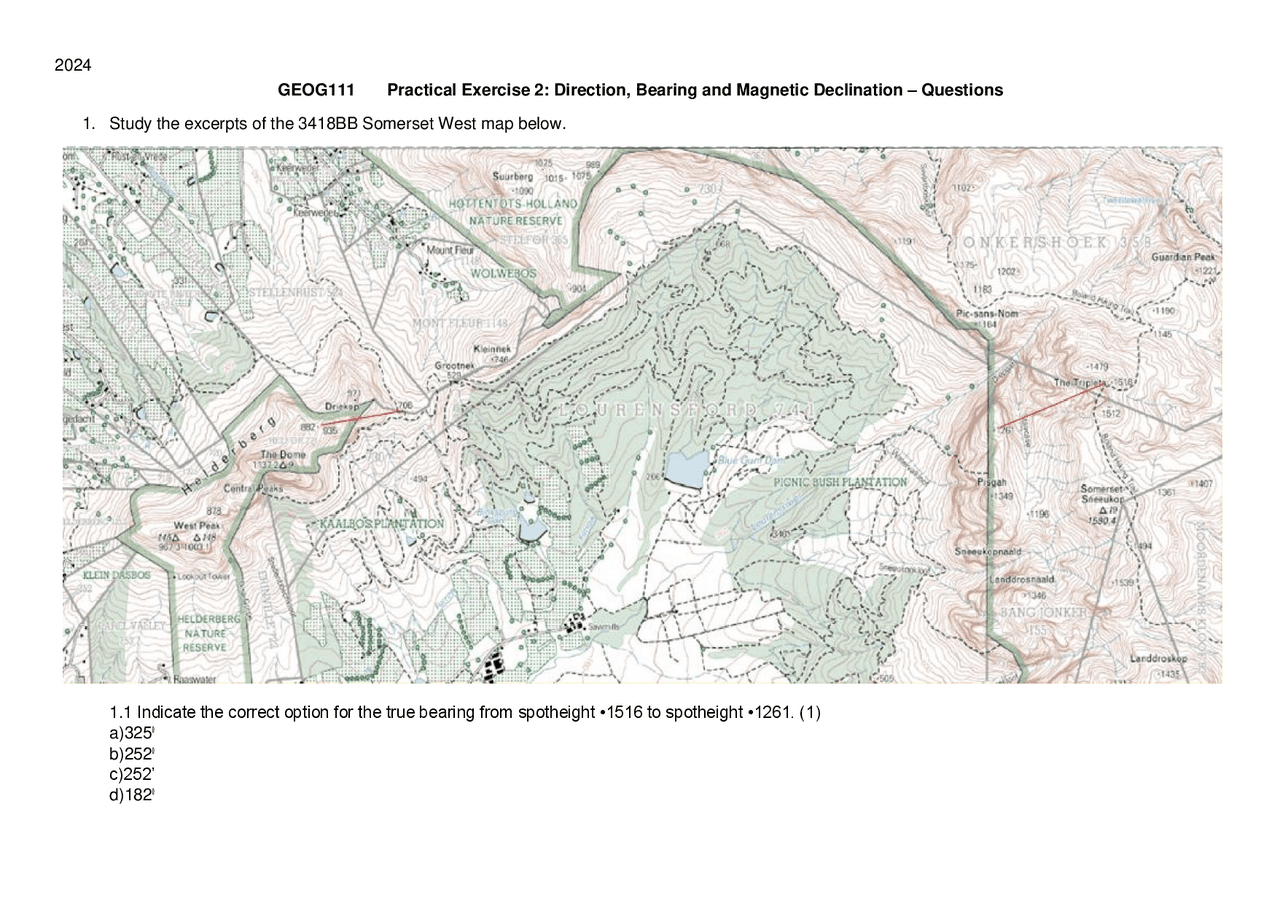

1. Study the excerpts of the 3418BB Somerset West map below.
1.1 Indicate the correct option for the true bearing from spotheight •1516 to spotheight •1261. (1)
a)325
⁰
b)252
⁰
c)252’
d)182
⁰
pf3
pf4
pf5

Partial preview of the text

Download Practical exercise 2 geography and more Exercises Geography in PDF only on Docsity!

GEOG111 Practical Exercise 2: Direction, Bearing and Magnetic Declination – Questions

  1. Study the excerpts of the 3418BB Somerset West map below. 1.1 Indicate the correct option for the true bearing from spotheight •1516 to spotheight •1261. (1) a) 325 ⁰ b) 252 ⁰ c)252’ d) 182 ⁰

1.2 Indicate the correct option for the true bearing from spotheight •882 to spotheight •706. (1) a) 12 ⁰ b) 42 ⁰ c) 62 ⁰ d) 102 ⁰ 1.3 Give the direction of the following: a) General flow direction of the Lourens River. (1) b) Spotheight •746 (Kleinnek) to spotheight •1090 (Suurberg). ( 1 )

  1. Study the excerpts of the 2827DD Ficksburg map below.
  1. Study the excerpts of the 3219CA Citrusdal map below. Mean magnetic declination: 23 ⁰ 54 ’West of True North (December
    Mean annual change: 6’ Westwards (December 2014 – November
    Gemiddelde magnetiese deklinasie: 23 ⁰ 54 ’Wes van Ware Noord (Desember 2014) Gemiddelde jaarlikse verandering: 6’ Weswaarts (Desember 2014 - November 2015)

During the Summer Recess you volunteer your geographic expertise to Working on Fire. One day a big fire sweeps through the Sneeuberg Mountains and reaches the Hexberg Nature Reserve. You are tasked with calculating the magnetic bearing for the fire response team for the year 2024 from Δ to spotheight 1328 , when true bearing is measured as 224 ⁰. Show all calculations. ( 8 )

4. Convert the following word scales to ratio scales. Show all calculations. 4.1 9 km per 6 cm (4) 4.2 18 m per 5 mm (4) 5. Convert the following ratio scales to word scales. Show all calculations. 5.1 1:400 000 (kilometer-per-centimeter scale) ( 4 ) 5.2 1:900 000 (meter-per-centimeter scale) ( 4 ) TOTAL: 36
