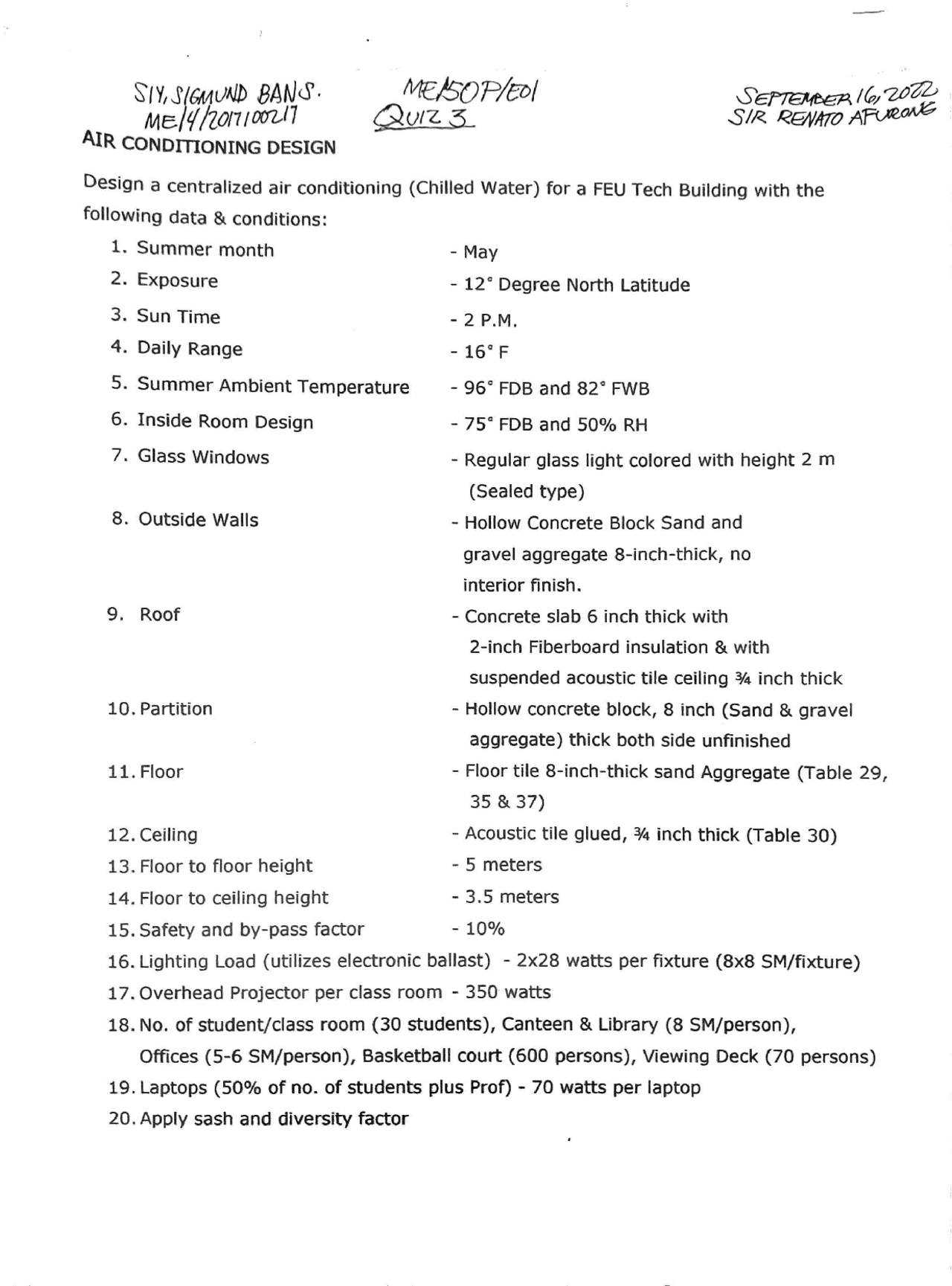

SW, S{GMUND BANS: ME SOF /e0| Seeprenmen Moy 20EL me/Y/2orr100e!7 Quiz 5. SIR Renpo A AIR CONDITIONING DESIGN Design a centralized air conditioning (Chilled Water) for a FEU Tech Building with the following data & conditions: 1. 2 3 4. 5 6 7 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. Summer month - May - Exposure - 12° Degree North Latitude + Sun Time -2P.M, Daily Range - 16°F - Summer Ambient Temperature - 96° FDB and 82° FWB - Inside Room Design - 75° FDB and 50% RH . Glass Windows - Regular glass light colored with height 2m (Sealed type) - Outside Walls - Hollow Concrete Block Sand and gravel aggregate 8-inch-thick, no interior finish. Roof - Concrete slab 6 inch thick with 2-inch Fiberboard insulation & with suspended acoustic tile ceiling % inch thick Partition - Hollow concrete block, 8 inch (Sand & gravel aggregate) thick both side unfinished Floor - Floor tile 8-inch-thick sand Aggregate (Table 29, 35 & 37) Ceiling - Acoustic tile glued, % inch thick (Table 30) Floor to floor height - 5 meters Floor to ceiling height - 3.5 meters Safety and by-pass factor - 10% Lighting Load (utilizes electronic ballast) - 2x28 watts per fixture (8x8 SM/fixture) Overhead Projector per class room - 350 watts No. of student/class room (30 students), Canteen & Library (8 SM/person), Offices (5-6 SM/person), Basketball court (600 persons), Viewing Deck (70 persons) Laptops (50% of no. of students plus Prof) - 70 watts per laptop Apply sash and diversity factor
