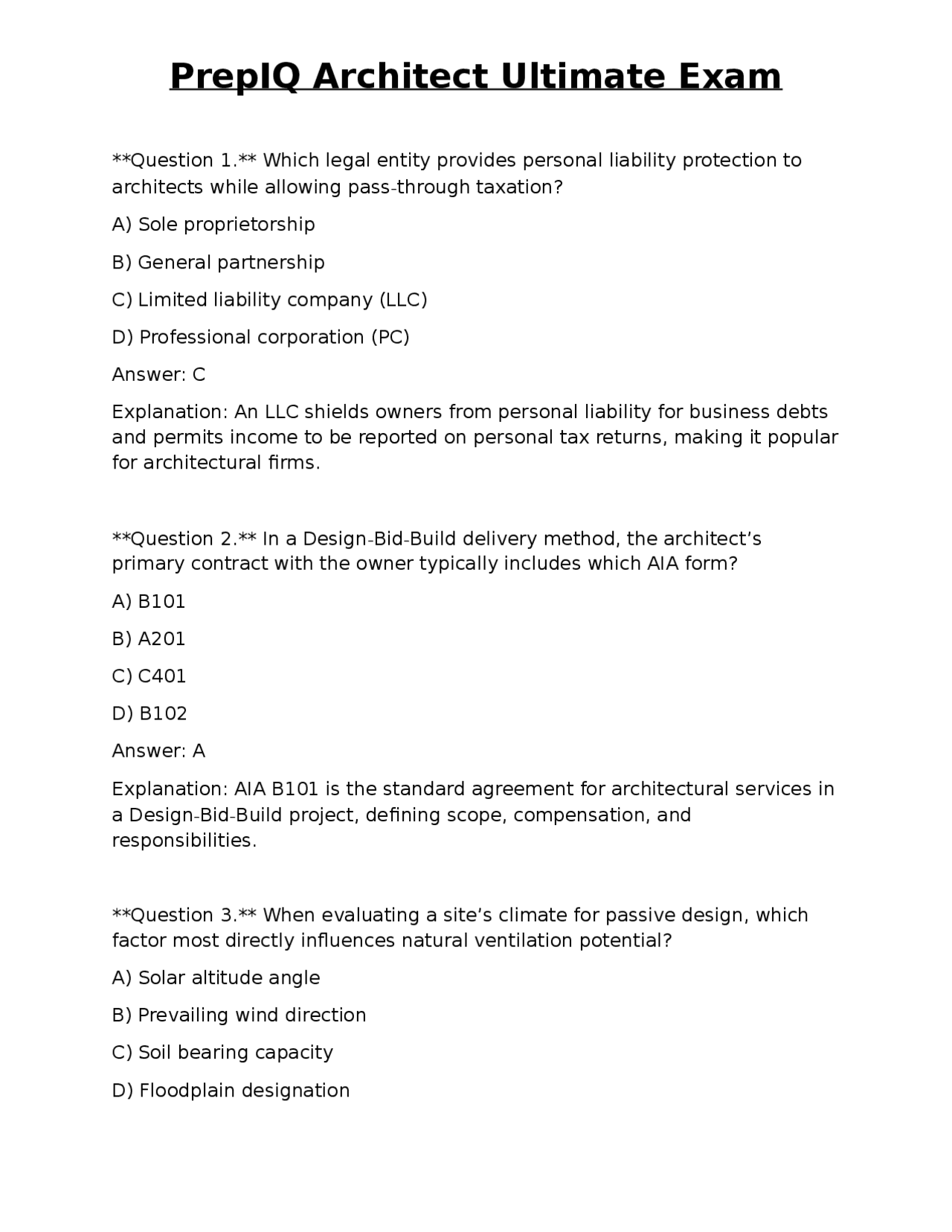

Question 1. Which legal entity provides personal liability protection to architects while allowing pass-through taxation? A) Sole proprietorship B) General partnership C) Limited liability company (LLC) D) Professional corporation (PC) Answer: C Explanation: An LLC shields owners from personal liability for business debts and permits income to be reported on personal tax returns, making it popular for architectural firms. Question 2. In a Design-Bid-Build delivery method, the architect’s primary contract with the owner typically includes which AIA form? A) B B) A C) C D) B Answer: A Explanation: AIA B101 is the standard agreement for architectural services in a Design-Bid-Build project, defining scope, compensation, and responsibilities. Question 3. When evaluating a site’s climate for passive design, which factor most directly influences natural ventilation potential? A) Solar altitude angle B) Prevailing wind direction C) Soil bearing capacity D) Floodplain designation
Answer: B Explanation: Prevailing wind direction determines how effectively breezes can be harnessed for cross-ventilation. Question 4. Under the International Building Code (IBC), what is the minimum required fire-resistance rating for a structural steel column supporting a Type III construction building of three stories? A) 0 hours B) 1 hour C) 2 hours D) 3 hours Answer: B Explanation: IBC Table 221.1 requires a 1-hour fire-resistance rating for steel columns in Type III construction up to three stories. Question 5. Which phase of project documentation most commonly includes a MasterFormat Section 03 “Concrete”? A) Schematic design B) Design development C) Construction documents D) Post-occupancy evaluation Answer: C Explanation: MasterFormat sections are organized in the construction documents to specify materials and methods; concrete is detailed in Section 03 during the CD phase. Question 6. A firm’s risk management plan should address which of the following first? A) Selection of a rendering software
A) Fixed-price contract for the owner B) Early contractor input for constructability C) Elimination of all change orders D) Direct owner-contractor contract without architect involvement Answer: B Explanation: The CMa model brings the construction manager into the design phase, allowing constructability reviews and cost optimization. Question 10. According to the Americans with Disabilities Act (ADA), the minimum clear width of a wheelchair-accessible door is: A) 28 inches B) 32 inches C) 36 inches D) 42 inches Answer: C Explanation: ADA standards require a minimum clear opening of 32 inches for a single door, but a 36-inch width is recommended for ease of passage; many jurisdictions adopt 36 inches as the minimum. Question 11. Which financial metric is most useful for assessing an architectural firm’s profitability on a specific project? A) Gross square footage B) Net present value (NPV) of cash flows C) Projected revenue per employee D) Percentage of billable hours Answer: B Explanation: NPV evaluates the profitability of a project by discounting future cash inflows and outflows, reflecting time value of money.
Question 12. When allocating staff to a multi-disciplinary project, the Resource Histogram primarily shows: A) Project schedule critical path B) Individual staff skill levels C) Time-phased workload distribution D) Material delivery dates Answer: C Explanation: A Resource Histogram visualizes the amount of labor assigned to each time period, helping balance workloads. Question 13. In site analysis, a “viewshed” study is used to: A) Determine structural foundation depth B) Identify sightlines and visual impact of the building C) Calculate stormwater runoff coefficients D) Assess soil contamination levels Answer: B Explanation: A viewshed analysis maps visible areas from a point, informing decisions about building height, orientation, and visual impact. Question 14. Which IBC provision governs the minimum required egress width for a corridor serving an occupancy load of 100 persons? A) 1004.1. B) 1005.3. C) 1010.1. D) 1020. Answer: B Explanation: IBC Section 1005.3.1 specifies that corridor width must be at least 44 inches for an occupancy load of 50–99 and 56 inches for 100 or more; thus 56 inches is required.
D. It is only available to sole proprietors Answer: B Explanation: “Claims made” policies pay for claims filed while the policy is active, even if the event happened earlier, whereas “occurrence” policies cover incidents that occur during the policy period regardless of reporting date. Question 18. Which code reference defines the minimum required number of restrooms for a 150-person assembly occupancy? A) IBC Table 1004.1. B) ADA Accessibility Guidelines Chapter 4 C) International Plumbing Code (IPC) Table 403. D) NFPA 101 Life-Safety Code Table 5. Answer: C Explanation: IPC Table 403.1 lists required plumbing fixtures based on occupancy classification and number of occupants. Question 19. During schematic design, the architect typically produces which of the following deliverables? A) Detailed construction specifications B) Cost-estimated quantity take-offs C) Conceptual massing models and bubble diagrams D) Shop drawing submittals Answer: C Explanation: Schematic design focuses on overall form, spatial relationships, and conceptual representation, not detailed specifications. Question 20. A “Change Order” that modifies the contract price but does not affect the contract time is classified as:
A) A unilateral amendment B) A supplemental agreement C) A constructive change D) A price adjustment clause Answer: B Explanation: A supplemental agreement (often called a Change Order) can alter scope, price, or schedule; when only price changes, it is a supplemental agreement without a time extension. Question 21. Which of the following is the most appropriate method for estimating preliminary construction costs in the early design phase? A) Detailed unit-price take-off B) Parametric cost estimating using cost-per-square-foot data C) Life-cycle cost analysis D. Quantity surveying based on final construction documents Answer: B Explanation: Parametric estimating uses historical cost data per unit area to quickly generate approximate budgets during conceptual design. Question 22. In a “joint venture” (JV) between two firms, the primary legal document that defines each party’s contribution and profit share is the: A) Memorandum of Understanding (MOU) B) Joint Venture Agreement (JVA) C) Letter of Intent (LOI) D) Sub-consultant agreement Answer: B Explanation: The JVA outlines ownership percentages, responsibilities, and how profits or losses are allocated among the partners.
Answer: B Explanation: Value engineering evaluates each function of a component or system to find cost-effective alternatives without compromising performance. Question 26. In a site’s zoning ordinance, a “setback” requirement controls: A) Minimum parking spaces per floor area B) Distance between the building and property lines C) Maximum allowable building height D) Required fire-resistance rating of exterior walls Answer: B Explanation: Setbacks dictate how far a structure must be positioned from the lot boundaries, influencing building placement and massing. Question 27. The most common structural system for a mid-rise residential building in seismic zones of the United States is: A) Unreinforced masonry load-bearing walls B) Post-tensioned concrete slab on grade C) Moment-resisting steel frame with shear walls D) Timber balloon framing Answer: C Explanation: Steel frames with shear walls provide ductility and lateral resistance essential for seismic performance in mid-rise construction. Question 28. Which of the following is a primary purpose of a “punch list” during project closeout? A) To record all design changes made during construction
B) To identify items that do not conform to contract documents and require correction before final payment C) To list all subcontractors and their insurance certificates D) To schedule post-occupancy surveys Answer: B Explanation: A punch list catalogs deficiencies that must be remedied before the owner can accept the project and release final payment. Question 29. In programming, a “must-have” requirement is distinguished from a “nice-to-have” requirement by: A) Its impact on the project budget if omitted B. Its compliance with local building codes C) Its frequency of occurrence in similar projects D) Its aesthetic appeal Answer: A Explanation: Must-have items are essential for program success; eliminating them would compromise functionality or violate regulations, often affecting cost. Question 30. Which of the following is a key component of a firm’s “office standards” manual? A) Detailed design specifications for every project B) Standardized drawing title block templates and layer naming conventions C) Client marketing strategies D) Construction cost estimating software licensing agreements Answer: B Explanation: Office standards define consistent practices such as title blocks, layer names, and file organization to improve productivity and quality control.
Explanation: Soft costs are indirect expenses such as fees, permits, and insurance; concrete volume is a hard (direct) cost. Question 34. When performing a “site grading plan,” the primary datum used to convey elevations is: A) Mean sea level (MSL) B) Finished floor elevation (FFE) of the building C) Existing ground surface (EGS) D. Local benchmark or survey datum Answer: D Explanation: A site grading plan references a known survey benchmark to show existing and proposed elevations. Question 35. Which of the following best describes the “critical path” in a project schedule? A) The sequence of activities with the longest total duration that determines the project’s minimum completion time B) All activities that have zero float C) Tasks that can be performed concurrently without affecting the finish date D. The set of activities assigned to the most senior staff member Answer: A Explanation: The critical path is the longest chain of dependent tasks; any delay on this path directly delays the overall project. Question 36. Under the ADA, the maximum slope for a wheelchair ramp without handrails is: A) 1: B) 1: C) 1:
D. 1:
Answer: A Explanation: ADA requires a maximum slope of 1 unit vertical rise per 12 units horizontal run (8.33% grade) for ramps. Question 37. Which of the following is a primary consideration when selecting a façade material for a high-rise building in a coastal environment? A) Acoustic absorption coefficient B) Fire-rating of interior partitions C) Resistance to chloride-induced corrosion D) Solar heat gain coefficient of interior lighting fixtures Answer: C Explanation: Coastal exposure subjects façade systems to salt spray; materials must resist chloride corrosion to maintain durability. Question 38. In a “design-assist” contract, the contractor’s role is to: A) Provide full construction services after design completion B) Offer input on constructability and cost during the design phase without assuming construction risk C) Serve as the owner’s legal representative D. Perform all permitting activities Answer: B Explanation: Design-assist involves early contractor involvement to advise on construction methods, materials, and budgeting while the architect retains design responsibility. Question 39. A “phasing plan” in project development is primarily used to: A) Determine the order of interior finish selections
Question 42. In a “fast-track” project delivery method, the primary risk to the owner is: A) Extended project duration due to sequential phases B) Increased likelihood of design changes after construction has started C) Higher certainty of cost at contract signing D. Reduced need for coordination meetings Answer: B Explanation: Fast-track overlaps design and construction, which can lead to design alterations after work has begun, increasing risk of change orders. Question 43. Which code reference governs the minimum required width of an accessible route in a corridor? A) IBC Section 1010.1. B) ADA Standards Section 405 C) NFPA 101 Section 7.2. D. International Existing Building Code (IEBC) Answer: B Explanation: ADA Standards Chapter 4, Section 405 specifies a minimum clear width of 36 inches for accessible routes. Question 44. In estimating, “contingency” is typically expressed as: A) A fixed dollar amount equal to 10 % of total hard costs B) A percentage of the total estimated cost to cover unknowns C) The sum of all subcontractor bids D. The total cost of permits and fees Answer: B
Explanation: Contingency is a percentage (often 5- 10 %) added to the estimate to accommodate unforeseen conditions and scope changes. Question 45. When creating a “material board” for client presentation, the architect is primarily demonstrating: A) Structural load calculations B) Aesthetic and tactile qualities of proposed finishes C) Fire-rating compliance of assemblies D. Energy modeling results Answer: B Explanation: Material boards showcase colors, textures, and finishes to help clients visualize the design’s aesthetic. Question 46. Which of the following best describes “life-cycle cost analysis” (LCCA)? A) Estimating only the initial construction cost B) Comparing total costs of a building over its useful life, including operation and maintenance C) Calculating the resale value of a property after ten years D. Assessing the carbon footprint of material choices Answer: B Explanation: LCCA evaluates acquisition, operation, maintenance, and disposal costs to determine the most economical option over the building’s lifespan. Question 47. The “architect’s certificate of payment” is required before the owner can: A) Issue a performance bond B) Release the final payment to the contractor
Question 50. When reviewing a subcontractor’s “bond,” the architect should confirm that the bond: A) Covers the subcontractor’s personal property B) Is a performance and payment bond with a limit equal to the subcontract scope of work C) Is issued by a local bank only D. Expires before the project start date Answer: B Explanation: A performance and payment bond protects the owner and prime contractor by guaranteeing the subcontractor will fulfill obligations and pay laborers. Question 51. In a “Design-Bid-Build” project, who typically prepares the bid documents that contractors use to submit proposals? A) Owner’s construction manager B) Architect C) Contractor D. Project manager from the owner’s side Answer: B Explanation: The architect prepares the construction documents that form the basis of the bid packages. Question 52. Which of the following statements about “professional ethics” is most accurate for architects? A) Ethics are optional guidelines that can be ignored if profitability is at stake B) The AIA Code of Ethics requires architects to act with honesty, integrity, and competence in all professional matters C) Ethical conduct only applies to design, not business operations D. Ethics are governed solely by state licensing boards, not professional organizations
Answer: B Explanation: The AIA Code of Ethics sets mandatory standards for professional conduct, emphasizing honesty, integrity, and competence. Question 53. A “soft-story” building is characterized by: A) A roof with a shallow pitch B) A ground floor that is significantly weaker or more open than upper floors, often due to large openings for parking or retail C) A structural system composed entirely of timber D. A façade with extensive glazing Answer: B Explanation: Soft-story buildings have reduced lateral stiffness at the ground level, making them vulnerable in seismic events. Question 54. Which of the following is a common method for controlling thermal bridging in a high-performance envelope? A) Installing a continuous exterior insulation layer B) Using only steel studs for framing C. Increasing window-to-wall ratio D. Adding interior drywall over all exterior walls Answer: A Explanation: Continuous exterior insulation breaks the thermal path, reducing heat loss through framing members. Question 55. When preparing a “project schedule” in a CPM (Critical Path Method) software, a “lag” refers to: A) The amount of time a predecessor activity must finish before a successor can start B) The duration of a task that is not on the critical path
