ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam

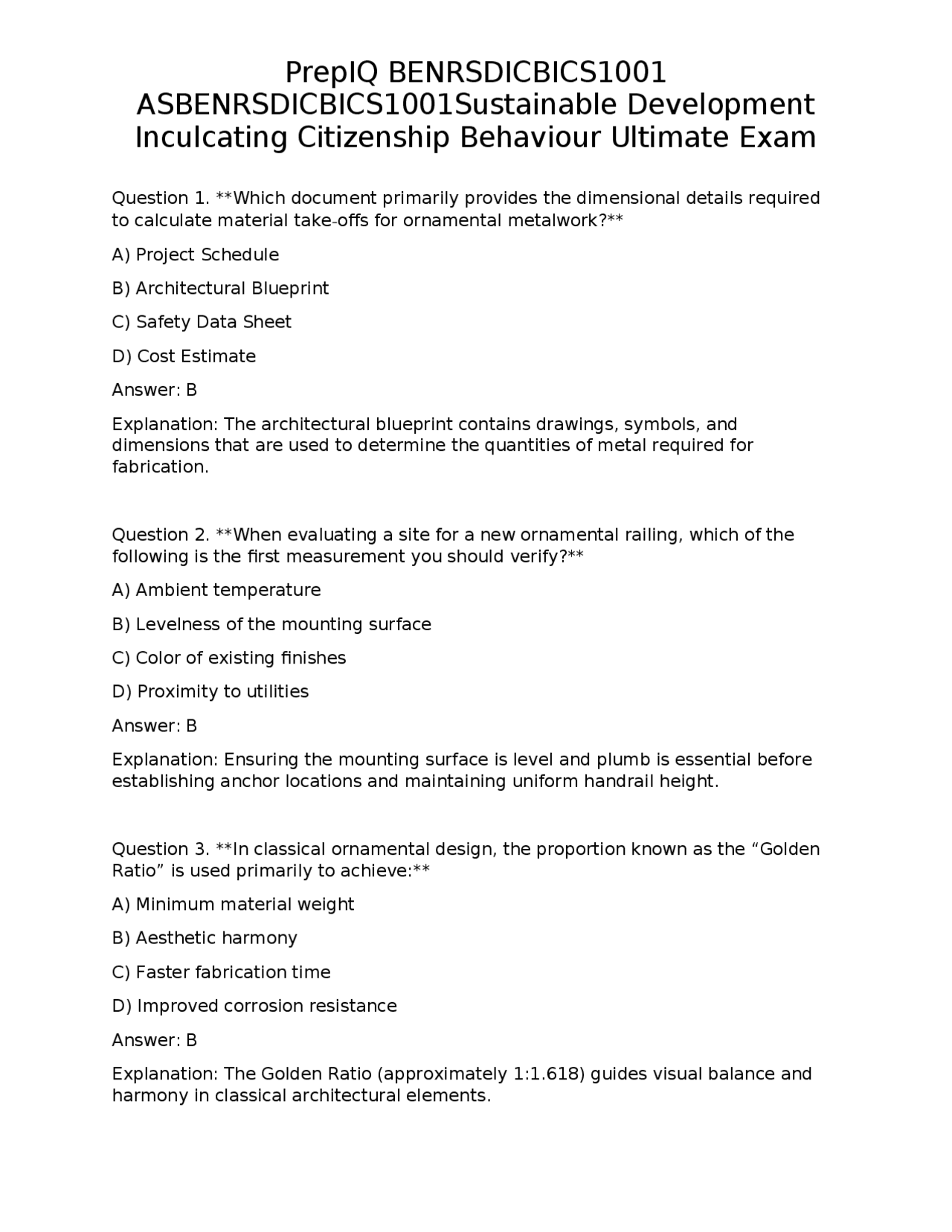

Question 1. Which document primarily provides the dimensional details required to calculate material take-offs for ornamental metalwork? A) Project Schedule B) Architectural Blueprint C) Safety Data Sheet D) Cost Estimate Answer: B Explanation: The architectural blueprint contains drawings, symbols, and dimensions that are used to determine the quantities of metal required for fabrication. Question 2. When evaluating a site for a new ornamental railing, which of the following is the first measurement you should verify? A) Ambient temperature B) Levelness of the mounting surface C) Color of existing finishes D) Proximity to utilities Answer: B Explanation: Ensuring the mounting surface is level and plumb is essential before establishing anchor locations and maintaining uniform handrail height. Question 3. In classical ornamental design, the proportion known as the “Golden Ratio” is used primarily to achieve: A) Minimum material weight B) Aesthetic harmony C) Faster fabrication time D) Improved corrosion resistance Answer: B Explanation: The Golden Ratio (approximately 1:1.618) guides visual balance and harmony in classical architectural elements.
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
Question 4. Which metal is classified as non-ferrous and is most commonly used for decorative bronze-like finishes? A. Steel B. Cast iron C. Aluminum D. Wrought iron Answer: C Explanation: Aluminum is a non-ferrous metal that can be finished to resemble bronze and is lightweight, making it suitable for ornamental applications. Question 5. During cost estimation, the “fabrication labor” line item should include: A) Only the wages of welders B) Wages, machine time, and tool depreciation C) Transportation of raw material only D) Permit fees Answer: B Explanation: Fabrication labor encompasses wages, equipment usage time, and associated tool wear, reflecting the true cost of producing the component. Question 6. Which cutting method is most appropriate for producing clean, precise edges on thin copper sheets used in decorative panels? A) Plasma cutting B) Oxy-acetylene torch C) Shearing with a rotary blade D) Laser cutting Answer: D Explanation: Laser cutting provides high precision and minimal heat-affected zone, ideal for thin, delicate copper sheets.
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
Question 10. A rivet is chosen over a bolt for joining ornamental metal components when: A) The joint must be removable B) The design requires a smooth, uninterrupted surface C) High tensile strength is required D) The connection will be subjected to cyclic loading Answer: B Explanation: Rivets provide a flush, seamless appearance, ideal for decorative pieces where surface continuity is important. Question 11. In forging a decorative iron scroll, the term “quenching” refers to: A) Heating the metal to a uniform temperature B) Rapidly cooling the metal to increase hardness C) Shaping the metal with a hammer D) Applying a protective coating after forging Answer: B Explanation: Quenching rapidly cools the heated metal, altering its microstructure to increase hardness, a step often used after forging decorative elements. Question 12. Which of the following anchor types is best suited for attaching a heavy ornamental gate to a concrete foundation? A) Wood screw anchor B) Mechanical wedge anchor C) Plastic expansion anchor D) Toggle bolt Answer: B Explanation: Mechanical wedge anchors provide high shear and tensile capacity in concrete, making them appropriate for heavy gate installations.
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
Question 13. The “4-inch sphere” rule for baluster spacing is intended to: A) Ensure adequate structural strength of the railing B) Prevent a 4-inch diameter sphere from passing through the opening C) Provide a visual rhythm to the railing design D) Allow for thermal expansion of the balusters Answer: B Explanation: The rule requires that no sphere larger than 4 inches can pass through the baluster openings, enhancing child safety. Question 14. According to the Connecticut State Building Code, the minimum clear height for a handrail on a stairway is: A) 30 inches B) 34 inches C) 42 inches D) 48 inches Answer: B Explanation: The code specifies a minimum handrail height of 34 inches (864 mm) measured from the nosing of the stair tread. Question 15. ADA guidelines require handrails to have a grip diameter of: A) 0.75 inches to 1.25 inches B) 1.0 inches to 1.5 inches C) 1.25 inches to 2.0 inches D) 2.0 inches to 2.5 inches Answer: C Explanation: The ADA specifies a handrail diameter between 1.25 inches (32 mm) and 2.0 inches (51 mm) for comfortable grasp. Question 16. When joining a brass decorative element to a stainless-steel railing, the most important consideration to avoid galvanic corrosion is:
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
A) Using a generic black spray paint B) Conducting a laboratory analysis of the historic finish and replicating it with a custom formulation C) Applying a thick layer of epoxy D) Replacing the piece with new stainless steel Answer: B Explanation: Laboratory analysis determines the composition of the historic finish, allowing accurate replication for authenticity. Question 20. Which OSHA regulation specifically addresses fall protection for workers installing railings on elevated platforms? A) 29 CFR 1926. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1926. Answer: A Explanation: OSHA 1926.501 outlines requirements for fall protection systems for construction workers on elevated surfaces. Question 21. When welding ornamental stainless-steel railings, the most important ventilation practice is: A) Using a standard shop fan B) Installing a local exhaust system with a minimum airflow of 100 CFM C) Opening windows only D) Wearing a cotton apron Answer: B Explanation: Local exhaust ventilation effectively captures welding fumes, protecting workers from inhalation hazards. Question 22. The primary purpose of a “fire watch” during welding operations on a decorative metal canopy is to:
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
A) Monitor the temperature of the weld pool B) Ensure the welder follows the welding procedure specification C) Detect and extinguish any ignition of combustible material nearby D) Record the weld bead length for quality control Answer: C Explanation: A fire watch watches for sparks that could ignite surrounding combustibles, preventing fire hazards. Question 23. Which type of mechanical fastener is commonly used on ornamental wrought-iron gates to allow for seasonal expansion and contraction? A) Fixed steel bolts B) Slotted rivets with a spring washer C) Welded pins D) Concrete anchors Answer: B Explanation: Slotted rivets combined with spring washers accommodate thermal movement while maintaining a secure connection. Question 24. When planning the installation of a decorative stair stringer cover, the clearance gap required for thermal expansion is typically: A) 1 mm B) 3 mm C) 6 mm D) 10 mm Answer: B Explanation: A 3 mm gap allows for normal expansion and contraction of metal components without causing buckling. Question 25. A “pickling” process in metal preparation is used to: A) Apply a protective coating
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
B) Density of bronze (≈ 8.8 g/cm³) C) Thermal expansion coefficient D) Melting point Answer: B Explanation: Weight = volume × density; using the correct density of bronze yields an accurate weight estimate. Question 29. The most common cause of premature failure in ornamental metal railings exposed to coastal environments is: A) Mechanical overload B) Galvanic corrosion between dissimilar metals C) UV degradation of paint D) Over-tightening of fasteners Answer: B Explanation: Salt-laden air accelerates galvanic corrosion, especially when dissimilar metals are in contact, leading to rapid deterioration. Question 30. Which finishing process provides the highest level of abrasion resistance for outdoor ornamental aluminum? A) Anodizing B) Powder coating C) Oil painting D) Wax polishing Answer: A Explanation: Anodizing creates a hard oxide layer on aluminum, significantly improving resistance to wear and weathering. Question 31. During the fabrication of a decorative iron gate, the term “offset bend” describes a bend where: A) The bend angle is exactly 90° B) The bend is offset from the neutral axis to reduce springback
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
C) The bend occurs at a pre-drilled hole D) The bend is made using a hydraulic press Answer: B Explanation: An offset bend shifts the bend line away from the neutral axis, helping control springback and achieve precise geometry. Question 32. Which of the following statements about “thermal expansion joints” in ornamental metal facades is correct? A) They are only required for steel structures over 30 ft tall B) They allow the metal to expand without inducing stress that could cause buckling C) They are decorative elements with no functional purpose D) They are installed only at the base of the structure Answer: B Explanation: Expansion joints accommodate temperature-induced length changes, preventing stress buildup and potential deformation. Question 33. In a project schedule, the “critical path” for installing ornamental railings is most likely to be affected by: A) The color of the finish B) Delivery time of custom-fabricated balusters C) The brand of welding equipment used D) The type of coffee served on site Answer: B Explanation: Delays in receiving custom-fabricated components directly impact the installation timeline, making them critical path items. Question 34. When performing a non-destructive test (NDT) on a welded ornamental joint, the most commonly used method is: A) Ultrasonic testing B) Magnetic particle inspection
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
D) Only seismic loads Answer: B Explanation: Load-bearing columns must safely carry self-weight plus any live, wind, or seismic loads transferred from the superstructure. Question 38. In the context of ornamental metalwork, “hand-forming” typically involves: A) CNC machining of complex shapes B) Using a hammer and anvil to shape metal without machinery C) Laser cutting patterns into sheet metal D) Applying a chemical etch to create relief Answer: B Explanation: Hand-forming refers to traditional blacksmithing techniques where the artisan shapes metal manually with tools like hammers and anvils. Question 39. When installing an ornamental gate with an automatic closing mechanism, the most important clearance requirement is: A) Minimum 0.5 inches between gate and frame at full closure B) Maximum 1 inch between gate and frame at full closure C) No clearance; the gate must be flush D) Minimum 2 inches to allow for debris Answer: A Explanation: A small clearance (≈ 0.5 inches) ensures smooth operation while allowing the mechanism to engage without binding. Question 40. Which of the following is a primary advantage of using a plasma cutter over a traditional torch for cutting decorative steel? A) Lower equipment cost B) Ability to cut thicker material without pre-heating C) Cleaner cut edge with minimal slag, reducing post-cut cleanup
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
D) No need for protective eyewear Answer: C Explanation: Plasma cutters produce a clean, slag-free edge, which is important for preserving the visual quality of ornamental pieces. Question 41. For a stair treads’ ornamental metal overlay, the recommended minimum thickness of the metal to prevent deformation under foot traffic is: A) 0.5 mm B) 1.0 mm C) 2.0 mm D) 4.0 mm Answer: C Explanation: A 2 mm thickness provides sufficient rigidity to withstand repeated loading while maintaining a slim profile. Question 42. When using epoxy anchors in a masonry wall for a decorative railing, the key factor that determines bond strength is: A) The color of the epoxy B) The temperature of the wall at installation C) The diameter of the anchor rod only D) The surface roughness of the masonry only Answer: B Explanation: Epoxy curing and bond strength are highly temperature-dependent; proper temperature ensures the epoxy reaches its designed performance. Question 43. Which of the following best describes “phosphating” a steel surface before painting? A) Applying a thin layer of zinc to prevent rust B) Creating a microscopic porous layer that improves paint adhesion C) Adding a decorative color through chemical reaction D) Removing all surface contaminants by blasting
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
Explanation: SDS documents convey critical safety information about chemicals, ensuring proper handling and compliance with OSHA. Question 47. In a project that uses both aluminum and copper ornamental elements, the recommended method to prevent galvanic corrosion at the connection points is: A) Use a larger number of fasteners B) Apply a zinc coating to both metals C) Install a dielectric (plastic) spacer between the metals D) Paint both metals with the same color Answer: C Explanation: A dielectric spacer electrically isolates the dissimilar metals, breaking the galvanic circuit. Question 48. During a site survey for a new ornamental balcony railing, the surveyor notes a slope of 2% on the deck surface. The appropriate corrective action is: A) Increase the handrail height by 2 inches B) Install adjustable post mounts to level the railing C) Reduce the baluster spacing to compensate D) No action; a 2% slope is within tolerance Answer: B Explanation: Adjustable post mounts allow the railing to be leveled despite the deck’s slope, ensuring compliance with code. Question 49. When specifying a powder-coat color for a historic bronze-looking ornamental piece, the finish should be: A) Glossy, to mimic new metal B) Matte, to replicate the patina of aged bronze C) Metallic silver, to contrast with the surrounding architecture D) Fluorescent green, for high visibility
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
Answer: B Explanation: A matte powder coat better simulates the subdued appearance of aged bronze, aligning with historic aesthetics. Question 50. Which testing method is most appropriate for verifying the load capacity of a newly installed ornamental guardrail? A) Visual inspection only B) Static load testing with a calibrated weight applied at the midpoint C) Acoustic emission testing D) Magnetic particle inspection of welds Answer: B Explanation: Static load testing directly confirms the guardrail can support the required design load as per code. Question 51. A decorative metal grating intended for a pedestrian bridge must meet the “4-inch sphere” rule. If the grating bars are spaced 3 inches apart, the design is: A) Compliant, because 3 inches < 4 inches B) Non-compliant, because a 4-inch sphere could still pass diagonally C) Compliant, as long as the bars are at least 0.5 inches thick D) Non-compliant, because spacing must be exactly 2 inches Answer: B Explanation: Even with 3 inch spacing, a 4-inch sphere can pass through diagonal openings; the rule requires spacing that prevents a 4-inch sphere from passing in any orientation. Question 52. When a metal component is to be sandblasted, the recommended abrasive grit size for achieving a surface profile suitable for powder coating is: A) 0.5 mm (coarse) B) 0.1 mm (medium) C) 0.03 mm (fine)
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
D) Wax polish only Answer: C Explanation: Epoxy clear coats provide excellent adhesion, chemical resistance, and UV protection for metal patinas. Question 56. If an ornamental metal railing is required to resist a wind pressure of 30 psf, the design engineer must verify that the railing can support a load of: A) 30 lb per linear foot B) 30 lb per square foot of projected area C) 30 lb total for the entire railing D) 30 lb per post only Answer: B Explanation: Wind pressure is expressed in pounds per square foot of projected area; the railing must resist that distributed load. Question 57. During installation, a decorative metal baluster must be anchored into a concrete slab. The minimum embedment depth for a ½-inch diameter wedge anchor, according to code, is: A) 1 inch B) 2 inches C) 4 inches D) 6 inches Answer: C Explanation: Code typically requires a minimum embedment of 4 inches for a ½-inch wedge anchor in concrete to develop full load capacity. Question 58. Which of the following is the most suitable method for removing a rust spot on a decorative steel railing without affecting surrounding finish? A) Sandblasting the entire railing B) Using a fine-grade stainless steel wire brush on the spot only C) Applying a high-temperature torch to melt the rust
ASBENRSDICBICS1001Sustainable Development
Inculcating Citizenship Behaviour Ultimate Exam
D) Painting over the rust with a thick primer Answer: B Explanation: A fine wire brush locally removes rust while preserving the adjacent finish. Question 59. In a project requiring both ornamental iron gates and stainless-steel stair railings, the best practice for storing the materials on site to avoid cross-contamination is: A) Mixing them in the same pallet B) Storing each material type on separate, labeled racks with protective covers C) Keeping them in a single open area without covers D) Painting the iron gates before the stainless steel arrives Answer: B Explanation: Separate storage prevents accidental contact that could cause galvanic corrosion and protects surface finishes. Question 60. When a decorative metal component is to be installed in a location with high humidity, the most effective preventive measure against corrosion is: A) Using a thicker gauge of metal B) Applying a combined primer-topcoat system with a moisture-blocking barrier C) Installing a dehumidifier in the building D) Painting the component with oil-based paint only Answer: B Explanation: A primer-topcoat system creates a moisture-resistant barrier, significantly reducing corrosion in humid environments. Question 61. The primary purpose of a “safety harness” for a worker installing ornamental railings on a balcony is to: A) Reduce fatigue during long work hours B) Provide fall protection in case of loss of footing C) Keep tools from falling
