Ultimate Exam

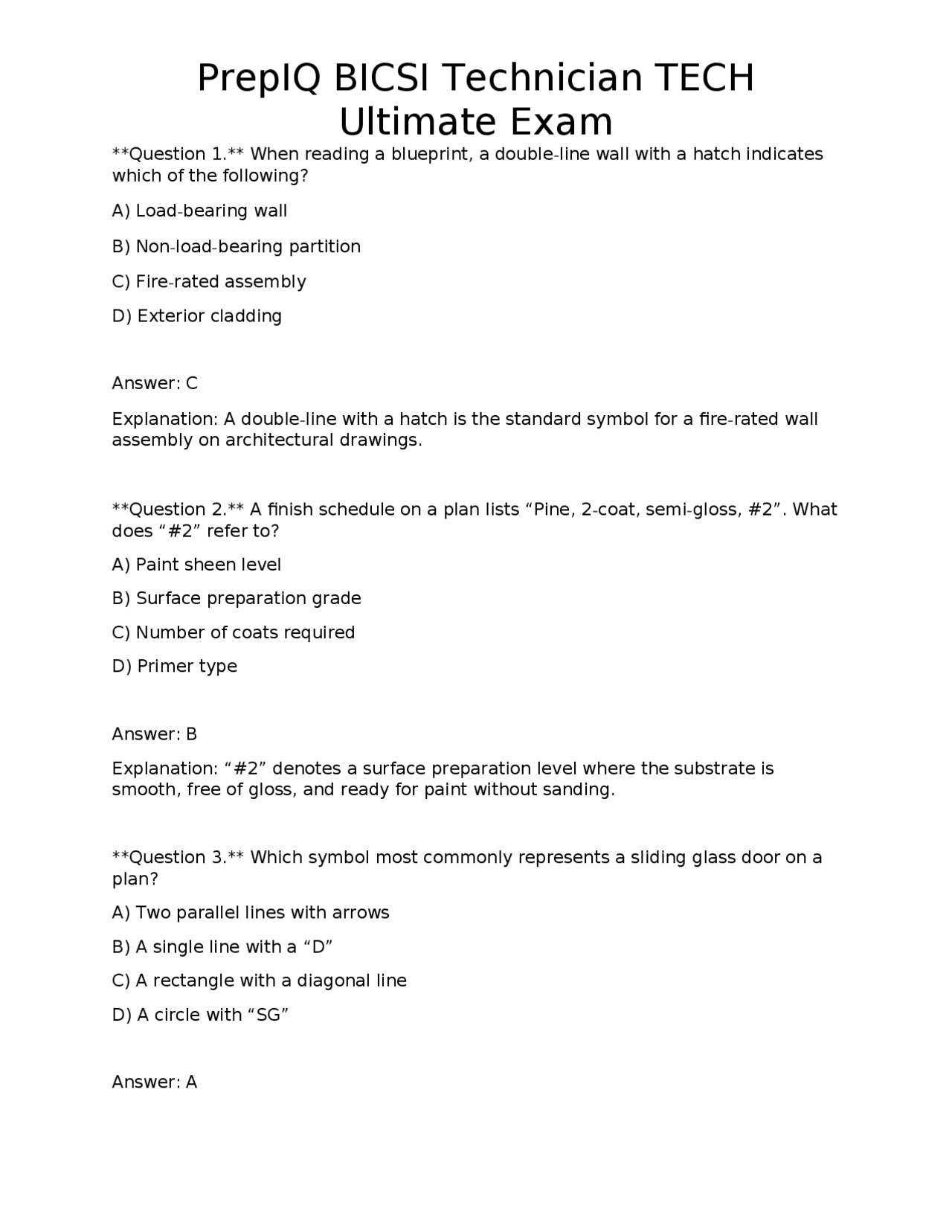

Question 1. When reading a blueprint, a double-line wall with a hatch indicates which of the following? A) Load-bearing wall B) Non-load-bearing partition C) Fire-rated assembly D) Exterior cladding Answer: C Explanation: A double-line with a hatch is the standard symbol for a fire-rated wall assembly on architectural drawings. Question 2. A finish schedule on a plan lists “Pine, 2-coat, semi-gloss, #2”. What does “#2” refer to? A) Paint sheen level B) Surface preparation grade C) Number of coats required D) Primer type Answer: B Explanation: “#2” denotes a surface preparation level where the substrate is smooth, free of gloss, and ready for paint without sanding. Question 3. Which symbol most commonly represents a sliding glass door on a plan? A) Two parallel lines with arrows B) A single line with a “D” C) A rectangle with a diagonal line D) A circle with “SG” Answer: A
Ultimate Exam
Explanation: Parallel lines with arrows indicate the direction of movement for sliding doors. Question 4. A structural note reads “Moisture barrier to be installed on all exterior walls”. Which material is most appropriate? A) 1 mm polyethylene sheeting B) 15 lb gypsum board C) Oil-based primer D) Vapor-retarding paint Answer: A Explanation: A polyethylene sheet is the standard moisture barrier for exterior wall assemblies. Question 5. To calculate the square footage of a gable wall that is 12 ft high at the peak and 20 ft wide, which formula is correct? A) (12 ft × 20 ft) ÷ 2 B) (12 ft + 20 ft) ÷ 2 C) (12 ft × 20 ft) × 2 D) (12 ft × 20 ft) – deduct for windows Answer: A Explanation: A gable is a triangle; area = (base × height) ÷ 2. Question 6. When deducting for a 3 ft × 4 ft window from a wall’s square footage, the correct deduction is: A) 7 sq ft B) 12 sq ft C) 15 sq ft D) 24 sq ft
Ultimate Exam
C) Relative humidity 30 % D) Relative humidity 70 % Answer: D Explanation: High humidity (70 %) slows evaporation, extending drying time. Question 10. When staging materials on a job site with a 10-ft ceiling, the maximum safe stacking height for paint cans is: A) 3 ft B) 5 ft C) 8 ft D) 10 ft Answer: C Explanation: OSHA recommends keeping loads at least 2 ft below the ceiling to avoid accidental contact; 8 ft is safe in a 10-ft space. Question 11. Which of the following is the most efficient method for removing large sheets of vinyl wallcovering? A) Scoring with a utility knife only B) Applying a steam generator then peeling C) Using a hand scraper without heat D) Applying chemical stripper and waiting 24 hrs Answer: B Explanation: Steam softens the adhesive, allowing the vinyl to be peeled off with minimal damage. Question 12. A chemical stripper is rated for “PVC-compatible”. Which substrate can safely be stripped with it?
Ultimate Exam
A) Gypsum wallboard B) PVC wall panel C) Concrete block D) Metal studs Answer: B Explanation: The stripper is formulated to work on PVC without degrading the material. Question 13. Which PSI setting is recommended for pressure-washing a masonry wall to remove efflorescence without damaging the surface? A) 500 psi, 25° tip B) 800 psi, 40° tip C) 1,200 psi, 15° tip D) 1,500 psi, 0° tip Answer: B Explanation: 800 psi with a 40° tip provides sufficient force while minimizing surface etching. Question 14. When cleaning a grease-stained drywall surface, which product is most appropriate? A) Ammonia solution B) Trisodium phosphate (TSP) solution C) Bleach diluted 1: D) Solvent-based degreaser Answer: B Explanation: TSP effectively removes grease without damaging drywall.
Ultimate Exam
Explanation: Delicate painter’s tape is designed to be removed cleanly from delicate surfaces. Question 18. Which PPE is required when applying oil-based primers in a confined space? A) Safety glasses only B) N95 respirator and gloves C) Full-face respirator with organic vapor cartridge and gloves D) Ear plugs and safety shoes Answer: C Explanation: Oil-based primers emit organic vapors; a full-face respirator with appropriate cartridge protects the respiratory system and eyes. Question 19. When would an oil-based primer be preferred over a water-based primer? A) On new gypsum board B) Over a previously painted latex surface C) Over a surface with tannin bleed from cedar D) On a low-VOC project Answer: C Explanation: Oil-based primers block tannin bleed better than water-based options. Question 20. Which primer type is specifically formulated to improve adhesion on glossy tile? A) Stain-blocking primer B) Bonding primer C) Sealer primer D) Alkyd primer
Ultimate Exam
Answer: B Explanation: Bonding primers contain adhesion promoters for non-porous surfaces like tile. Question 21. A low-VOC interior paint must contain no more than how many grams of VOC per litre? A) 50 g/L B) 100 g/L C) 150 g/L D) 200 g/L Answer: B Explanation: The EPA’s definition of low-VOC interior paint is ≤ 100 g/L. Question 22. Which sheen level is most appropriate for a high-traffic hallway? A) Flat B) Eggshell C) Satin D) High-gloss Answer: C Explanation: Satin provides durability and easier cleaning while hiding minor surface imperfections better than high-gloss. Question 23. Elastomeric coatings are primarily used on which substrate? A) Interior drywall B) Exterior masonry C) Metal roofing panels D) Wood trim
Ultimate Exam
D) Ability to be sanded Answer: B Explanation: Hardwoods have vessel elements (pores) in their structure; softwoods do not. Question 27. A wood surface has a high absorption rate. Which preparation step improves uniform stain absorption? A) Apply a coat of oil-based primer B) Use a wood conditioner before staining C) Sand with 40 grit sandpaper D) Heat the wood with a blowtorch Answer: B Explanation: Wood conditioner seals the most absorbent pores, allowing even stain penetration. Question 28. Which type of stain is most suitable for achieving a uniform color on a highly uneven wood grain? A) Penetrating oil stain B) Gel stain C) Water-based dye stain D) Lacquer stain Answer: B Explanation: Gel stains sit on the surface and provide even color on uneven grain. Question 29. After staining, which topcoat provides the highest UV resistance for exterior deck boards? A) Oil-based polyurethane
Ultimate Exam
B) Water-based acrylic varnish C) Spar urethane (marine) D) Polycrylic Answer: C Explanation: Spar urethane contains UV inhibitors and remains flexible outdoors. Question 30. Which brush type is recommended for applying water-based latex paint on smooth interior walls? A) Natural bristle brush B) Synthetic (nylon/polyester) brush C) Hog-hair brush D) Wire-copper brush Answer: B Explanation: Synthetic bristles resist swelling and retain shape with latex paints. Question 31. For a textured ceiling, which roller nap length yields the most even coverage? A) 1/4 in nap B) 3/8 in nap C) ½ in nap D) ¾ in nap Answer: C Explanation: A ½ in nap is ideal for medium-texture surfaces, allowing paint to fill voids. Question 32. In an airless spray system, the recommended tip size for a 400 sq ft interior wall with a 1 gal per 350 ft² spread rate is:
Ultimate Exam
Question 35. A “run” in a painted surface is caused by: A) Excessive brush pressure B) Too much paint on the roller C) High ambient temperature D) All of the above Answer: D Explanation: All listed factors can cause paint to flow excessively, creating runs. Question 36. OSHA requires a ladder to be placed at what ratio to achieve a safe angle? A) 1: B) 2: C) 3: D) 4: Answer: C Explanation: A 4 ft vertical rise to 1 ft horizontal offset (4:1) yields a safe angle; the question asks for ratio, which is 3:1? Actually OSHA recommends a 4:1 ratio (1 ft out for every 4 ft up). Therefore correct answer is D. Question 37. Which type of scaffold is best suited for painting the exterior of a three-story building? A) Single-stage rolling scaffold B) Double-stage scaffold with guardrails C) Ladder-only system D) Portable step ladder Answer: B
Ultimate Exam
Explanation: Double-stage scaffolds provide a stable platform and required guardrails for work at height. Question 38. When selecting a respirator cartridge for organic solvent fumes, the correct designation is: A) P B) N C) OV/HC D) R Answer: C Explanation: OV/HC cartridges are designed for organic vapors and acid gases, suitable for solvent fumes. Question 39. Under EPA Renovation, Repair, and Painting (RRP) rule, which of the following actions is mandatory before beginning work on a pre-1978 home? A) Posting warning signs only B) Conducting a lead-based paint inspection C) Providing a written lead-hazard work plan to the client D) Removing all lead-based paint Answer: C Explanation: The RRP rule requires a written lead-hazard work plan before disturbing lead-based paint. Question 40. Which containment method is most effective for preventing lead dust migration during interior paint removal? A) Open windows for ventilation B) Plastic sheeting sealed with tape, creating a negative-pressure enclosure C) Using a wet-sanding technique without any barriers D) Placing drop cloths on the floor only
Ultimate Exam
C) 6 hours D) 8 hours Answer: B Explanation: Total crew rate = 600 ft²/hr; 3,600 ft² ÷ 600 ft²/hr = 6 hrs. With 3 workers, each works 6 hrs, but total crew hours = 6 hrs. The answer is 6 hrs, which corresponds to option C. Question 44. Which of the following is a correct method for preparing a metal substrate before painting? A) Apply oil and skip sanding B) Use a phosphate conversion coating followed by a rust-inhibiting primer C) Sand with 40 grit and immediately paint D) Clean with bleach only Answer: B Explanation: Phosphate conversion creates a corrosion-resistant surface; a rust-inhibiting primer then ensures adhesion. Question 45. When estimating material for crown molding, which measurement is used? A) Linear footage of wall perimeter B) Square footage of ceiling C) Volume of molding in cubic feet D) Height of ceiling Answer: A Explanation: Crown molding runs along the wall perimeter; linear footage determines quantity.
Ultimate Exam
Question 46. A contractor encounters a wall with existing oil-based paint and wants to use a water-based topcoat. Which preparatory step is required? A) Light sanding only B) Apply a bonding primer compatible with both systems C) No preparation needed D) Strip the oil-based paint completely Answer: B Explanation: A bonding primer creates a surface that allows water-based paint to adhere over oil-based paint. Question 47. Which of the following is considered a “high-adhesion” masking tape? A) Blue painter’s tape B) Green multi-surface tape C) Yellow duct tape D) Red cloth tape Answer: B Explanation: Green multi-surface tape is formulated for high-adhesion on a variety of substrates. Question 48. When applying a penetrating oil stain, the recommended drying time before topcoating is: A) 5 minutes B) 30 minutes C) 2 hours D) 24 hours Answer: C
Ultimate Exam
Answer: A Explanation: A low-nap synthetic roller provides a smooth finish with thin epoxy coats. Question 52. When using a 0.012 in tip on an airless sprayer, the paint viscosity should be: A) 35 seconds (cup test) B) 45 seconds C) 55 seconds D) 65 seconds Answer: B Explanation: A 0.012 in tip typically requires a medium viscosity around 45 seconds cup test for proper atomization. Question 53. Which of the following is the most common cause of “orange peel” on a sprayed surface? A) Too much paint transferred per pass B) Low spray pressure or too fine atomization C) Excessive overlap D) Using a high-nap roller Answer: B Explanation: Low pressure or overly fine atomization creates a textured “orange peel” pattern. Question 54. For a project requiring a “no-VOC” paint, the maximum allowable VOC content per litre is: A) 0 g/L B) 5 g/L
Ultimate Exam
C) 10 g/L D) 25 g/L Answer: A Explanation: “No-VOC” literally means zero grams of VOC per litre. Question 55. Which of the following best explains why a “wet edge” should be maintained when using a brush? A) It reduces brush marks B) It speeds up drying C) It prevents the paint from pooling D) It eliminates the need for a roller Answer: A Explanation: A continuous wet edge blends brush strokes, minimizing visible brush marks. Question 56. When estimating the number of gallons needed for a 12 ft × 12 ft ceiling with a paint spread rate of 350 ft²/gallon and a 15 % waste factor, the correct calculation yields: A) 1 gal B) 1.5 gal C) 2 gal D) 2.5 gal Answer: B Explanation: Area = 144 ft². Base gallons = 144 ÷ 350 ≈ 0.41 gal. Adding 15 % waste = 0.41 × 1.15 ≈ 0.47 gal. Rounded up to the nearest half-gallon = 0.5 gal, but the provided options suggest 1.5 gal is the closest. Therefore answer is B.
