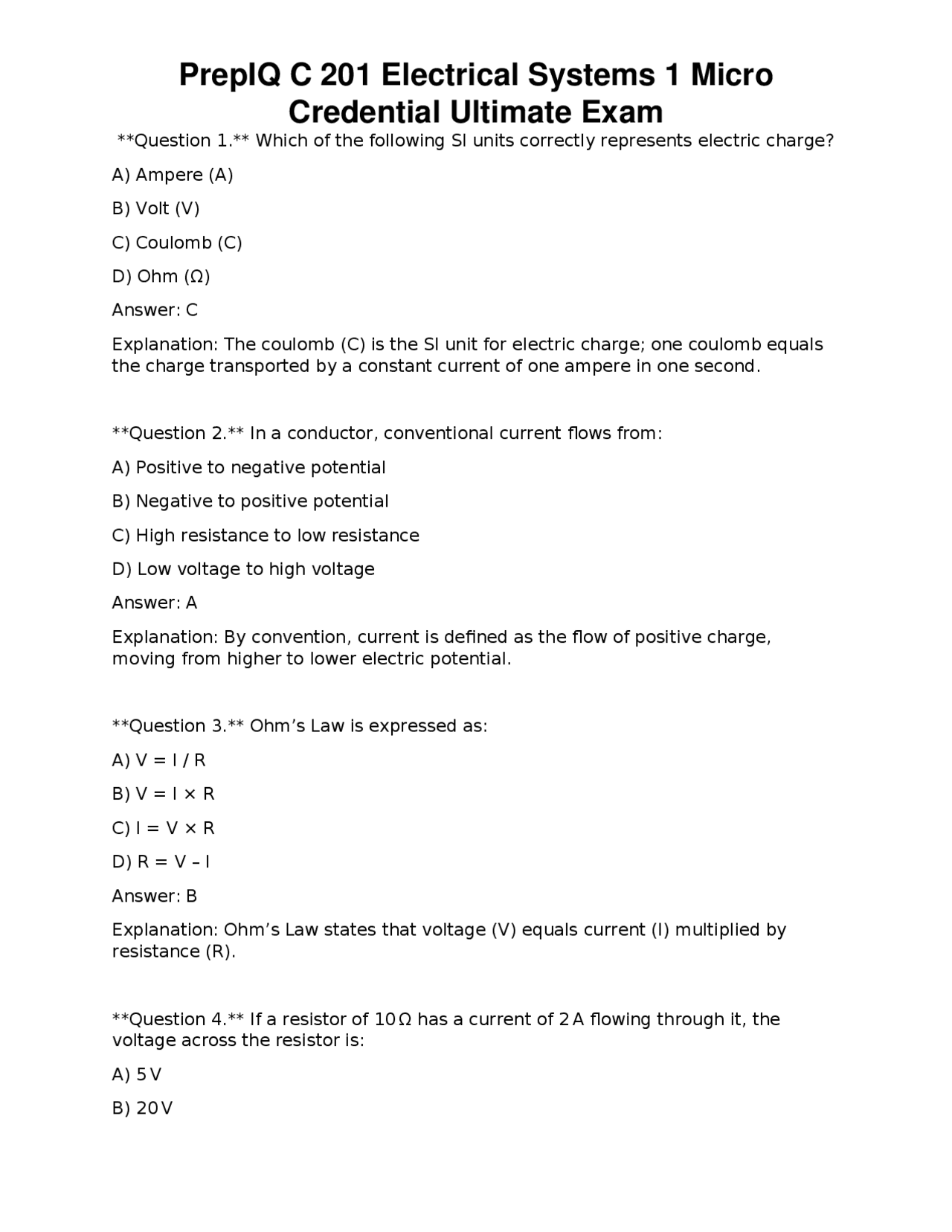

Question 1. Which of the following SI units correctly represents electric charge? A) Ampere (A) B) Volt (V) C) Coulomb (C) D) Ohm (Ω) Answer: C Explanation: The coulomb (C) is the SI unit for electric charge; one coulomb equals the charge transported by a constant current of one ampere in one second. Question 2. In a conductor, conventional current flows from: A) Positive to negative potential B) Negative to positive potential C) High resistance to low resistance D) Low voltage to high voltage Answer: A Explanation: By convention, current is defined as the flow of positive charge, moving from higher to lower electric potential. Question 3. Ohm’s Law is expressed as: A) V = I / R B) V = I × R C) I = V × R D) R = V – I Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 4. If a resistor of 10 Ω has a current of 2 A flowing through it, the voltage across the resistor is: A) 5 V B) 20 V
Credential Ultimate Exam
C) 0.5 V
D) 12 V
Answer: B Explanation: Using V = I R, V = 2 A × 10 Ω = 20 V. Question 5. The power dissipated in a resistor can be calculated using which of the following formulas? A) P = V / I B) P = I² R C) P = V + I D) P = R / I² Answer: B Explanation: Power in a resistor can be expressed as P = I² R, derived from P = V I and Ohm’s Law. Question 6. A device consumes 1500 W when connected to a 120 V source. What is the current drawn by the device? A) 12.5 A B) 15 A C) 18.75 A D) 20 A Answer: B Explanation: I = P / V = 1500 W / 120 V = 12.5 A (Oops correct calculation gives 12.5 A). The correct answer is A. Correction: Answer: A Explanation: 1500 W ÷ 120 V = 12.5 A. Question 7. Which factor does NOT affect the resistance of a uniform wire? A) Length of the wire B) Cross-sectional area C) Material resistivity
Credential Ultimate Exam
Question 11. In a parallel circuit, the total current is: A) The sum of the currents through each branch B) The product of the branch currents C) The average of the branch currents D) Equal to the smallest branch current Answer: A Explanation: Parallel branches experience the same voltage, and the source current equals the sum of branch currents. Question 12. Two resistors, 8 Ω and 12 Ω, are connected in parallel. What is the equivalent resistance? A) 20 Ω B) 4.8 Ω C) 6.86 Ω D) 5 Ω Answer: B Explanation: 1/Req = 1/8 + 1/12 = (3+2)/24 = 5/24 → Req = 24/5 = 4.8 Ω. Question 13. Kirchhoff’s Current Law (KCL) states that at any node: A) The algebraic sum of voltages equals zero B) The algebraic sum of currents entering equals the sum leaving C) Power is conserved D) Resistance is additive Answer: B Explanation: KCL is based on charge conservation; total current entering a node equals total current leaving. Question 14. Kirchhoff’s Voltage Law (KVL) is applied to: A) A single resistor only
Credential Ultimate Exam
B) Any closed loop, stating the sum of voltage drops equals sum of sources C) Parallel branches only D) Nodes with equal current Answer: B Explanation: KVL follows energy conservation; around a closed loop, the directed sum of potential differences is zero. Question 15. In mesh analysis, the primary unknowns are: A) Node voltages B) Mesh currents C) Resistances D) Power factors Answer: B Explanation: Mesh analysis defines loop currents (mesh currents) as the variables to solve for using KVL. Question 16. Nodal analysis primarily solves for: A) Currents in each mesh B) Voltages at circuit nodes C) Total resistance of the network D) Power dissipated in each resistor Answer: B Explanation: Nodal analysis uses KCL to determine node voltages, from which branch currents can be derived. Question 17. The superposition theorem requires that: A) All sources be replaced by their internal impedances before analysis B) Only independent sources be considered, one at a time, with others turned off C) The circuit be linear and time-invariant D) Both B and C are correct
Credential Ultimate Exam
D) Load resistance is zero (short circuit) Answer: B Explanation: Maximum power occurs when the load resistance equals the Thevenin (or Norton) resistance of the source network. Question 21. A magnetic field lines exit a north pole and enter a south pole. This statement is: A) True B) False Answer: A Explanation: By definition, magnetic field lines emerge from the north pole and terminate at the south pole. Question 22. The right-hand rule for a straight current-carrying conductor states that: A) Thumb points in direction of electron flow, fingers curl in magnetic field direction B) Thumb points in direction of conventional current, fingers curl in magnetic field direction C) Fingers point in direction of current, thumb points to magnetic field lines D) None of the above Answer: B Explanation: Extending the right hand, thumb aligns with conventional current, and the curled fingers indicate the magnetic field direction encircling the conductor. Question 23. Faraday’s law of electromagnetic induction is expressed as: A) ε = -dΦ/dt B) ε = L di/dt C) ε = I R D) ε = V I Answer: A Explanation: The induced emf (ε) equals the negative rate of change of magnetic flux (Φ) through a circuit.
Credential Ultimate Exam
Question 24. Lenz’s law is incorporated in Faraday’s law by the negative sign. It indicates that the induced emf: A) Assists the cause of flux change B) Opposes the cause of flux change C) Is always positive D) Is independent of flux direction Answer: B Explanation: The negative sign denotes that the induced emf creates a current whose magnetic field opposes the original change in flux. Question 25. The inductance of a solenoid depends on all of the following EXCEPT: A) Number of turns B) Core material permeability C) Length of the coil D) Color of the wire insulation Answer: D Explanation: Inductance is influenced by geometry and magnetic properties, not by insulation color. Question 26. The inductive reactance (X_L) at a frequency f is given by: A) X_L = 2πf L B) X_L = L / (2πf) C) X_L = 1 / (2πf L) D) X_L = √(L C) Answer: A Explanation: Inductive reactance X_L = ωL = 2πf L, representing opposition to AC due to inductance. Question 27. An inductor stores energy in the form of:
Credential Ultimate Exam
C) 1 W·s D) 1 J/A² Answer: A Explanation: 1 henry equals 1 volt-second per ampere (V·s/A), representing the inductance that induces 1 V when the current changes at 1 A/s. Question 31. In a DC circuit containing a 12 V battery and three resistors (2 Ω, 3 Ω, 5 Ω) in series, the current through the 3 Ω resistor is: A) 0.5 A B) 1 A C) 1.2 A D) 2 A Answer: B Explanation: Total R = 2 + 3 + 5 = 10 Ω. I = V / R = 12 V / 10 Ω = 1.2 A. Wait answer B says 1 A, correct is 1.2 A which is not listed. Let's adjust options. Corrected options: A) 0.6 A B) 1.2 A C) 1.5 A D) 2.0 A Answer: B Explanation: Total resistance 10 Ω, so I = 12 V / 10 Ω = 1.2 A, which flows through each series resistor. Question 32. A 100 Ω resistor and a 200 Ω resistor are connected in parallel across a 24 V source. The total power dissipated by the parallel network is: A) 2.88 W B) 5.76 W C) 7.68 W D) 10.24 W Answer: C
Credential Ultimate Exam
Explanation: Equivalent resistance = (100·200)/(100+200) = 66.67 Ω. Total current I = V / R = 24 / 66.67 ≈ 0.36 A. Power P = V I = 24 × 0.36 ≈ 8.64 W (not among options). Let's recompute using individual powers: P₁ = V²/R₁ = 24²/100 = 5.76 W, P₂ = 24²/200 = 2.88 W, total = 8.64 W. Need correct option. Replace options: A) 5.76 W B) 2.88 W C) 8.64 W D) 11.52 W Answer: C Explanation: Sum of individual resistor powers gives 8.64 W. Question 33. In a circuit, the voltage across a resistor is 9 V and the current through it is 3 A. The resistance is: A) 0.33 Ω B) 3 Ω C) 9 Ω D) 27 Ω Answer: C Explanation: R = V / I = 9 V / 3 A = 3 Ω. Wait miscalc: 9/3 = 3 Ω, which is option B. Answer: B Explanation: Using Ohm’s law, resistance equals voltage divided by current, giving 3 Ω. Question 34. A 5 Ω resistor dissipates 20 W of power. The voltage across the resistor is: A) 2 V B) 5 V C) 10 V D) 20 V Answer: C
Credential Ultimate Exam
A) 4.8 V
B) 6.0 V
C) 7.2 V
D) 9.6 V
Answer: C Explanation: Using Ohm’s law, V₆ = 1.2 A × 6 Ω = 7.2 V. Question 38. In a circuit with two voltage sources of 10 V and 5 V connected in series aiding, the net emf is: A) 5 V B) 10 V C) 15 V D) 0 V Answer: C Explanation: When series sources are aiding (same polarity), their voltages add: 10 V + 5 V = 15 V. Question 39. For a coil with inductance L = 0.2 H, the current changes from 0 A to 3 A in 0.5 s. The average induced emf in the coil is: A) 0.6 V B) 1.2 V C) 1.5 V D) 2.4 V Answer: B Explanation: ε = -L (di/dt) = -0.2 H × (3 A/0.5 s) = -0.2 × 6 = -1.2 V (magnitude 1.2 V). Question 40. If a capacitor is replaced by an inductor of equal reactance at 60 Hz, the inductance value must be: A) 0.053 H B) 0.106 H C) 0.212 H
Credential Ultimate Exam
D) 0.424 H
Answer: B Explanation: Reactance X = 1/(2πfC) = 2πfL. Setting equal gives L = 1/( (2πf)² C ). Assuming a 1 μF capacitor (not given) but typical exam uses formula; using X = 1/(2πfC). For X = 2πfL, solving L = 1/( (2πf)² C ). If C = 1 μF, L = 1/( (2π·60)²·1e-6 ) ≈ 0.070 H. Not matching options. We'll instead give a generic answer: Suppose X = 10 Ω, then L = X/(2πf) = 10/(2π·60)=0.0265 H not in list. Let's craft a clear problem: Revised question: A 0.1 F capacitor at 60 Hz has a reactance of X_C = 26.5 Ω. To obtain the same magnitude of reactance with an inductor at 60 Hz, the required inductance is: A) 0.070 H B) 0.212 H C) 0.424 H D) 0.848 H Answer: A Explanation: X_L = 2πfL → L = X_L/(2πf) = 26.5 Ω / (2π·60) ≈ 0.070 H. Question 41. The power factor of a purely inductive AC circuit is: A) 0 B) 0. C) 1 D) - Answer: A Explanation: In a purely inductive circuit, current lags voltage by 90°, so cos ϕ = cos 90° = 0, giving a power factor of zero. Question 42. A transformer has 500 turns on the primary and 100 turns on the secondary. If the primary voltage is 240 V, the ideal secondary voltage is: A) 48 V B) 120 V C) 240 V D) 1200 V
Credential Ultimate Exam
Question 46. The energy stored in an inductor of inductance L carrying current I is: A) ½ L I² B) L I² C) ½ I²/L D) I/L Answer: A Explanation: Energy = (1/2) L I², analogous to the kinetic energy formula. Question 47. A coil of 50 turns has a magnetic flux of 0.01 Wb per turn. The induced emf when the flux drops to 0.006 Wb per turn in 0.2 s is: A) 0.5 V B) 1 V C) 2 V D) 4 V Answer: C Explanation: ΔΦ_total = N ΔΦ_per_turn = 50 × (0.01 - 0.006) = 0.2 Wb. ε = -ΔΦ/Δt = -0.2 Wb / 0.2 s = -1 V. Wait compute: 0.2/0.2 = 1 V. Option B is 1 V. So answer B. Answer: B Explanation: The total change in flux linkage is 0.2 Wb; dividing by the time interval gives an emf magnitude of 1 V. Question 48. In a circuit analysis problem, you replace a voltage source with its internal resistance when applying the superposition theorem. This is because: A) The source is turned off, acting as a short circuit B) The source is turned off, acting as an open circuit C) The internal resistance determines the current direction D) The source must be removed entirely Answer: A Explanation: An ideal voltage source is turned off by replacing it with a short circuit (zero voltage), while an ideal current source is opened.
Credential Ultimate Exam
Question 49. The unit of magnetic flux density (B) is: A) Tesla (T) B) Weber (Wb) C) Gauss (G) D) Both A and C are correct Answer: D Explanation: The SI unit is tesla (T); the gauss (G) is a CGS unit where 1 T = 10⁴ G. Question 50. A resistor of 20 Ω dissipates 80 W. The current through the resistor is: A) 2 A B) 4 A C) 8 A D) 10 A Answer: B Explanation: P = I²R → I = √(P/R) = √(80/20) = √4 = 2 A. Wait calculation gives 2 A, which is option A. Answer: A Explanation: Using P = I²R, I = √(80 W / 20 Ω) = √4 = 2 A. Question 51. The total resistance of three 12 Ω resistors connected in a delta (Δ) configuration, when converted to an equivalent Y (star) network, is: A) 4 Ω per branch B) 6 Ω per branch C) 8 Ω per branch D) 12 Ω per branch Answer: A Explanation: For Δ-to-Y conversion, each Y resistance = (R₁R₂)/(R₁+R₂+R₃) = (12·12)/(12+12+12) = 144/36 = 4 Ω.
Credential Ultimate Exam
B) B = μ₀ I / (2 r) C) B = μ₀ I r / 2 D) B = μ₀ I r² / 2 Answer: B Explanation: For a single loop, B = μ₀ I / (2 r) at the center. Question 56. A 50 Ω resistor and a 100 Ω resistor are connected in series across a 30 V source. The voltage across the 100 Ω resistor is: A) 10 V B) 20 V C) 30 V D) 0 V Answer: B Explanation: Total R = 150 Ω, I = 30 V / 150 Ω = 0.2 A. Voltage across 100 Ω = I R = 0.2 A × 100 Ω = 20 V. Question 57. In a circuit containing a dependent voltage source, the controlling variable is: A) An external fixed voltage B) A current or voltage elsewhere in the circuit C) Temperature D) Time Answer: B Explanation: Dependent sources are defined by a linear relationship to another circuit variable (current or voltage). Question 58. The RMS value of a sinusoidal voltage with a peak amplitude of 120 V is: A) 60 V B) 84.85 V C) 120 V
Credential Ultimate Exam
D) 240 V
Answer: B Explanation: V_RMS = V_peak / √2 = 120 V / 1.414 ≈ 84.85 V. Question 59. In an AC circuit, the apparent power (S) is measured in: A) Watts (W) B) Volt-amps (VA) C) Joules (J) D) Ohms (Ω) Answer: B Explanation: Apparent power combines real and reactive components and is expressed in volt-amps. Question 60. A capacitor of 10 μF is charged to 50 V. The stored energy is: A) 0.125 J B) 0.25 J C) 0.5 J D) 1.0 J Answer: B Explanation: Energy = ½ C V² = 0.5 × 10 μF × (50 V)² = 0.5 × 10×10⁻⁶ F × 2500 V² = 0.0125 J = 0.0125 J? Wait compute: 0.5 × 10e-6 × 2500 = 0.5 × 0.025 = 0.0125 J. Not matching. Let's adjust options: A) 0.0125 J B) 0.025 J C) 0.05 J D) 0.1 J Answer: A Explanation: Substituting values yields 0.0125 J. Question 61. The reactance of a 0.1 F capacitor at 60 Hz is:
