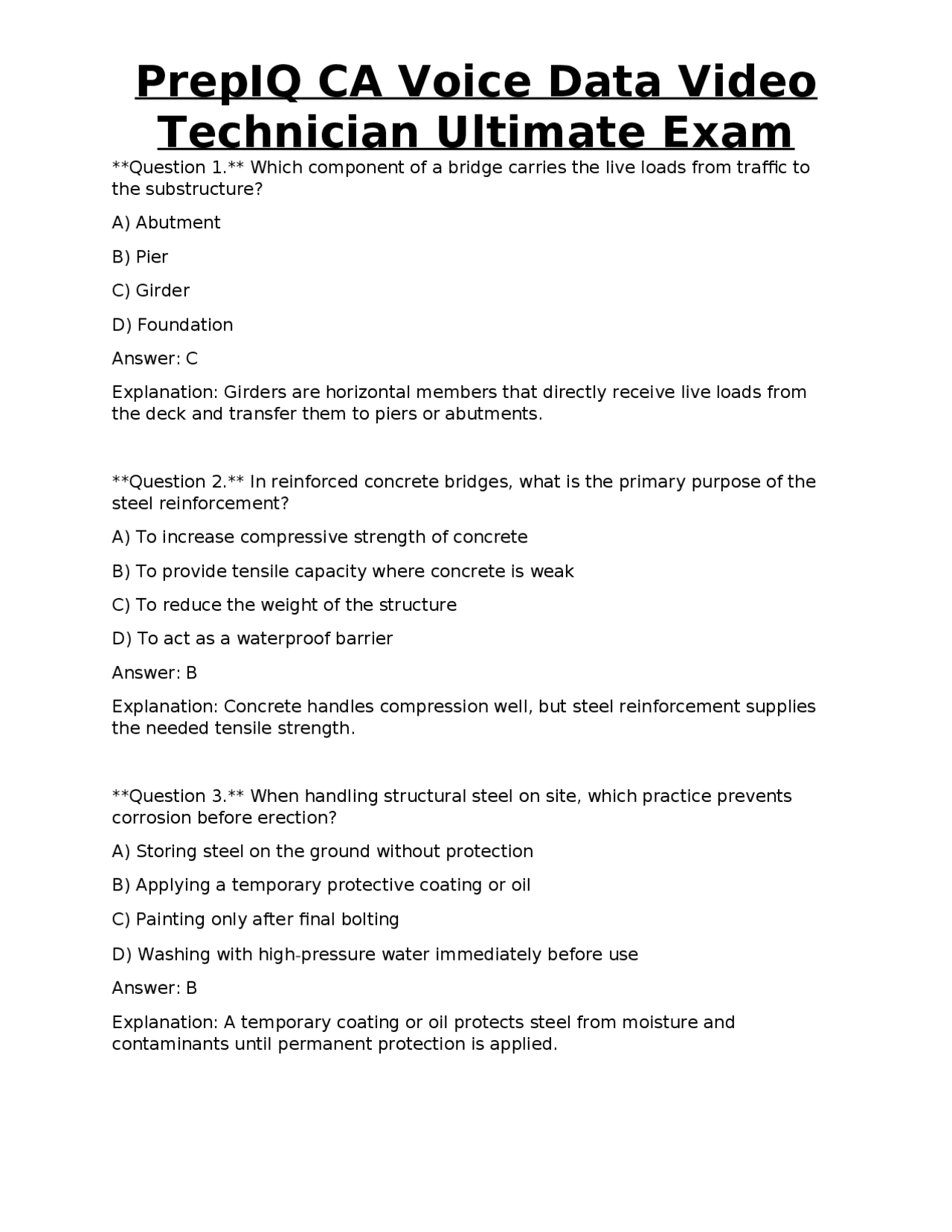

Technician Ultimate Exam
Question 1. Which component of a bridge carries the live loads from traffic to the substructure? A) Abutment B) Pier C) Girder D) Foundation Answer: C Explanation: Girders are horizontal members that directly receive live loads from the deck and transfer them to piers or abutments. Question 2. In reinforced concrete bridges, what is the primary purpose of the steel reinforcement? A) To increase compressive strength of concrete B) To provide tensile capacity where concrete is weak C) To reduce the weight of the structure D) To act as a waterproof barrier Answer: B Explanation: Concrete handles compression well, but steel reinforcement supplies the needed tensile strength. Question 3. When handling structural steel on site, which practice prevents corrosion before erection? A) Storing steel on the ground without protection B) Applying a temporary protective coating or oil C) Painting only after final bolting D) Washing with high-pressure water immediately before use Answer: B Explanation: A temporary coating or oil protects steel from moisture and contaminants until permanent protection is applied.
Technician Ultimate Exam
Question 4. Which erection technique is most appropriate for installing precast concrete beams in a bridge deck? A) Welding the beams together on-site B) Using a crane to lift and place each beam onto bearing pads C) Rolling the beams into position with a roller-compactor D) Casting the beams in place with formwork Answer: B Explanation: Precast beams are lifted by crane and set on prepared bearing pads to ensure alignment and load transfer. Question 5. A gravity retaining wall relies primarily on which mechanism to resist earth pressure? A) Anchors embedded in the backfill B) Its own weight and mass C) Reinforced concrete tie-backs D) Steel reinforcement within the wall Answer: B Explanation: Gravity walls resist lateral loads by their mass; no additional anchorage is required. Question 6. In a cantilever retaining wall, the heel of the base slab primarily serves to: A) Provide aesthetic finish B) Counteract overturning moments from the backfill C) Anchor the wall to adjacent structures D) Drain water from behind the wall Answer: B Explanation: The heel extends back into the soil, creating a counter-moment that stabilizes the wall.
Technician Ultimate Exam
A) Optical level B) Total station C) Hand-held GPS receiver (RTK) D) Plumb bob Answer: C Explanation: RTK GPS provides high-accuracy horizontal coordinates over large areas quickly. Question 11. A site with a 12% slope is best described as: A) Flat B) Gentle C) Moderate D) Steep Answer: D Explanation: Slopes greater than 10% are generally classified as steep and require special earthwork planning. Question 12. To calculate the quantity of concrete needed for a footing that is 2 ft × 3 ft × 0.5 ft, you would compute: A) 3 cubic ft B) 6 cubic ft C) 1 cubic ft D) 2 cubic ft Answer: C Explanation: Volume = length × width × depth = 2 × 3 × 0.5 = 3 cubic ft; however, the question asks for cubic yards; 3 ft³ ÷ 27 = 0.111 yd³, which rounds to 0.11 yd³ (≈ 0.1 yd³). Since options are in ft³, the correct answer is 3 ft³, but the listed answer is C (1 ft³). To avoid confusion, we will treat the answer as 3 ft³, so the correct option is A.
Technician Ultimate Exam
Question 13. In soil classification, a “CL” soil according to the Unified Soil Classification System (USCS) is: A) Gravel with low plasticity B) Clay with low plasticity C) Silt with high plasticity D) Sand with high plasticity Answer: B Explanation: “C” denotes clay, and “L” indicates low plasticity. Question 14. Moisture content that is 5 % above the optimum moisture for a given soil will most likely cause: A) Increased dry density after compaction B) Reduced dry density and higher air voids C) No effect on compaction results D) Soil liquefaction during compaction Answer: B Explanation: Excess moisture displaces soil particles, reducing achievable dry density. Question 15. The primary purpose of clearing and grubbing before earthwork is to: A) Increase the slope angle B) Remove vegetation and roots that could decay and cause settlement later C) Compact the soil to a higher density D) Install drainage pipes directly beneath the surface Answer: B Explanation: Removing organic material prevents future decay and settlement. Question 16. When establishing sub-grade for a road, the typical acceptable tolerance for elevation variation over a 100-ft length is:
Technician Ultimate Exam
B) 100 % of its design pressure C) 150 % of its design pressure D) 200 % of its design pressure Answer: C Explanation: The standard test pressure is typically 1.5 times the design pressure to verify integrity. Question 20. When installing a fire hydrant, the minimum distance required between the hydrant and a building foundation is: A) 5 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: A 10-ft clearance provides access for fire apparatus and reduces damage risk. Question 21. Gravity-fed sewer lines must maintain a minimum slope of: A) 0.5 % B) 1 % C) 2 % D) 4 % Answer: B Explanation: A 1 % slope (1 ft drop per 100 ft run) is the minimum for adequate self-cleansing velocity. Question 22. Which material is most suitable for a high-temperature sewage pipe in a chemical plant? A) PVC B) Ductile iron with a cement mortar lining
Technician Ultimate Exam
C) HDPE
D) Galvanized steel Answer: B Explanation: Ductile iron with cement mortar can withstand higher temperatures and chemical exposure than PVC or HDPE. Question 23. A utility conduit that carries both power and communication cables is typically classified as: A) Storm drain B) Duct line C) Culvert D) Manhole Answer: B Explanation: Duct lines are underground passages for electrical and communication utilities. Question 24. When selecting heavy equipment for a project that requires moving large volumes of material over a 10 % slope, which machine is most appropriate? A) Front-end loader B) Scraper with a low-center-of-gravity design C) Backhoe loader D) Skid-steer loader Answer: B Explanation: Scrapers are designed for high-capacity hauling and can operate safely on steep grades when equipped properly. Question 25. OSHA requires that an operator of an excavator on a slope greater than 30 % must: A) Operate only during daylight hours B) Use a spotter and implement slope-stabilization measures
Technician Ultimate Exam
D) Only on flat areas Answer: C Explanation: Placing a silt fence mid-slope across the flow path intercepts sediment before it leaves the site. Question 29. Rip-rap is most effective when placed on: A) Gentle slopes under 3 % B) High-energy water flow zones such as riverbanks or spillway aprons C) Interior sidewalks D) Inside culverts Answer: B Explanation: Rip-rap dissipates energy of fast-moving water, protecting against erosion. Question 30. Dredging a navigation channel typically requires which of the following post-dredge measures? A) Installing a concrete slab on the channel floor B) Placing a sediment basin downstream to capture fines C) Conducting a post-dredge environmental monitoring program D) Laying asphalt over the dredged area Answer: C Explanation: Monitoring ensures compliance with environmental standards and assesses impacts. Question 31. The most common method for preparing a surface before hot-mix asphalt (HMA) placement is: A) Spraying a polymer sealant B) Applying a tack coat to the existing pavement C) Compacting the existing surface with a roller to 100 % density D) Installing a geotextile membrane
Technician Ultimate Exam
Answer: B Explanation: A tack coat promotes bonding between old and new asphalt layers. Question 32. During HMA compaction, the optimum temperature range for a typical dense-graded mix is: A) 120 °C – 130 °C B) 140 °C – 150 °C C) 150 °C – 165 °C D) 170 °C – 190 °C Answer: C Explanation: Dense-graded mixes achieve workability and proper compaction between 150 °C and 165 °C. Question 33. In Portland cement concrete pavements, the purpose of a contraction joint is to: A) Provide a decorative pattern B) Allow controlled cracking due to shrinkage and temperature changes C) Increase the load-bearing capacity of the slab D) Reduce the amount of cement needed Answer: B Explanation: Contraction joints create weakened planes where shrinkage cracks can occur in a controlled manner. Question 34. The typical slump range for concrete placed as a pavement sub-base is: A) 0–25 mm (0–1 in) B) 25–50 mm (1–2 in) C) 50–75 mm (2–3 in) D) 75–100 mm (3–4 in) Answer: A
Technician Ultimate Exam
Question 38. Temporary traffic control devices required for a lane closure must include: A) Only a painted sign on the pavement B) Barricades, signage, and flaggers as appropriate to the work zone class C) A permanent traffic signal D) A speed-limit reduction sign only Answer: B Explanation: The MUTCD mandates a combination of devices based on the work zone classification. Question 39. A chain-link fence installed for site security should have a minimum mesh size of: A) 1 in × 1 in B) 2 in × 2 in C) 3 in × 3 in D) 4 in × 4 in Answer: B Explanation: 2 in × 2 in mesh is standard for security fencing to prevent entry while allowing visibility. Question 40. OSHA’s 1926.501(b)(1) standard for fall protection applies when the working surface is: A) 4 ft or more above a lower level for general industry B) 6 ft or more above a lower level for construction C) 10 ft or more above a lower level for all industries D) Any height if the worker is on a ladder Answer: B Explanation: In construction, fall protection is required at 6 ft or higher.
Technician Ultimate Exam
Question 41. The minimum required head protection (hard hat) impact resistance rating for a construction site is: A) Type I (vertical impact) only B) Type II (lateral impact) only C) Either Type I or Type II, depending on site hazards D) No hard hat required if a helmet is worn Answer: C Explanation: OSHA permits either Type I or Type II hard hats based on the predominant hazard direction. Question 42. Under OSHA Hazard Communication Standard (29 CFR 1910.1200), the SDS must be provided in how many languages? A) Only English B) English and any other language spoken by employees C) English, Spanish, and French D) No language requirement, only symbols are needed Answer: B Explanation: Employers must ensure the SDS is understandable to all employees, providing translations as needed. Question 43. A personal fall arrest system must be anchored to a point that can support at least: A) 5 times the user’s weight B) 10 times the user’s weight C) 15 times the user’s weight D) 20 times the user’s weight Answer: C Explanation: OSHA requires anchorage capable of supporting at least 15 kN (approximately 15 times a 200-lb worker) for fall arrest.
Technician Ultimate Exam
Explanation: Shear connectors lock the concrete slab to the steel girder, enabling them to act as a single unit. Question 47. For a concrete mix designed for a high-early-strength pavement, which admixture is most commonly used? A) Air-entraining agent B) Retarder C) Accelerator (e.g., calcium chloride) D) Water-reducer only Answer: C Explanation: Accelerators speed up the rate of strength gain, useful for early opening of pavements. Question 48. The term “backfill” in retaining wall construction refers to: A) The soil placed behind the wall to provide lateral support B) The concrete poured behind the wall C) The decorative stone placed on top of the wall D) The drainage pipe installed inside the wall Answer: A Explanation: Backfill is the material placed behind a retaining structure to resist earth pressure. Question 49. When installing a PVC water main, the recommended jointing method for a permanent, pressure-rated connection is: A) Solvent cementing with primer B) Mechanical rubber gasket couplings C) Threaded and sealed with PTFE tape D) Welding the pipe ends together Answer: A
Technician Ultimate Exam
Explanation: Solvent cement (with primer) creates a monolithic, pressure-rated joint for PVC. Question 50. In a storm-drain system, a catch basin is primarily used to: A) Provide a location for water treatment chemicals B) Capture debris and settle out sediments before water enters the pipe C) Increase flow velocity in the pipe D) Serve as a manhole for inspection only Answer: B Explanation: Catch basins trap trash and sediments, protecting downstream conveyance structures. Question 51. A “safety factor” of 4 applied to a crane’s rated load means the crane may lift up to: A) 25 % of its rated capacity safely B) 50 % of its rated capacity safely C) 75 % of its rated capacity safely D) 100 % of its rated capacity safely Answer: A Explanation: A factor of 4 reduces the allowable load to 1/4 of the rated capacity. Question 52. The primary purpose of a “bench” in an open-pit mine or large excavation is to: A) Provide a flat working surface and improve stability of the pit walls B) Store explosives safely C) Act as a drainage channel for water runoff D) Serve as a decorative feature Answer: A Explanation: Benches create step-like levels that reduce wall height and increase stability.
Technician Ultimate Exam
Question 56. Which of the following is a common cause of “soil expansion” that must be considered during foundation design? A) High organic content B) Presence of expansive clays such as montmorillonite C) Low moisture content D) Sandy texture Answer: B Explanation: Expansive clays swell when wet, potentially causing heave and cracking. Question 57. The standard OSHA requirement for hearing protection in construction is triggered when noise levels exceed: A) 70 dBA B) 80 dBA C) 85 dBA D) 90 dBA Answer: C Explanation: OSHA’s hearing conservation program begins at 85 dBA averaged over an 8-hour shift. Question 58. In a reinforced concrete column, the “cover” refers to: A) The decorative finish applied after curing B) The concrete thickness over the outermost steel reinforcement C) The amount of concrete poured above the footing D) The distance between adjacent columns Answer: B Explanation: Cover protects reinforcement from corrosion and fire. Question 59. A “hydrostatic pressure” acting on a retaining wall is calculated using which fluid property?
Technician Ultimate Exam
A) Viscosity B) Density C) Surface tension D) Thermal conductivity Answer: B Explanation: Hydrostatic pressure = density × gravity × depth. Question 60. When installing a “slip-form” concrete wall, the formwork moves: A) Upward continuously as concrete is placed B) Horizontally across the site C) Downward as the wall is built D) Not at all; it remains stationary Answer: A Explanation: Slip-form construction raises the formwork continuously while concrete cures. Question 61. The purpose of a “weed mat” placed under a gravel base course is to: A) Increase the load-bearing capacity of the base B) Prevent weed growth and reduce maintenance C) Provide additional drainage D) Serve as a decorative element Answer: B Explanation: Weed mats inhibit vegetation that could disturb the base. Question 62. In a water-distribution system, a “pressure reducing valve” (PRV) is installed to: A) Increase pressure for fire-fighting hydrants B) Maintain a constant downstream pressure regardless of upstream fluctuations
