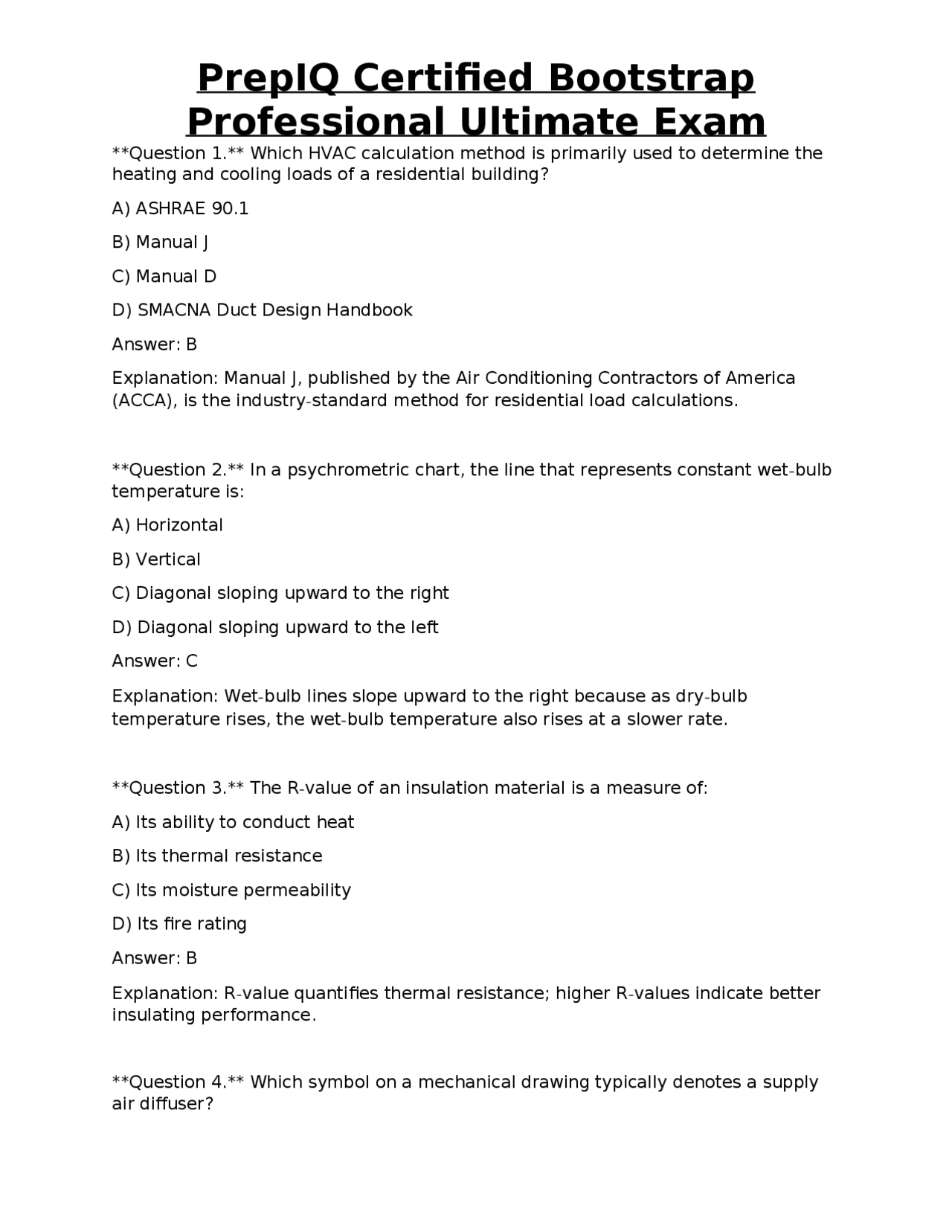

Professional Ultimate Exam
Question 1. Which HVAC calculation method is primarily used to determine the heating and cooling loads of a residential building? A) ASHRAE 90. B) Manual J C) Manual D D) SMACNA Duct Design Handbook Answer: B Explanation: Manual J, published by the Air Conditioning Contractors of America (ACCA), is the industry-standard method for residential load calculations. Question 2. In a psychrometric chart, the line that represents constant wet-bulb temperature is: A) Horizontal B) Vertical C) Diagonal sloping upward to the right D) Diagonal sloping upward to the left Answer: C Explanation: Wet-bulb lines slope upward to the right because as dry-bulb temperature rises, the wet-bulb temperature also rises at a slower rate. Question 3. The R-value of an insulation material is a measure of: A) Its ability to conduct heat B) Its thermal resistance C) Its moisture permeability D) Its fire rating Answer: B Explanation: R-value quantifies thermal resistance; higher R-values indicate better insulating performance. Question 4. Which symbol on a mechanical drawing typically denotes a supply air diffuser?
Professional Ultimate Exam
A) Circle with a “+” inside B) Square with a dotted line C) Triangle pointing upward D) Circle with a “–” inside Answer: C Explanation: A triangle pointing upward is the standard symbol for a supply diffuser in HVAC schematics. Question 5. When interpreting an equipment schedule, the term “CFM” refers to: A) Cubic feet per minute of airflow B) Centrifugal fan motor size C) Coefficient of friction for ducts D) Condensate flow measurement Answer: A Explanation: CFM stands for cubic feet per minute, indicating the volume of air a unit moves. Question 6. Which factor has the greatest impact on reducing cooling load in a south-facing residential wall? A) Adding interior insulation B) Installing low-E double-pane windows C) Painting the exterior white D) Increasing ceiling height Answer: B Explanation: Low-E double-pane windows significantly reduce solar heat gain, directly lowering cooling load. Question 7. In Manual D duct sizing, the “equal friction” method assumes: A) Constant pressure loss per unit length of duct
Professional Ultimate Exam
D) Over-sizing the duct Answer: B Explanation: Mastic sealant provides a durable, airtight seal superior to duct tape, which can degrade over time. Question 11. Which component is responsible for controlling the amount of return air entering a forced-air system? A) Supply diffuser B) Return grille with damper C) Thermostat D) Condensate pump Answer: B Explanation: Return grilles often incorporate dampers to regulate the volume of return airflow. Question 12. In HVAC cleaning standards, the term “biological contaminant” most commonly refers to: A) Dust particles B) Mold spores C) Fiberglass fibers D) Oil residues Answer: B Explanation: Mold spores are a primary biological contaminant addressed during duct cleaning. Question 13. Which EPA regulation requires HVAC technicians to be certified for refrigerant recovery? A) Clean Air Act Section 608 B) Resource Conservation and Recovery Act (RCRA) C) Toxic Substances Control Act (TSCA) D) Occupational Safety and Health Act (OSHA)
Professional Ultimate Exam
Answer: A Explanation: EPA Section 608 of the Clean Air Act governs refrigerant handling and certification. Question 14. The most common method for detecting a refrigerant leak in a low-pressure system is: A) Visual inspection of oil stains B) Bubble solution test C) Infrared thermography D) Ultrasonic detector Answer: B Explanation: Applying a soapy bubble solution to joints reveals leaks through bubble formation. Question 15. In a vapor-compression cycle, the component where the refrigerant absorbs heat from indoor air is: A) Compressor B) Condenser coil C) Evaporator coil D) Expansion valve Answer: C Explanation: The evaporator coil allows low-pressure refrigerant to evaporate, absorbing heat from the indoor air. Question 16. When servicing a gas furnace, the primary purpose of a pressure-switch is to: A) Control thermostat setpoint B) Verify proper airflow before ignition C) Regulate gas valve opening D) Measure indoor temperature Answer: B
Professional Ultimate Exam
Question 20. Which instrument is most appropriate for measuring fan motor voltage and current simultaneously? A) Thermometer B) Manifold gauge set C) Clamp-on ammeter with multimeter D) Psychrometer Answer: C Explanation: A clamp-on ammeter combined with a multimeter can safely measure voltage and current on a motor circuit. Question 21. When reading a ladder diagram, a normally open (NO) contact is represented by: A) A solid line with a break B) A dash-dot line C) Two parallel lines with a gap D) A circle with a slash Answer: C Explanation: In ladder diagrams, a normally open contact is shown as two parallel lines with a gap between them. Question 22. The purpose of a start-capacitor in a single-phase fan motor is to: A) Increase running efficiency B) Provide a phase shift for starting torque C) Reduce electrical noise D) Protect against over-current Answer: B Explanation: A start capacitor creates a phase shift, producing the necessary starting torque for single-phase motors. Question 23. Which wire size is appropriate for a 30 A branch circuit feeding a 5 HP compressor?
Professional Ultimate Exam
A) 14 AWG
B) 12 AWG
C) 10 AWG
D) 8 AWG
Answer: C Explanation: NEC Table 310.15(B)(16) requires at least 10 AWG copper for a 30 A circuit, providing adequate ampacity and voltage drop margin. Question 24. In refrigerant line sizing, the term “equal pressure drop” refers to: A) Same pressure loss on both suction and liquid sides B) Identical pressure loss per foot of pipe on each side C) Equalizing pressure between high-side and low-side valves D) Maintaining a constant pressure throughout the system Answer: B Explanation: Equal pressure drop design ensures each side of the circuit experiences similar pressure loss per unit length, optimizing flow. Question 25. The most common refrigerant used in residential air-conditioning systems after the phase-out of R-22 is: A) R-410A B) R- 12 C) R-134a D) R-404A Answer: A Explanation: R-410A replaced R-22 in most residential split-systems due to its higher efficiency and lower ozone impact. Question 26. Which safety practice is required when working on a live HVAC electrical circuit? A) Use of insulated tools only
Professional Ultimate Exam
C) Hard hat and steel-toe boots D) Full-face respirator only Answer: A Explanation: Eye protection, chemical-resistant gloves, and hearing protection address the primary hazards of refrigerant work. Question 30. Under the Florida Building Code – Mechanical, the minimum ventilation rate for a kitchen exhaust hood serving a cooking area of 200 sq ft is: A) 50 CFM per linear foot of hood B) 100 CFM per linear foot of hood C) 150 CFM per linear foot of hood D) 200 CFM per linear foot of hood Answer: B Explanation: The Florida Mechanical Code adopts the ASHRAE 62.2 requirement of 100 CFM per linear foot for commercial kitchen hoods. Question 31. NFPA 90A primarily addresses: A) Residential fire sprinkler systems B) Commercial and institutional HVAC systems C) Electrical wiring methods D) Boiler safety Answer: B Explanation: NFPA 90A covers the installation of air-conditioning and ventilation systems in non-residential buildings. Question 32. Which of the following filter ratings removes at least 99.97 % of particles 0.3 μm in size? A) MERV 8 B) MERV 11 C) HEPA (≥ 99.97 %)
Professional Ultimate Exam
D) MERV 13
Answer: C Explanation: HEPA filters are defined to capture 99.97 % of 0.3 μm particles, surpassing typical MERV ratings. Question 33. UV germicidal lamps installed in air handling units are most effective at: A) Reducing carbon dioxide levels B) Killing airborne microorganisms C) Increasing static pressure in ducts D) Removing odors from the airstream Answer: B Explanation: UV lamps emit germicidal wavelengths that inactivate bacteria, viruses, and molds. Question 34. According to ASHRAE 62.1, the minimum outdoor air intake for a single-zone office space of 500 sq ft with a ceiling height of 9 ft is: A) 0.05 CFM per sq ft of floor area B) 0.1 CFM per sq ft of floor area C) 0.2 CFM per sq ft of floor area D) 0.3 CFM per sq ft of floor area Answer: B Explanation: ASHRAE 62.1 specifies 0.1 CFM per square foot of floor area for office spaces, plus additional per occupant. Question 35. A MERV 12 filter is typically capable of capturing which particle size range? A) 10- 30 μm B) 3- 10 μm C) 0.3- 1 μm D) 0.1-0.3 μm
Professional Ultimate Exam
Question 39. The most common cause of a cracked heat exchanger in a gas furnace is: A) Incorrect refrigerant charge B) Over-ignition due to excessive flame temperature C) Faulty thermostat wiring D) Loose duct connections Answer: B Explanation: Over-ignition creates high flame temperatures that can crack the metal heat exchanger over time. Question 40. When testing a thermostat, the correct method to verify a “heat-call” is to: A) Measure resistance across the two terminals with an ohmmeter B) Apply 24 V AC across the control leads and observe the relay activation C) Use a multimeter to read voltage at the furnace control board while the thermostat is set to heat D) Short the thermostat terminals together Answer: C Explanation: Applying 24 V to the furnace circuit and measuring voltage at the control board confirms the thermostat is sending a heat-call. Question 41. The primary function of a contactor in an HVAC system is to: A) Regulate refrigerant flow B) Switch high-current components on and off C) Sense temperature changes D) Provide voltage transformation Answer: B Explanation: Contactors are electromechanical switches that control high-current loads such as compressors and fans.
Professional Ultimate Exam
Question 42. Which of the following is NOT a permissible method for refrigerant recovery under EPA 608? A) Vacuum pump extraction B) Blowing the refrigerant out the back of the system C) Using a certified recovery machine D) Liquid recovery into a sealed cylinder Answer: B Explanation: Releasing refrigerant to the atmosphere is prohibited; recovery must capture the refrigerant in a closed system. Question 43. In a split-system air conditioner, the purpose of the “liquid line filter-drier” is to: A) Increase suction pressure B) Remove debris and moisture from the liquid refrigerant C) Convert liquid refrigerant to gas D) Reduce noise in the condenser Answer: B Explanation: The filter-drier protects the expansion device and indoor coil from contaminants. Question 44. When brazing copper refrigerant lines, the minimum flame temperature required is approximately: A) 1,000 °F B) 2,000 °F C) 3,000 °F D) 4,000 °F Answer: C Explanation: Brazing copper typically requires a flame temperature near 3,000 °F to melt the filler metal and create a strong joint. Question 45. The correct interpretation of a “U-factor” for a window is:
Professional Ultimate Exam
B) Hygrometer C) Dew-point sensor (capacitive) D) Psychrometer Answer: C Explanation: Capacitive dew-point sensors provide a direct electronic measurement of dew point. Question 49. The most common reason for a fan motor to run hot is: A) Low supply voltage causing increased current draw B) Excessive airflow through the motor C) Incorrect wiring of the start capacitor D) Oversized fan blade Answer: A Explanation: Low voltage forces the motor to draw higher current, generating excess heat. Question 50. When troubleshooting a multi-stage compressor that fails to start, the first step is to: A) Replace the compressor B) Verify proper voltage at the compressor terminals C) Clean the condenser coil D) Adjust the refrigerant charge Answer: B Explanation: Checking voltage ensures the motor is receiving the correct power before further diagnosis. Question 51. In a hydronic heating system, the purpose of a “pump bypass” is to: A) Increase flow to the boiler B) Prevent pump cavitation at low demand
Professional Ultimate Exam
C) Reduce water temperature before it reaches radiators D) Provide redundancy in case of pump failure Answer: B Explanation: A bypass valve allows water to circulate even when the pump is throttled, preventing cavitation. Question 52. Which of the following is a required label on a commercial air-handling unit according to UL 1995? A) Manufacturer’s name only B) Capacity in CFM, voltage, and model number C) Installation date D) Warranty period Answer: B Explanation: UL 1995 mandates that AHU labels display capacity, voltage, and model identification for safety and service. Question 53. The term “MERV” stands for: A) Minimum Efficiency Reporting Value B) Maximum Energy Recovery Ratio C) Mechanical Exhaust Regulation Value D) Multi-Stage Evaporator Rating Answer: A Explanation: MERV is a rating system that quantifies filter efficiency. Question 54. When sizing a condensate drain line, the minimum diameter required for a typical residential furnace is: A) ½ inch B) ¾ inch C) 1 inch D) 1½ inch
Professional Ultimate Exam
Explanation: Pulling a vacuum and observing pressure rise indicates the presence of a leak. Question 58. Which component in a furnace controls the timing of the blower motor relative to the heating cycle? A) Fan limit switch B) Ignition control module C) Thermostat D) Flame sensor Answer: A Explanation: The fan limit switch determines when the blower should start and stop based on temperature. Question 59. In a variable-air-volume (VAV) system, the primary means of controlling room temperature is: A) Changing the supply air temperature only B) Varying the airflow to each zone C) Adjusting the refrigerant flow rate D) Modulating the outdoor air damper Answer: B Explanation: VAV systems modulate the amount of conditioned air delivered to each zone to meet temperature setpoints. Question 60. The most common cause of “short-cycling” in an air-conditioning system is: A) Low refrigerant charge B) Oversized condenser coil C) Incorrect thermostat placement D) Dirty evaporator coil Answer: C
Professional Ultimate Exam
Explanation: A thermostat placed near a heat source or in direct sunlight can cause frequent on/off cycles. Question 61. When installing a high-efficiency furnace, the required minimum clearance to combustible material on the sides of the unit is: A) 3 inches B) 6 inches C) 12 inches D) 18 inches Answer: C Explanation: NFPA 90A specifies a 12-inch side clearance for high-efficiency furnaces to ensure safe operation. Question 62. The correct sequence for purging air from a new refrigerant line set before charging is: A) Evacuate to -30 in Hg, then charge refrigerant B) Fill with refrigerant, then evacuate C) Pull a vacuum, then charge while monitoring pressure rise D) Charge refrigerant, then run the system for 30 minutes Answer: C Explanation: Pulling a vacuum removes air and moisture; then refrigerant is added while observing pressure to ensure proper charge. Question 63. In a chilled water system, the “chiller delta-T” is defined as: A) Temperature difference between inlet and outlet of the chiller evaporator B) Difference between supply and return water temperature in the building loop C) Temperature drop across the condenser coil D) Ambient air temperature minus water temperature Answer: A Explanation: The delta-T across the evaporator indicates the amount of heat removed from the water.
