Balancing and Interchange
Ultimate Exam

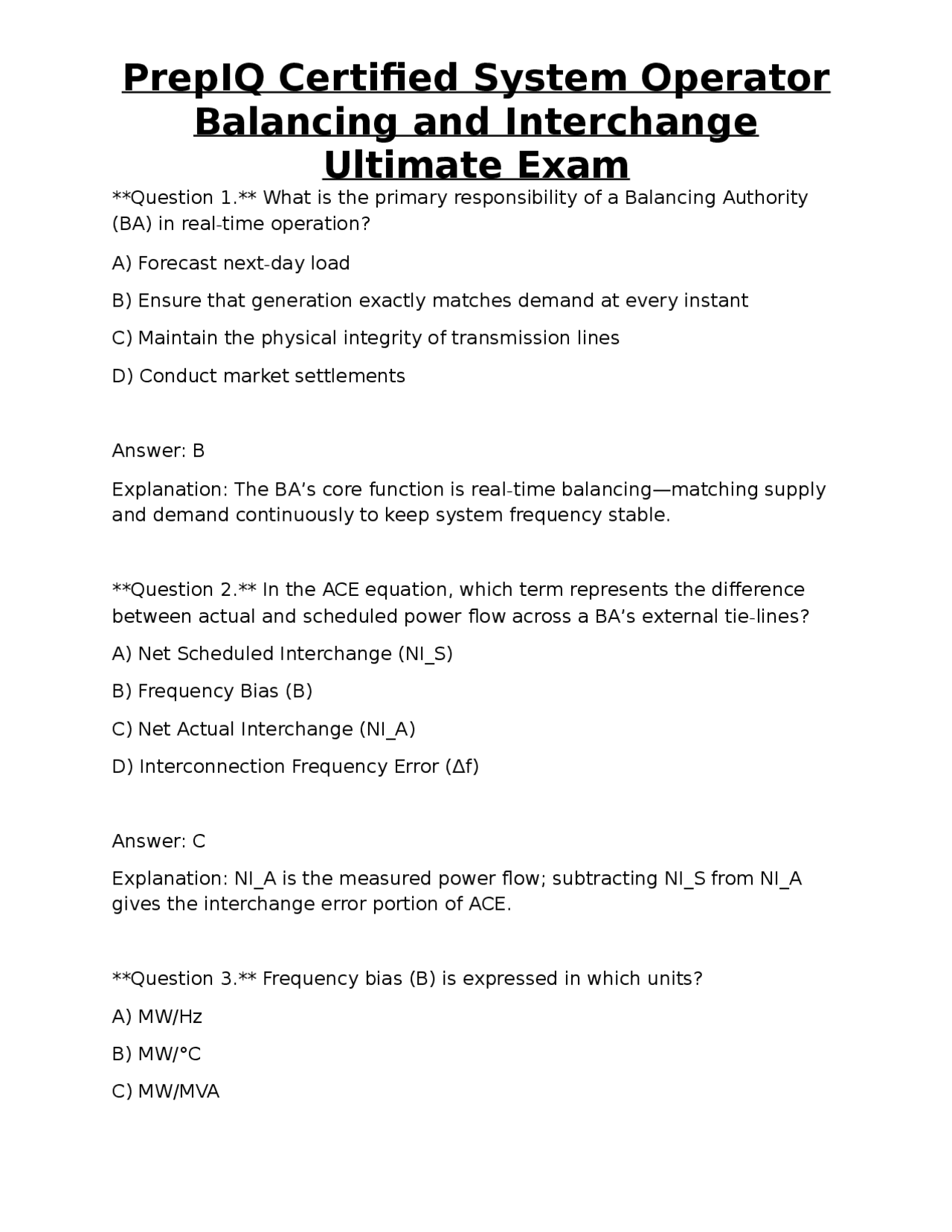

Question 1. What is the primary responsibility of a Balancing Authority (BA) in real-time operation? A) Forecast next-day load B) Ensure that generation exactly matches demand at every instant C) Maintain the physical integrity of transmission lines D) Conduct market settlements Answer: B Explanation: The BA’s core function is real-time balancing—matching supply and demand continuously to keep system frequency stable. Question 2. In the ACE equation, which term represents the difference between actual and scheduled power flow across a BA’s external tie-lines? A) Net Scheduled Interchange (NI_S) B) Frequency Bias (B) C) Net Actual Interchange (NI_A) D) Interconnection Frequency Error (Δf) Answer: C Explanation: NI_A is the measured power flow; subtracting NI_S from NI_A gives the interchange error portion of ACE. Question 3. Frequency bias (B) is expressed in which units? A) MW/Hz B) MW/°C C) MW/MVA
Balancing and Interchange
Ultimate Exam
D) Hz/MW Answer: A Explanation: B quantifies how many megawatts of generation change are required to correct a 1 Hz frequency deviation. Question 4. Which Control Performance Standard (CPS1) metric compares the BA’s ACE to the interconnection frequency error? A) ACE/Δf ratio B) Δf/ACE ratio C) Frequency Bias Index D) ACE Standard Deviation Answer: A Explanation: CPS1 requires that the absolute value of ACE be proportional to the frequency error, typically expressed as an ACE/Δf ratio. Question 5. The Balancing Authority Limit (BAAL) is intended to keep ACE within what time frame? A) 5-second intervals B) 1-minute clock-minute intervals C) 15-minute recovery windows D) 1-hour operating periods Answer: B
Balancing and Interchange
Ultimate Exam
A) 5 minutes B) 10 minutes C) 15 minutes D) 30 minutes Answer: C Explanation: NERC mandates a 15-minute window for the BA to bring ACE back to zero or its pre-disturbance level. Question 9. Time Error Correction (TEC) is used to adjust for accumulated frequency lag or lead. Which of the following is a primary method? A) Manual ACE offset entry B) Automatic generation control (AGC) setpoint change C) Adjusting load shedding thresholds D) Changing the frequency bias setting Answer: A Explanation: Operators may enter manual offsets to correct accumulated time error, thereby aligning the system clock with actual frequency. Question 10. An E-Tag request includes which of the following elements? A) Voltage magnitude limits only B) Requested MW, start time, and ramp rate C) Transmission line outage schedule D) Generator fuel type
Balancing and Interchange
Ultimate Exam
Answer: B Explanation: An E-Tag specifies the quantity of interchange, the desired start time, and the ramp characteristics for the transaction. Question 11. Who has the authority to approve an E-Tag before it becomes effective? A) Only the Purchasing-Selling Entity (PSE) B) The Balancing Authority (BA) and the Reliability Coordinator (RC) C) The Transmission Operator (TOP) only D) The Federal Energy Regulatory Commission (FERC) Answer: B Explanation: Both the BA (for its own area) and the RC (for reliability) must approve an E-Tag before implementation. Question 12. Net Scheduled Interchange (NSI) is calculated by: A) Summing all approved E-Tag MW values for the BA B) Measuring real-time power flow on tie-lines C) Adding frequency bias to ACE D) Subtracting contingency reserve from spinning reserve Answer: A Explanation: NSI aggregates the scheduled MW of all approved E-Tags for a BA, forming the scheduled interchange component of ACE. Question 13. Ramp management is critical because:
Balancing and Interchange
Ultimate Exam
Answer: B Explanation: Pseudo-ties create a virtual transaction for financial settlement while no real power is transferred. Question 16. Dynamic schedules differ from static schedules because they: A) Require manual operator approval for each MW change B) Allow continuous, automated adjustments of interchange based on real-time conditions C) Are limited to a maximum of 100 MW per hour D) Only apply to renewable resources Answer: B Explanation: Dynamic schedules enable automated, real-time updates to interchange quantities, improving flexibility. Question 17. System Operating Limits (SOL) include which of the following? A) Only thermal limits of transmission lines B) Thermal, voltage, and stability limits for the entire network C) Market price caps for energy D) Minimum generation reserve requirements Answer: B Explanation: SOL encompass all physical limits—thermal loading, voltage, and stability—that must not be exceeded.
Balancing and Interchange
Ultimate Exam
Question 18. Interconnection Reliability Operating Limits (IROL) are defined to prevent: A) Market price volatility B) Cascading outages and system instability C) Excessive renewable integration D) Over-generation during low demand Answer: B Explanation: IROL are thresholds that, if crossed, could trigger cascading failures; operators must keep the system within these limits. Question 19. Transmission Loading Relief (TLR) Level 3 typically requires: A) Reducing scheduled interchange by 5 % B) Curtailed generation from the most constrained area only C) Reducing scheduled interchange by at least 10 % across multiple paths D) No action; Level 3 is a warning only Answer: C Explanation: TLR Level 3 is a more severe relief measure, often mandating a minimum 10 % reduction in scheduled flows on overloaded paths. Question 20. Which device can be used to manage congestion without changing generation output? A) Under-Frequency Load Shedding (UFLS) relay B) Phase-Shifting Transformer (PST) C) Automatic Generation Control (AGC) setpoint
Balancing and Interchange
Ultimate Exam
Explanation: Crackerjack restoration builds the system back in stages, forming islands that are later merged. Question 23. Which of the following is a key component of the three-way communication protocol used during emergencies? A) Operator-to-operator, operator-to-RC, and RC-to-operator confirmations B) Only operator-to-operator radio checks C) Automatic email alerts to market participants D. Satellite-based telemetry Answer: A Explanation: The three-way protocol ensures that the operator, the Reliability Coordinator, and the Transmission Operator all acknowledge critical actions. Question 24. Under-Frequency Load Shedding (UFLS) typically activates when system frequency falls below: A) 60 Hz B) 59.5 Hz C) 58 Hz D) 57 Hz Answer: C Explanation: UFLS schemes are commonly set to trip loads when frequency drops to around 58 Hz to arrest frequency decline. Question 25. Which relay type detects faults based on the apparent impedance measured between two points?
Balancing and Interchange
Ultimate Exam
A) Differential relay B) Distance relay C) Overcurrent relay D) Under-frequency relay Answer: B Explanation: Distance relays calculate impedance to locate faults along a transmission line. Question 26. State Estimation (SE) in an Energy Management System (EMS) primarily provides: A) Real-time market price forecasts B) A best-fit model of the system’s voltage and phase angles using SCADA measurements C) Automatic generation dispatch schedules D) Manual operator overrides Answer: B Explanation: SE processes SCADA data to estimate the most probable system state, including voltages and angles. Question 27. Contingency Analysis (CA) is used to: A) Predict the next-worst line or generator outage and assess its impact B) Determine the optimal market clearing price C) Schedule maintenance outages for generators D) Set frequency bias values
Balancing and Interchange
Ultimate Exam
Question 30. Continuing Education Hours (CEHs) for a certified System Operator must be earned through: A) Any online video, regardless of content B) Approved NERC-recognized training programs or courses C) Internal company meetings only D) Unrelated hobby classes Answer: B Explanation: NERC requires CEHs be obtained from approved courses that maintain competency in reliability standards. Question 31. In the hierarchy of reliability authority, which entity holds the highest level of decision-making power? A) Balancing Authority (BA) B) Transmission Operator (TOP) C) Reliability Coordinator (RC) D) Market Operator (MO) Answer: C Explanation: The RC has ultimate authority over reliability matters, above the TOP and BA. Question 32. The ACE component that reflects frequency deviation is calculated as: A) B × Δf B) NI_A − NI_S
Balancing and Interchange
Ultimate Exam
C) B ÷ Δf D) Δf − B Answer: A Explanation: The frequency bias term (B × Δf) quantifies the MW needed to correct a frequency error. Question 33. Which of the following best describes a “spinning reserve”? A) Offline generators that can start within 30 minutes B) Online generators that can increase output within 10 minutes while remaining synchronized to the grid C) Load-shedding devices that disconnect at low frequency D) Energy stored in batteries for emergency use Answer: B Explanation: Spinning reserve is online, synchronized generation that can quickly ramp up to replace lost output. Question 34. A “non-spinning reserve” must be able to be dispatched within: A) 1 minute B) 5 minutes C) 10 minutes D) 30 minutes Answer: C
Balancing and Interchange
Ultimate Exam
A) The time required for a generator to reach full output after a start command B) The scheduled increase in MW over a specified time interval when a tag becomes effective C) The duration of a market settlement period D) The time needed to verify the tag’s data integrity Answer: B Explanation: Ramp-up defines how quickly the scheduled interchange should increase to the tag’s MW value. Question 38. Which reliability standard governs the performance of Under-Voltage Load Shedding (UVLS) schemes? A) PRC- 005 B) BAL- 003 C) TOP- 004 D) EOP- 002 Answer: A Explanation: PRC-005 sets requirements for protective relaying, including UVLS. Question 39. A “pseudo-tie” transaction is typically used for: A) Physical power transfer across a tie-line B) Financial settlement of energy without actual power flow C) Synchronizing frequency between interconnections
Balancing and Interchange
Ultimate Exam
D) Re-routing power through a different path Answer: B Explanation: Pseudo-ties create a financial exchange while no physical power moves across the tie. Question 40. The “frequency bias setting” for a BA is usually expressed as a negative value because: A) It represents a penalty for over-generation B) It indicates that a decrease in frequency requires an increase in generation (negative MW/Hz) C) It is a legacy convention with no operational impact D) It reflects the cost of fuel Answer: B Explanation: A negative bias shows that a frequency drop (negative Δf) must be countered by a positive MW response. Question 41. During a “capacity emergency” the operator may be required to: A) Increase scheduled interchange to meet demand B) Issue public appeals for voluntary load reduction C) Disconnect all renewable resources D) Reset all ACE values to zero Answer: B
Balancing and Interchange
Ultimate Exam
Question 44. An “inadvertent interchange” can be corrected by: A) Adjusting the frequency bias setting retroactively B) Issuing a manual ACE offset to bring ACE back within limits C) Changing the market price for the affected hour D. Disconnecting the tie-line Answer: B Explanation: Operators can apply a manual ACE offset to compensate for the unintended flow and restore balance. Question 45. The primary purpose of a “Phase-Shifting Transformer” (PST) in congestion management is to: A) Increase the voltage magnitude on a line B) Change the phase angle to redirect power flow between parallel paths C) Provide reactive power support only D. Detect faults on the transmission line Answer: B Explanation: PSTs modify the phase angle across a line, thereby altering the distribution of power flow and relieving congestion. Question 46. Which of the following best describes “under-frequency load shedding” (UFLS) operation? A) A preventive measure that disconnects load when frequency falls below a set threshold B) A corrective action that adds generation when frequency rises above 60 Hz
Balancing and Interchange
Ultimate Exam
C) A market mechanism to price scarcity D) A communication protocol between BAs Answer: A Explanation: UFLS automatically sheds load to arrest a frequency decline when the system frequency drops below predefined levels. Question 47. In a “blackstart” scenario, the first resource to be energized must be: A) A large coal-fired plant B) A generator capable of starting without external power (blackstart-capable) C) Any renewable plant with battery storage D. The interconnection’s highest voltage tie-line Answer: B Explanation: Blackstart-capable generators can start independently and provide the initial power needed to restore the grid. Question 48. A “contingency reserve” is distinct from “spinning reserve” because: A) Contingency reserve is always offline and must be started after a disturbance B) Contingency reserve can be used for both generation loss and load shedding C) Contingency reserve is part of the BA’s scheduled interchange D) Contingency reserve is required only for frequency control
