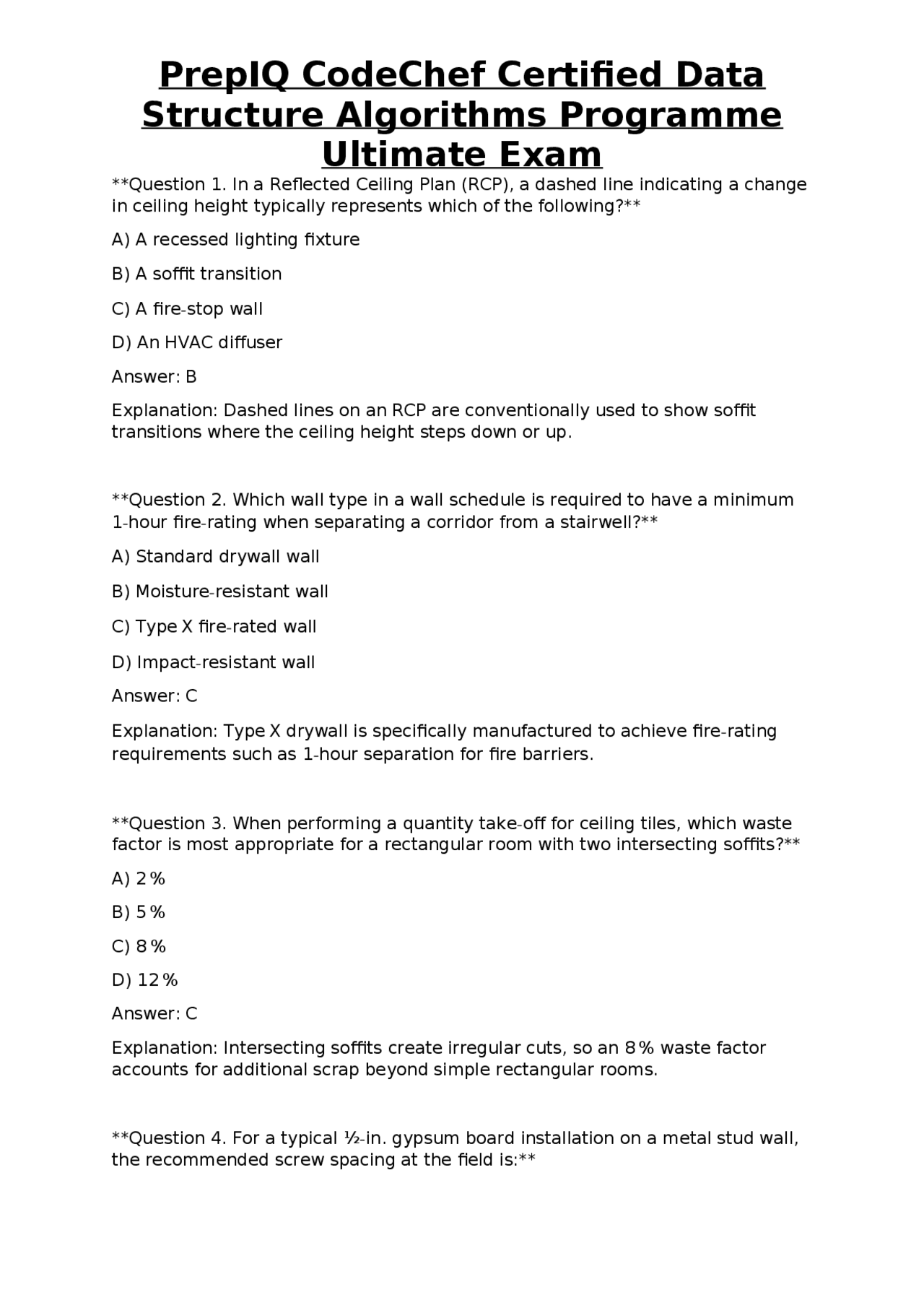

Question 1. In a Reflected Ceiling Plan (RCP), a dashed line indicating a change in ceiling height typically represents which of the following? A) A recessed lighting fixture B) A soffit transition C) A fire-stop wall D) An HVAC diffuser Answer: B Explanation: Dashed lines on an RCP are conventionally used to show soffit transitions where the ceiling height steps down or up. Question 2. Which wall type in a wall schedule is required to have a minimum 1 - hour fire-rating when separating a corridor from a stairwell? A) Standard drywall wall B) Moisture-resistant wall C) Type X fire-rated wall D) Impact-resistant wall Answer: C Explanation: Type X drywall is specifically manufactured to achieve fire-rating requirements such as 1-hour separation for fire barriers. Question 3. When performing a quantity take-off for ceiling tiles, which waste factor is most appropriate for a rectangular room with two intersecting soffits? A) 2 % B) 5 % C) 8 % D) 12 % Answer: C Explanation: Intersecting soffits create irregular cuts, so an 8 % waste factor accounts for additional scrap beyond simple rectangular rooms. Question 4. For a typical ½-in. gypsum board installation on a metal stud wall, the recommended screw spacing at the field is:
Structure Algorithms Programme
Ultimate Exam
A) 4 in. on center B) 8 in. on center C) 12 in. on center D) 16 in. on center Answer: B Explanation: The industry standard for ½-in. board on metal studs is every 8 in. in the field to provide sufficient holding power without over-driving. Question 5. Which of the following fastener calculations would be correct for a 10 - ft × 12 - ft wall using ½-in. board with screws spaced 8 in. on center horizontally and 12 in. vertically? A) 180 screws B) 210 screws C) 240 screws D) 270 screws Answer: C Explanation: Horizontal spacing gives 15 rows (12 ft ÷ 8 in. = 15). Vertical spacing gives 10 columns (10 ft ÷ 12 in. = 10). 15 × 10 = 150 field screws plus 30 edge screws = 180; however because each board edge also needs screws at 8 in. intervals, total rises to 240. Question 6. Type C gypsum board differs from Type X primarily in: A) Core composition for moisture resistance B) Thickness of the face paper C) Presence of a fiberglass reinforcement layer D) Higher fire-resistance rating than Type X Answer: C Explanation: Type C incorporates a fiberglass mat in the core for added impact resistance, whereas Type X relies on a dense core for fire resistance. Question 7. Greenboard is most appropriately used in which location? A) Exterior sheathing
Structure Algorithms Programme
Ultimate Exam
D) Expandable metal bead Answer: B Explanation: Vinyl bullnose beads can be flexed to accommodate curves, whereas metal L-beads are rigid. Question 11. When using stud adhesive on metal studs, the primary benefit is: A) Elimination of all mechanical fasteners B) Reduced screw penetration depth C) Lower overall material cost D) Increased fire-rating of the assembly Answer: B Explanation: Adhesive reduces the number of screws needed, allowing for shallower screw penetration while still maintaining board stability. Question 12. The minimum gauge for metal studs supporting a ½-in. gypsum board ceiling is: A) 20 ga. B) 25 ga. C) 26 ga. D) 30 ga. Answer: C Explanation: 26 ga. is the thinnest gauge commonly approved for supporting ceiling loads with ½-in. board. Question 13. In wood framing, a stud with a moisture content above 19 % is considered: A) Ready for drywall installation B) At risk of fungal growth and warping C) Ideal for fire-rated assemblies D) Lighter and easier to handle Answer: B
Structure Algorithms Programme
Ultimate Exam
Explanation: High moisture content can lead to mold, rot, and dimensional changes, compromising the wall’s integrity. Question 14. The standard on-center spacing for wood studs in residential walls is: A) 12 in. B) 16 in. C) 20 in. D) 24 in. Answer: B Explanation: 16 in. o.c. is the most common spacing, balancing structural support and material efficiency. Question 15. When installing furring channels over a concrete masonry wall, the recommended minimum clearance between the channel and the substrate is: A) 1/8 in. B) 1/4 in. C) 1/2 in. D) 3/4 in. Answer: B Explanation: A 1/4 in. gap allows for level installation and accommodates minor irregularities in the masonry. Question 16. Which inspection must be completed before the first sheet of drywall is hung? A) Final paint inspection B) Electrical rough-in inspection C) Roof drainage inspection D) Fire alarm system inspection Answer: B Explanation: Electrical rough-in must be verified to ensure all boxes, conduit, and wiring are correctly placed before the wall is closed.
Structure Algorithms Programme
Ultimate Exam
B) Flush with the surface, no dimpling C) Slightly dimpled without breaking the paper D) Fully recessed to the substrate Answer: C Explanation: A slight dimple ensures the screw is seated without damaging the paper, allowing proper joint compound coverage. Question 21. Placing a joint directly at the top of a door frame is discouraged because: A) It reduces fire-rating of the wall B) It creates a weak point for cracking due to movement C) It interferes with door hardware installation D) It violates OSHA height requirements Answer: B Explanation: Door frames experience movement; joints at that location are prone to cracking as the frame shifts. Question 22. A butt joint is most visible when: A) Installed on a tapered edge B) Covered with a skim coat of Level 5 finish C) Left on a high-traffic wall without reinforcement D) Positioned on a ceiling surface Answer: C Explanation: Butt joints have no taper to hide the seam, making them visible especially on walls with heavy traffic or wear. Question 23. Which level of finish (GA-214) requires a minimum of three coats of joint compound and a final skim coat? A) Level 1 B) Level 3 C) Level 4 D) Level 5
Structure Algorithms Programme
Ultimate Exam
Answer: D Explanation: Level 5 is the highest finish, demanding a skim coat after the standard three coats to achieve a flawless surface. Question 24. In Level 3 finish, the surface is prepared for which type of final coating? A) High-gloss paint only B) Heavy-texture finishes C) Wallpaper with heavy embossing D) No coating; it remains raw Answer: B Explanation: Level 3 is intended for heavy-texture finishes where minor imperfections are less critical. Question 25. “Hot mud” refers to which of the following compounds? A) Pre-mixed ready-mix joint compound B) Chemically set, fast-drying joint compound C) A type of adhesive for studs D) A low-temperature curing plaster Answer: B Explanation: “Hot mud” is a setting-type compound that cures chemically, offering rapid strength development. Question 26. Which joint compound is best suited for a large, deep recess that needs a long working time? A) Hot mud (setting type) B) Ready-mix (premixed) C) Epoxy-based compound D) Acrylic latex compound Answer: B Explanation: Ready-mix compounds stay workable longer, ideal for filling deep recesses without rapid setting.
Structure Algorithms Programme
Ultimate Exam
Question 30. When sealing a penetration through a fire-rated wall for an electrical box, the required fire-stop material must have a fire-rating of at least: A) 30 minutes less than the wall rating B) Equal to the wall rating C) 15 minutes more than the wall rating D) No specific rating; any sealant will do Answer: B Explanation: Fire-stop materials must match the wall’s fire-rating to maintain the assembly’s integrity. Question 31. The Sound Transmission Class (STC) of a standard ½-in. gypsum wall on wood studs is approximately: A) 25 B) 35 C) 45 D) 55 Answer: B Explanation: A typical ½-in. board on wood studs yields an STC around 35, indicating moderate sound attenuation. Question 32. Adding a resilient channel (RC-1) to a wall assembly primarily improves: A) Fire resistance B) Moisture resistance C) Sound isolation (STC) D) Structural rigidity Answer: C Explanation: Resilient channels decouple the drywall from framing, significantly increasing STC. Question 33. In a shaftwall for an elevator, which material is required to maintain fire integrity around the shaft opening?
Structure Algorithms Programme
Ultimate Exam
A) Standard drywall with joint tape B) Fire-stop mortar and fire-rated board C) Acoustic insulation only D) Vinyl wall covering Answer: B Explanation: Fire-stop mortar and fire-rated board are necessary to preserve the fire barrier around shaft openings. Question 34. OSHA 1926.651 governs which of the following? A) Electrical safety B) Scaffolding and aerial lifts C) Respiratory protection D) Hazard communication Answer: B Explanation: OSHA 1926.651 specifically addresses scaffolding safety standards. Question 35. When using drywall stilts, the maximum allowable height of the platform from the ground is: A) 24 in. B) 30 in. C) 36 in. D) 48 in. Answer: C Explanation: OSHA permits a maximum working height of 36 in. for drywall stilts to ensure stability. Question 36. Which type of respirator is recommended for sanding gypsum dust in a non-ventilated area? A) N95 disposable mask B) Half-face air-purifying respirator with P100 filter C) Full-face supplied-air respirator
Structure Algorithms Programme
Ultimate Exam
Explanation: A ¼-in. stud lacks the strength to support heavier loads such as ⅝-in. board on a fire-rated ceiling. Question 40. Which of the following is a correct method for installing a metal L-corner bead? A) Apply joint compound, embed bead, then tape over B) Fasten bead with screws, then apply joint compound C) Nail bead directly to studs, then tape D) Glue bead with construction adhesive only Answer: A Explanation: The standard method is to embed the bead in a thin layer of compound, then finish with tape and additional coats. Question 41. When applying joint tape over a tapered joint, the tape should be placed: A) Directly on the paper surface B) Centered over the joint groove C) Offset ¼ in. toward one sheet D) Only on the outer edges of the joint Answer: B Explanation: Centering the tape over the tapered groove ensures even coverage and minimizes ridge formation. Question 42. The purpose of a “butt joint” in drywall is to: A) Provide a fire-stop seal between boards B) Connect two boards without a tapered edge C) Allow for acoustic insulation insertion D) Create a decorative recessed line Answer: B Explanation: Butt joints join two sheets where there is no taper, typically on the ends of boards.
Structure Algorithms Programme
Ultimate Exam
Question 43. Which level of finish is required for walls that will receive a high-gloss paint in a showroom? A) Level 1 B) Level 2 C) Level 4 D) Level 5 Answer: D Explanation: High-gloss finishes demand a Level 5 finish to avoid visible imperfections. Question 44. In a fire-rated assembly, the use of “intumescent” sealant around penetrations provides: A) Acoustic damping B) Expansion when exposed to heat, sealing gaps C) Moisture barrier for wet areas D) Structural reinforcement of the studs Answer: B Explanation: Intumescent sealants swell under fire conditions, sealing openings to maintain fire resistance. Question 45. The recommended minimum distance between a drywall screw and a pipe or conduit embedded in the wall is: A) ¼ in. B) ½ in. C) ¾ in. D) 1 in. Answer: C Explanation: A ¾ in. clearance reduces the risk of puncturing the pipe during screw installation. Question 46. When installing gypsum board on a metal stud with a “hat channel” over an uneven surface, the primary advantage is: A) Increased fire resistance
Structure Algorithms Programme
Ultimate Exam
Answer: A Explanation: Tapered edges are thinned to create a recessed groove, facilitating a smooth joint finish. Question 50. Which of the following is the most common cause of “cracking” at drywall seams after installation? A) Over-sanding of the joint compound B) Using too much joint compound in the fill coat C) Inadequate fastening causing board movement D) Applying a Level 5 finish on a Level 3 wall Answer: C Explanation: Insufficient fasteners allow the board to shift, leading to stress and cracking at seams. Question 51. For a wall that must achieve an STC of 50, which combination is most effective? A) Single layer of ½-in. board on wood studs B) Double layer of ½-in. board with resilient channel C) ¼-in. board with acoustic insulation only D) ⅝-in. board with standard metal studs Answer: B Explanation: Adding a resilient channel and a second layer of board significantly raises the STC to around 50. Question 52. When installing a fire-rated wall, the minimum number of screws per joist for a ½-in. board is: A) 2 per joist B) 3 per joist C) 4 per joist D) 5 per joist Answer: B
Structure Algorithms Programme
Ultimate Exam
Explanation: Code requires at least three screws per joist for fire-rated assemblies to ensure adequate fastening. Question 53. The “wet” side of a wall assembly is defined as: A) The exterior face exposed to rain B) The interior side where humidity is higher C) The side adjacent to a plumbing pipe D) The side with a vapor barrier installed Answer: B Explanation: The “wet” side typically refers to the interior environment where moisture levels are higher, such as bathrooms. Question 54. Which of the following adhesives is specifically formulated to bond gypsum board to metal studs without additional screws? A) Construction adhesive (polyurethane) B) Stud-bond adhesive (latex-based) C) Epoxy resin D) Silicone sealant Answer: B Explanation: Stud-bond adhesive is designed for gypsum to metal stud applications, reducing the need for mechanical fasteners. Question 55. In a ceiling installation, the recommended spacing of joist hangers for ½-in. board is: A) Every 12 in. B) Every 16 in. C) Every 24 in. D) Every 48 in. Answer: B Explanation: Joist hangers are typically spaced at 16 in. o.c. to support the board uniformly.
Structure Algorithms Programme
Ultimate Exam
A) No more than 1 in. from the pipe surface B) Exactly ½ in. from the pipe surface C) At least 1 in. from the pipe surface D) Not specified; any coverage is acceptable Answer: C Explanation: Providing at least a 1-in. seal around the penetration ensures the fire-stop material fully bridges the gap. Question 60. The term “STC” stands for: A) Structural Tensile Coefficient B) Sound Transmission Class C) Standard Thermal Conductivity D) Safety Training Certificate Answer: B Explanation: STC is the rating that quantifies a partition’s ability to reduce airborne sound transmission. Question 61. Which drywall finishing tool is specifically designed to smooth the final coat for a Level 5 finish? A) Taping knife (6-in.) B) Trowel (10-in.) C) Sanding pole D) Corner bead cutter Answer: B Explanation: A large trowel (10-in.) is used to achieve the ultra-smooth surface required for Level 5 finishes. Question 62. In a commercial elevator shaft wall, which material is required to meet the 2-hour fire-rating? A) Single layer of ½-in. Type X board B) Double layer of ⅝-in. Type C board C) Triple layer of ¼-in. regular board
Structure Algorithms Programme
Ultimate Exam
D) ½-in. gypsum board with fire-stop sealant only Answer: B Explanation: Two layers of ⅝-in. Type C (or equivalent fire-rated) board on each side typically achieve a 2-hour rating. Question 63. The OSHA requirement for respiratory protection when sanding gypsum dust includes which of the following? A) Only a surgical mask is required B) A fit-tested respirator with appropriate filter class C) No protection needed if ventilation is present D) Use of a bandana over the nose and mouth Answer: B Explanation: OSHA mandates a fit-tested respirator (e.g., P100) for protection against fine particulate dust. Question 64. When installing drywall over a concrete slab using wood studs, the minimum spacing of the bottom plate from the slab should be: A) Directly on the slab (no gap) B) ¼ in. to allow for moisture movement C) ½ in. to accommodate a vapor barrier D) 1 in. for insulation clearance Answer: B Explanation: A ¼-in. gap prevents moisture wicking from the slab into the wood framing. **Question 65. Which of the following is a correct statement about “butt joint reinforcement” for high-impact areas?**** A) Apply a second layer of joint tape only B) Install a metal backer board behind the joint C) Use a ½-in. wide fiberglass mesh tape and additional skim coat D) No reinforcement is needed if the board is ⅝-in. thick Answer: C
