Ultimate Exam

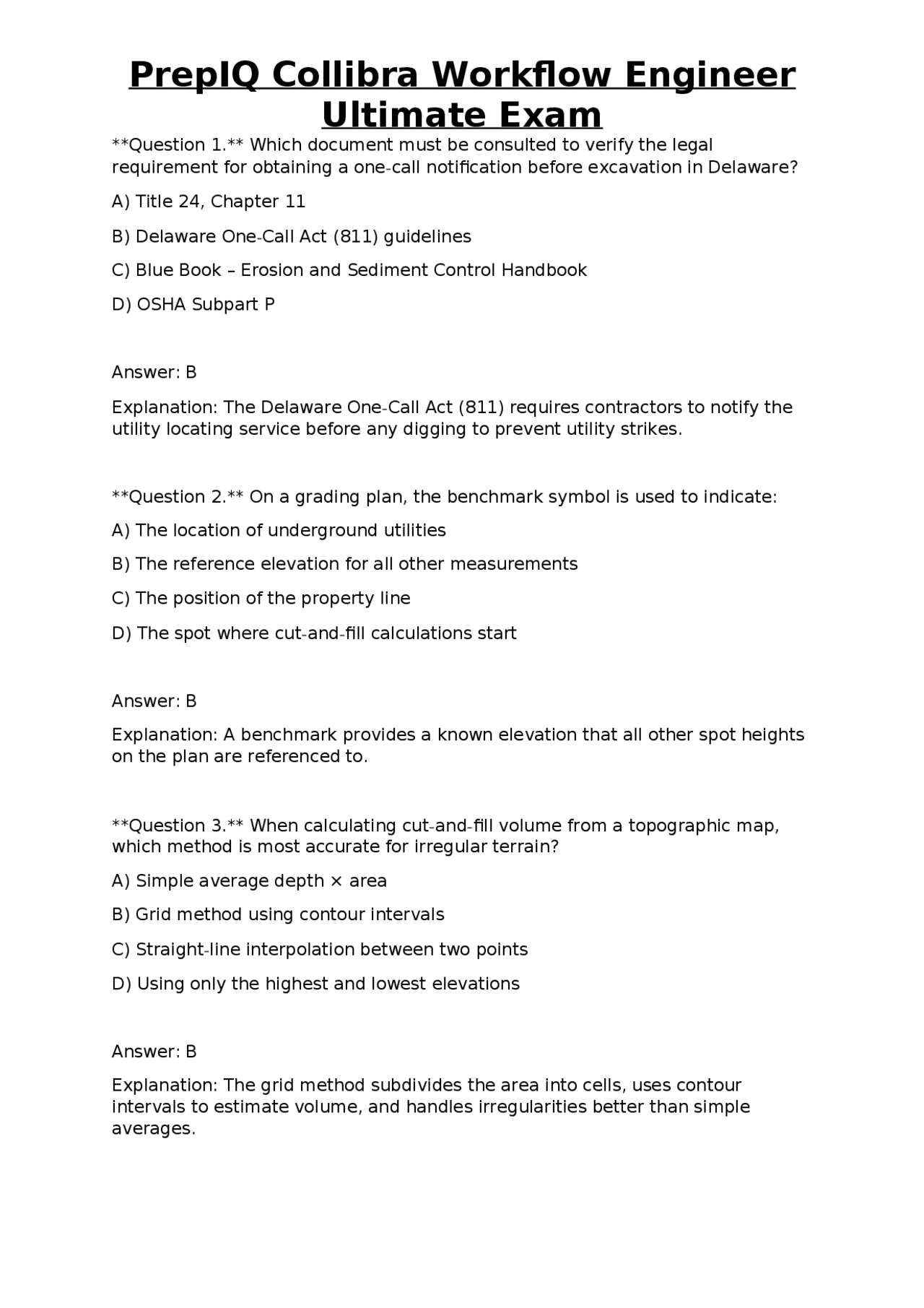

Question 1. Which document must be consulted to verify the legal requirement for obtaining a one-call notification before excavation in Delaware? A) Title 24, Chapter 11 B) Delaware One-Call Act (811) guidelines C) Blue Book – Erosion and Sediment Control Handbook D) OSHA Subpart P Answer: B Explanation: The Delaware One-Call Act (811) requires contractors to notify the utility locating service before any digging to prevent utility strikes. Question 2. On a grading plan, the benchmark symbol is used to indicate: A) The location of underground utilities B) The reference elevation for all other measurements C) The position of the property line D) The spot where cut-and-fill calculations start Answer: B Explanation: A benchmark provides a known elevation that all other spot heights on the plan are referenced to. Question 3. When calculating cut-and-fill volume from a topographic map, which method is most accurate for irregular terrain? A) Simple average depth × area B) Grid method using contour intervals C) Straight-line interpolation between two points D) Using only the highest and lowest elevations Answer: B Explanation: The grid method subdivides the area into cells, uses contour intervals to estimate volume, and handles irregularities better than simple averages.
Ultimate Exam
Question 4. The color-coded marking “Yellow” on a utility map in Delaware most commonly represents: A) Electric power lines B) Gas pipelines C) Water mains D) Telecommunications Answer: B Explanation: Yellow markings denote gas utilities; red is electric, blue is water, and orange is telecommunications. Question 5. According to OSHA Subpart P, the maximum allowable slope for Type C soil when sloping a trench is: A) 1: B) 1.5: C) 2: D) 3: Answer: B Explanation: For Type C (unstable) soils, OSHA permits a maximum slope of 1. horizontal to 1 vertical to reduce cave-in risk. Question 6. Which of the following is NOT a permissible method for protecting a trench in Type B soil? A) Bench sloping at 1.5: B) Hydraulic shoring C) Timber shoring with a 2-ft spacing D) No protection if depth is less than 4 ft Answer: D Explanation: Even shallow trenches require protection; depth under 4 ft does not exempt the need for protective systems.
Ultimate Exam
A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: C Explanation: OSHA mandates at least a 2-foot (24 in) clearance to prevent spoil pile collapse onto the excavation edge. Question 11. Which soil classification test involves pressing a thumb into the soil and observing resistance? A) Atterberg limits test B) Proctor compaction test C) Thumb penetration test D) Sieve analysis Answer: C Explanation: The thumb penetration test is a quick field method to gauge soil consistency and classify it (e.g., Type A, B, C). Question 12. For a trench deeper than 4 ft, the maximum horizontal distance an employee may travel to reach an access ladder or ramp is: A) 15 ft B) 20 ft C) 25 ft D) 30 ft Answer: C Explanation: OSHA requires a means of egress within 25 ft of any point in a trench deeper than 4 ft. Question 13. Which of the following equipment is best suited for compacting Type A cohesive soil to achieve Proctor density?
Ultimate Exam
A) Static smooth-wheel roller B) Vibratory plate compactor C) Pneumatic tire roller D) Jumping jack Answer: B Explanation: Vibratory plate compactors are effective on cohesive soils, providing the necessary dynamic force to meet Proctor specifications. Question 14. When operating an excavator near overhead power lines, the minimum safe clearance distance is: A) 5 ft B) 8 ft C) 10 ft D) 12 ft Answer: C Explanation: OSHA requires a minimum 10-ft clearance from overhead energized lines to prevent accidental contact. Question 15. In a drainage system, the invert elevation of a pipe must be set to ensure: A) Positive pressure flow B) Gravity-driven flow at the design slope C) Minimum pipe diameter usage D) Maximum head loss Answer: B Explanation: The invert elevation determines the pipe’s internal slope, allowing gravity to move water efficiently. Question 16. Which of the following is a primary purpose of installing a riprap lining in a drainage channel?
Ultimate Exam
A) A steep slope of 1: B) A gentle slope of 5: C) Elevation change of 5 ft between lines D) Horizontal distance of 5 ft between points Answer: C Explanation: Contour interval specifies the vertical elevation change between adjacent contour lines; here it is 5 ft. Question 20. Which of the following is a correct procedure for de-watering a deep excavation using a centrifugal pump? A) Pump water directly into the storm drain without filtration B) Place the pump at the lowest point and discharge to a containment area C) Use a submersible pump only for shallow pits D) Discharge water onto the site’s bare soil Answer: B Explanation: The centrifugal pump should be placed at the lowest point, and the discharge must be directed to a controlled area to avoid erosion or contamination. Question 21. Under Title 24, Chapter 11, a contractor must hold a license to: A) Operate any heavy equipment B) Perform any construction work within the state C) Subcontract only electrical work D) Conduct soil testing Answer: B Explanation: Title 24, Chapter 11 outlines the general contractor licensing requirements for all construction activities in Delaware. Question 22. Which of the following is a characteristic of Type B soil? A) Very low cohesion, granular-only material
Ultimate Exam
B) Medium cohesion with some plasticity C) High cohesion, clayey material D) Rock fragments larger than 2 in Answer: B Explanation: Type B soils have medium cohesion and moderate plasticity, requiring moderate protective measures. Question 23. The primary purpose of a silt fence installed on a construction site is to: A) Divert surface water away from the site B) Capture sediment-laden runoff before it leaves the site C) Provide a temporary roadway surface D) Support the foundation of temporary structures Answer: B Explanation: Silt fences act as barriers that trap sediment while allowing water to pass, reducing off-site sediment transport. Question 24. When installing a manhole, the top of the structure should be set at: A) Exactly at the existing ground level B) At the design grade plus 2 in to allow for cover C) 6 in below the invert elevation of the connecting pipe D) 12 in above the pipe invert Answer: B Explanation: Manholes are typically set at grade plus a small cover allowance (about 2 in) to ensure proper alignment and access. Question 25. In a trench, a “shield” refers to: A) A temporary metal plate covering the trench opening B) A trench box that protects workers from cave-ins
Ultimate Exam
C) Static smooth-wheel roller D) Jumping jack Answer: C Explanation: Static smooth-wheel rollers exert high pressure over a small area, ideal for dense granular soils. Question 29. According to OSHA, which atmospheric condition triggers the requirement for continuous ventilation in a trench? A) Temperature above 90 °F B) Presence of diesel exhaust fumes above 500 ppm C) Oxygen level below 19.5% D) Relative humidity over 80% Answer: C Explanation: An oxygen-deficient atmosphere (<19.5%) necessitates active ventilation to maintain safe breathing conditions. Question 30. When a contractor encounters a “stable rock” formation during excavation, the recommended protective system is: A) Bench sloping at 1: B) No protection required if the rock is self-supporting C) Hydraulic shoring with steel plates D) Timber shoring with 12-in spacing Answer: B Explanation: Stable rock is considered self-supporting; protective systems are not required unless the rock is fractured. Question 31. The term “cut-and-fill” volume refers to: A) The amount of material removed only B) The volume of material added only C) The net difference between material excavated and placed back on site
Ultimate Exam
D) The total volume of both cut and fill combined Answer: C Explanation: Cut-and-fill volume is the net balance (cut volume minus fill volume) used to assess earthwork balance. Question 32. Which of the following is a required element of a workers’ compensation program for excavation crews in Delaware? A) Coverage for vehicle accidents only B) Minimum $1 million per incident limit C) Mandatory reporting of all injuries to DNREC D) Inclusion of both medical and wage-replacement benefits Answer: D Explanation: Workers’ compensation must provide medical treatment and wage-replacement benefits for on-the-job injuries. Question 33. A “bench” in trenching terminology is: A) A flat area created on the side of a slope to reduce steepness B) A pre-fabricated metal platform for workers to stand on C) The bottom of a trench where utilities are installed D) A safety sign indicating depth Answer: A Explanation: Bench sloping creates a series of horizontal steps on a slope, reducing the overall angle and improving stability. Question 34. Which of the following best describes the purpose of a “catch basin” in a storm-water system? A) To increase water velocity before entering a pipe B) To collect and temporarily store runoff for reuse C) To capture debris and sediments before water enters the drainage pipe D) To provide a decorative water feature
Ultimate Exam
Answer: B Explanation: Hydraulic shoring offers adjustable, strong lateral support, essential for unstable Type C soils. Question 38. The minimum width of a trench access ladder must be at least: A) 12 in B) 18 in C) 24 in D) 30 in Answer: C Explanation: OSHA requires a minimum ladder width of 24 in to allow safe passage for workers. Question 39. Which of the following is a correct statement about “backfill” material for a pipe bedding? A) It must be placed in a single 12-in lift only B) It should be compacted to at least 95% of maximum dry density C) It can be left loose as long as the pipe is centered D) It must be made of pure sand without any gravel Answer: B Explanation: Proper backfill is compacted to achieve at least 95% of the maximum dry density to provide support and prevent settlement. Question 40. A “submersible pump” is most appropriate for de-watering when: A) The water level is above the pump’s motor housing B) The water source is highly contaminated C) Only a small volume of water needs removal D) The site has limited power access Answer: A
Ultimate Exam
Explanation: Submersible pumps are designed to operate while fully submerged, making them ideal when water levels exceed the motor housing. Question 41. In Delaware, reporting a spill of hydraulic fluid on a construction site must be made to: A) OSHA regional office B) Department of Natural Resources and Environmental Control (DNREC) C) Local fire department D) State Department of Transportation Answer: B Explanation: DNREC is the state agency responsible for environmental spill notifications. Question 42. Which of the following statements about “stable rock” and shoring is true? A) Shoring is always required regardless of rock condition B) Stable rock can be left unshored if no fractures are visible C) Timber shoring is preferred over hydraulic shoring for rock D) Rock must be bench-sloped at 1:1 before excavation Answer: B Explanation: Stable, intact rock does not require shoring; only fractured or unstable rock does. Question 43. The primary factor that determines whether a soil is classified as Type A, B, or C is: A) Color of the soil B) Moisture content alone C) Cohesion and angle of internal friction D) Presence of organic matter Answer: C
Ultimate Exam
Explanation: Continuous atmospheric monitoring is needed for deep trenches where hazardous gases may accumulate. Question 47. A “sub-grade” for a roadway is: A) The final paved surface B) The compacted soil layer beneath the base course C) The drainage pipe installed under the road D) The asphalt mixture placed on top of the base Answer: B Explanation: The sub-grade is the prepared, compacted soil that supports the base and surface layers of a roadway. Question 48. In a drainage design, a “invert” refers to: A) The top of a pipe B) The lowest interior point of a pipe where water flows C) The slope of the surrounding ground D) The structural strength of the pipe wall Answer: B Explanation: The invert is the bottom interior surface of a pipe; its elevation determines flow direction. Question 49. Which type of shoring is most commonly used for temporary support in narrow trenches (≤ 3 ft wide)? A) Hydraulic shoring with steel plates B) Timber lagging with 24-in spacing C) Aluminum trench boxes (shields) D) Soil nailing Answer: C Explanation: Aluminum trench boxes provide a quick, space-efficient protective system for narrow trenches.
Ultimate Exam
Question 50. The maximum allowable slope for a Type A soil bench is: A) 1: B) 1.5: C) 2: D) 3: Answer: D Explanation: Type A soils are stable and can be sloped up to 3: (horizontal:vertical) safely. Question 51. When a construction site must remove a large tree that interferes with excavation, the required procedure is: A) Cut it down and leave the stump in place B) Obtain a permit, remove the tree, and re-grade the area C) Only prune the branches that interfere D) Use a hand-saw to gradually fell the tree Answer: B Explanation: Large trees require a permit and complete removal, followed by re-grading to ensure site stability. Question 52. The primary purpose of “hay bales” in erosion control is to: A) Absorb water and increase infiltration B) Provide a temporary barrier that slows runoff velocity C) Serve as a decorative element on the site D) Reinforce concrete footings Answer: B Explanation: Hay bales act as a physical barrier that reduces runoff speed and helps trap sediment.
Ultimate Exam
Question 56. In Delaware, the “Blue Book” recommends the use of which material for temporary sediment basins? A) Plastic liners only B) Compacted earth with a geotextile liner C) Concrete with built-in overflow D) Steel culverts Answer: B Explanation: The Blue Book suggests using compacted earth basins reinforced with geotextile liners for temporary sediment control. Question 57. Which of the following statements about “bench sloping” is correct? A) Bench sloping eliminates the need for any other protective system B) Each bench must be at least 2 ft wide in Type C soil C) Bench sloping is only used for rock excavations D) The slope of each bench must be less steep than the overall slope limit for the soil type Answer: D Explanation: Bench slopes must be less steep than the maximum allowable slope for the soil to maintain stability. Question 58. When backfilling around a pipe, the recommended sequence is: A) Place all backfill in one lift and compact once B) Add backfill in 6-in lifts, compacting each lift C) Use loose fill without compaction to avoid pipe damage D) Backfill only on one side of the pipe Answer: B Explanation: Adding backfill in 6-in lifts and compacting each layer ensures uniform support and prevents settlement.
Ultimate Exam
Question 59. The OSHA requirement for a “competent person” includes which of the following qualifications? A) Must hold a professional engineering license B) Must have the ability to identify existing and predictable hazards in the surroundings C) Must be the site foreman with at least 5 years experience D) Must be a certified OSHA trainer Answer: B Explanation: A competent person must be capable of recognizing hazards and taking corrective action, irrespective of specific certifications. Question 60. Which of the following devices is used to test for hazardous gases in a trench? A) Thermometer B) Gas detector (multi-gas monitor) C) Soil moisture probe D) Leveling rod Answer: B Explanation: A multi-gas monitor detects oxygen deficiency and toxic gases, ensuring atmospheric safety. Question 61. In a storm-water drainage system, a “gravity-fed” pipe relies on: A) Pump pressure to move water B) Siphoning action C) Elevation difference between inlet and outlet D) Air pressure differentials Answer: C Explanation: Gravity-fed systems use the natural slope (elevation difference) to convey water without mechanical assistance.
