Foundation Ultimate Exam

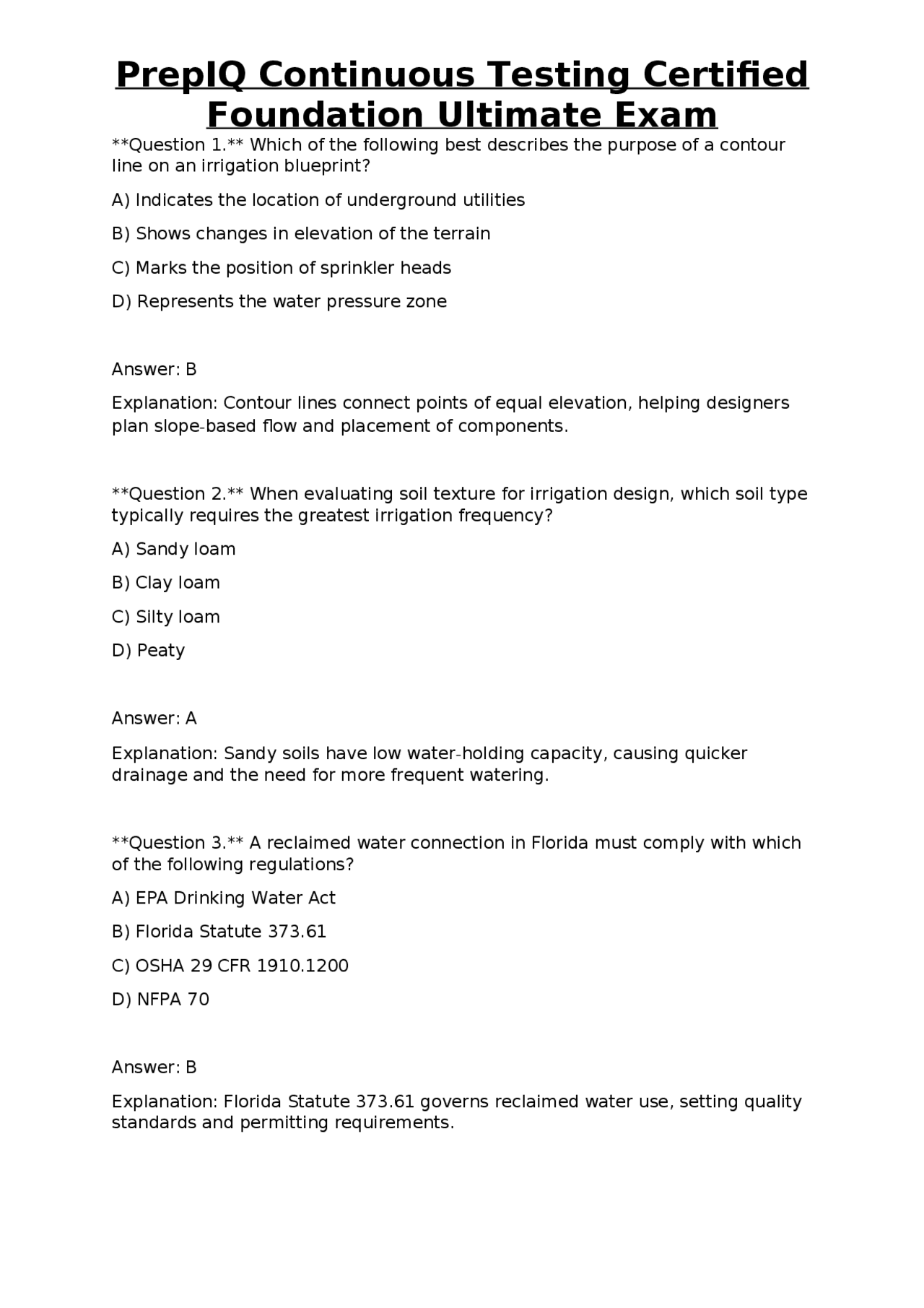

Question 1. Which of the following best describes the purpose of a contour line on an irrigation blueprint? A) Indicates the location of underground utilities B) Shows changes in elevation of the terrain C) Marks the position of sprinkler heads D) Represents the water pressure zone Answer: B Explanation: Contour lines connect points of equal elevation, helping designers plan slope-based flow and placement of components. Question 2. When evaluating soil texture for irrigation design, which soil type typically requires the greatest irrigation frequency? A) Sandy loam B) Clay loam C) Silty loam D) Peaty Answer: A Explanation: Sandy soils have low water-holding capacity, causing quicker drainage and the need for more frequent watering. Question 3. A reclaimed water connection in Florida must comply with which of the following regulations? A) EPA Drinking Water Act B) Florida Statute 373. C) OSHA 29 CFR 1910. D) NFPA 70 Answer: B Explanation: Florida Statute 373.61 governs reclaimed water use, setting quality standards and permitting requirements.
Foundation Ultimate Exam
Question 4. Which document is typically required to obtain a municipal irrigation permit? A) Soil test report B) Hydraulic calculation sheet C) Environmental Impact Assessment (EIA) D) Manufacturer’s warranty Answer: C Explanation: An EIA demonstrates that the proposed system will not adversely affect local water resources, a common permit prerequisite. Question 5. In selecting a sprinkler nozzle, the term “radius of throw” refers to: A) The maximum pressure the nozzle can handle B) The distance water travels before hitting the ground C) The flow rate in gallons per minute D) The angle of water discharge Answer: B Explanation: Radius of throw is the horizontal distance from the nozzle to the point where water lands, influencing spacing decisions. Question 6. Matched Precipitation Rate (MPR) ensures uniform watering by: A) Using the same nozzle size on all heads B) Adjusting flow so each sprinkler delivers the same inches per hour C) Installing pressure regulators on each lateral D) Setting all zones to the same run time Answer: B Explanation: MPR calculations equalize water depth across the irrigated area, preventing over- or under-watering.
Foundation Ultimate Exam
Question 10. According to the “5 ft/s rule,” the maximum recommended water velocity in PVC irrigation pipe is: A) 2 ft/s B) 5 ft/s C) 8 ft/s D) 12 ft/s Answer: B Explanation: Keeping velocity ≤5 ft/s minimizes erosion, noise, and pipe wear while maintaining efficient flow. Question 11. Which pipe class is identified by the designation “SDR 11”? A) Standard Dimension Ratio 11:1, indicating wall thickness relative to diameter B) Schedule 11, a pressure rating C) Structural Design Rating for high-temperature service D) Standard Drainage Rate for agricultural use Answer: A Explanation: SDR (Standard Dimension Ratio) defines wall thickness; SDR 11 pipes have relatively thin walls suitable for low-pressure irrigation. Question 12. A water hammer event is most likely to occur when: A) A valve closes slowly B) A pump runs at constant speed C) A valve shuts off rapidly causing a pressure surge D) Pipe diameter increases downstream Answer: C Explanation: Sudden valve closure creates a pressure wave (water hammer) that can damage fittings and pipes. Question 13. In a looped main design, the primary advantage is: A) Reduced material cost
Foundation Ultimate Exam
B) Elimination of pressure loss C) Ability to maintain pressure if one section is blocked D) Simplified valve placement Answer: C Explanation: Looping provides redundancy; water can flow around a blockage, preserving system performance. Question 14. The correct method for joining PVC pipe using solvent welding includes: A) Applying glue to the interior of the fitting only B) Applying primer, then glue to both pipe and fitting, then quickly joining C) Heating the joint with a torch before applying glue D) Using only mechanical clamps Answer: B Explanation: Primer cleans and softens the surface; glue bonds both surfaces; prompt assembly ensures a strong joint. Question 15. When backfilling a trench for a lateral pipe, the recommended minimum bedding material depth is: A) 2 inches of sand B) 4 inches of clean, coarse sand C) 6 inches of loam D) No bedding required if pipe is supported Answer: B Explanation: A 4-inch sand bedding provides support, promotes drainage, and protects the pipe from sharp objects. Question 16. Thrust blocks are required for PVC mains larger than which diameter? A) 1 in
Foundation Ultimate Exam
C) 6 inches below grade, with a removable lid D) 12 inches below grade, with a concrete slab Answer: C Explanation: A 6-inch depth protects the valve from surface traffic while allowing easy access via a removable lid. Question 20. Which pump type is most suitable for drawing water from a deep well (>50 ft) with low drawdown? A) Centrifugal B) Submersible C) Jet D) Turbine Answer: B Explanation: Submersible pumps are placed below the water level, eliminating suction lift issues and providing efficient deep-well operation. Question 21. The Net Positive Suction Head (NPSH) required by a pump must be greater than the NPSH available to avoid: A) Cavitation B) Overheating C) Excessive flow D) Pipe corrosion Answer: A Explanation: Insufficient NPSH causes cavitation, damaging impellers and reducing pump performance. Question 22. A pressure switch set to open at 70 psi will: A) Start the pump when pressure falls below 70 psi B) Shut off the pump when pressure exceeds 70 psi C) Maintain constant pressure at 70 psi
Foundation Ultimate Exam
D) Regulate flow rate to 70 gpm Answer: B Explanation: The switch opens (breaks the circuit) when pressure reaches the set point, stopping the pump. Question 23. In a fertigation system, the primary purpose of a chemical injector is to: A) Increase water pressure B) Add nutrients or chemicals proportionally to the water flow C) Filter out debris from the water source D) Reduce water temperature Answer: B Explanation: Injectors meter chemicals into the irrigation stream, delivering precise application rates. Question 24. A common cause of low-pressure readings at the zone valves is: A) Over-sized pipe diameter B) Clogged filter or debris in the line C) Excessive head pressure D) Use of a low-flow sprinkler head Answer: B Explanation: Blockages restrict flow, resulting in reduced pressure at downstream components. Question 25. According to Florida’s wet/dry seasonal schedule, irrigation run times should be reduced during which months? A) January–March B) April–June C) July–September D) October–December
Foundation Ultimate Exam
Answer: B Explanation: Root depth influences how much water a plant can access; shallow-rooted species need more frequent irrigation. Question 29. A PVB (Pressure Vacuum Breaker) is required in which situation? A) When connecting to a potable water source without a backflow preventer B) For high-pressure fire sprinkler systems C) As a primary device on a well pump D) When using reclaimed water that is non-potable Answer: A Explanation: PVBs protect potable water supplies from back-siphonage when the system is fed by a municipal source. Question 30. Under OSHA 29 CFR 1926, trench safety requires a protective system when the trench depth exceeds: A) 2 ft B) 3 ft C) 4 ft D) 5 ft Answer: C Explanation: OSHA mandates protective systems (sloping, shoring, shielding) for trenches 4 ft or deeper to prevent cave-ins. Question 31. The correct procedure for locating underground utilities before trenching includes: A) Digging a test pit 12 in deep B) Calling the state utility locating service (e.g., Sunshine State 811) and waiting for markings C) Using a metal detector only D) Assuming no utilities are present if the area is residential
Foundation Ultimate Exam
Answer: B Explanation: State-mandated locate services must be contacted to mark utilities, ensuring safe excavation. Question 32. When sizing a zone valve, the flow coefficient (Cv) must be at least: A) Equal to the total system flow in GPM B) 1/10 of the total system flow in GPM C) 1.5 times the flow required by the zone’s most demanding sprinkler D) Half the flow of the master valve Answer: C Explanation: A Cv 1.5× the peak zone flow provides a safety margin to maintain proper pressure. Question 33. Which of the following is a key characteristic of a “low-flow” sprinkler head meeting WaterSense standards? A) Minimum 1.5 gpm at 30 psi B) Maximum 2.5 gpm at 30 psi C) Adjustable throw radius only D) Requires a pressure regulator Answer: B Explanation: WaterSense low-flow heads deliver ≤2.5 gpm at 30 psi, achieving at least 20% water savings. Question 34. In a drip irrigation layout, the recommended maximum pressure for most emitters is: A) 10 psi B) 20 psi C) 30 psi D) 40 psi
Foundation Ultimate Exam
Answer: B Explanation: Looping laterals provides dual entry points, reducing pressure drop and improving uniformity. Question 38. The most common cause of a valve that fails to open on command is: A) Incorrect wiring polarity B) Over-pressurization of the pipe C) A stuck solenoid coil due to corrosion D) Excessive pipe velocity Answer: C Explanation: Corrosion or debris can cause the solenoid to seize, preventing valve actuation. Question 39. During winter in northern Florida, a freeze sensor is required to: A) Increase watering frequency to melt ice B) Shut off the system when temperatures drop below 32 °F for a set duration C) Adjust pressure to 50 psi automatically D) Activate a heating element in the pipe Answer: B Explanation: Freeze sensors prevent water from freezing in the system by disabling irrigation during low-temperature periods. Question 40. A backflow prevention device must be tested at least: A) Every 6 months B) Annually C) Every 2 years D) Only when installed Answer: B
Foundation Ultimate Exam
Explanation: Annual testing ensures the device continues to function and protect potable water supplies. Question 41. Which pipe material is most resistant to UV degradation for above-ground irrigation lines? A) Polyethylene (PE) B] PVC C) Galvanized steel D) Copper Answer: A Explanation: PE (often labeled as "black polyethylene") contains UV inhibitors, making it suitable for exposed runs. Question 42. The “5-minute rule” for a pressure switch refers to: A) Minimum time the pump must run before shutting off B) Maximum time the switch can stay open before resetting C) Recommended delay before the pump restarts after a shutdown to prevent short cycling D) Time required to prime the pump Answer: C Explanation: A 5-minute delay reduces wear by allowing pressure to stabilize before the pump restarts. Question 43. In a multi-zone controller, a “master valve” is typically placed: A) At the farthest zone B) Immediately downstream of the pump discharge C) Inside each zone box D) Only when using a decoder system Answer: B
Foundation Ultimate Exam
Explanation: Florida’s sandy soils often infiltrate around 0.5 in/hr, guiding irrigation timing to avoid runoff. Question 47. Which of the following is NOT a requirement for a certified irrigation contractor in Florida? A) Completion of the PrepIQ Continuous Testing exam B) Minimum 5 years of field experience C) Proof of liability insurance D) Passing a state-issued background check Answer: B Explanation: While experience is valuable, Florida does not mandate a specific number of years for certification. Question 48. The purpose of a “soil moisture sensor” integrated with a controller is to: A) Increase water pressure when soil is dry B) Shut off irrigation when soil moisture exceeds a set threshold C) Measure pH levels of the soil D) Provide real-time temperature data Answer: B Explanation: Soil moisture sensors prevent over-watering by disabling the system once adequate moisture is detected. Question 49. In a well-pump system, “prime” refers to: A) The initial surge of water when the pump starts B) Removing air from the pump and suction line to allow continuous flow C) Adjusting the pump’s pressure switch setting D) Installing a backflow preventer Answer: B
Foundation Ultimate Exam
Explanation: Priming eliminates air pockets, establishing a continuous water column for proper pump operation. Question 50. When installing a valve box, the recommended cover material is: A) Steel plate B) Concrete slab with a recessed lip C) Heavy-duty plastic lid with a gasket seal D) Wooden board Answer: C Explanation: A gasketed plastic lid provides weather resistance, easy removal, and prevents debris entry. Question 51. The term “head pressure” in an irrigation system is best defined as: A) The pressure at the pump inlet B) The pressure measured at the highest elevation point in the system C) The pressure available at a specific point, expressed in feet of water column D) The pressure after the master valve only Answer: C Explanation: Head pressure is the static pressure expressed as the equivalent height of a water column (ft H₂O). Question 52. Which of the following best describes a “zone” in an irrigation controller? A) A single sprinkler head B) A group of hydraulically independent components that operate together C) The entire irrigation system D) The water source connection Answer: B
Foundation Ultimate Exam
Explanation: Valves designed for reclaimed water resist corrosion, and a backflow preventer protects the system from chemical damage. Question 56. When calculating the required pump size for a 10-acre lawn, which factor is least likely to affect the horsepower selection? A) Total dynamic head (TDH) B) Desired flow rate (GPM) C) Number of zones D) Elevation change across the site Answer: C Explanation: While zones affect valve sizing, pump horsepower is driven primarily by flow and head, not the count of zones. Question 57. In Florida, the statutory requirement for a rain sensor (FL Statute 373.62) applies to: A) All new residential irrigation systems B) Only commercial golf-course installations C) Systems using reclaimed water only D) Existing systems retrofitted after 2015 Answer: A Explanation: The statute mandates rain sensors on new residential irrigation systems to promote water conservation. Question 58. The “velocity limit” for PVC pipe is set to avoid: A) Excessive noise only B) Erosion of the pipe’s inner wall and water hammer C) Low pressure at the farthest sprinkler D) Over-pressurization of the pump Answer: B
Foundation Ultimate Exam
Explanation: Keeping velocity ≤5 ft/s prevents erosion, reduces noise, and mitigates water hammer risks. Question 59. Which of the following is a key advantage of using a “smart” controller with ET (evapotranspiration) data? A) It eliminates the need for any manual adjustments B) It can predict future rainfall with 100% accuracy C) It automatically adjusts watering based on real-time plant water use, reducing waste D) It increases system pressure Answer: C Explanation: ET-based controllers align irrigation with actual plant water demand, enhancing efficiency. Question 60. A “pressure vacuum breaker” (PVB) must be installed at what minimum distance above the highest downstream fixture? A) 6 inches B) 12 inches C) 18 inches D) 24 inches Answer: C Explanation: PVBs require a 12-inch minimum vertical separation, but many codes specify 18 inches to ensure proper operation. Question 61. The primary reason for using a “check valve” in a well-pump system is to: A) Increase flow rate B) Prevent backflow of water into the well when the pump stops C) Regulate pressure downstream D) Filter debris Answer: B
