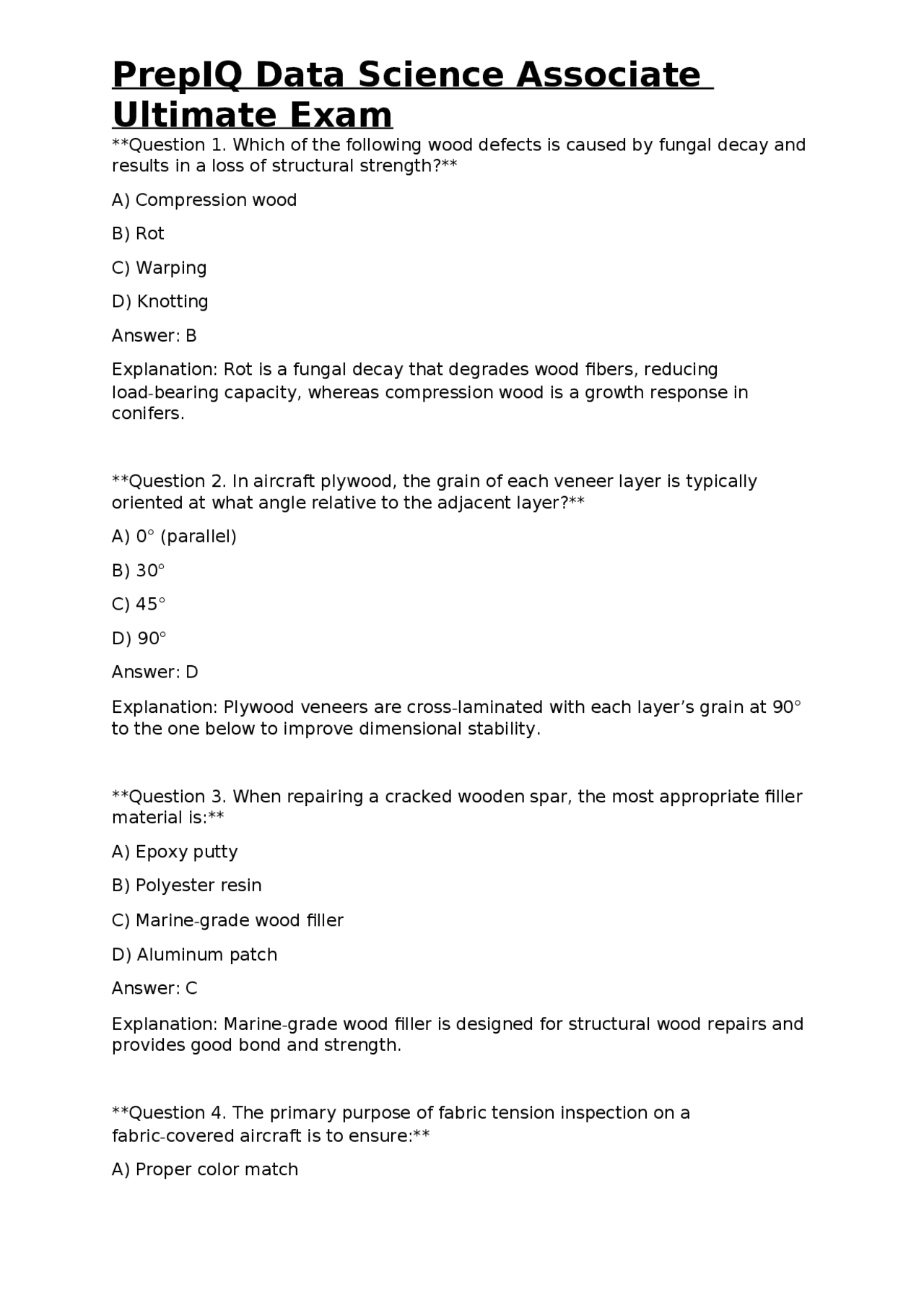

Ultimate Exam
Question 1. Which of the following wood defects is caused by fungal decay and results in a loss of structural strength? A) Compression wood B) Rot C) Warping D) Knotting Answer: B Explanation: Rot is a fungal decay that degrades wood fibers, reducing load-bearing capacity, whereas compression wood is a growth response in conifers. Question 2. In aircraft plywood, the grain of each veneer layer is typically oriented at what angle relative to the adjacent layer? A) 0° (parallel) B) 30° C) 45° D) 90° Answer: D Explanation: Plywood veneers are cross-laminated with each layer’s grain at 90° to the one below to improve dimensional stability. Question 3. When repairing a cracked wooden spar, the most appropriate filler material is: A) Epoxy putty B) Polyester resin C) Marine-grade wood filler D) Aluminum patch Answer: C Explanation: Marine-grade wood filler is designed for structural wood repairs and provides good bond and strength. Question 4. The primary purpose of fabric tension inspection on a fabric-covered aircraft is to ensure: A) Proper color match
Ultimate Exam
B) Adequate aerodynamic smoothness C) Correct structural load distribution D) No excessive sag that could cause flutter Answer: D Explanation: Excessive sag reduces skin tension, leading to flutter and possible fabric failure. Question 5. Which fabric covering material offers the highest resistance to UV degradation? A) Cotton canvas B) Dacron polyester C) Nylon D) Vinyl Answer: B Explanation: Dacron polyester has superior UV resistance compared to natural fibers and other synthetics. Question 6. When applying lettering on an aircraft fuselage, the recommended minimum height for characters on a 10-meter wing span aircraft is: A) 2 mm B) 5 mm C) 10 mm D) 20 mm Answer: C Explanation: FAA standards require a minimum of 10 mm (0.4 in) height for legibility on aircraft larger than 8 m. Question 7. The most common primer used before applying an enamel paint on aluminum airframe structures is: A) Zinc chromate B) Epoxy-based primer C) Alkyd primer D) Polyurethane primer
Ultimate Exam
Question 11. In a composite sandwich panel, the core material is typically: A) Fiberglass weave B) Carbon fiber fabric C) Honeycomb or foam D) Aluminum sheet Answer: C Explanation: Honeycomb or foam cores provide thickness and stiffness while keeping weight low. Question 12. Which inspection method is most effective for detecting delamination in a carbon-fiber wing panel? A) Visual inspection only B) Tap test (sound) C) Ultrasonic C-scan D) Magnetic particle inspection Answer: C Explanation: Ultrasonic C-scan can locate internal delamination that is invisible to visual or tap tests. Question 13. The most common welding process used for repairing steel tubing on a light aircraft is: A) MIG (GMAW) B) TIG (GTAW) C) Oxy-acetylene D) Spot welding Answer: B Explanation: TIG welding provides precise control and high-quality welds on thin steel tubing. Question 14. When inspecting a gas tungsten arc weld (TIG) on a tubular structure, a crack that appears as a hairline line extending from the weld toe is most likely caused by: A) Over-penetration B) Lack of shielding gas
Ultimate Exam
C) Excessive heat input leading to grain growth D) Improper joint fit-up causing stress concentration Answer: D Explanation: Improper fit-up creates high residual stresses at the weld toe, leading to hairline cracks. Question 15. The purpose of rigging a fixed-wing aircraft’s aileron control cables is to: A) Adjust the aileron camber for lift B) Ensure symmetrical deflection and proper tension for control feel C) Reduce aerodynamic drag on the cable housing D) Provide electrical grounding for the aileron servos Answer: B Explanation: Proper rigging guarantees equal aileron movement and correct tension for safe handling. Question 16. In a rotary-wing aircraft, the primary function of the main rotor control linkage is to: A) Change blade pitch to control lift and direction B) Provide power to the engine C) Adjust fuel flow to the engine D) Deploy the landing gear Answer: A Explanation: Main rotor linkages transmit pilot inputs to change blade pitch, controlling lift and yaw. Question 17. The correct procedure for installing a control cable jacket is to: A) Slip the jacket over the cable before threading through the conduit B) Install the jacket after the cable is tensioned and secured C) Use a metal sheath instead of a jacket for all cables D) Glue the jacket directly to the cable for extra strength Answer: B
Ultimate Exam
Question 21. In an EFIS (Electronic Flight Instrument System), the source of attitude data is typically: A) Mechanical gyros B) Inertial Measurement Unit (IMU) C) Pitot-static pressure alone D) GPS position only Answer: B Explanation: EFIS uses data from an IMU (accelerometers and gyros) to compute attitude. Question 22. The standard frequency for VHF air-to-ground communication in the United States is: A) 108 MHz B) 121.5 MHz C) 118 MHz to 136.975 MHz D) 200 MHz to 300 MHz Answer: C Explanation: VHF aviation communication uses the 118-136.975 MHz band. Question 23. A VOR station provides which type of navigation information to the aircraft? A) Distance measuring only B) Bearing (radial) information relative to the station C) Weather data D) Transponder code assignment Answer: B Explanation: VOR transmits a reference phase and a variable phase, allowing the aircraft to determine its radial from the station. Question 24. The purpose of bonding an aircraft antenna to the airframe is to: A) Improve signal strength by reducing antenna length B) Prevent static electricity buildup and reduce corrosion
Ultimate Exam
C) Increase antenna weight for balance D) Provide a ground return path for fuel pumps Answer: B Explanation: Bonding creates an electrical path to dissipate static and protect against corrosion. Question 25. Which fuel tank construction method provides the greatest resistance to fuel leakage under impact? A) Rigid metal tank with welded seams B) Flexible bladder tank inside a rigid shell C) Integral fuel tank formed from wing structure D) Aluminum tank with riveted seams Answer: B Explanation: A bladder tank is self-sealing and can absorb impact without rupturing, unlike rigid tanks. Question 26. The most common cause of fuel contamination in piston-engine aircraft is: A) Water ingress from condensation B) Fuel additive reaction with aluminum C) Over-pressurization of the tank D) Use of leaded avgas in a diesel engine Answer: A Explanation: Water condenses in the tank and can be drawn into the fuel system, causing contamination. Question 27. In an aircraft electrical system, a circuit breaker differs from a fuse primarily because: A) It is a one-time protective device B) It can be reset after tripping C) It provides overload protection only at low voltage D) It is made of ceramic material only Answer: B
Ultimate Exam
A) Wheel lock-up during landing roll B) Tire blowouts due to over-inflation C) Gear retraction failure D) Brake fluid contamination Answer: A Explanation: Anti-skid monitors wheel speed and modulates brake pressure to prevent lock-up. Question 32. Which component detects a fire in the engine compartment and initiates an extinguishing sequence? A) Stall warning sensor B) Engine fire detector (heat sensor) C) Oxygen mask valve D) Fuel pump pressure switch Answer: B Explanation: Engine fire detectors sense high temperature or flame and trigger the fire suppression system. Question 33. Pneumatic de-icing boots on a wing function by: A) Heating the surface with electric elements B) Expanding and contracting to break ice adhesion C) Spraying glycol onto the surface D) Using ultrasonic vibrations to melt ice Answer: B Explanation: Inflating the boots creates a rapid shape change that cracks and sheds ice. Question 34. The most common chemical de-icing fluid used for aircraft wing de-icing is: A) Propylene glycol B) Ethylene glycol C) Isopropyl alcohol D) Sodium chloride solution
Ultimate Exam
Answer: B Explanation: Ethylene glycol solutions are effective at low temperatures and commonly used for aircraft. Question 35. In a pressurization system, the outflow valve controls: A) Cabin temperature B) Cabin pressure by regulating air exhaust C) Fuel flow to the engine D) Hydraulic fluid pressure Answer: B Explanation: The outflow valve modulates the rate of air leaving the cabin, thereby controlling pressure. Question 36. An air-cycle machine (ACM) in an aircraft environmental control system is used for: A) Heating the cabin only B) Cooling the cabin only C) Both heating and cooling by air expansion/compression D) Pressurizing the fuel tank Answer: C Explanation: ACMs use a refrigeration cycle with air as the working fluid to provide both heating and cooling. Question 37. The primary safety precaution when handling aircraft oxygen cylinders is: A) Store them near the engine for easy access B) Keep them in a ventilated area away from heat sources C) Submerge them in water before inspection D) Use a magnetic field to test for leaks Answer: B Explanation: Oxygen supports combustion; storing cylinders away from heat and flammable materials prevents fire hazards.
Ultimate Exam
B) Engine start-air and anti-ice pneumatic boots C) Landing gear actuation exclusively D) Fuel pump operation Answer: B Explanation: Engine start-air and pneumatic de-ice boots require high-pressure air; landing gear often uses hydraulic power. Question 42. The purpose of a moisture separator in a pneumatic system is to: A) Increase air pressure B) Remove water droplets that could freeze in lines C) Add humidity for crew comfort D) Filter oil particles from the air Answer: B Explanation: Moisture separators capture water to prevent ice formation in pneumatic lines. Question 43. An oleo-shock strut in the landing gear primarily absorbs: A) Lateral loads during taxi B) Vertical impact energy during touchdown C) Hydraulic pressure spikes D) Electrical surges to the gear motors Answer: B Explanation: Oleo struts consist of oil and compressed gas, absorbing vertical kinetic energy on landing. Question 44. When performing a tire pressure check on a main landing-gear wheel, the correct procedure is to: A) Measure pressure with the tire hot after a flight B) Measure pressure with the tire cold, using a calibrated gauge on the valve stem C) Use a visual gauge on the wheel hub D) Rely on the aircraft’s onboard pressure sensor only
Ultimate Exam
Answer: B Explanation: Cold-inflated pressure provides an accurate baseline; hot tires can give misleading high readings. Question 45. A hard-landing inspection must be performed when the aircraft experiences a vertical acceleration greater than: A) 1.5 g B) 2.0 g C) 2.5 g D) 3.0 g Answer: C Explanation: FAA guidelines consider 2.5 g as the threshold for a hard-landing inspection. Question 46. The FAA Form 337 is used to document: A) Routine 100-hour inspections B) Minor daily checks C) Major repairs or alterations affecting the airframe structure D) Pilot flight time logs Answer: C Explanation: Form 337 records major structural repairs, alterations, and inspections required for continued airworthiness. Question 47. During a 100-hour inspection, which of the following items is NOT typically examined? A) Flight control surface hinges B) Engine oil viscosity C) Landing gear strut condition D) Fuselage skin corrosion Answer: B Explanation: Engine oil checks are part of engine maintenance, not the airframe 100 - hour inspection.
Ultimate Exam
A) Lower cost of material B) Higher fatigue life and weight savings C) Easier field repairs with rivets D) Better compatibility with traditional paint systems Answer: B Explanation: Carbon-fiber composites offer superior strength-to-weight and fatigue characteristics compared to aluminum. Question 52. When performing a visual inspection of a rivet head on a wing skin, a “peening” defect is identified. This indicates: A) The rivet was over-driven, flattening the head and reducing clamping load B) The rivet head is correctly seated with a smooth dome shape C) The rivet material is incompatible with the skin alloy D) The rivet has been installed with a blind-head tool Answer: A Explanation: Over-driving (peening) deforms the rivet head, potentially compromising load transfer. Question 53. In a pitot-static system, a blocked static port will cause the altimeter to read: A) Higher than actual altitude B) Lower than actual altitude C) No change; altimeter uses pitot pressure only D) Random fluctuations Answer: B Explanation: With a blocked static port, the altimeter retains the last pressure reading, causing it to indicate a lower altitude as the aircraft climbs. Question 54. A VHF antenna on the aircraft’s fuselage must be installed with a minimum separation of: A) 1 inch from any conductive surface B) 0.5 inches from the nearest bolt head C) 2 inches from any high-voltage wiring
Ultimate Exam
D) 3 inches from the propeller hub Answer: C Explanation: Keeping the antenna at least 2 inches away from high-voltage wiring reduces interference. Question 55. The function of a fuel filter in the aircraft fuel system is to: A) Increase fuel pressure B) Remove contaminants before fuel reaches the engine C) Heat the fuel to prevent icing D) Measure fuel flow rate Answer: B Explanation: Fuel filters trap particles and water, protecting the engine from contamination. Question 56. When troubleshooting an intermittent loss of electrical power to the navigation lights, the first step should be to: A) Replace the entire wiring harness B) Check the relevant circuit breaker for tripping C) Inspect the antenna for damage D) Verify the fuel tank pressure Answer: B Explanation: A tripped breaker is a common cause of loss of power; verifying it is the quickest initial check. Question 57. In a hydraulic system, a “cavitation” phenomenon is most likely to occur when: A) Fluid temperature is below freezing B) Fluid is contaminated with air bubbles and the pump operates at high speed C) The reservoir is overfilled D) The system uses Skydrol fluid Answer: B Explanation: Air bubbles collapse under low pressure, causing cavitation, especially in high-speed pumps.
Ultimate Exam
A) They are always made of aluminum B) They provide high shear strength but low compressive strength C) They are susceptible to moisture absorption leading to core degradation D) They cannot be inspected visually for damage Answer: C Explanation: Honeycomb cores (often Nomex or aluminum) can absorb moisture, causing core degradation if not sealed. Question 62. The main advantage of using a pop-riveter (blind rivet) on a structure with limited rear-side access is: A) It provides a stronger joint than a solid rivet B) It allows installation without a second side to form the head C) It does not require a drilled hole D) It can be removed and reused repeatedly Answer: B Explanation: Blind rivets are installed from one side, making them ideal for inaccessible rear surfaces. Question 63. When performing a visual inspection of a wing rib, a “compression wood” defect is identified. This condition typically results from: A) Excessive moisture in the wood B) Growth stress in coniferous trees that have grown with a lean C) Improper curing of epoxy resin D) Over-driven rivets compressing the wood fibers Answer: B Explanation: Compression wood forms in conifers that develop a lean, resulting in denser, stiffer wood that can cause stress concentrations. Question 64. The purpose of an anti-ice pneumatic system that uses hot bleed air is to: A) Heat wing leading edges to prevent ice formation B) Inflate the de-icing boots on the wing trailing edge C) Supply cabin pressurization air
Ultimate Exam
D) Cool the engine exhaust gases Answer: A Explanation: Hot bleed air is routed to leading-edge panels to raise surface temperature and prevent ice accumulation. Question 65. In a hydraulic landing-gear retraction system, a “slow-retract” symptom is most often caused by: A) Low hydraulic fluid temperature B) A partially closed hydraulic valve or restriction in the line C) A faulty gear-down microswitch D) An over-pressurized accumulator Answer: B Explanation: A restriction or partially closed valve reduces flow, slowing gear retraction. Question 66. The standard method for cleaning a fuel tank interior before a major repair is: A) High-pressure water jet B) Solvent flushing with approved aviation fuel-compatible solvent, followed by dry-vacuuming C) Scrubbing with steel brushes D) Using a fire extinguisher to burn off residues Answer: B Explanation: Solvent flushing removes contaminants without leaving residues; water can cause corrosion. Question 67. When checking the integrity of a pitot-static line, the most reliable test is to: A) Visually inspect for cracks only B) Apply pressure with a hand pump and monitor for pressure drop C) Use a soap solution to detect leaks D) Measure temperature changes along the line Answer: B
