Exam

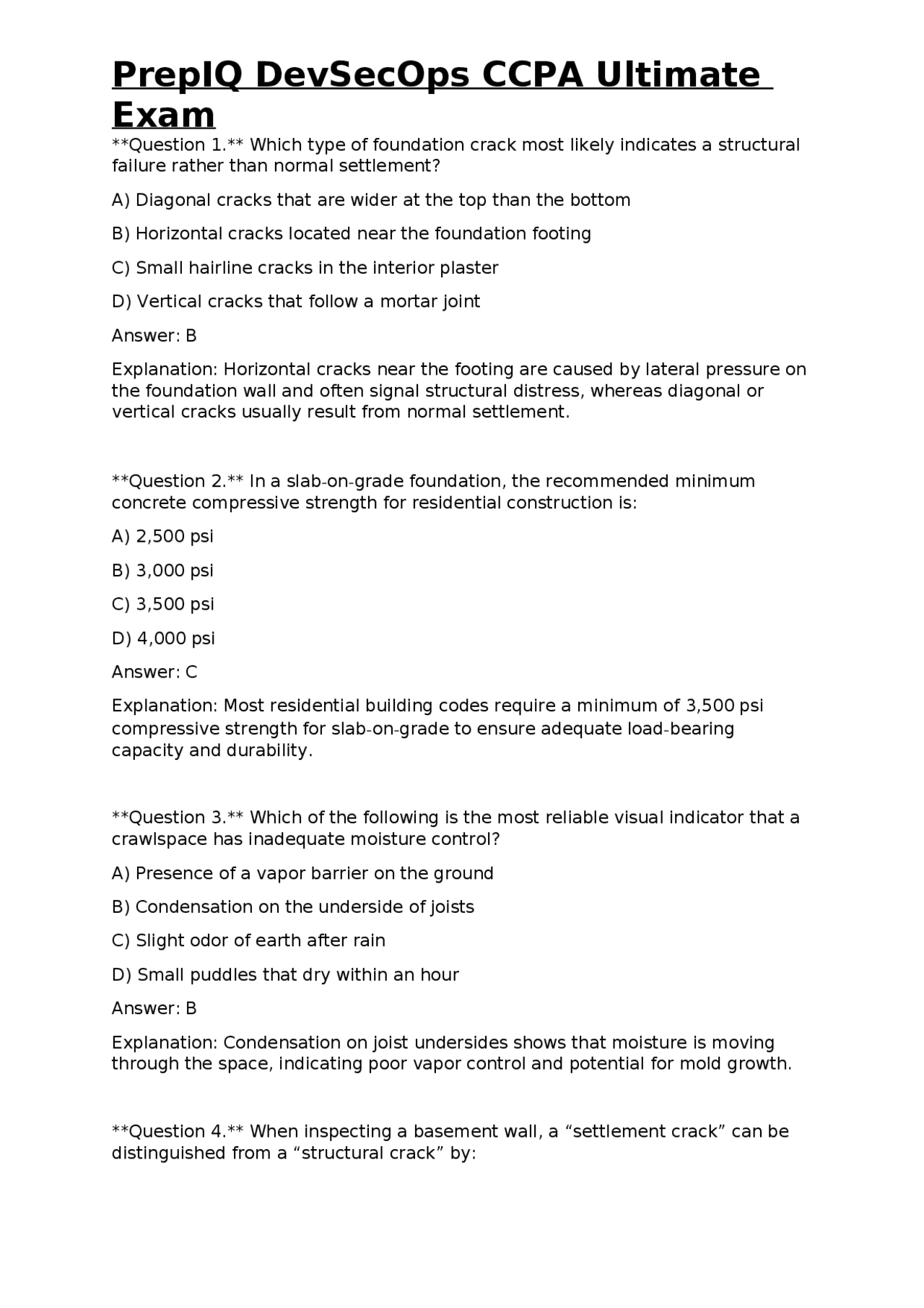

Question 1. Which type of foundation crack most likely indicates a structural failure rather than normal settlement? A) Diagonal cracks that are wider at the top than the bottom B) Horizontal cracks located near the foundation footing C) Small hairline cracks in the interior plaster D) Vertical cracks that follow a mortar joint Answer: B Explanation: Horizontal cracks near the footing are caused by lateral pressure on the foundation wall and often signal structural distress, whereas diagonal or vertical cracks usually result from normal settlement. Question 2. In a slab-on-grade foundation, the recommended minimum concrete compressive strength for residential construction is: A) 2,500 psi B) 3,000 psi C) 3,500 psi D) 4,000 psi Answer: C Explanation: Most residential building codes require a minimum of 3,500 psi compressive strength for slab-on-grade to ensure adequate load-bearing capacity and durability. Question 3. Which of the following is the most reliable visual indicator that a crawlspace has inadequate moisture control? A) Presence of a vapor barrier on the ground B) Condensation on the underside of joists C) Slight odor of earth after rain D) Small puddles that dry within an hour Answer: B Explanation: Condensation on joist undersides shows that moisture is moving through the space, indicating poor vapor control and potential for mold growth. Question 4. When inspecting a basement wall, a “settlement crack” can be distinguished from a “structural crack” by:
Exam
A) Its location at the top of the wall B) The presence of stair-step patterns in the mortar C) A width that exceeds 1/8 inch D) A straight, continuous line that follows the wall height Answer: D Explanation: Settlement cracks often appear as straight, continuous lines that follow the wall height, while structural cracks are typically jagged or stair-step and may indicate wall movement. Question 5. The primary purpose of a sill plate in wood framing is to: A) Provide a decorative finish on the exterior wall B) Transfer loads from the wall studs to the foundation C) Act as a barrier against insects D) Support the roof trusses directly Answer: B Explanation: Sill plates sit on the foundation anchor bolts and distribute the vertical loads from wall studs down to the foundation. Question 6. In floor framing, the function of bridging (or blocking) between joists is to: A) Increase the span of each joist B) Reduce lateral movement and distribute loads C) Provide a nailing surface for flooring D) Serve as a conduit for electrical wiring Answer: B Explanation: Bridging ties joists together, limiting lateral deflection and helping to spread point loads more evenly across the floor system. Question 7. Which wall stud size is most commonly used for interior non-load-bearing partitions in modern residential construction? A) 2×4 (actual 1.5×3.5 in) B) 2×6 (actual 1.5×5.5 in) C) 4×4 (actual 3.5×3.5 in)
Exam
Explanation: Vinyl siding is non-porous; water stains on its interior side usually point to a compromised housewrap that allows moisture to penetrate behind the siding. Question 11. Which of the following is the correct order of layers from exterior to interior for a typical EIFS (Exterior Insulation and Finish System) wall assembly? A) Siding → Rigid foam → Base coat → Finish coat → Sheathing B) Sheathing → Rigid foam → Base coat → Finish coat → Weather barrier C) Weather barrier → Rigid foam → Base coat → Finish coat → Sheathing D) Sheathing → Weather barrier → Rigid foam → Base coat → Finish coat Answer: D Explanation: EIFS generally consists of sheathing, a weather-resistive barrier, rigid foam insulation, a base coat, and a finish coat applied on top. Question 12. In masonry veneer construction, the purpose of a “weep hole” is to: A) Provide ventilation for the interior wall cavity B) Allow moisture that penetrates the veneer to exit the wall assembly C) Serve as a decorative element in the mortar joint D) Anchor the veneer to the structural backing wall Answer: B Explanation: Weep holes are small openings at the bottom of the veneer that let any water that gets behind the cladding drain out, preventing moisture buildup. Question 13. Which material is classified as a “load-bearing” component in a residential structure? A) Non-structural interior partition wall B) Decorative crown molding C) Engineered I-beam supporting a second floor D) Interior finish-grade drywall Answer: C Explanation: Engineered I-beams are designed to carry vertical loads and are therefore considered load-bearing.
Exam
Question 14. When inspecting a steel column, an inspector should look for signs of: A) Wood rot on the base plate B) Corrosion at connection points and rivet holes C) Cracking in the gypsum wallboard attached to it D) Loose drywall screws near the column Answer: B Explanation: Steel columns are vulnerable to corrosion, especially at bolted or riveted connections where moisture can accumulate. Question 15. An LVL (Laminated Veneer Lumber) beam is preferred over a solid-sawn lumber beam because: A) LVL is lighter and easier to handle B) LVL has more consistent strength and less variability C) LVL is less expensive than solid lumber D) LVL expands less with humidity changes Answer: B Explanation: LVL is manufactured by bonding multiple thin wood veneers, resulting in uniform strength and stiffness, reducing the risk of knots or grain irregularities that affect solid lumber. Question 16. Which roofing material typically requires a “starter strip” to be installed along the eave edge? A) Asphalt shingles B) Clay tiles C) Metal standing seam panels D) Wood shakes Answer: A Explanation: Asphalt shingle systems use a starter strip to provide a secure base for the first course of shingles and improve water shedding. Question 17. The most common cause of premature granule loss from asphalt shingles is:
Exam
Explanation: Valley flashing is installed in the V-shaped intersection of two roof planes to create a watertight channel that directs runoff to the gutter system. Question 21. When inspecting roof drainage, an inspector should verify that the downspout extends at least how many feet away from the foundation wall? A) 2 feet B) 4 feet C) 6 feet D) 10 feet Answer: C Explanation: A minimum 6-foot extension helps keep water from pooling near the foundation, reducing the risk of moisture intrusion and basement flooding. Question 22. Which attic ventilation configuration is considered the most effective for achieving balanced airflow? A) Only ridge vents installed without soffit vents B) Only soffit vents installed without ridge vents C) Combined soffit vents and ridge vents with equal net opening area D) Gable vents combined with attic fans Answer: C Explanation: Balanced ventilation requires intake (soffit) and exhaust (ridge) openings of comparable size to promote continuous air movement through the attic space. Question 23. What is the typical minimum R-value required for insulation in a climate zone 5 attic according to the 2021 International Energy Conservation Code (IECC)? A) R- 30 B) R- 38 C) R- 45 D) R- 49 Answer: B Explanation: IECC 2021 specifies a minimum attic insulation value of R-38 for climate zone 5 to meet energy efficiency standards.
Exam
Question 24. A vapor retarder installed on the warm side of a wall assembly is intended to: A) Prevent air infiltration from the exterior B) Stop moisture from migrating into the wall cavity where it can condense C) Increase the overall R-value of the wall D) Provide a fire-resistant barrier Answer: B Explanation: Vapor retarders limit the diffusion of water vapor from warm interior spaces into cooler wall cavities, reducing the risk of condensation. Question 25. Which type of roof deck material is most commonly used beneath asphalt shingle installations? A) Plywood ¾-inch thick B) OSB (Oriented Strand Board) ½-inch thick C) Tongue-and-groove cedar planks D) Metal decking Answer: A Explanation: ¾-inch plywood provides a sturdy, nail-holding surface and is the standard substrate for asphalt shingle roofing. Question 26. The most common cause of “ice dam” formation on a sloped roof is: A) Over-insulated attic space B) Excessive roof pitch C) Insufficient roof ventilation leading to snow melt and refreezing at the eave D) Use of metal roofing material Answer: C Explanation: Poor attic ventilation allows heat to escape, melting snow on the roof; meltwater refreezes at the colder eave, forming ice dams that can back up under shingles. Question 27. In a residential electrical service entrance, the “weatherhead” is located:
Exam
A) Outdoor receptacles B) Bedrooms C) Garages D) Kitchen countertop circuits Answer: B Explanation: The NEC mandates AFCI protection for all 120-V, single-phase, 15- and 20-amp branch circuits supplying bedroom outlets. Question 31. Which wiring method is most appropriate for installing a new branch circuit in an existing finished wall where minimal surface disturbance is desired? A) Rigid metal conduit (RMC) B) EMT (Electrical Metallic Tubing) C) NM-B (Romex) cable run in a bored hole through studs D) MC (Metal-Clad) cable in a surface raceway Answer: C Explanation: NM-B can be run through bored holes in studs, preserving the finished surface and requiring fewer invasive modifications than conduit systems. Question 32. Aluminum wiring in a residential home can be identified by: A) A dark gray or silver color with a smooth surface, often marked “AL” on the sheath B) A reddish-brown color and a flexible, stranded appearance C) A green stripe on the insulation indicating grounding conductors D) A thick, rigid outer jacket with a “CU” marking Answer: A Explanation: Aluminum conductors are typically silver-gray, may have a “AL” imprint, and are less flexible than copper, allowing visual identification. Question 33. The minimum size of a grounding electrode conductor (GEC) for a 100-amp residential service using copper is: A) 8 AWG B) 6 AWG
Exam
C) 4 AWG
D) 2 AWG
Answer: B Explanation: NEC Table 250.122 specifies a 6 AWG copper GEC for a 100-amp service; larger services require larger conductors. Question 34. When testing a receptacle with a non-contact voltage tester, a reading of “hot” on the neutral slot indicates: A) The neutral is correctly bonded to ground B) A reversed polarity condition C) An open neutral condition with induced voltage D) A properly wired, functional outlet Answer: C Explanation: Non-contact testers can pick up phantom voltage on an open neutral due to capacitive coupling; this does not mean the neutral is energized. Question 35. Which of the following is the correct method for connecting a GFCI receptacle to a downstream protected circuit? A) Wire the load terminals to the downstream devices and the line terminals to the power source B) Wire the load terminals to the power source and the line terminals to downstream devices C) Use only the line terminals and connect downstream devices directly to the panel D) Connect both line and load terminals together with a pigtail to the power source Answer: A Explanation: The line terminals receive power; the load terminals feed downstream receptacles that inherit GFCI protection. Question 36. In a residential plumbing system, the “main shut-off valve” is typically located: A) Inside the kitchen sink cabinet B) At the point where the water service enters the building, often in a utility room or crawlspace
Exam
Answer: B Explanation: Traps hold a small amount of water, creating a seal that blocks gases while allowing waste to pass. Question 40. A “wet vent” in a residential plumbing layout is defined as: A) A vent pipe that also serves as a drain for a separate fixture B) A vent that is installed inside a wall cavity with insulation C) A vent that is exposed to the exterior without a cap D) A vent that uses a larger diameter than required for drainage Answer: A Explanation: Wet venting combines the functions of a vent and a drain in a single pipe, permitted by code for certain fixture groupings. Question 41. Which of the following materials is most commonly used for a residential sewage ejector pump’s discharge pipe? A) PVC (Schedule 40) B) ABS (Acrylonitrile Butadiene Styrene) C) Copper D) Galvanized steel Answer: A Explanation: PVC is resistant to corrosion, easy to join with solvent cement, and is the standard for sewage pump discharge piping. Question 42. The T&P (Temperature & Pressure) relief valve on a water heater must discharge to a location that: A) Is at least 6 inches above the floor level B) Directly into a floor drain or a suitable discharge pipe terminating at the floor C) Is routed back into the cold-water supply line D) Discharges onto the exterior wall of the building Answer: B Explanation: NEC and UPC require the T&P valve to discharge safely to a floor drain or a pipe that terminates at the floor, preventing hot water from scalding occupants.
Exam
Question 43. Which type of gas piping is most commonly used for indoor natural gas distribution in new residential construction? A) Black steel pipe with threaded connections B) Corrugated stainless steel tubing (CSST) with proper bonding C) Copper tubing with soldered joints D) Polyethylene (PE) gas pipe Answer: B Explanation: CSST is flexible, easier to install, and, when properly bonded, meets modern code requirements for indoor natural gas distribution. Question 44. A residential oil-filled furnace requires a “fuel shut-off valve” that is typically located: A) At the oil tank’s top vent B) Near the furnace’s burner assembly, upstream of the pump C) Inside the combustion air intake duct D) At the service entrance panel Answer: B Explanation: The shut-off valve is installed upstream of the pump to stop fuel flow to the furnace in an emergency or for maintenance. Question 45. In a forced-air furnace, the “heat exchanger” is primarily responsible for: A) Distributing heated air through the ductwork B) Transferring heat from combustion gases to the circulating air while keeping the gases sealed from the indoor environment C) Controlling the thermostat setpoint D) Filtering the incoming combustion air Answer: B Explanation: The heat exchanger separates combustion gases from the supply air, allowing heat transfer without exposing occupants to flue gases. Question 46. Which of the following is a key indicator that a hydronic boiler’s condensate drain is blocked? A) Excessive noise from the boiler’s burner
Exam
Answer: B Explanation: Mastic, a high-temperature, flexible sealant, creates a durable air-tight seal that outperforms foil tape and duct tape, which can degrade over time. Question 50. The purpose of a “combustion air intake” for a gas furnace installed in a tightly sealed home is to: A) Supply fresh air for the furnace’s burners to ensure complete combustion and prevent back-drafting B) Provide additional cooling to the furnace’s heat exchanger C) Reduce the noise level of the furnace’s blower motor D) Increase the furnace’s overall heating capacity by 10 % Answer: A Explanation: Adequate combustion air prevents incomplete combustion, reduces carbon monoxide production, and avoids negative pressure that could draw exhaust gases back into the living space. Question 51. When inspecting interior walls for water damage, the presence of “bubbled paint” typically indicates: A) Surface condensation from high indoor humidity B) Moisture intrusion behind the wall causing delamination of the paint film C) Improper paint application technique D) Age-related fading of the paint pigment Answer: B Explanation: Bubbled or blistered paint is a classic sign that moisture has penetrated the substrate, causing the paint film to lift. Question 52. A “guardrail” on a residential stairway must be at least how high above the nosing of the treads according to most building codes? A) 30 inches B) 34 inches C) 36 inches D) 42 inches Answer: C
Exam
Explanation: The International Residential Code (IRC) requires guardrails to be a minimum of 36 inches in height measured from the nosing. Question 53. Which of the following is required for an emergency escape window in a sleeping room? A) Minimum net clear opening of 5.7 sq ft, with a minimum height of 24 in and width of 20 in B) Must be operable without the use of tools or keys, and open fully to the exterior C) Must be located within 10 ft of a fire alarm device D) Must be double-pane, low-E glass for energy efficiency Answer: B Explanation: Code mandates that egress windows be operable without tools, providing a safe means of escape; size requirements (5.7 sq ft, etc.) are also stipulated, but operability is the key element highlighted. Question 54. When testing a dryer vent for proper airflow, the recommended minimum free-area diameter at the exterior termination is: A) 3 inches B) 4 inches C) 5 inches D) 6 inches Answer: B Explanation: A 4-inch diameter provides sufficient free area to prevent lint buildup and maintain adequate exhaust flow per NFPA 72 and manufacturer guidelines. Question 55. A solid-fuel fireplace must have a hearth extension that extends at least: A) 6 inches beyond the front and sides of the firebox opening B) 12 inches beyond the front and sides of the firebox opening C) 18 inches beyond the front and sides of the firebox opening D) 24 inches beyond the front and sides of the firebox opening Answer: B
Exam
Explanation: Ethical guidelines require disclosure of any conflict of interest, including performing repairs, to maintain transparency and client trust. Question 59. The minimum personal protective equipment (PPE) an inspector should wear when entering a confined attic space includes: A) Safety glasses, hearing protection, and steel-toe boots B) Hard hat, reflective vest, and a respirator C) Safety glasses, a dust mask (or respirator if needed), and slip-resistant footwear D) Gloves, a face shield, and a harness Answer: C Explanation: Attics can contain dust, insulation fibers, and limited footing; safety glasses, a dust mask or respirator, and slip-resistant shoes provide appropriate protection. Question 60. Which of the following is the most common cause of “settlement cracks” in a poured-concrete slab foundation? A) Expansion of the concrete due to high temperatures B) Improper curing resulting in shrinkage C) Hydrostatic pressure from groundwater D) Over-loading from heavy equipment during construction Answer: B Explanation: Improper curing leads to excessive shrinkage, causing the concrete to settle and develop cracks. Question 61. When inspecting a wall stud for rot, the most reliable method is to: A) Tap the stud with a hammer and listen for a hollow sound B) Use a moisture meter on the surface of the drywall C) Remove a small section of sheathing to visually inspect the wood for decay and fungal growth D) Check for discoloration of the paint on the interior wall Answer: C Explanation: Direct visual inspection of the actual wood provides definitive evidence of rot, whereas tapping or moisture meters can be inconclusive.
Exam
Question 62. In a roof assembly that uses a “drip edge,” the primary function of the metal flashing is to: A) Provide additional structural support to the roof deck B) Direct water away from the underlying sheathing and fascia C) Enhance the aesthetic appearance of the roof line D) Serve as a mounting point for solar panels Answer: B Explanation: Drip edge metal flashing guides water off the roof deck and protects fascia and sheathing from water infiltration. Question 63. Which of the following roof coverings is most resistant to fire when installed according to manufacturer specifications? A) Asphalt shingles B) Wood shakes C) Clay tile D) Low-slope EPDM membrane Answer: C Explanation: Clay tiles have a Class A fire rating, the highest level of fire resistance among common residential roofing materials. Question 64. A “step flashing” is typically installed at which location? A) Along the ridge of a roof B) At the intersection of a roof and a vertical wall (e.g., chimney, dormer) C) Under the eave of a roof to direct water onto the gutter D) Around vent pipe penetrations on the roof surface Answer: B Explanation: Step flashing provides a water-tight seal where the roof plane meets a vertical surface, overlapping each course of shingles. Question 65. The most common type of vent used to relieve attic moisture buildup is: A) Powered attic fans
