Program NCCCOAMP Ultimate Exam

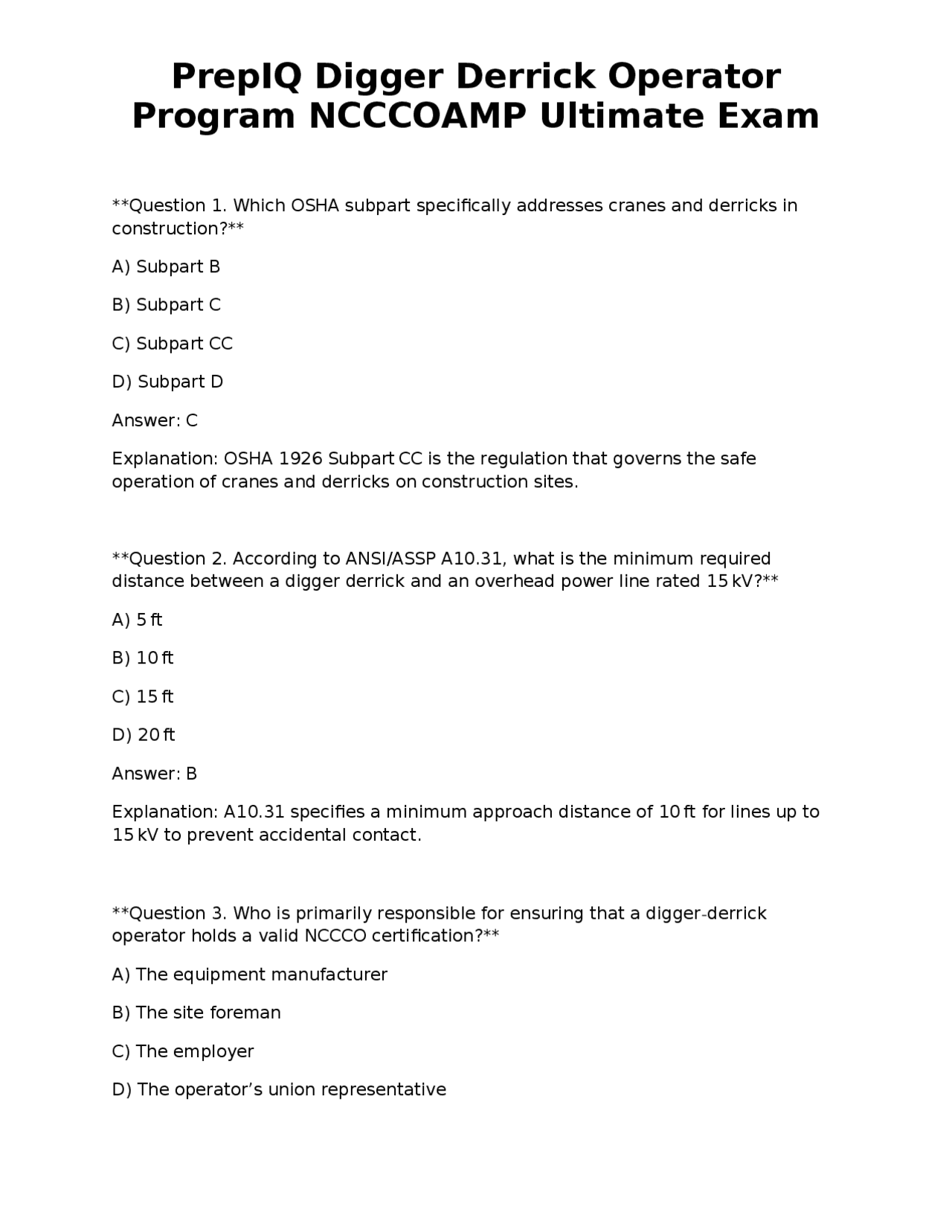

Question 1. Which OSHA subpart specifically addresses cranes and derricks in construction? A) Subpart B B) Subpart C C) Subpart CC D) Subpart D Answer: C Explanation: OSHA 1926 Subpart CC is the regulation that governs the safe operation of cranes and derricks on construction sites. Question 2. According to ANSI/ASSP A10.31, what is the minimum required distance between a digger derrick and an overhead power line rated 15 kV? A) 5 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: A10.31 specifies a minimum approach distance of 10 ft for lines up to 15 kV to prevent accidental contact. Question 3. Who is primarily responsible for ensuring that a digger-derrick operator holds a valid NCCCO certification? A) The equipment manufacturer B) The site foreman C) The employer D) The operator’s union representative
Program NCCCOAMP Ultimate Exam
Answer: C Explanation: Employer responsibility includes verifying operator qualifications and maintaining records of certification. Question 4. Before setting up a digger derrick, which of the following should be identified first? A) The location of the nearest restroom B) Underground utilities C) The color of the equipment D) The brand of hydraulic fluid Answer: B Explanation: Locating underground utilities prevents accidental strikes during outrigger placement and auger operation. Question 5. When evaluating ground conditions, which material provides the most stable base for outrigger pads? A) Loose sand B) Compacted clay C) Gravel with a geotextile fabric D) Freshly poured concrete Answer: C Explanation: Gravel with geotextile offers drainage and load distribution, reducing settlement under the pads. Question 6. Which term describes the area around a power line where work is prohibited unless a spotter is present?
Program NCCCOAMP Ultimate Exam
Explanation: Load charts are inspected daily to ensure operators have correct capacity data before each shift. Question 9. Which component of the boom assembly is directly attached to the chassis? A) Extension boom B) Lower boom C) Intermediate boom D) Jib boom Answer: B Explanation: The lower boom connects the boom assembly to the chassis and provides the primary pivot point. Question 10. The auger drive’s primary function is to: A) Rotate the winch drum B) Provide hydraulic pressure to the boom C) Spin the auger for drilling D) Control the outriggers Answer: C Explanation: The auger drive powers the rotation of the auger during drilling operations. Question 11. Which type of rope is preferred for lifting heavy loads on a digger derrick due to its flexibility and reduced weight? A) Steel wire rope B) Synthetic rope
Program NCCCOAMP Ultimate Exam
C) Nylon rope D) Chain sling Answer: B Explanation: Synthetic rope offers high strength, lower weight, and easier handling compared to steel wire rope. Question 12. During a pre-operational shift inspection, a hydraulic leak is discovered. What is the correct immediate action? A) Continue operation if the leak is small B) Patch the leak with tape and proceed C) Stop the equipment and report the leak D) Increase hydraulic pressure to compensate Answer: C Explanation: Any hydraulic leak poses a safety risk and must be addressed before operation resumes. **Question 13. Which visual sign indicates a broken wire in a wire rope inspection? ** A) A smooth surface with no kinks B) A visible frayed end C) A uniform color throughout D) A slight stretch under load Answer: B Explanation: Broken wires often appear as frayed or missing strands at the rope’s end.
Program NCCCOAMP Ultimate Exam
Explanation: Laser leveling gives precise, real-time data on pad height and overall stability. Question 17. While rotating the superstructure, the boom is simultaneously being raised. This coordinated movement is known as: A) Synchronous operation B) Dual-axis maneuver C) Simultaneous lift D) Coordinated movement Answer: D Explanation: Coordinated movement refers to safely executing two or more motions at the same time. Question 18. Which hand signal indicates “lower the boom”? A) Palm up, moving hand downward B) Palm down, moving hand upward C) Open hand waving side to side D) Closed fist pointing forward Answer: A Explanation: The standard hand signal for lowering the boom is a palm-up motion moving downward. Question 19. If a digger derrick contacts an energized power line, the first action should be to: A) Shut down the engine immediately B) Move the equipment away from the line as quickly as possible
Program NCCCOAMP Ultimate Exam
C) Keep the equipment stationary and wait for the power company D) Disconnect the load and call emergency services Answer: D Explanation: The safest response is to isolate the load, ensure personnel safety, and contact emergency responders; moving the equipment can cause further hazard. Question 20. A hydraulic system failure is identified by a sudden loss of pressure. What is the recommended emergency response? A) Restart the engine and hope pressure returns B) Engage the emergency stop and notify maintenance C) Increase the pump speed to compensate D) Continue operation at reduced speed Answer: B Explanation: Engaging the emergency stop prevents further operation while the issue is addressed. Question 21. When calculating gross capacity, which factor is NOT considered? A) Boom angle B) Boom length C) Load radius D) Operator’s weight Answer: D Explanation: Operator weight is negligible compared to boom geometry and load radius for capacity calculations. Question 22. Net capacity is obtained by:
Program NCCCOAMP Ultimate Exam
Question 25. The center of gravity (CG) of a loaded digger derrick is critical for stability. Where is the CG typically located when the boom is fully extended? A) Directly over the chassis B) Near the rear outriggers C) Ahead of the front outriggers D) At the tip of the boom Answer: C Explanation: Extending the boom moves the load’s CG forward, creating a forward-leaning moment that must be countered by outriggers. Question 26. The “tipping axis” on a digger derrick is defined as: A) The line about which the boom rotates B) The imaginary line through the outrigger pads where the unit will rotate if overloaded C) The hydraulic cylinder axis D) The axis of the winch drum Answer: B Explanation: The tipping axis is the pivot line through the outermost outriggers; exceeding its moment causes a tip-over. Question 27. Side-loading a digger derrick creates which effect on stability? A) Increases the lifting capacity B) Shifts the CG laterally, reducing stability C) Has no effect if the load is within capacity D) Improves outriggers’ grip on the ground
Program NCCCOAMP Ultimate Exam
Answer: B Explanation: Side loads move the CG sideways, creating a moment that can cause the unit to tip if not properly countered. Question 28. Wind speeds above which value typically require the operator to cease lifting high-profile loads? A) 10 mph B) 20 mph C) 30 mph D) 40 mph Answer: C Explanation: OSHA and manufacturer guidelines often set 30 mph as the maximum safe wind speed for lifting large, exposed loads. Question 29. In hydraulic systems, a relief valve primarily serves to: A) Increase system pressure for faster operation B) Prevent pressure from exceeding a set limit C) Filter hydraulic fluid D) Convert hydraulic power to electrical power Answer: B Explanation: Relief valves protect components by venting excess pressure when the system exceeds the preset limit. Question 30. When handling battery safety on a digger derrick, which practice is essential? A) Keeping the battery fully charged at all times
Program NCCCOAMP Ultimate Exam
Question 33. During auger operation, “spin-off” refers to: A) The auger rotating without forward pressure, cleaning the hole walls B) The auger being removed from the machine for maintenance C) A sudden loss of hydraulic pressure causing the auger to stop D) The auger reversing direction to extract soil Answer: A Explanation: Spin-off is a cleaning technique where the auger spins without thrust to remove debris from the bore. Question 34. The proper method for securing a pole in the pole claws includes: A) Gripping the pole at its midpoint only B) Aligning the pole’s center of gravity over the claws and tightening the clamping mechanism C) Using a single claw to hold the pole D) Swinging the pole freely before placement Answer: B Explanation: Centering the pole’s CG over the claws and securing the clamp prevents slippage during lifting. Question 35. When using the winch to lift a load, the recommended drum wrap technique is: A) Wrap the rope in a single layer only B) Alternate the direction of each wrap to distribute wear C) Overlap each wrap by at least 1 in to prevent slippage D) Use a “figure-eight” pattern for maximum strength Answer: C
Program NCCCOAMP Ultimate Exam
Explanation: Overlapping each wrap ensures the rope does not slip and distributes load evenly across the drum. Question 36. Personnel platforms on a digger derrick must be equipped with which safety feature? A) A built-in coffee maker B) A fall-arrest harness attachment point C) A decorative flag D) A television screen Answer: B Explanation: Fall-arrest systems are mandatory to protect workers elevated on a platform. **Question 37. In a “Pick and Carry” operation, what is the primary safety concern? ** A) The color of the load B) The speed of travel while carrying the load C) The type of fuel used by the derrick D) The brand of the winch drum Answer: B Explanation: Carrying a load while moving increases dynamic forces; speed must be limited to maintain stability. Question 38. To prepare a digger derrick for highway travel, which component must be secured? A) The hydraulic fluid reservoir
Program NCCCOAMP Ultimate Exam
Question 41. A wire rope’s “bird-caging” condition is identified by: A) Uniform tension along the rope B) A series of short, tight loops resembling a bird’s cage C) A smooth, glossy surface D) A change in rope color Answer: B Explanation: Bird-caging appears as small, tight loops that reduce rope strength and must be removed. Question 42. Which hydraulic fluid characteristic is most important for digger derrick performance in cold climates? A) High viscosity index to maintain flow at low temperatures B. Bright color for easy identification C. Low flash point for safety D. High boiling point for hot climates Answer: A Explanation: A high viscosity index ensures the fluid remains fluid enough to circulate in cold weather, preventing pump damage. Question 43. The “load chart radius” is measured from which point? A) The center of the jib boom tip B) The center of the hydraulic cylinder C) The center of rotation of the superstructure (slew axis) D) The outer edge of the outrigger pad Answer: C
Program NCCCOAMP Ultimate Exam
Explanation: Radius is the horizontal distance from the slew axis to the load’s point of attachment. Question 44. When using a chain sling, the recommended minimum number of links to be included in the working length is: A) 2 links B) 4 links C) 6 links D) 8 links Answer: B Explanation: At least four links ensure the chain’s working length is free from the eye, reducing stress concentrations. Question 45. Which of the following best describes “dynamic loading”? A) A static load that never changes B) Load variations caused by sudden starts, stops, or swinging motions C) The weight of the equipment itself D) The load shown on the load chart Answer: B Explanation: Dynamic loading includes forces from acceleration, deceleration, and load movement, affecting stability. Question 46. The purpose of a “leveling indicator” on a digger derrick is to: A) Display hydraulic pressure B) Show the boom’s angle relative to the ground C) Indicate battery charge level
Program NCCCOAMP Ultimate Exam
A) Only the weight of the load B) The load plus the weight of the boom, jib, and any attachments C) The load minus the weight of the equipment D. The weight of the operator only Answer: B Explanation: Gross capacity is the total weight the machine can lift, including its own structural components. Question 50. Which of the following is NOT a recommended practice when using a synthetic rope for hoisting? A) Storing the rope away from direct sunlight B) Inspecting for UV damage before each use C) Using the rope in temperatures below its minimum rating D) Lubricating the rope with oil before winding Answer: D Explanation: Oil can degrade synthetic fibers; lubricants are not recommended for synthetic rope. Question 51. When a load is being lifted with the boom at a 45° angle, the capacity is generally: A) Higher than at 0° (horizontal) B) The same as at any angle C) Lower than at 0° due to increased moment arm D) Unaffected by boom angle Answer: C Explanation: A 45° angle creates a larger lever arm, reducing the allowable load.
Program NCCCOAMP Ultimate Exam
Question 52. The “minimum approach distance” for a 50 kV overhead line is: A) 10 ft B) 15 ft C) 20 ft D) 25 ft Answer: C Explanation: OSHA and utility guidelines increase the clearance distance as voltage rises; 20 ft is standard for 50 kV. Question 53. Which of the following is a primary function of the pole claw’s hydraulic lock? A) To rotate the pole automatically B) To maintain grip on the pole when hydraulic pressure is lost C) To adjust the pole’s length D. To change the pole’s color Answer: B Explanation: The hydraulic lock prevents the pole from dropping if pressure fails. Question 54. During a “drift” of a hydraulic cylinder, the most likely cause is: A) Over-filling the hydraulic reservoir B. Air entering the cylinder causing slow movement C. Excessive load on the boom D. Incorrect tire pressure Answer: B
